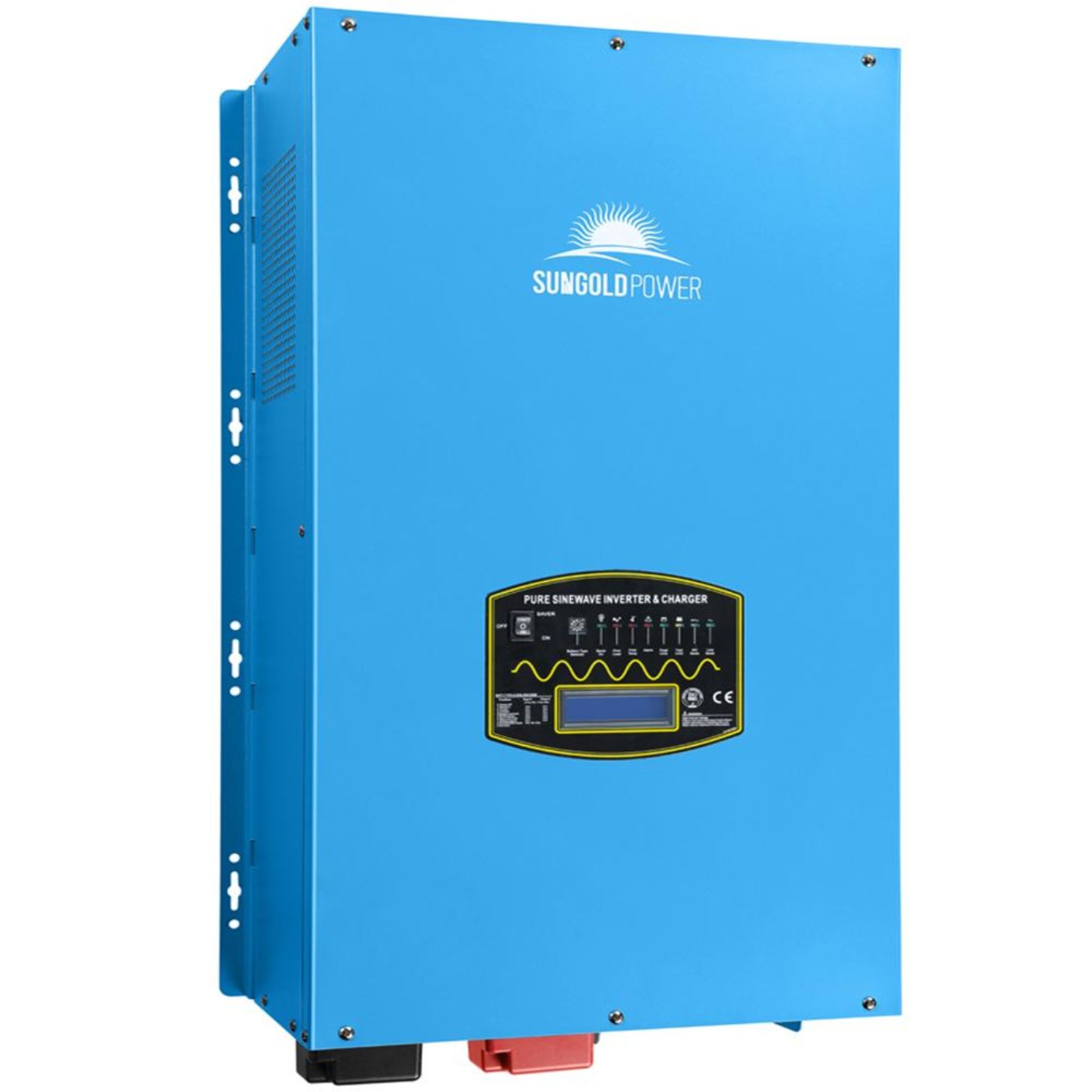

10000W 24V Split Phase Pure Sine Wave Inverter Charger - LFPV10K24V240VSP

"Integrity Is Long-lasting, Mutual Benefit And Win-win Cooperation" Is The Sun gold power Business Philosophy And Long-term Development Goals.

Product Highlight:

• ★ LF-PV Series Pure Sine Wave Inverter is a combination of a 10000-watt inverter, AC charger, and Auto-transfer switch into one complete system.
• ★ The split-phase inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.
• ★ AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.
• ★ Features: Smart Remote Control, Automatic Generator Starting (AGS), Suitable for different kinds of batteries.
• ★ Application: for all kinds of loads: refrigerators, freezers, microwaves, dryers, air conditioners, pumps, and all the big home and business applications.

See Features below:

• 10KW split phase pure sine inverter charger DC 24V AC 240V input AC output 120V/240V

• Auto Generator Start (AGS)

• Support Solar Panel with MPPT Function

• Include Battery Temperature Sensor (BTS) and Remote Control

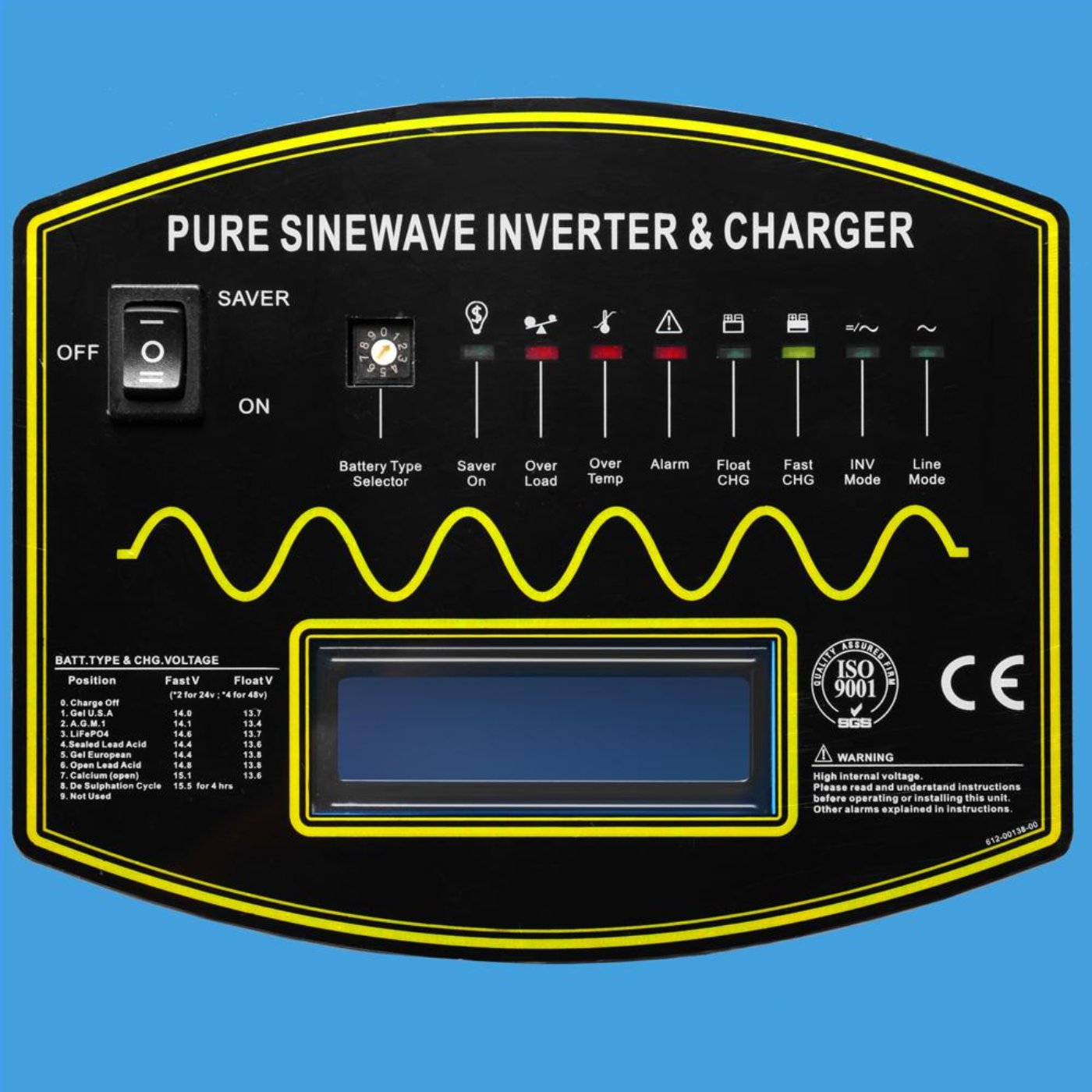

• 8 kinds of battery voltage selection ( lithium LiFePO4, gel, AGM, and lead Acid batteries）

• Compatible With All kinds of Home & Office Appliances

• Powerful Charge Rate Up to 120Amp, Selectable From 0%-100%

• Built-in transfer switch and battery charge, backup, or off-grid power solutions

• AC/Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration

• 4-step Intelligent Battery Charging, PFC (Power Factor Correction) for Charger

• 8 ms Typical Transfer Time Between Utility & Battery, Ensure Power Continuity

• 15s Delay Before Transfer when AC Recover, Protection for Load when Used with Generator

Specification

Main Specification：

• Continuous Output Power:10.0KW
• Surge Rating(20s) :30.0KW
• Output Waveform: Pure Sine Wave
• AC Output Voltage: 120V and 240V
• AC Input Voltage:240V( not suitable for AC 120V input )
• DC Battery Voltage:24Vdc
• Solar charger Current:60Amp
• AC Battery charger:120±5Amp
• Output Frequency:50Hz /60Hz
• Typical transfer Time:10ms(Max)

DC Input:

• Nominal Input Voltage:24.0Vdc
• Minimum Start Voltage:20.0Vdc / 21.0Vdc
• Low Battery Alarm:21.0Vdc / 22.0Vdc
• Low Battery Trip:20.0Vdc / 21.0Vdc
• High Voltage Alarm:32.0Vdc
• Low Battery voltage recovery:31.0Vdc
• Power Saver on Idle Consumption: 35W
• Power Saver off Idle Power:150W

Charger :

• Output Voltage: Depends on battery type
• Battery Initial Voltage for Start-Up: 20-31.4V
• Over Charge Protection Shutdown:31.4V
• Charger Breaker: 80A
• Input Voltage Waveform: Pure Sine wave (Grid or Generator)
• AC input range:184-253Vac/140-270Vac
• Nominal Input Frequency :50Hz or 60Hz (Auto detect)

Solar Charger controller:(you can disable our solar controller, and connect with an external solar controller）

• Solar Input Voltage Range: 30-145Vdc
• Max.PV Open Circuit Array Voltage:145Vdc
• Rated Charge Current:60A
• Over Charge Disconnection: 29.6V
• Over Charge Recovery:27.2V
• Over Discharge Disconnection:21.6 V(default)
• Over Discharge Reconnection:24.6V

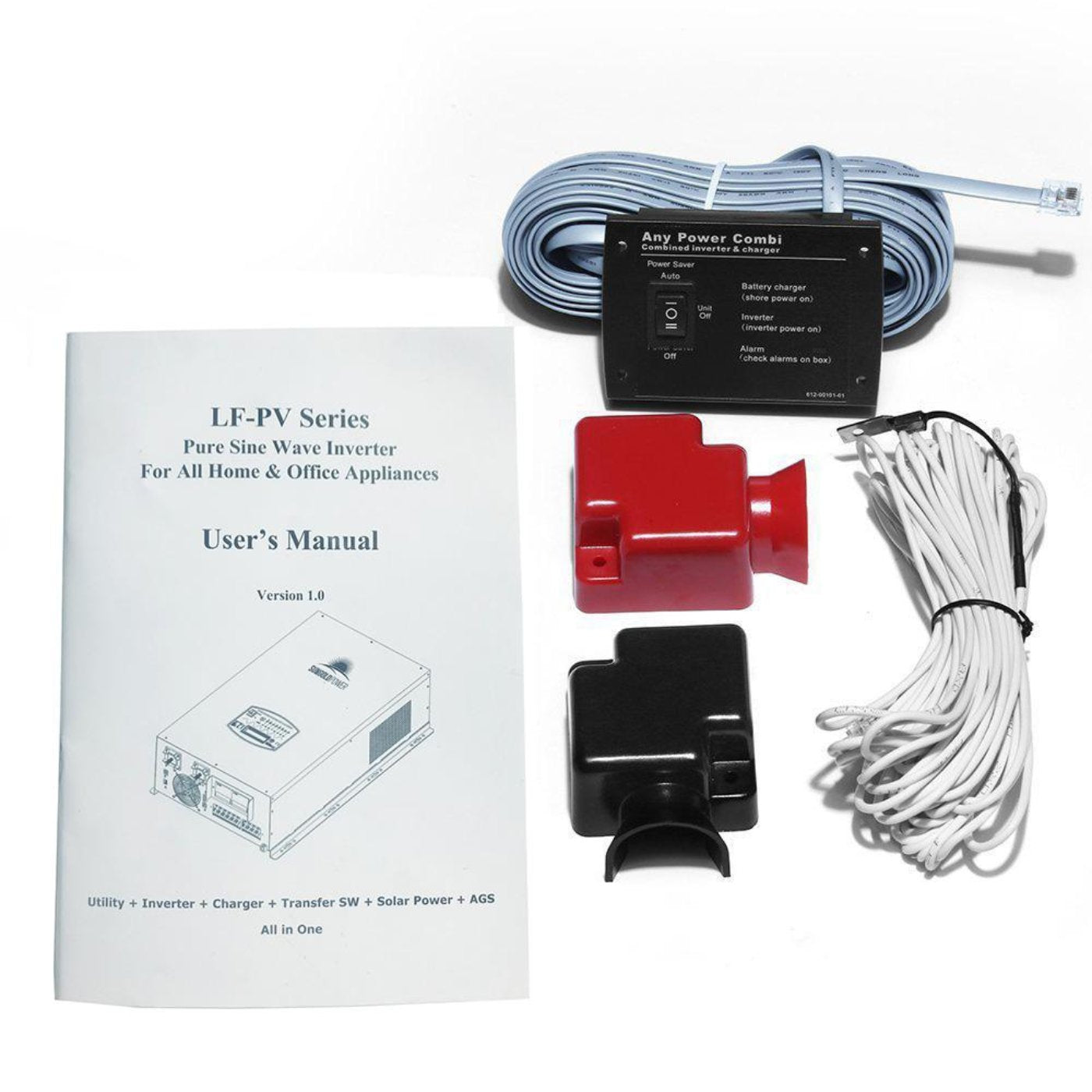

Packaging

• 10000W 24V Split Phase Pure Sine Wave Solar Power Inverter

• English Manual

• Remote Control

• BTS Cable

• Unit Weight: 145.5 LB

• Unit Size: 26.37 x 14.96 x 7.87 inch

• Shipping Weight: 175.2LB

• Shipping Size:  32.67 x 21.25 x 15.35 inch

Product Guide

LF-PV Series Pure Sine Wave Inverter User's Manual
