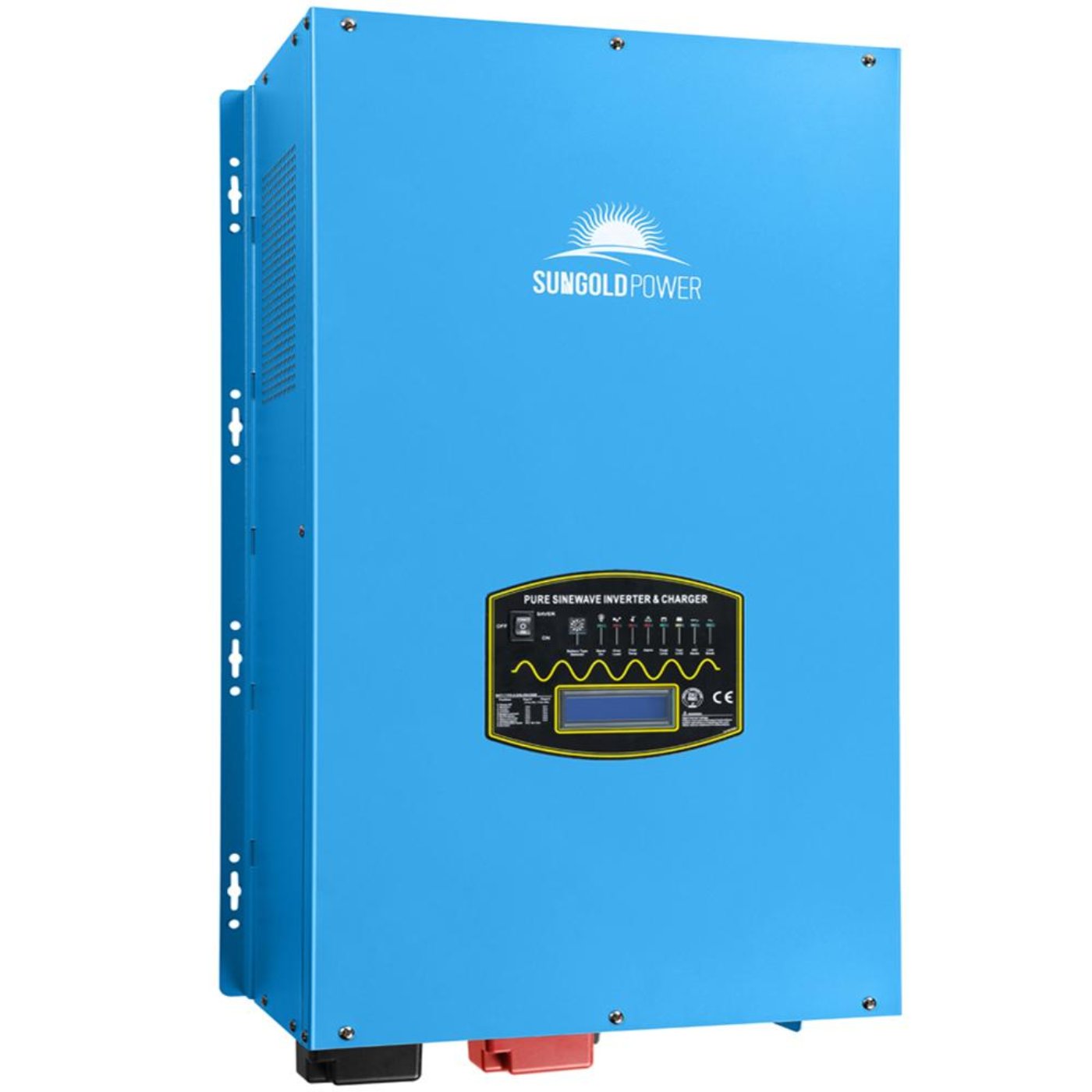

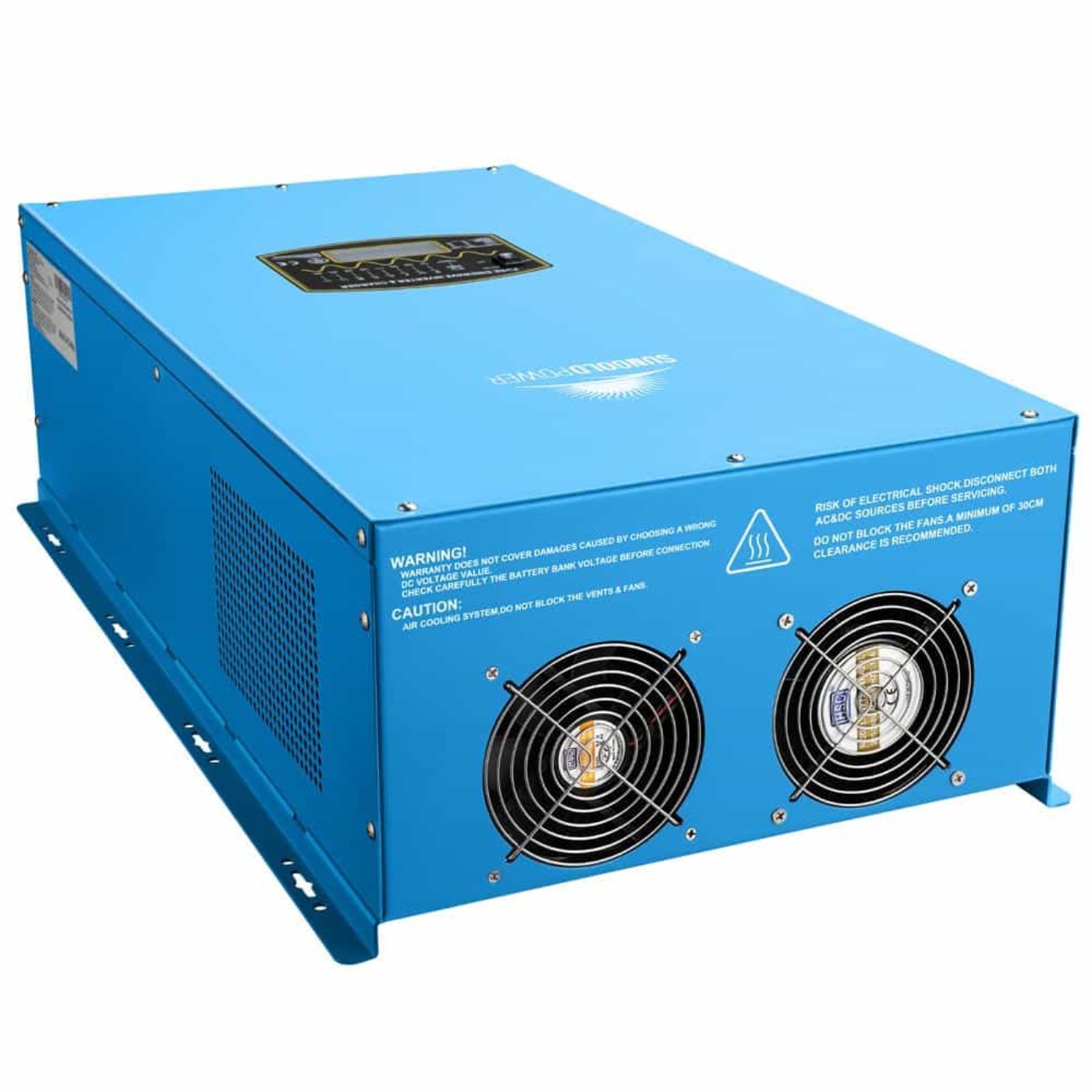

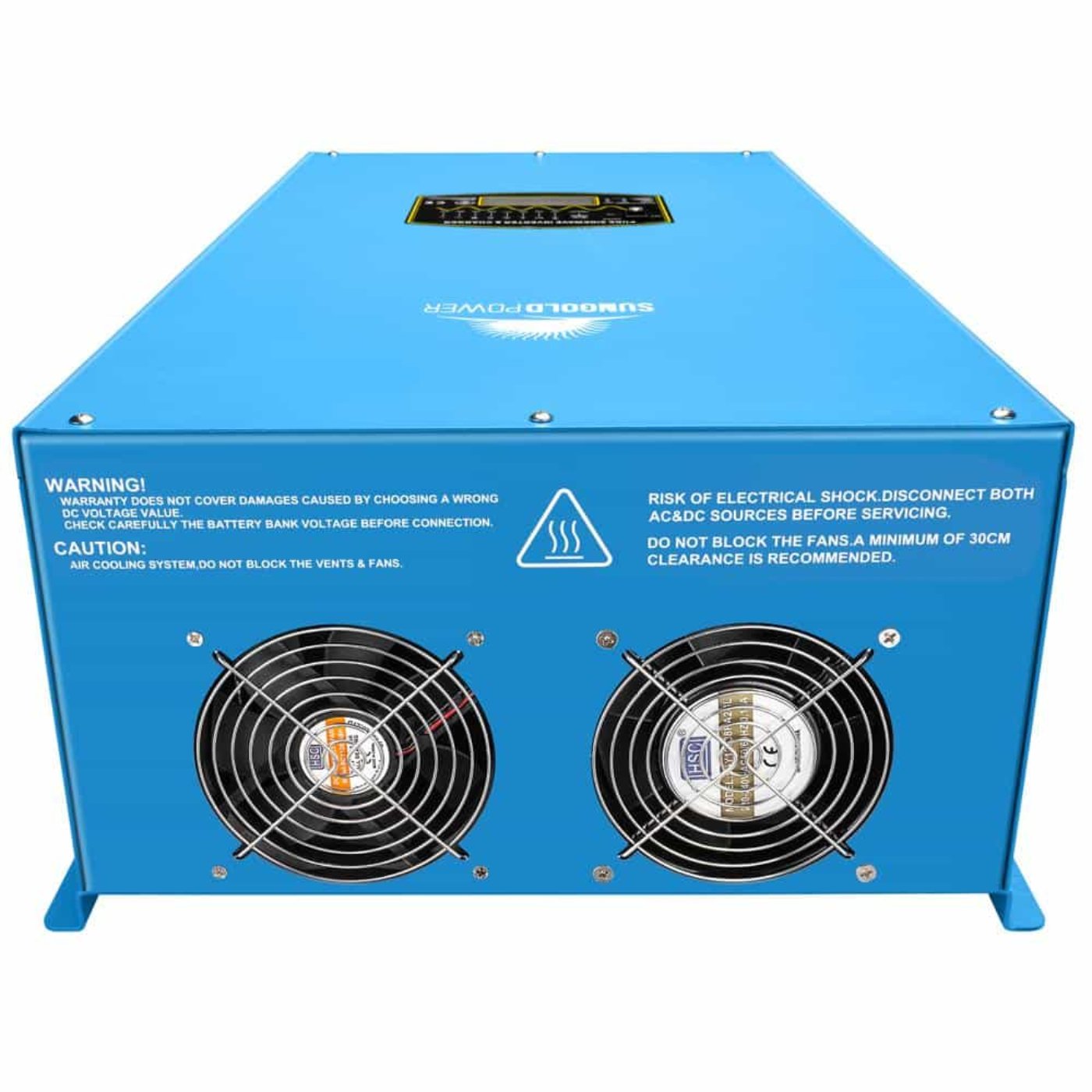

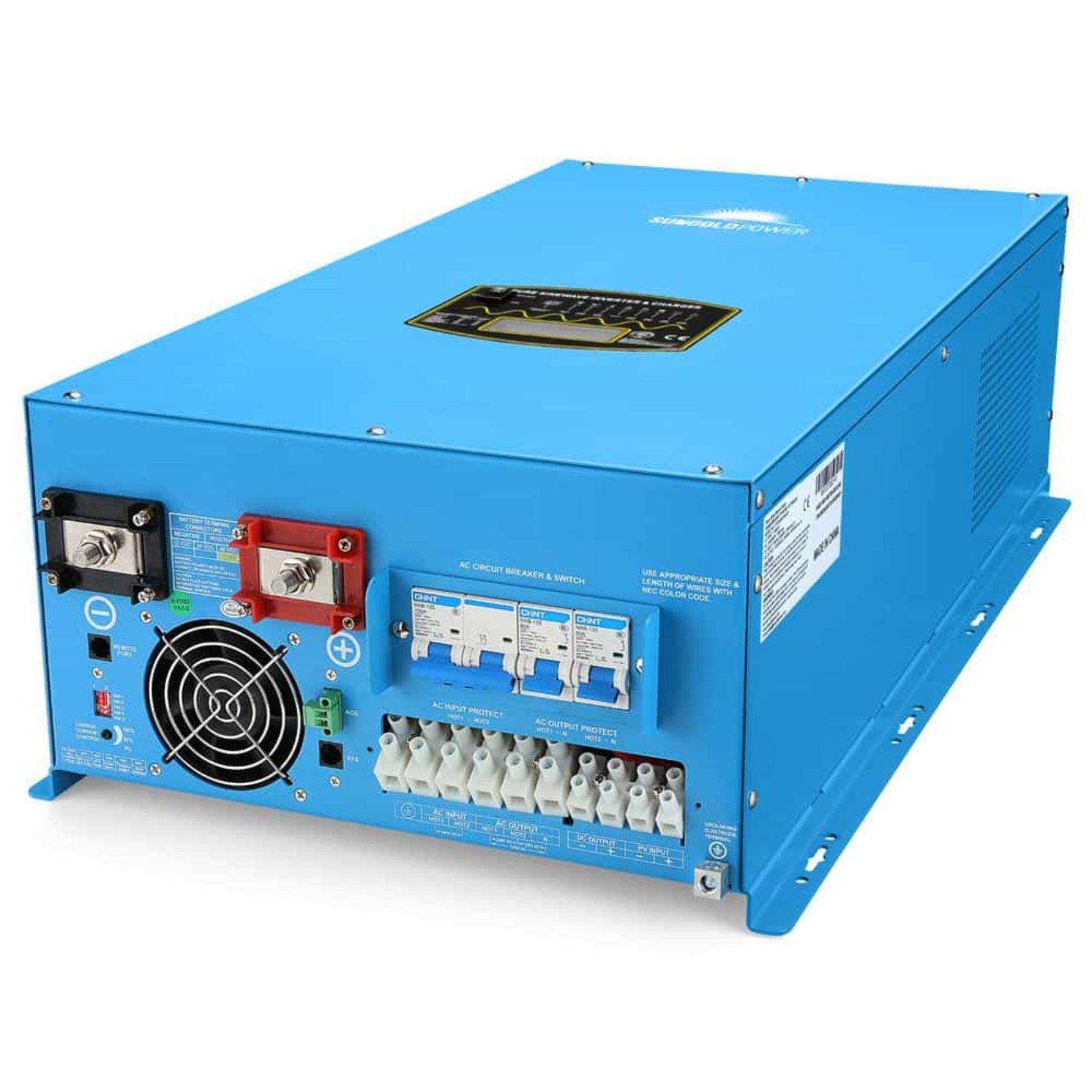

12000W 48V Split Phase Pure Sine Wave Inverter Charger - LFPV12K48V240VSP

"Integrity Is Long-lasting, Mutual Benefit And Win-win Cooperation" Is The Sungoldpower Business Philosophy And Long-term Development Goals.

Product Highlight:

• ★ LF-PV Series Pure Sine Wave Inverter is a combination of a 48-volt inverter, AC charger, and Auto-transfer switch into one complete system (without MPPT).

• ★ The split-phase inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.

• ★ AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.

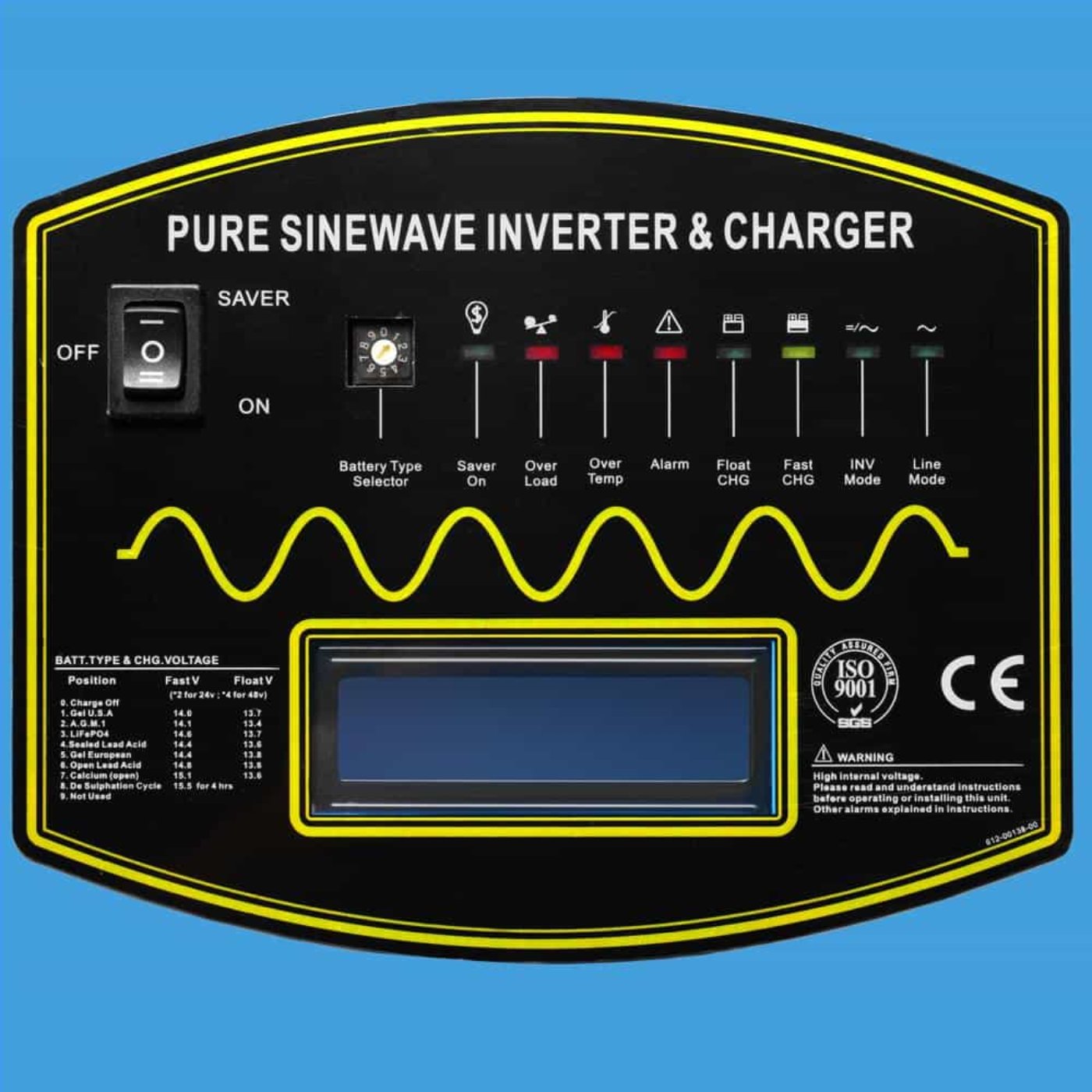

• ★ Features: Smart Remote Control, Automatic Generator Starting (AGS), Suitable for different kinds of batteries.

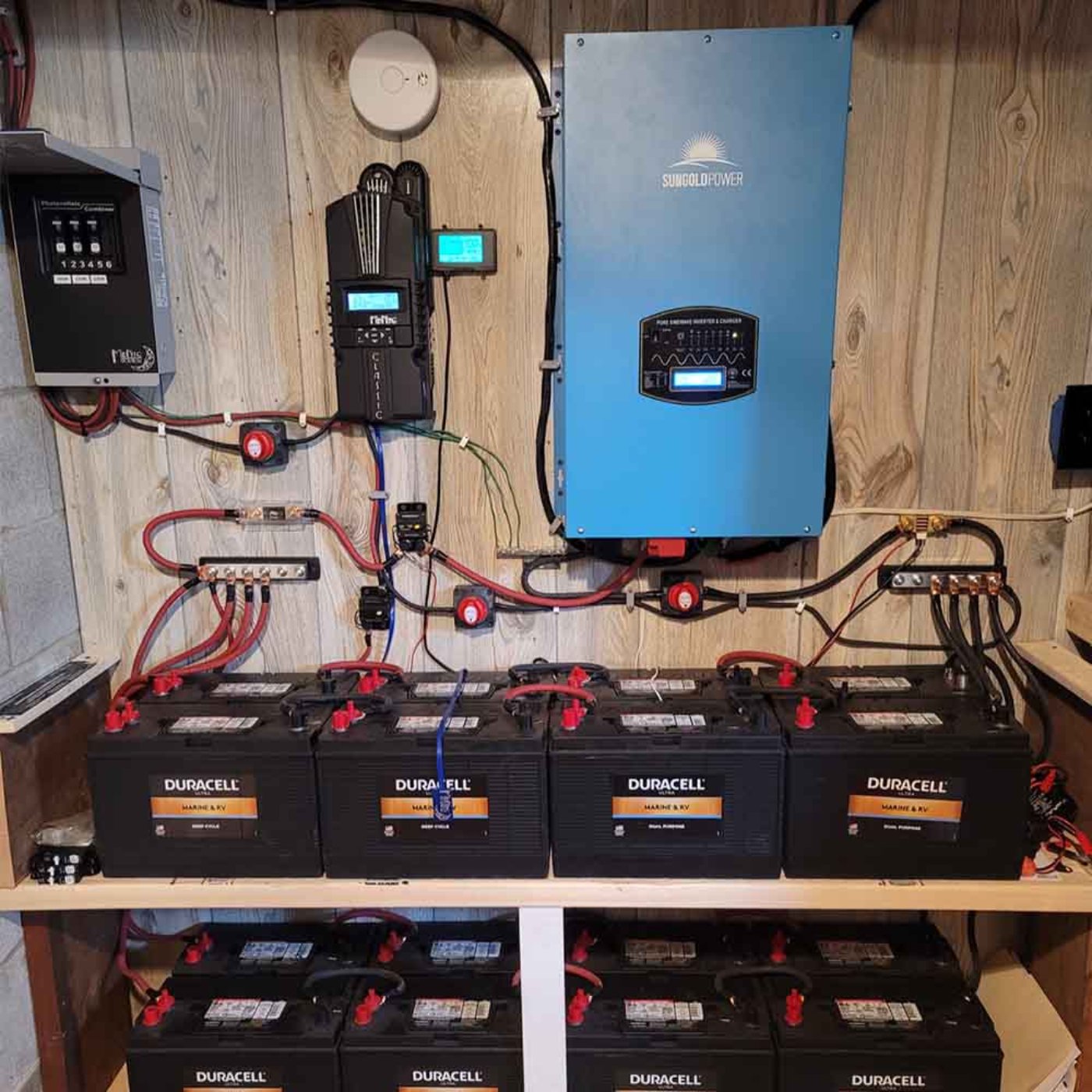

• ★ Application: for all kinds of loads: refrigerators, freezers, microwaves, dryers, air conditioners, pumps, and all the big home and business applications.

Specification

Main Specification：

• Continuous Output Power: 12.0KW
• Surge Rating(20s): 36.0KW
• Output Waveform: Pure Sine Wave
• AC Output Voltage: 120V and 240V
• AC Input Voltage: 240V ( not suitable for AC 120V input )
• DC Battery Voltage: 48Vdc
• Solar charger Current: 60Amp
• AC Battery charger: 120±5Amp
• Output Frequency: 50Hz /60Hz
• Typical transfer Time: 10ms(Max)

DC Input:

• Nominal Input Voltage: 48.0Vdc
• Minimum Start Voltage: 40.0Vdc/ 42.0Vdc
• Low Battery Alarm: 42.0Vdc / 44.0Vdc
• Low Battery Trip: 40.0Vdc / 42.0Vdc
• High Voltage Alarm: 64.0Vdc
• Low Battery voltage recovery: 62.0Vdc
• Power Saver on Idle Consumption: 40W
• Power Saver off Idle Power: 180W

Charger :

• Output Voltage: Depends on battery type
• Battery Initial Voltage for Start-Up: 40-62.8V
• Over Charge Protection Shutdown: 62.8V
• Charger Breaker: 80A
• Input Voltage Waveform: Sine wave (Grid or Generator)
• AC input range:184-253Vac/140-270Vac
• Nominal Input Frequency :50Hz or 60Hz (Auto detect)

Solar Charger controller:  (you can disable our solar controller, and connect with an external solar controller）

• Solar Input Voltage Range: 60-100Vdc
• Max.PV Open Circuit Array Voltage: 105Vdc
• Rated Charge Current: 60A
• Over Charge Disconnection: 59.2V
• Over Charge Recovery: 54.4V
• Over Discharge Disconnection: 43.2 V(default)
• Over Discharge Reconnection: 49.2V

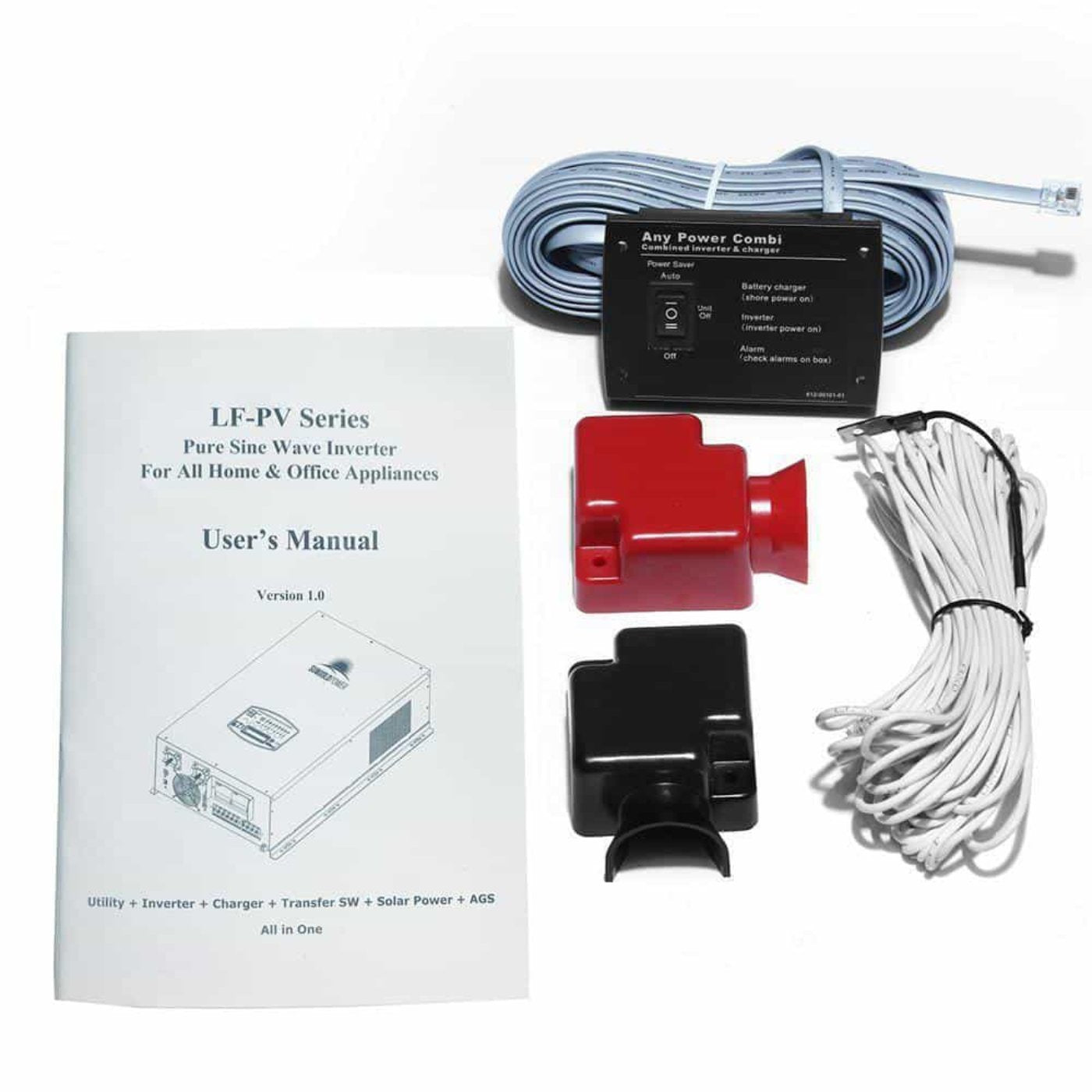

Packaging:

• 12000W 48V Split Phase Pure Sine Wave Solar Power Inverter
• English Manual
• Remote Control
• BTS Cable
• Unit Weight: 160 LB
• Unit Size: 26.37 x 14.96 x 7.87 inch
• Shipping Weight: 190 LB
• Shipping Size:  32.67 x 21.25 x 15.35 inch
