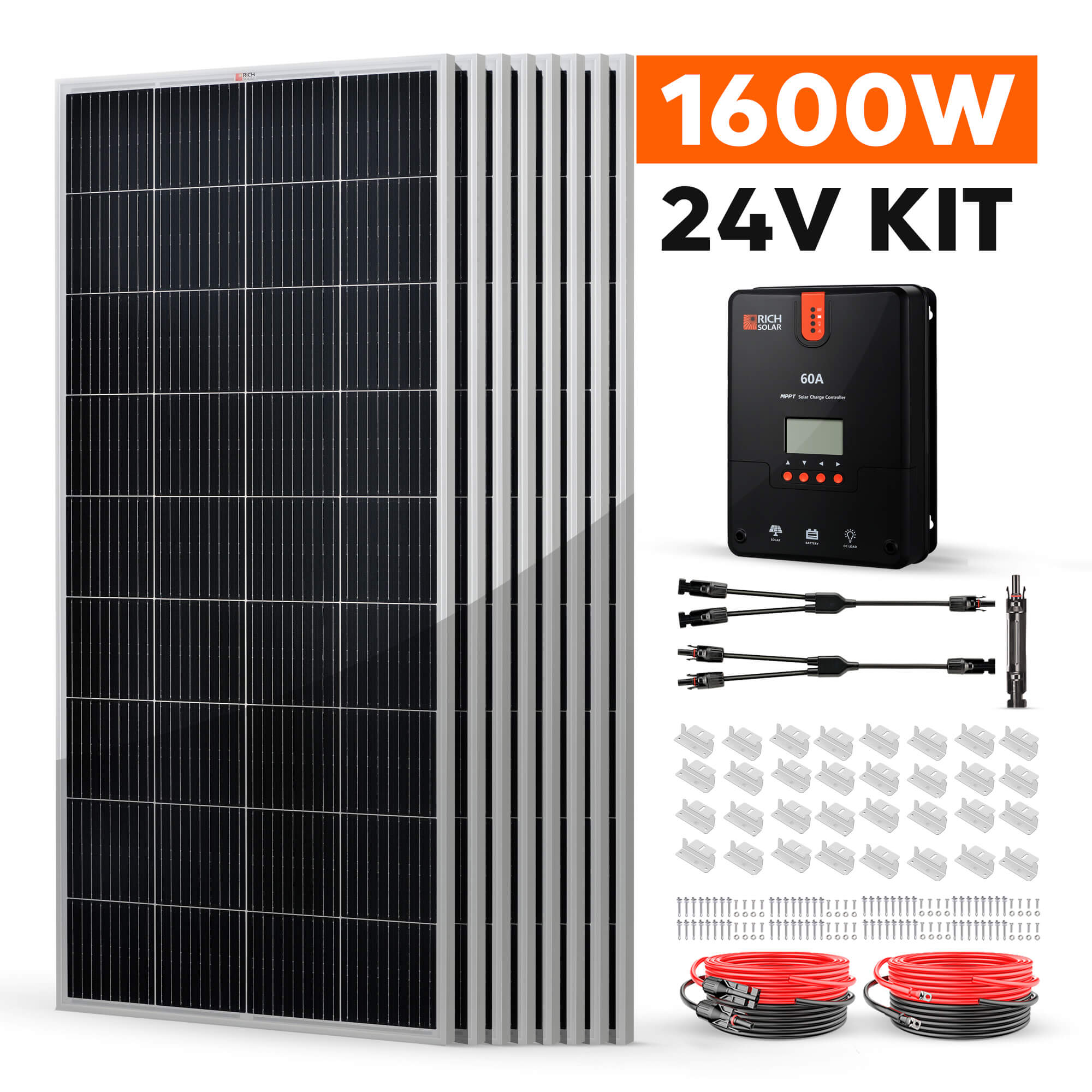

1600 Watt Solar Kit

1600 Watt Solar Kit

Our largest 24V kit contains 8 high-efficiency 200W Monocrystalline panels with 9 busbars and our 60A MPPT controller. This kit can be paired with a 400AH 24V battery bank and can power most off-grid applications. For a quieter, more peaceful outdoor experience, go solar now and start powering your RV, boat, or trailer!

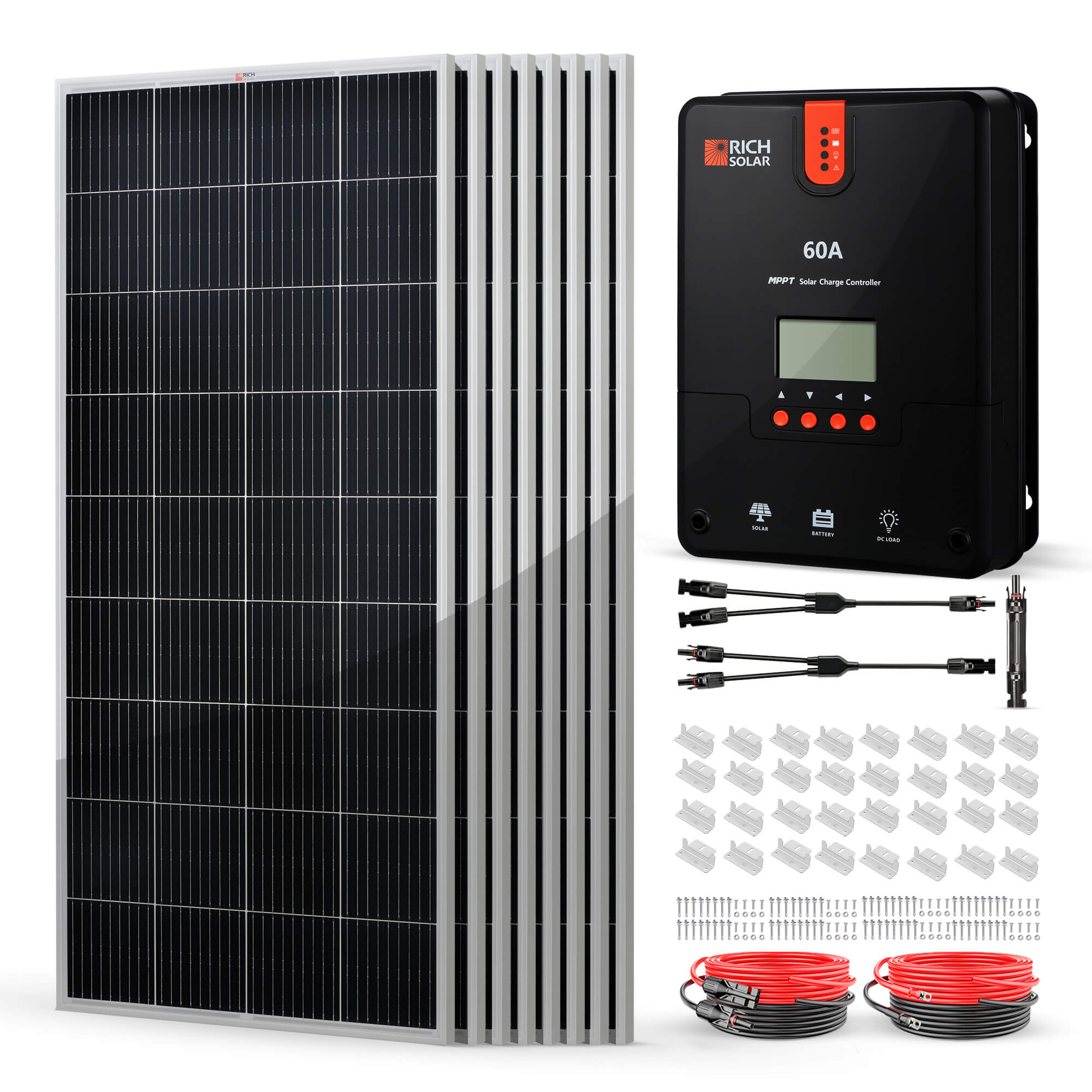

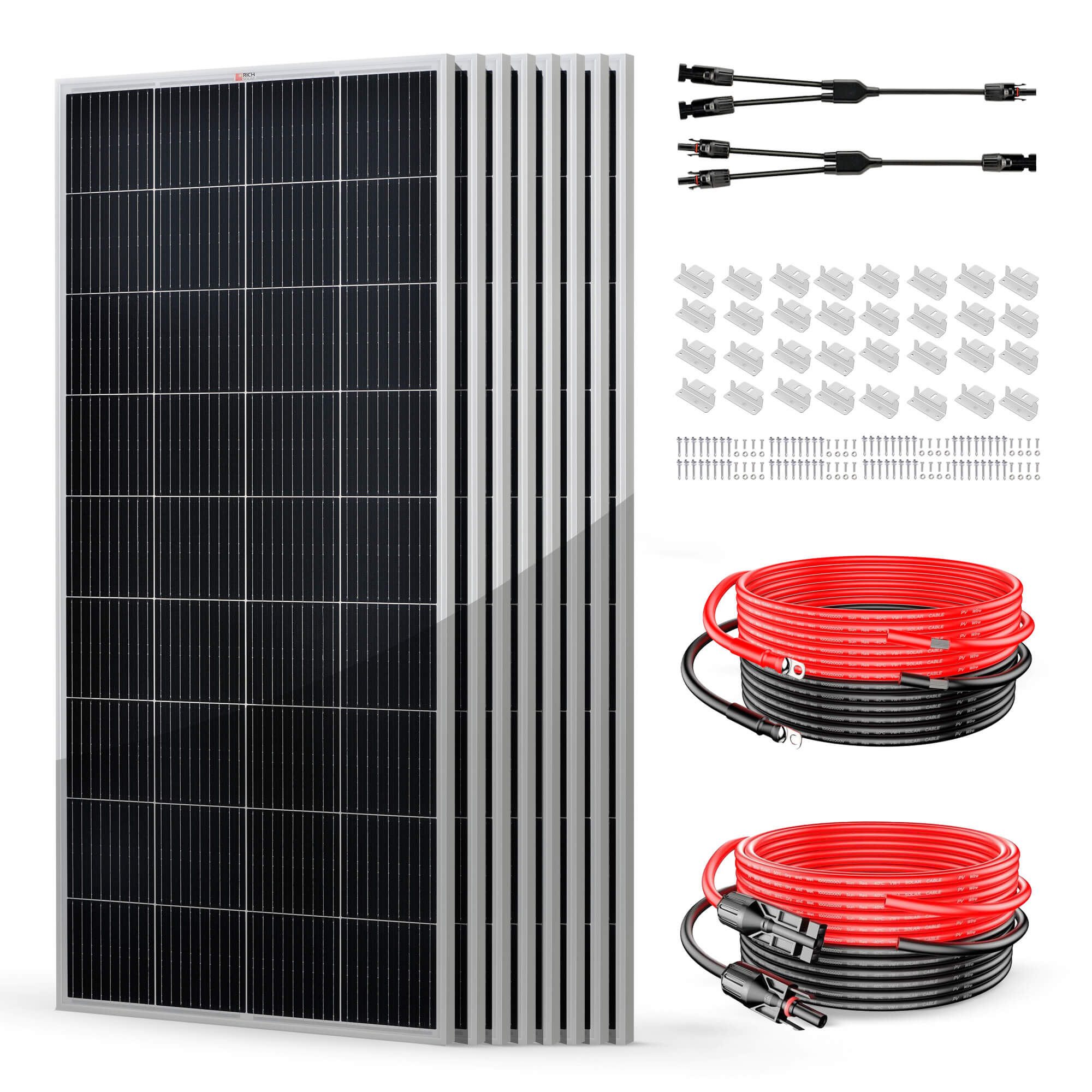

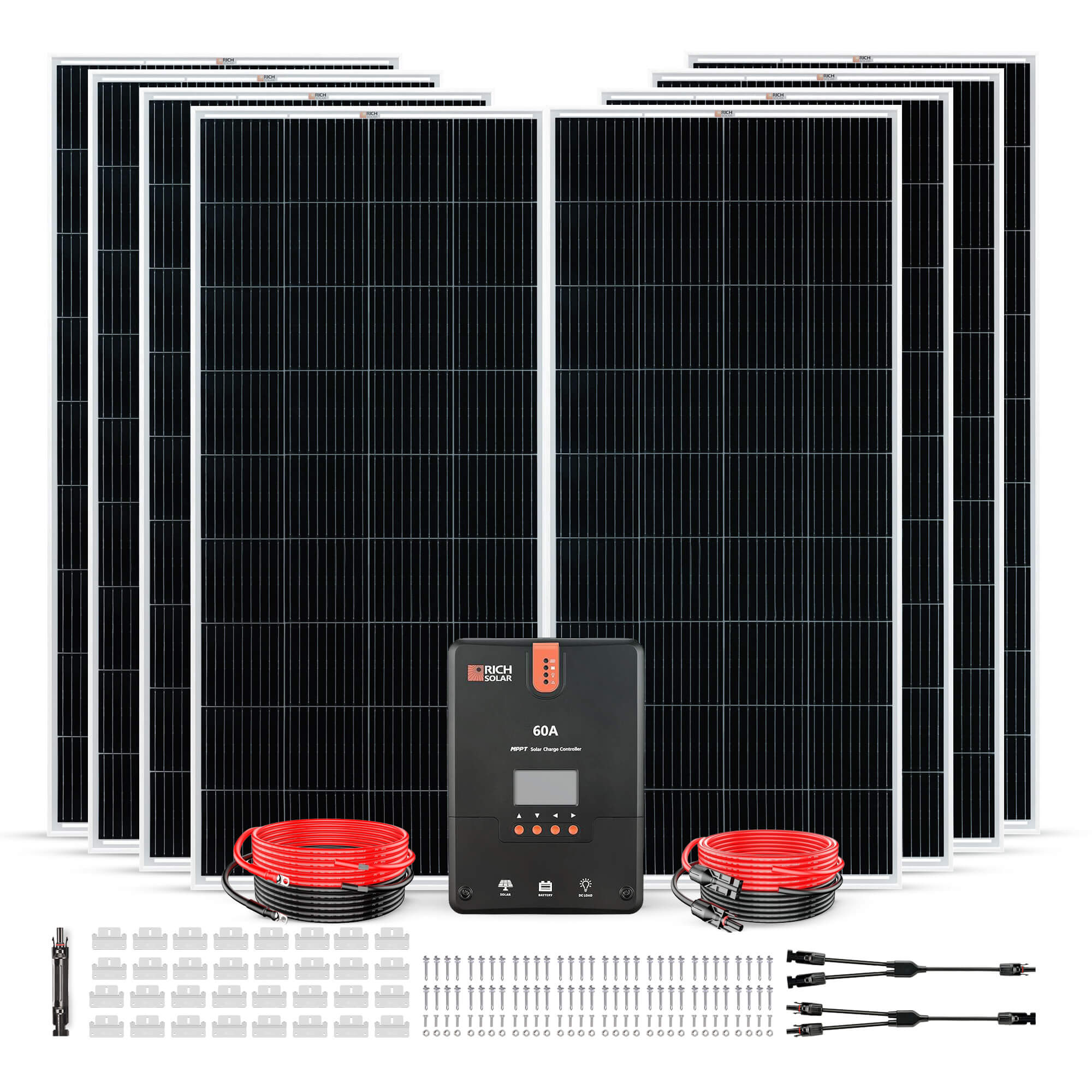

Package Includes
🗹 8 x 200 Watt Monocrystalline Solar Panel(RS-M200)
🗹 1 x 60A MPPT Solar Charge Controller(RS-MPPT60)
🗹 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller(RS-20101)
🗹 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
🗹 1 x 10' #4 Gauge Battery Cable (Red), connects the controller to the battery(RS-4A10F5)
🗹 1 x 10' #4 Gauge Battery Cable (Black), connects the controller to the battery(RS-4A10F5)
🗹 8 x Mounting Z Brackets (one set of 4) (RS-ZB4C)
🗹 1 x 30A Inline Fuse Holder with Fuse(RS-SC30F)
🗹 1 x Y Branch Parallel Adapters(RS-T2)

High-Efficiency Solar Panel
With the highest-grade monocrystalline solar cells for optimal output, our 200 watt panel is treated with an anti-reflective coating to maximize light absorption.

Simple Installation

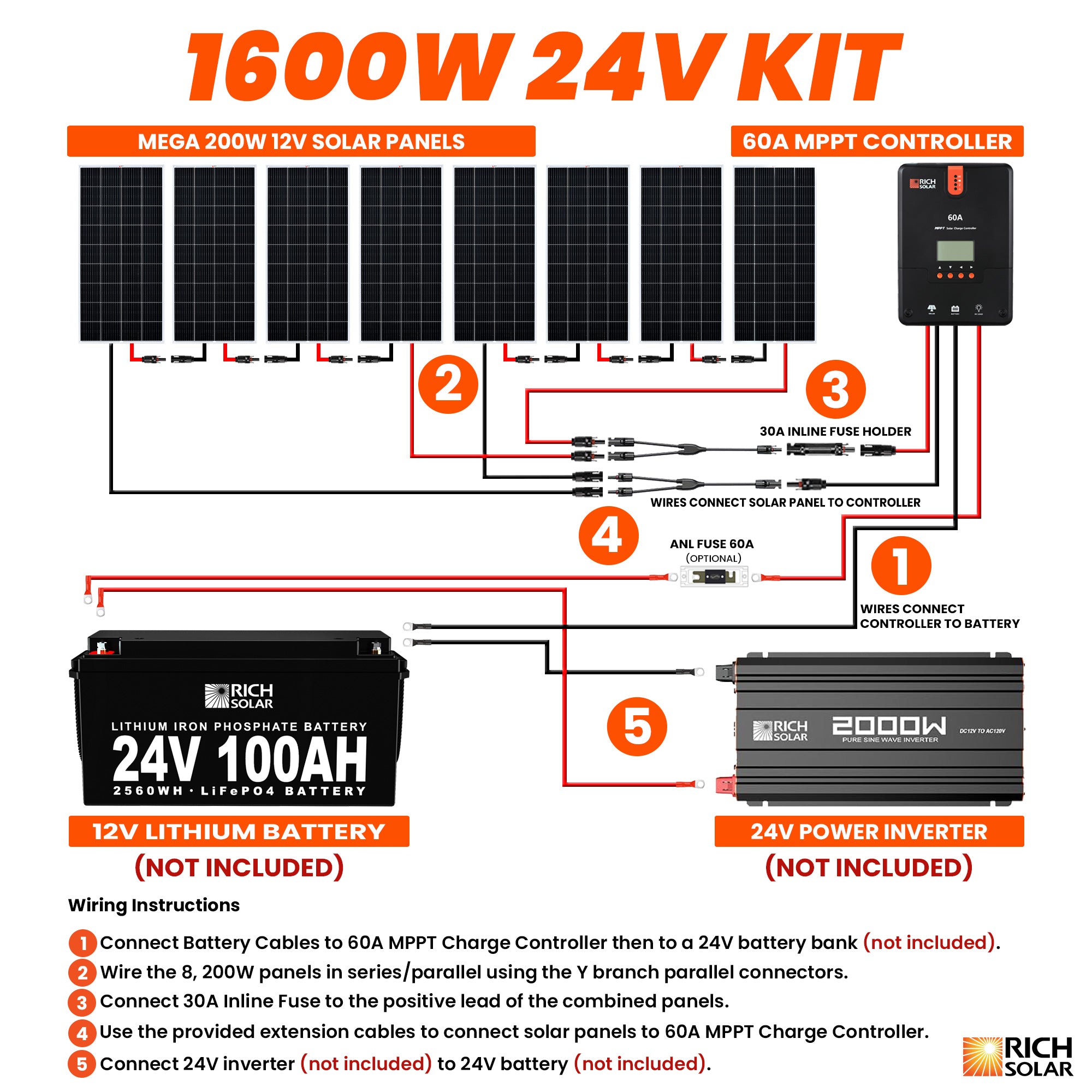

Installation is a breeze with our pre-assembled wiring harness that doesn’t require crimping tools. Since all of our products are compatible with each other, makes expansions, upgrades, or additions simple and easy… just plug in and go!

Specifications

• Maximum Power(Pmax): 200W
• Maximum Power Voltage(Vmp): 20.4V
• Maximum Power Current(Imp): 9.80A
• Open Circuit Voltage(Voc): 24.3V
• Short Circuit Current(Isc): 10.2A
• Weight: 26.5 lbs
• Dimensions: 58.7 x 26.8 x 1.4 in
• Warranty: 25 years output warranty
