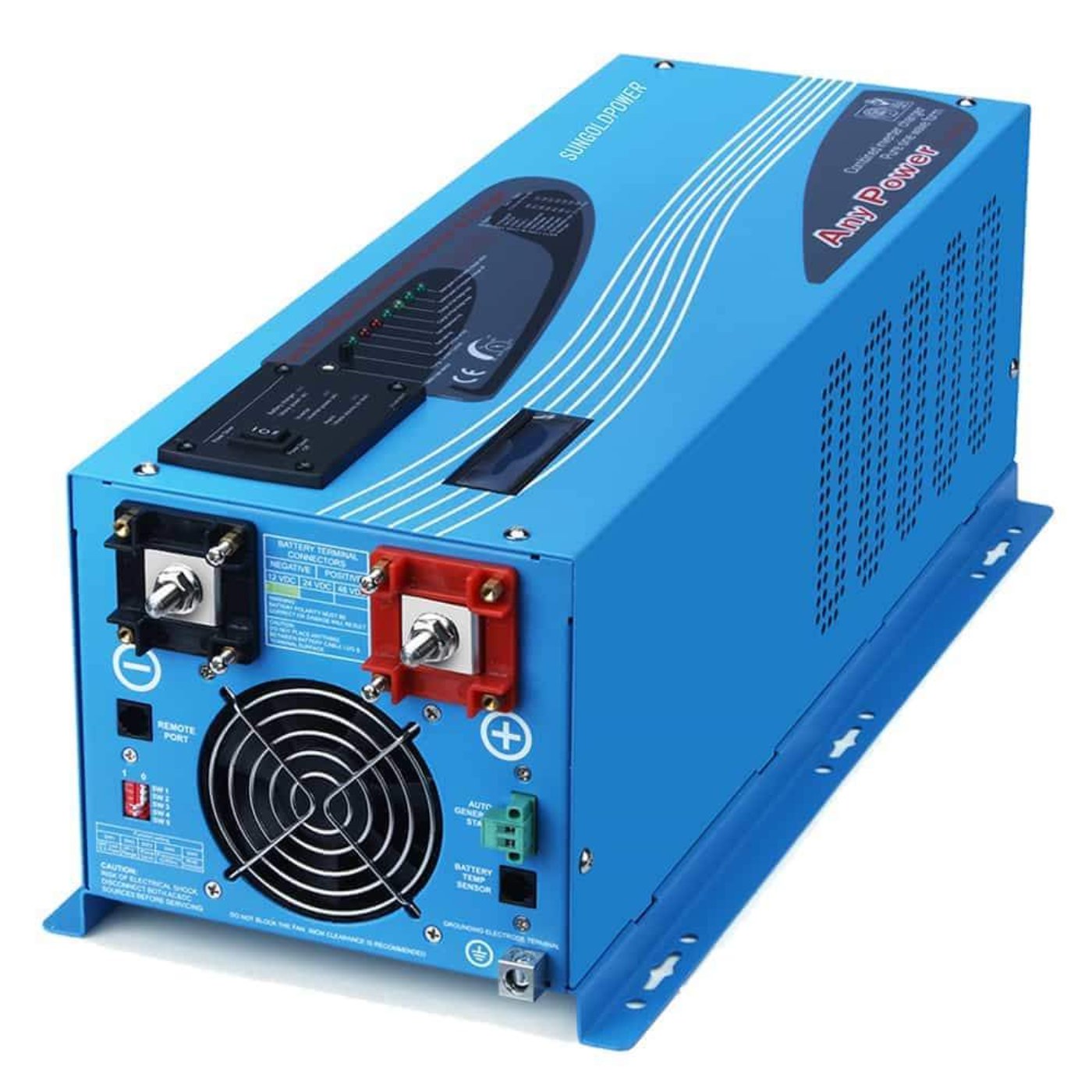

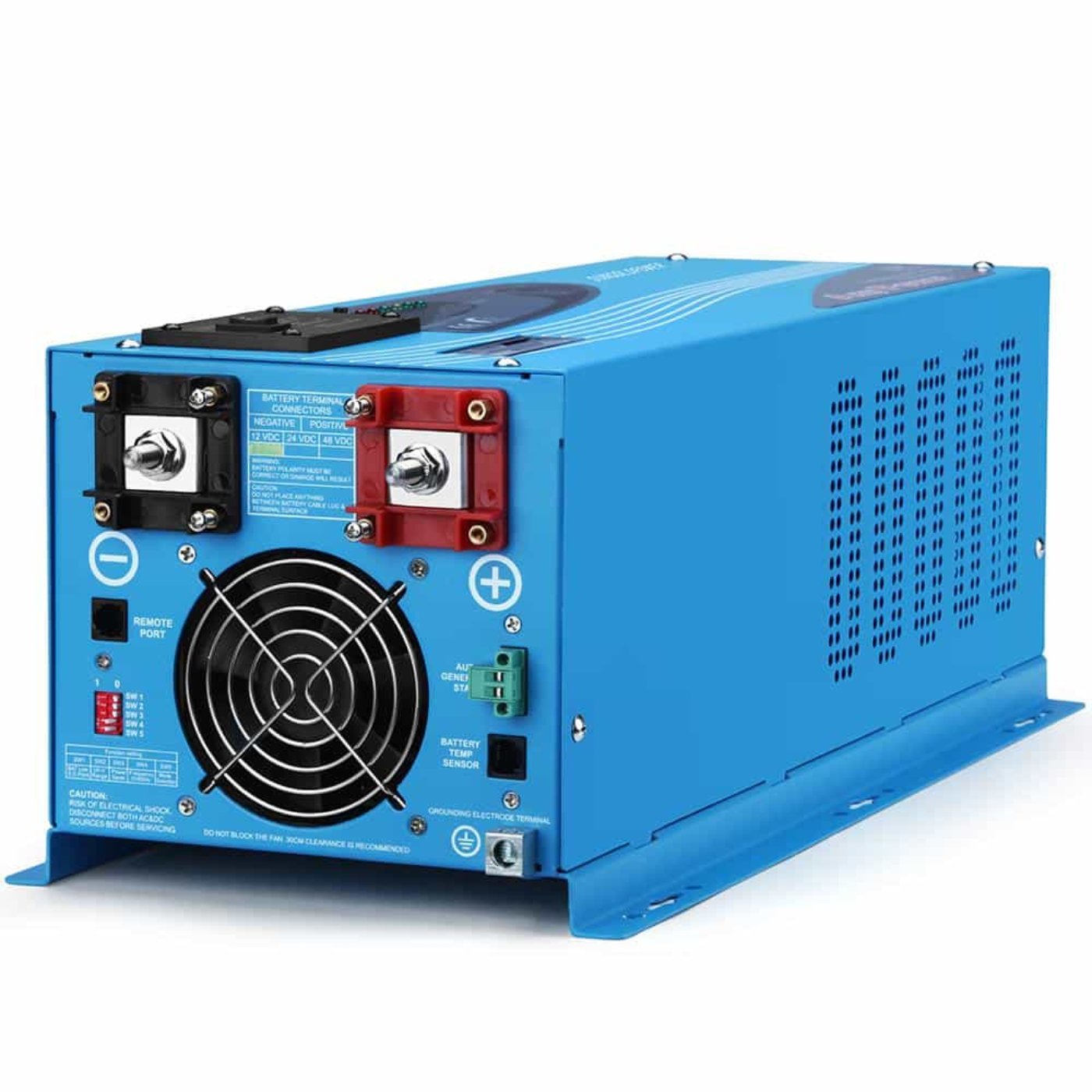

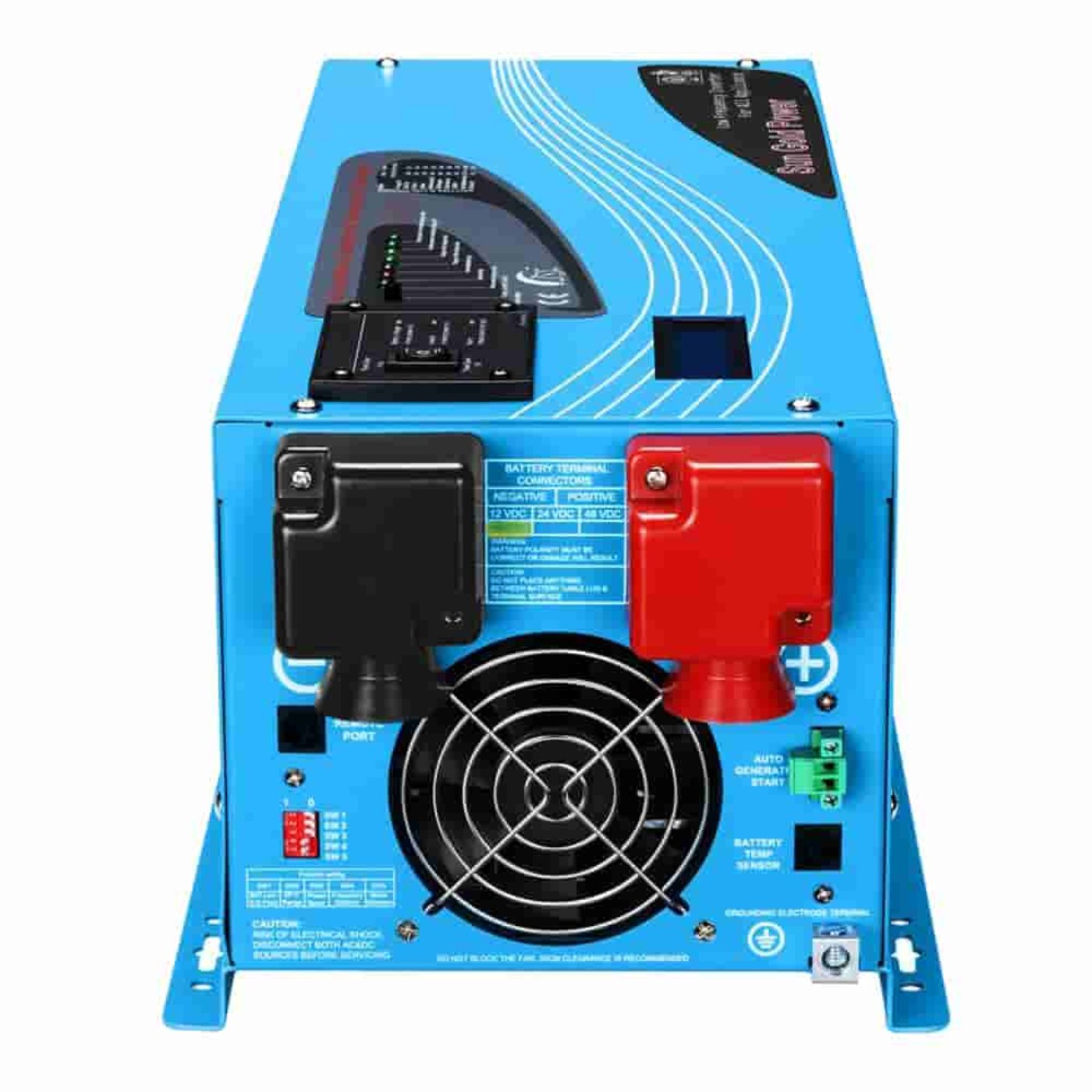

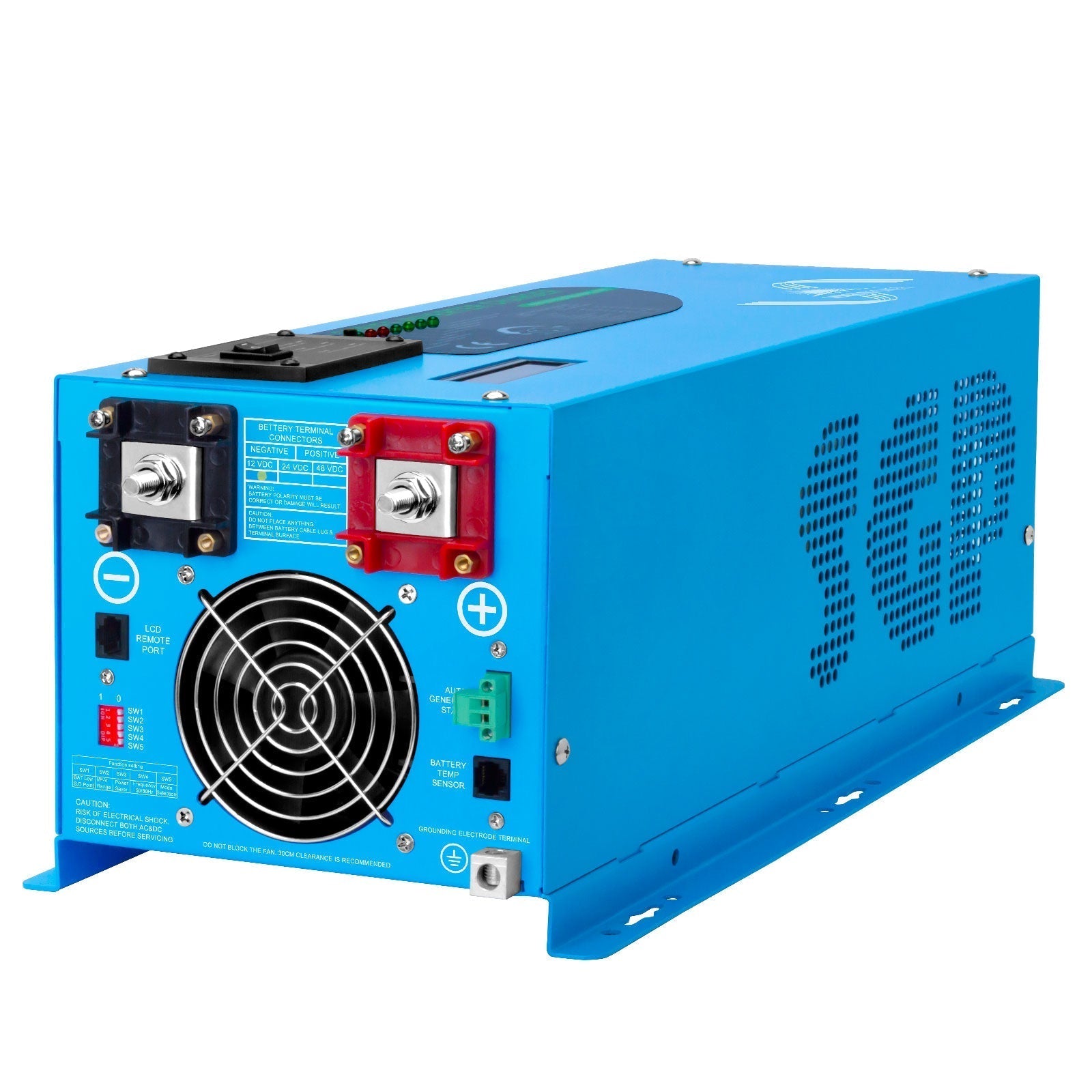

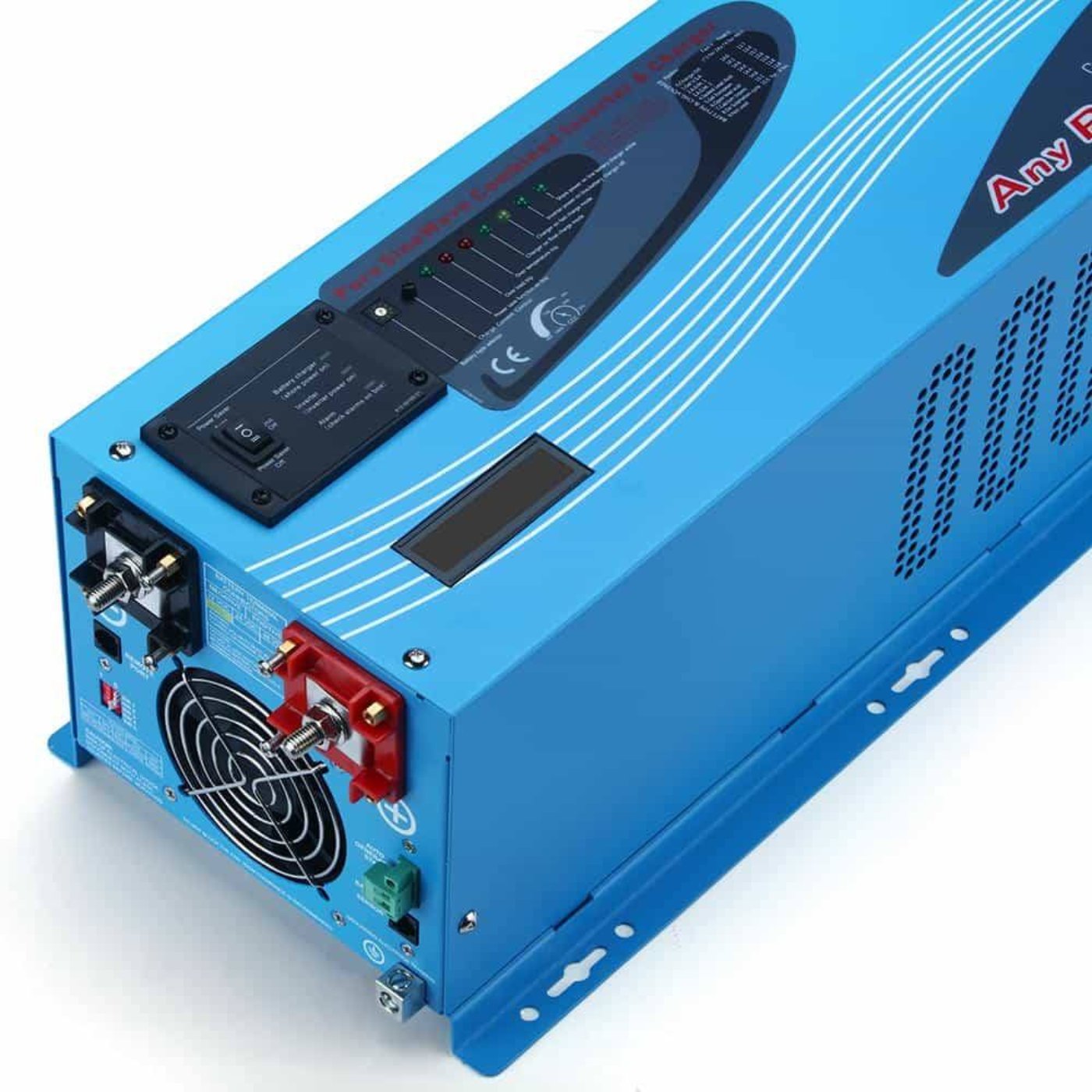

2000W DC 12V Pure Sine Wave Inverter With Charger - LFP2K12V120VSG

"Integrity Is Long-lasting, Mutual Benefit And Win-win Cooperation" Is The Sungoldpower Business Philosophy And Long-term Development Goals.

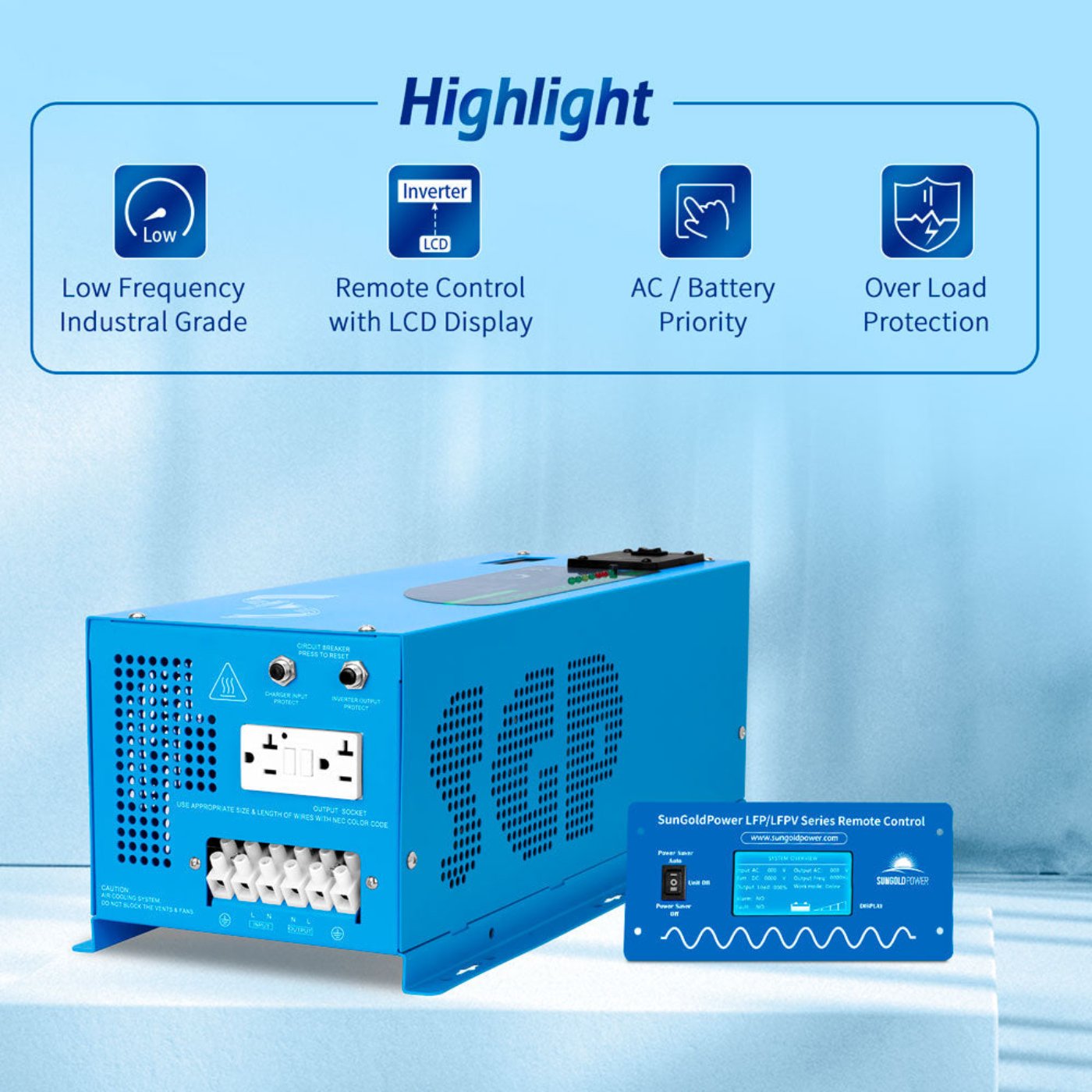

Product Highlight:

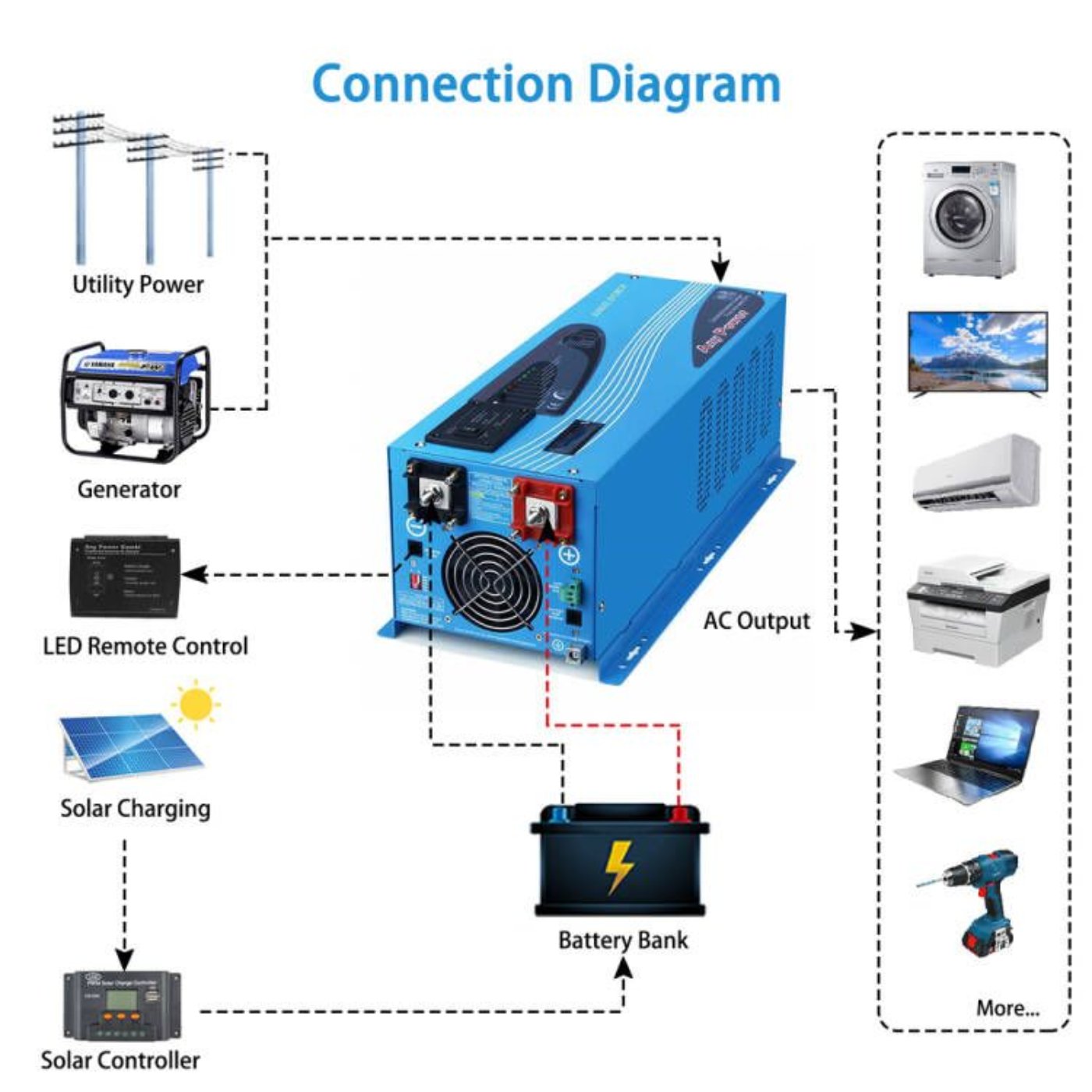

• ★ This LFP Series 2000 Watt Pure Sine Wave Inverter is a combination of an inverter, battery charger, and AC auto-transfer switch. Low frequency, low Idle Current, BTS cable, remote control.

• ★ This 2000-watt inverter requires 120VAC input and can provide 120VAC output power for the appliances, and it can output 50 or 60Hz via the SW4.

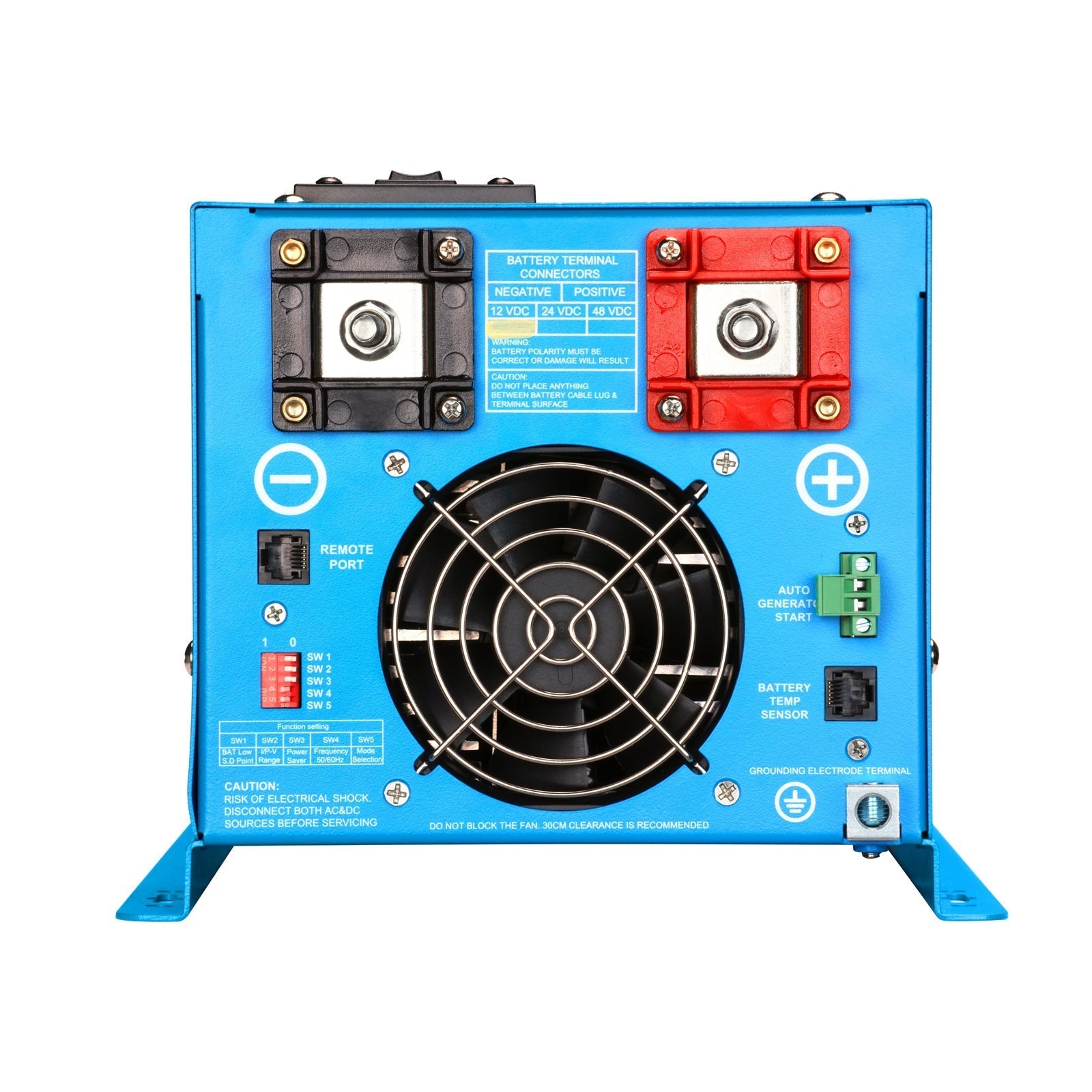

• ★ AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.

• ★ Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch.

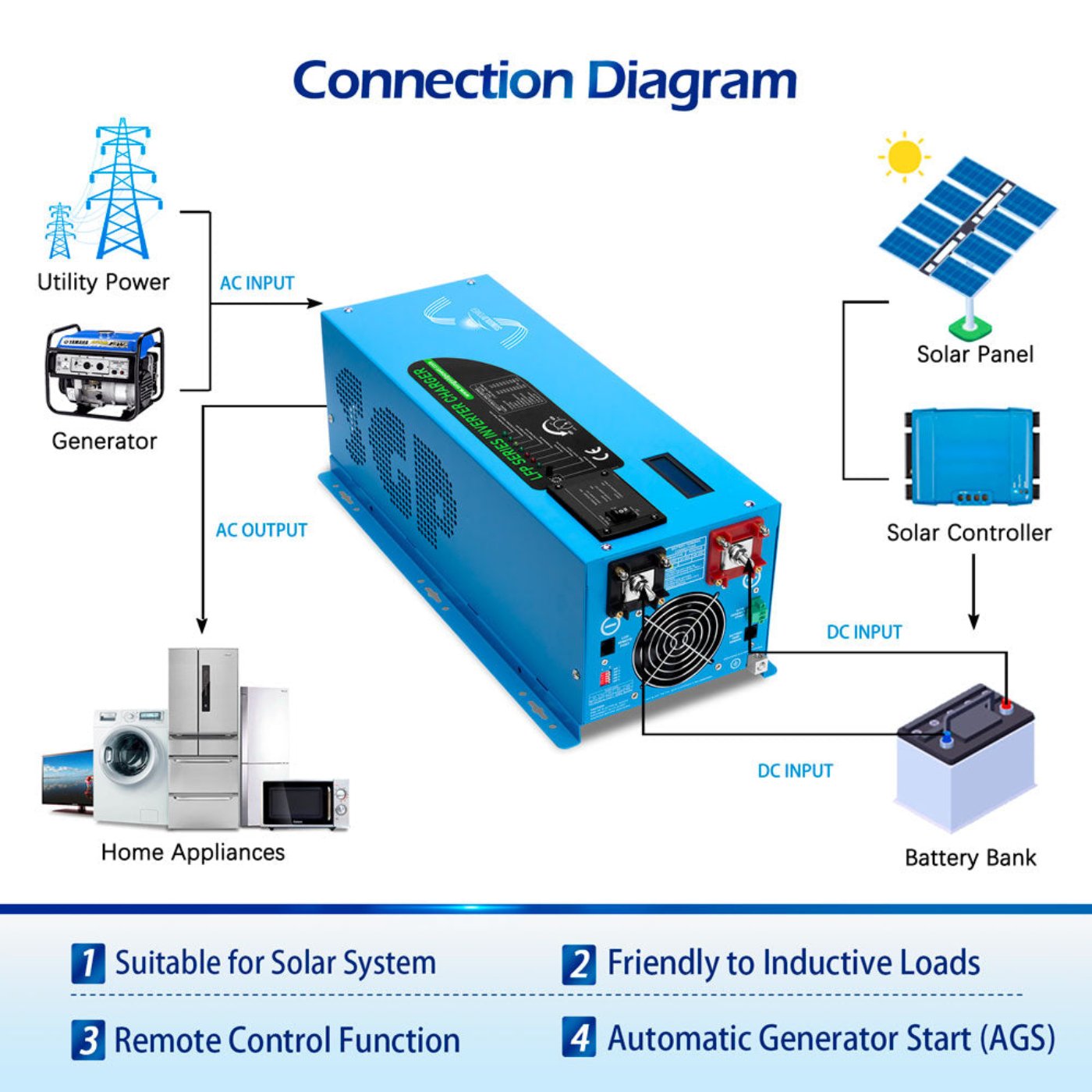

• ★ Auto Gen Start: The inverter can start up a generator when the battery voltage goes low, and turn the generator off after battery charging is finished.

See Features below:

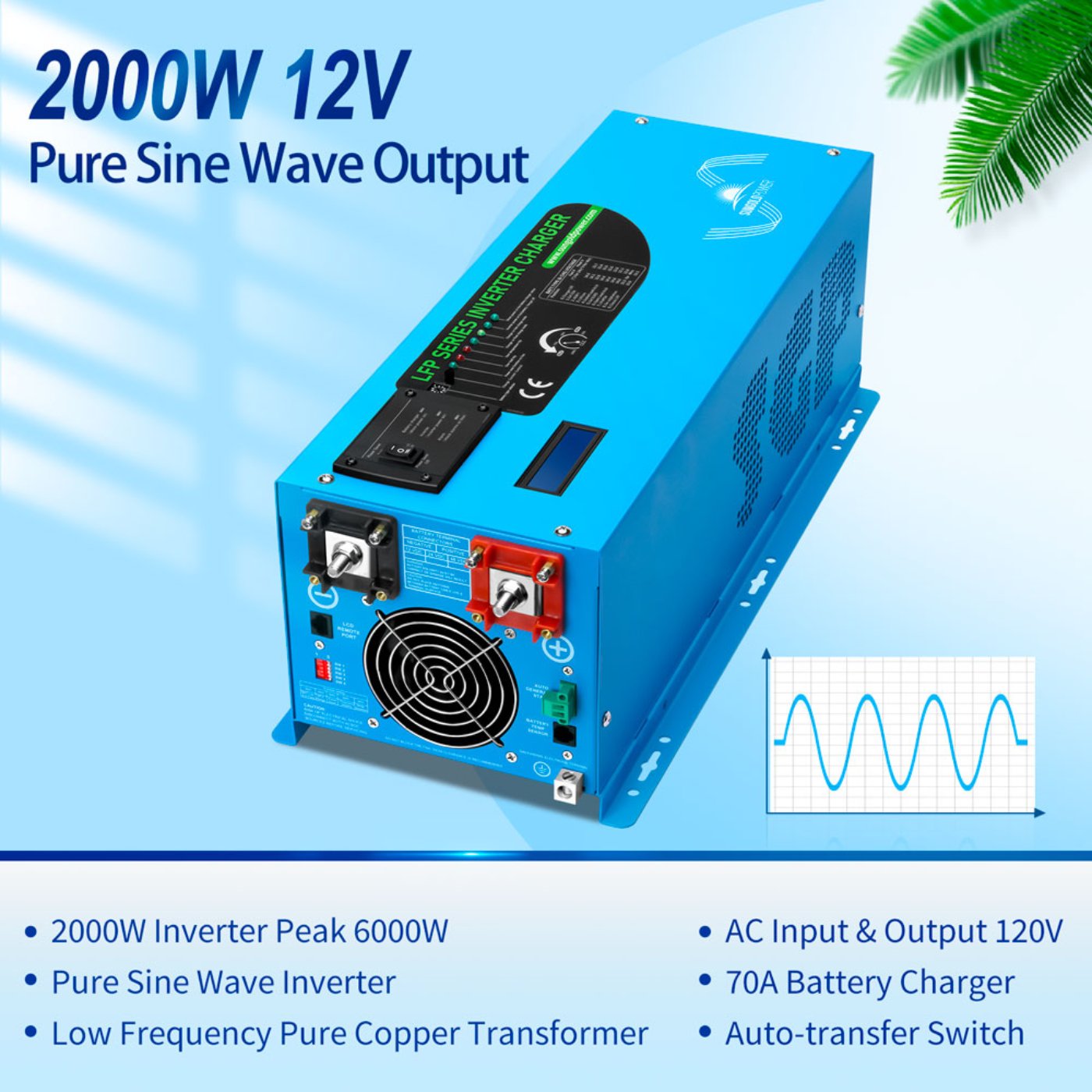

• 2000W LFP Low-Frequency Pure Sine Inverter With Charger.

• AC/Battery Priority Selector.

• Automatic Generator Start.

• GFCI Socket, Safety and Convenient.

• The low-frequency inverter can power all kinds of appliances.

• LCD Display, Remote Control, BTS including.

• Low Idle Consumption.

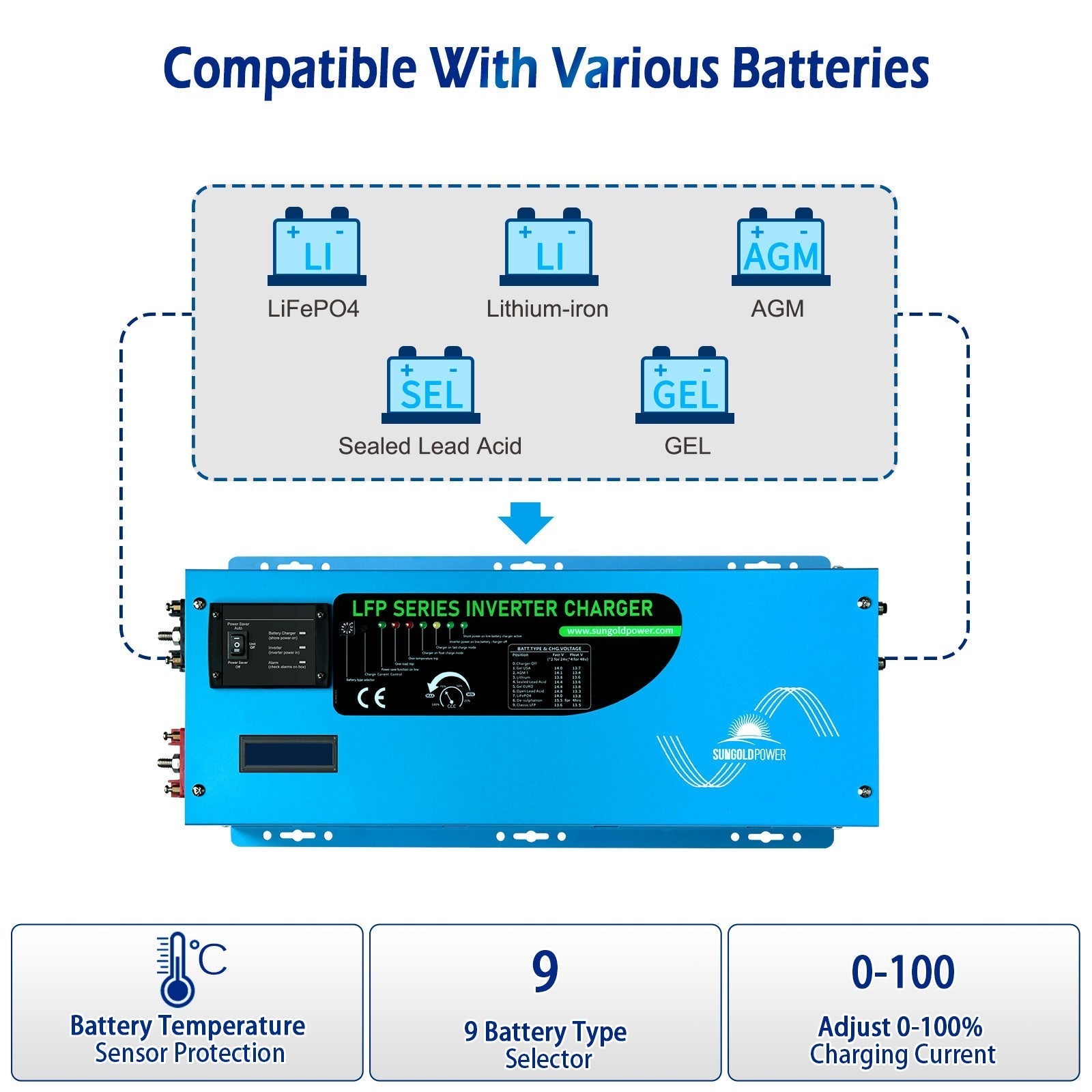

• 7 battery type settings for the charger.

• Multi Stage Smart charger 70+/-5A, the charger can be disabled.

• 10 msec typical transfer time.

Specification

Inverter Output:

• Continuous Output Power: 2000W
• Surge Rating: 6000W (20 Seconds)
• Output: 120VAC, 60hz
• Output Wave: Pure Sine Wave (bypass mode)
• Typical Transfer Time: 10ms (MAX)
• Nominal Efficiency: >88%

DC Input:

• Nominal Input Voltage: 12.0Vdc
• Minimum Start Voltage: 10.0Vdc
• Low Battery Alarm: 10.5Vdc-11.0Vdc
• Low battery Trip: 10.0Vdc-10.5Vdc (select by SW1)
• High Voltage Alarm: 16.0Vdc
• Low battery Voltage Restart: 13Vdc
• Idle Consumption: 25W
• Power Saver Mode Idle Consumption: 12W

AC Charger:

• Charger Rate: 70+/-5A
• AC input Range (Grid or Generator): 90V-135VAC/100V-135VAC (select by SW2);
• Over Charge Protection Shutdown:15.7V
• Selectable Charge Setting: off 0%-100%
• 3-step intelligent battery charger

User Manual

LFP Series Pure Sine Wave Inverter/Charger User's Manual

Delivery

Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
