Giant Trance X Advanced SX — Mixed Wheels - 210000030518

Giant Trance X Advanced SX — Mixed Wheels - 210000030518

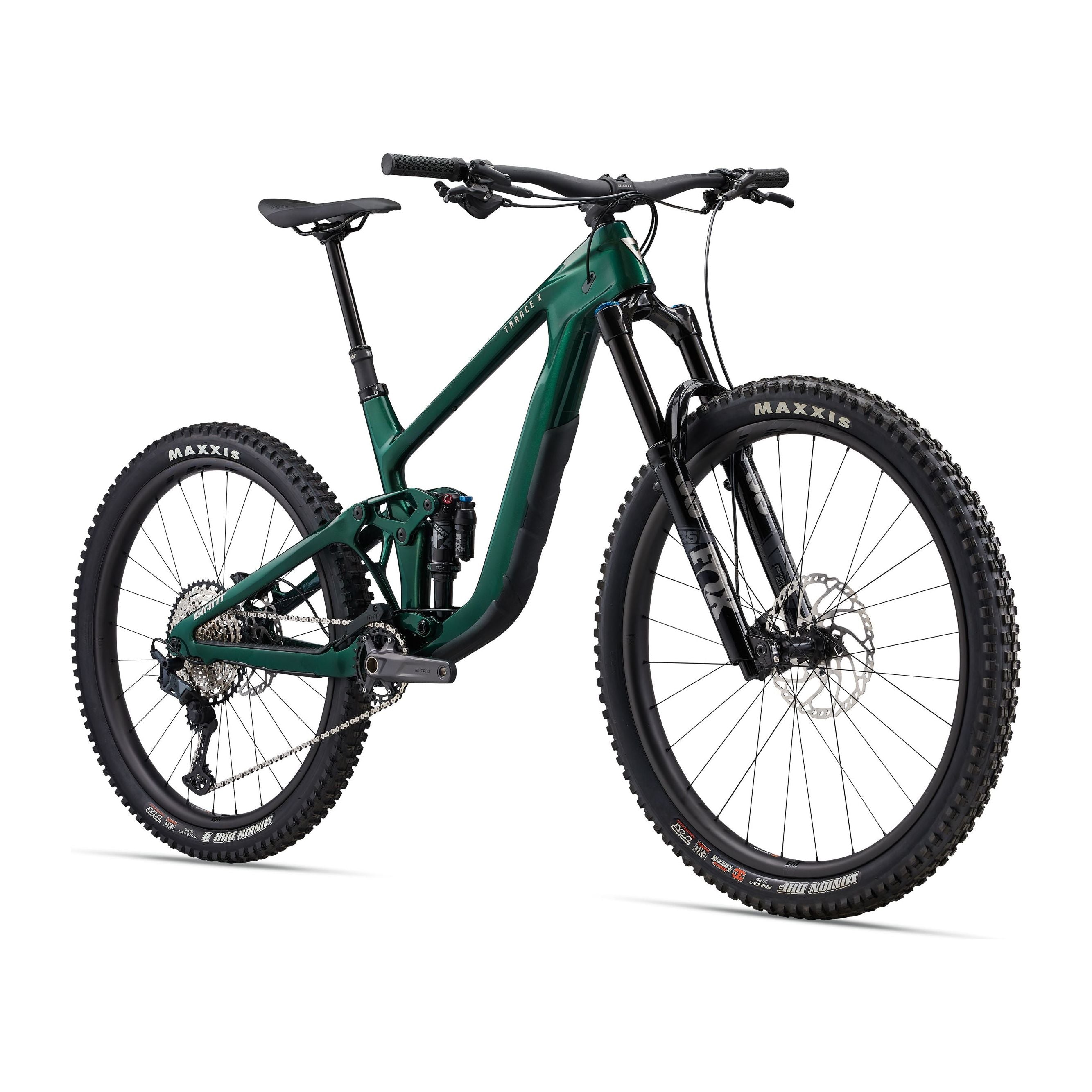

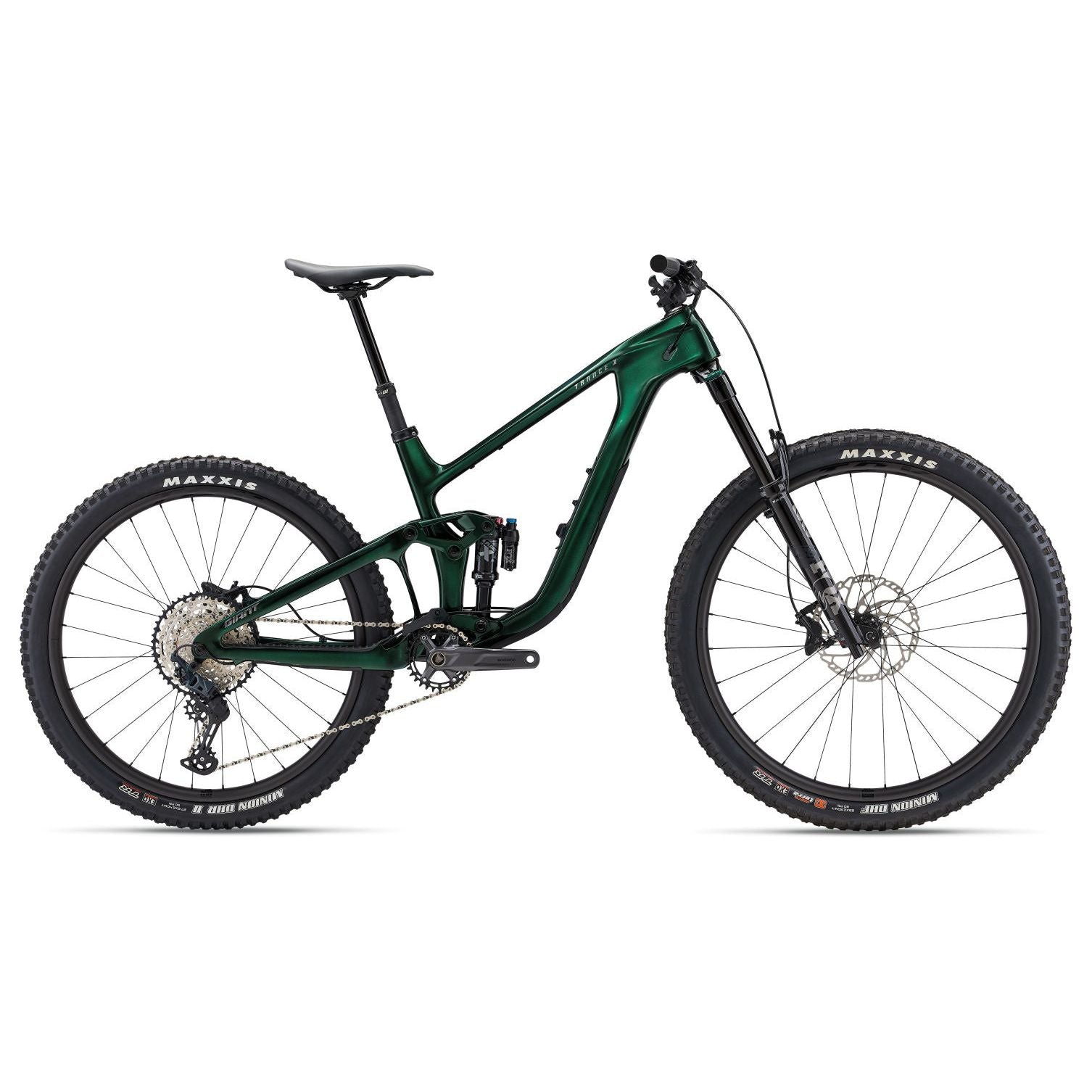

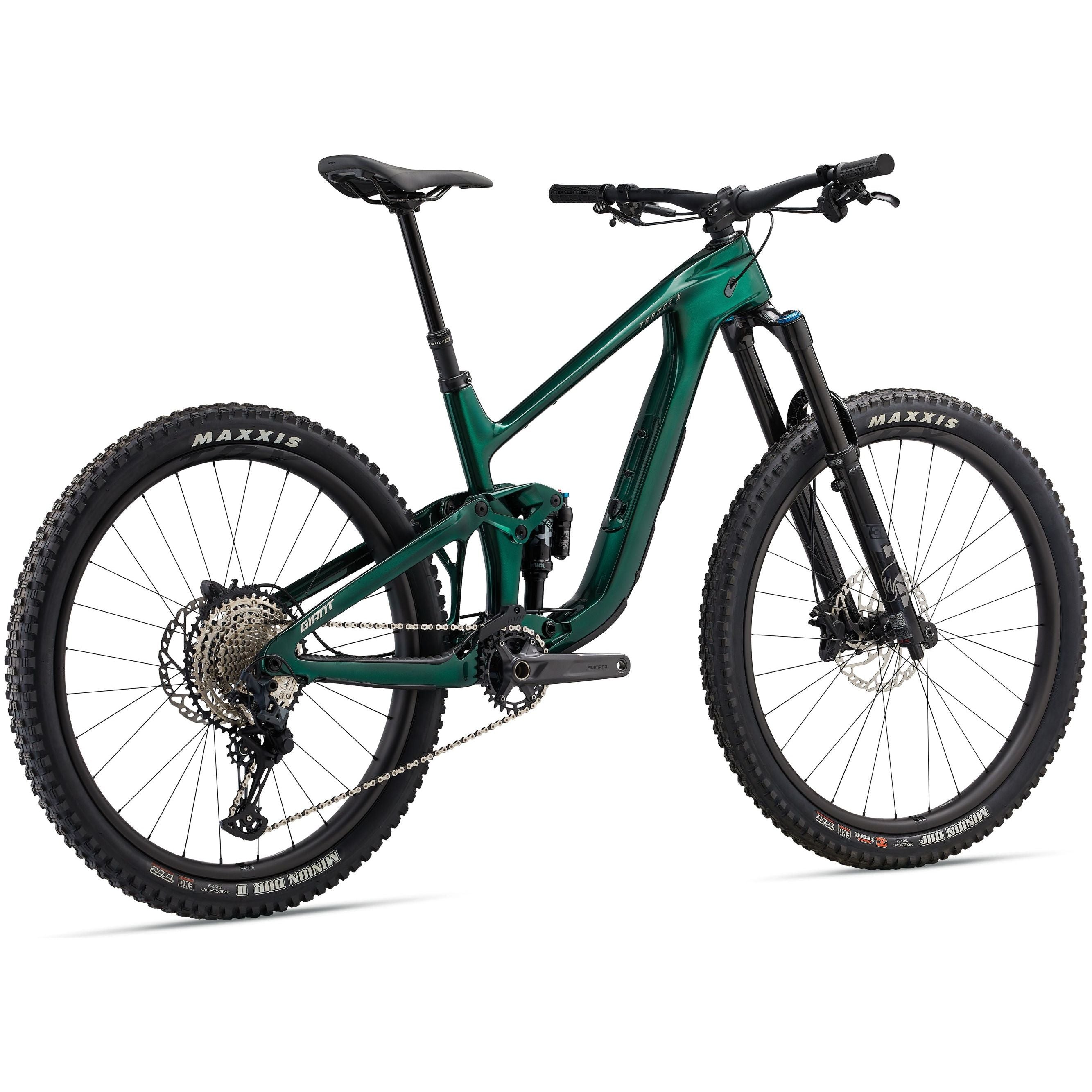

Rock rolls, sketchy drops and step-ups. This new full-composite trail machine handles it all with confidence and control. New longer travel maestro rear suspension (145mm), adjustable geometry, and a mixed wheel setup make it a singletrack sensation. An all-new frameset is engineered with an Advanced-grade composite mainframe and swingarm.

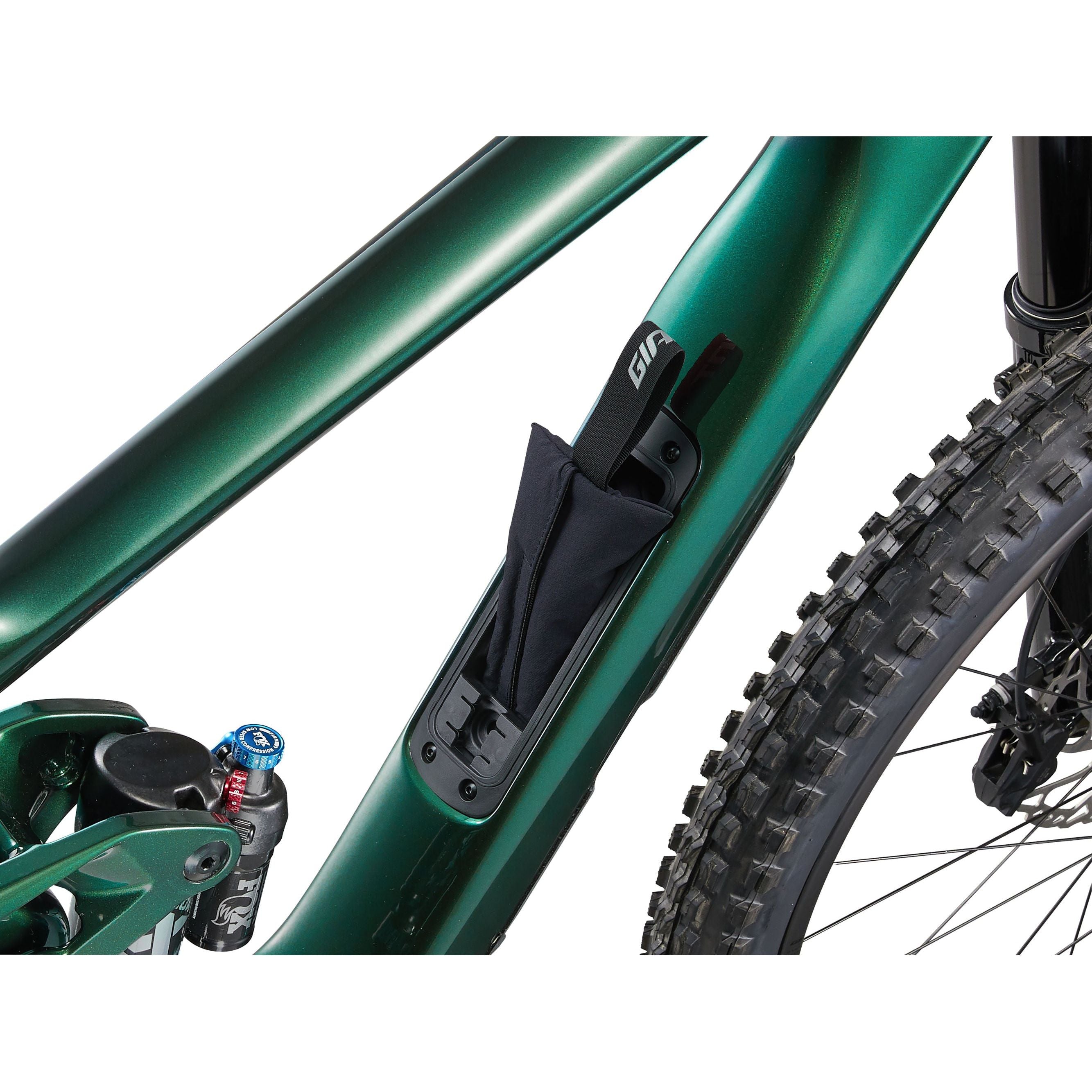

The “SX” indicates its descending focus, with additional travel including updated 145mm Maestro suspension in the rear and a beefier 160mm fork up front. The frame is equipped with two, three-position flip chips for the ultimate in versatility and adjustability. The rear flip chip, located on the Maestro rocker arm, allows riders to adjust frame geometry and fine-tune handling for riding style and terrain. A second flip chip at the headset provides 10mm (-5mm, 0mm, +5mm) of reach adjustment. Also new is an integrated down tube storage compartment for carrying trail-riding essentials.

Features

• This “SX” series features an all-new Maestro rear suspension system with added travel (145mm) for technical singletrack.

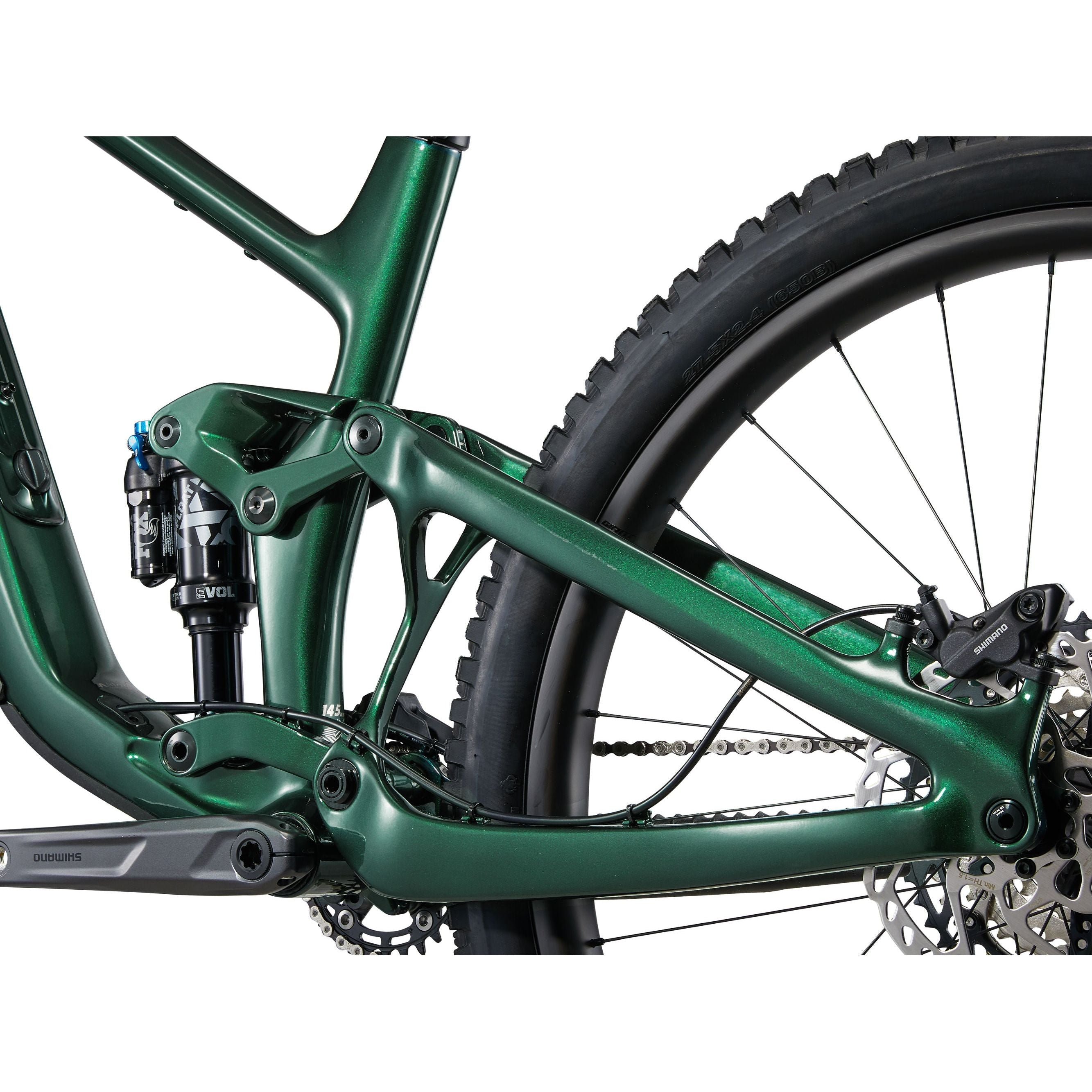

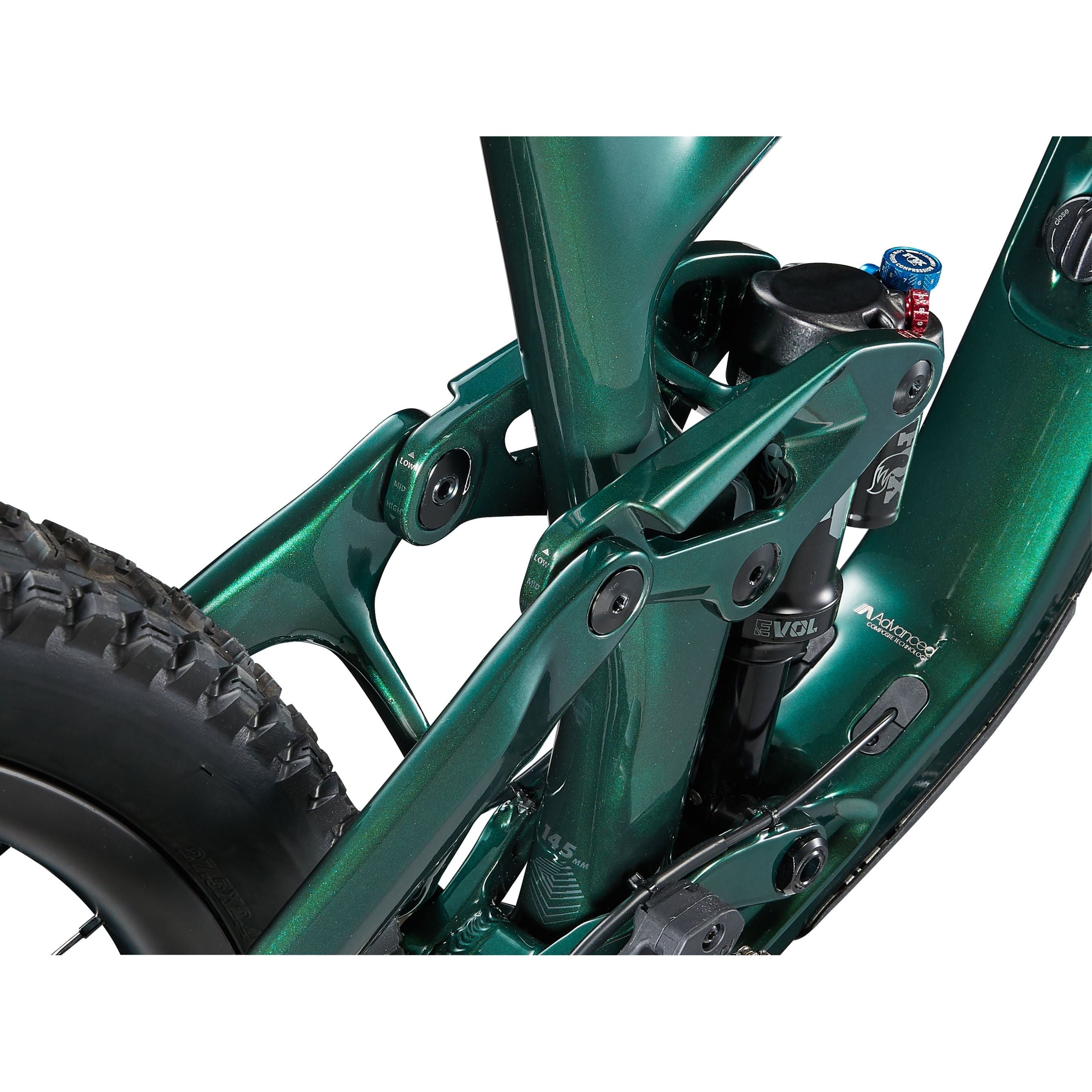

• The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for improved tracking over rough terrain.
• The rear suspension is paired with a longer travel 160mm suspension fork, giving aggressive trail riders added confidence and control.
• A three-position Maestro flip chip lets you dial in frame geometry to suit your riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical singletrack.
• The low setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds. The middle position is neutral.

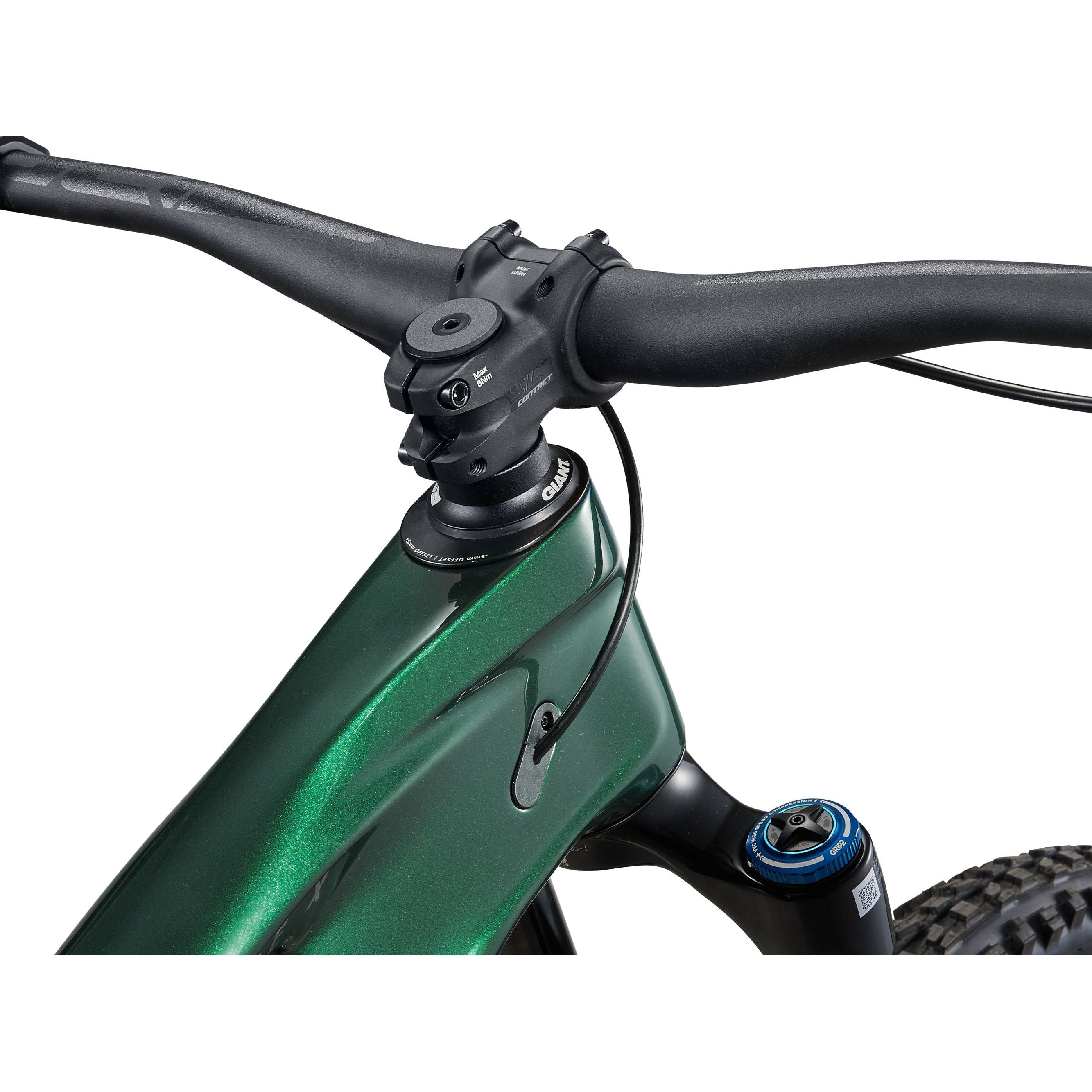

• A new headset flip chip provides 10mm of total reach adjustment.
• This model comes with a 27.5-inch rear wheel. The smaller wheel diameter delivers an agile, snappy feel on the trail and more saddle-to-tire clearance in the rear. Riders typically favor this “mullet” setup for riding steep, technical terrain.

Specification

• Frame: Advanced-Grade Composite front and rear triangles, 145mm Maestro suspension, 12x148mm thru-axle, 27.5-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage and under-top tube storage mounts

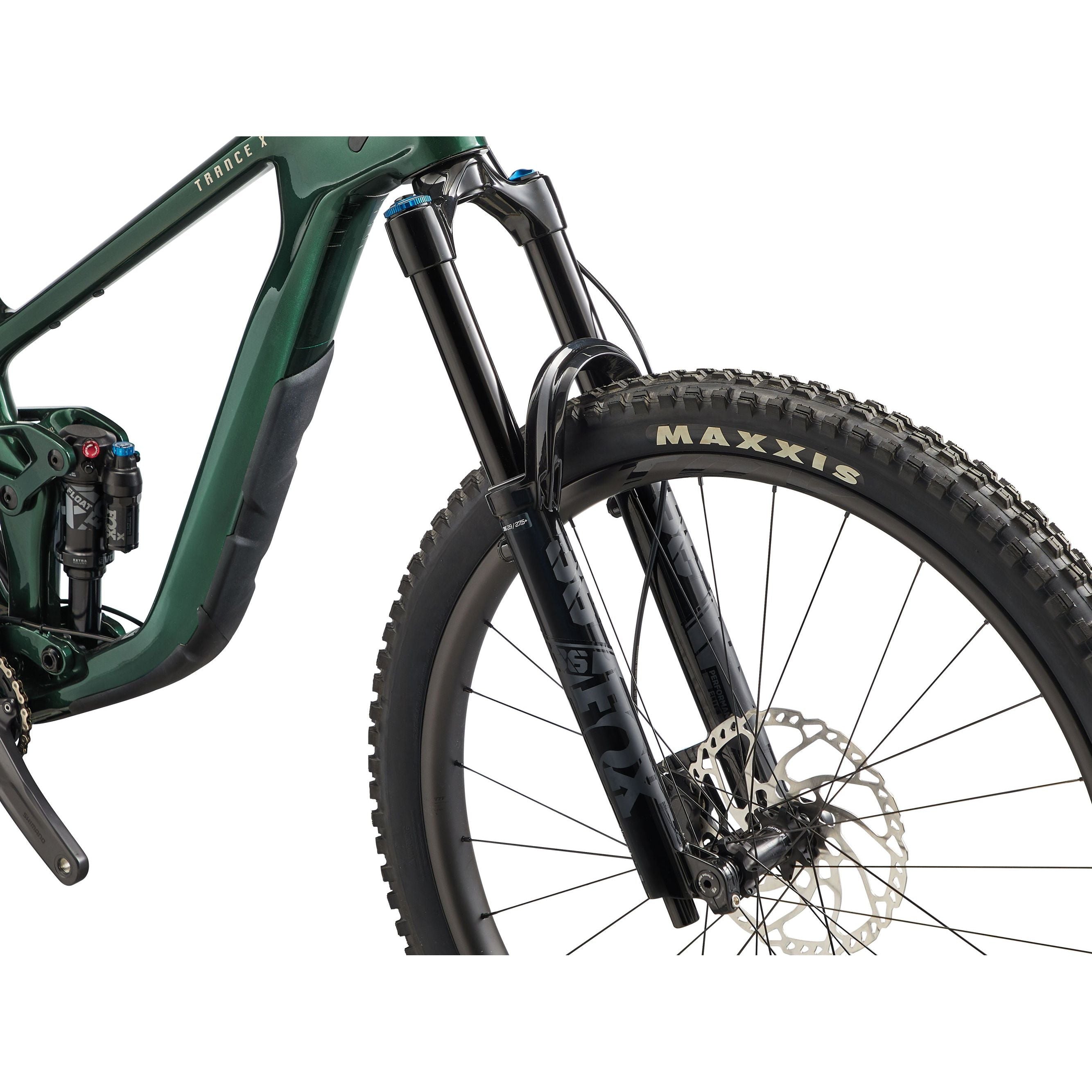

• Fork: Fox 36 Float Performance Elite, 160mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset

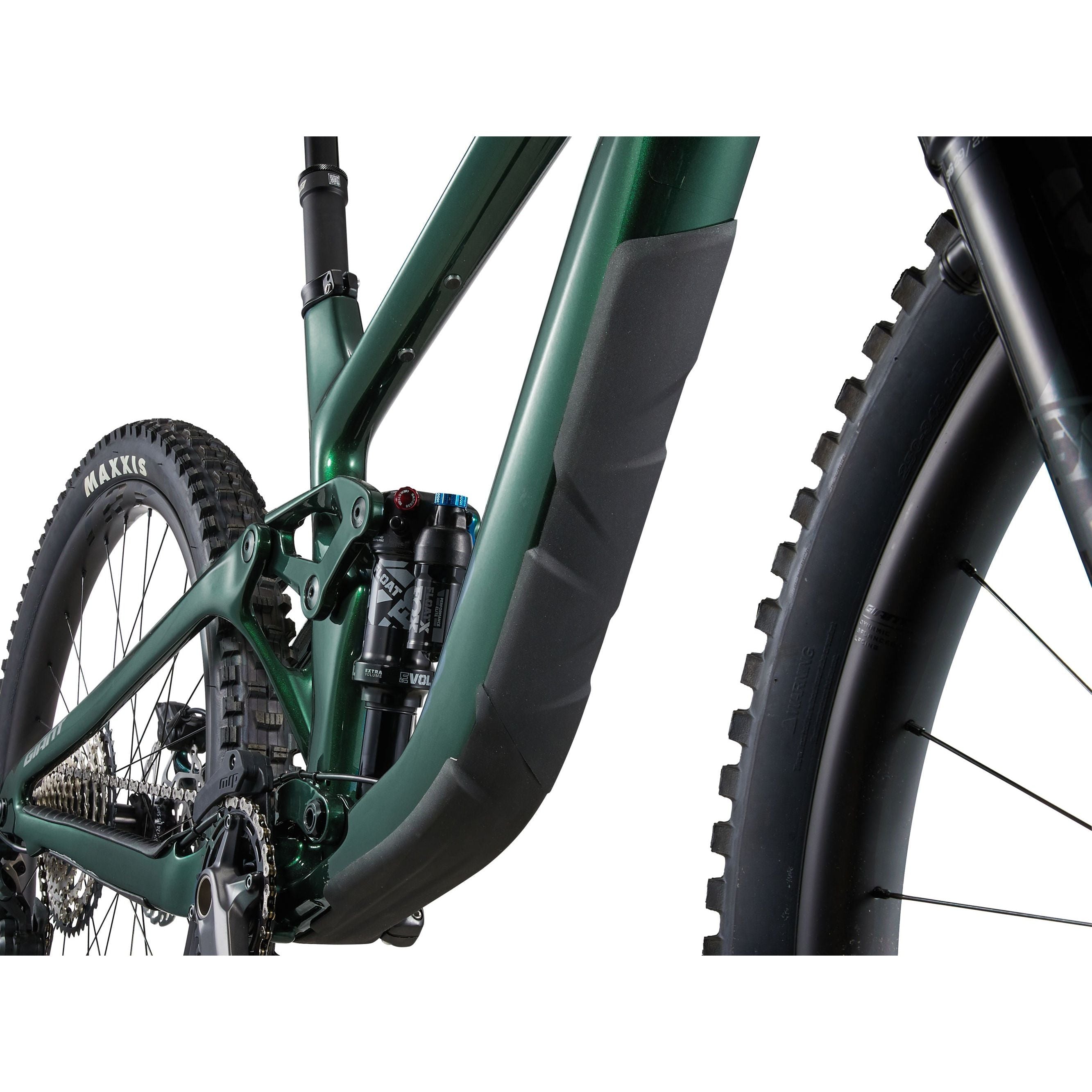

• Shock: Fox Float X Performance Elite, two-position LSC adjust, 185/55, custom tuned for Giant

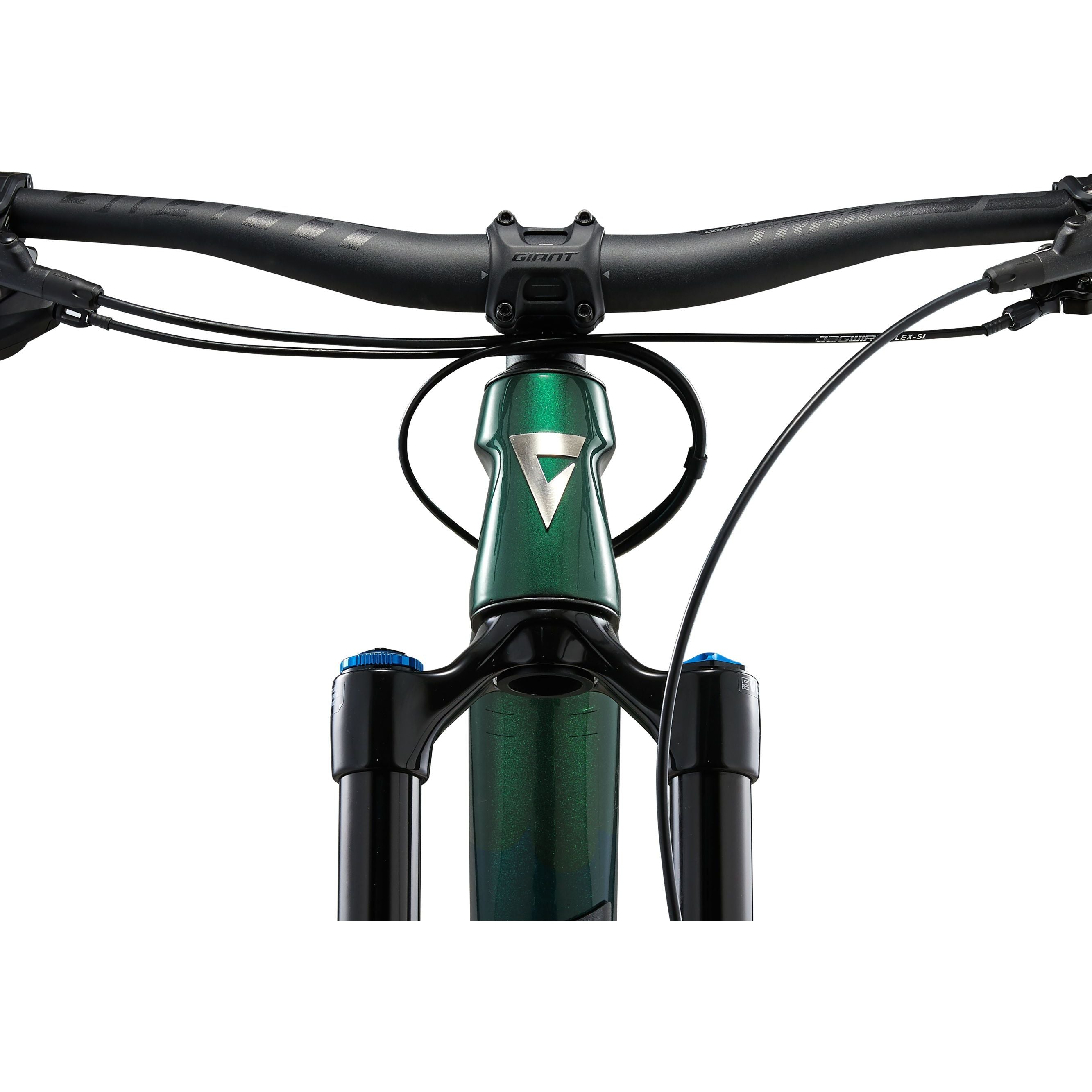

• Handlebar: Giant Contact TR35, alloy, 780x35mm, 20mm rise
• Grips: Giant Tactal Pro Single Lock-On, 132x35mm
• Stem: Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm

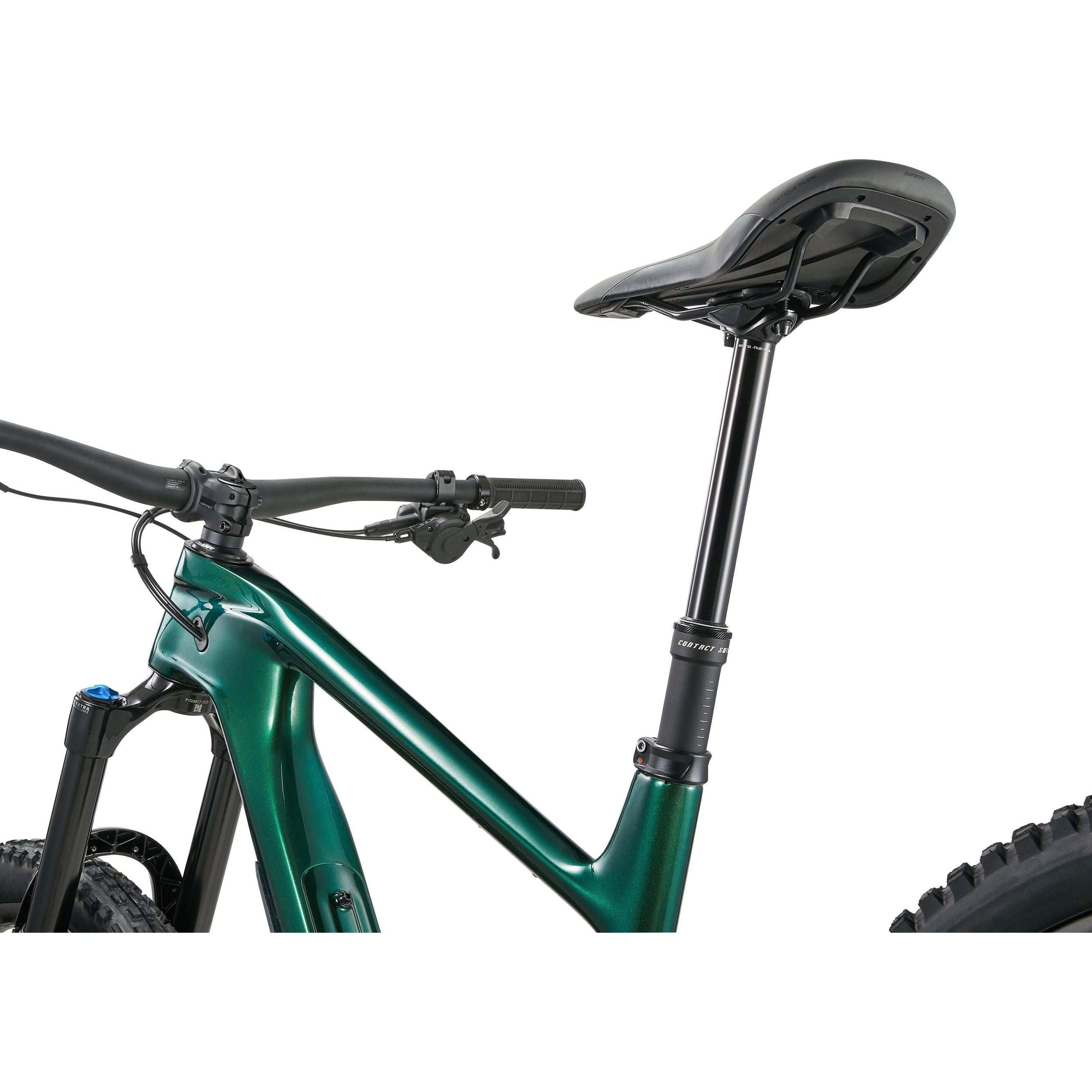

• Seatpost: Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
• Saddle: Giant Romero SL
• Shifters: Shimano SLX M-7100, 1x12

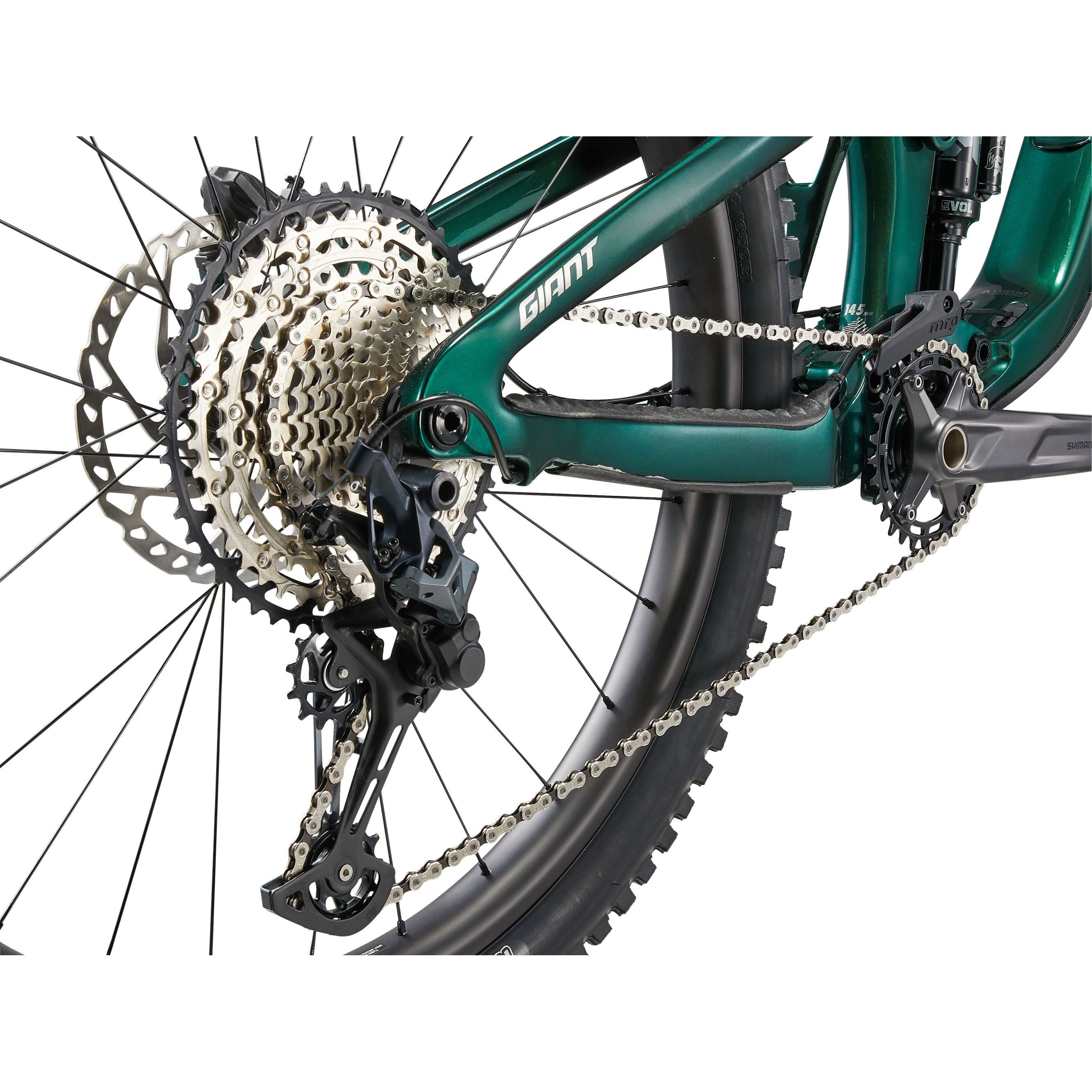

• Rear Derailleur: Shimano SLX M-7100
• Brakes: Shimano Deore BR-M6120, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm
• Brake Levers: Shimano Deore BL-M6100
• Cassette: Shimano SLX M7100, 10x51
• Chain: KMC X-12
• Crankset: Shimano MT512-1, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
• Bottom Bracket: Shimano, press fit
• Rims: Giant TRX WheelSystem, carbon, hookless, 30mm inner width, 40mm outer width, 22mm height, Wide Guard Technology
• Hubs: [F] Giant MTB alloy, six-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, MicroSpline driver body
• Spokes: Sapim, 28, straight pull, DBL Technology
• Tires: [F] Maxxis Minion DHF, 29x2.5 WT, 3C 60 tpi, MaxxTerra, EXO, TR [R] Maxxis Dissector 27.5x2.4 WT, 60 tpi, 3C MaxxTerra, TR, tubeless


What Our Experts Think

• High-Performance E-Bike: The Giant Trance X Advanced SX with mixed wheels offers a powerful and dynamic ride, ideal for aggressive trail riders seeking performance and versatility.
• Mixed Wheel Setup: 29" front wheel for stability and 27.5" rear wheel for quick, responsive handling, optimizing control on technical trails.
• Advanced Suspension System: 150mm front and 140mm rear Maestro suspension provides plush cushioning, offering excellent control and comfort on rugged terrain.
• Lightweight Carbon Frame: Built with an Advanced-grade composite frame, offering strength and durability while keeping the bike light and responsive.
• Seamless Power Delivery: SyncDrive Pro motor with 85Nm of torque for smooth, natural pedal-assist and effortless climbing on challenging trails.
• Extended Range: Integrated EnergyPak Smart battery ensures long rides without worrying about power, with fast recharging times

Q&A

Q: What is the Giant Trance X Advanced SX?
A: A high-performance full-suspension mountain bike with a mixed-wheel setup (29" front, 27.5" rear), designed for aggressive trail and enduro riding..

Q: How does the mixed-wheel setup improve the ride?
A: The 29-inch front wheel provides stability and smooth rollover on obstacles, while the 27.5-inch rear wheel enhances agility and quick handling for technical trails.

Q: What type of terrain is this bike best suited for?
A: Ideal for aggressive trail and enduro riding, it excels on steep climbs, fast descents, and technical terrain.

Q: Does it have adjustable geometry?
A: Yes, the frame includes a flip-chip system for adjusting geometry to optimize handling based on terrain and rider preference.

Maintenance Tips

• Mixed Wheel Setup (29-inch front, 27.5-inch rear) – Offers the perfect blend of stability and agility for aggressive trail riding.
• Advanced Composite Frame – Lightweight and durable carbon frame for optimal performance and stiffness.
• Maestro Suspension System – 150mm front and 140mm rear suspension for superior shock absorption and smooth handling.
• Shimano XT 12-Speed Drivetrain – Reliable, precise shifting for a wide range of gears and smooth transitions on tough trails.
• Hydraulic Disc Brakes – Delivers strong, consistent braking power for confident control in all weather conditions.
• Boost Hub Spacing – Increases wheel stiffness and overall ride stability for better control.
• Dropper Seatpost – Quick and easy saddle height adjustments for better control during descents.
• Tubeless-Ready Tires – Provides better traction and reduces the risk of flats on rocky or uneven terrain.
• Internal Cable Routing – Clean, sleek design that protects cables from dirt and debris for smoother operation.
