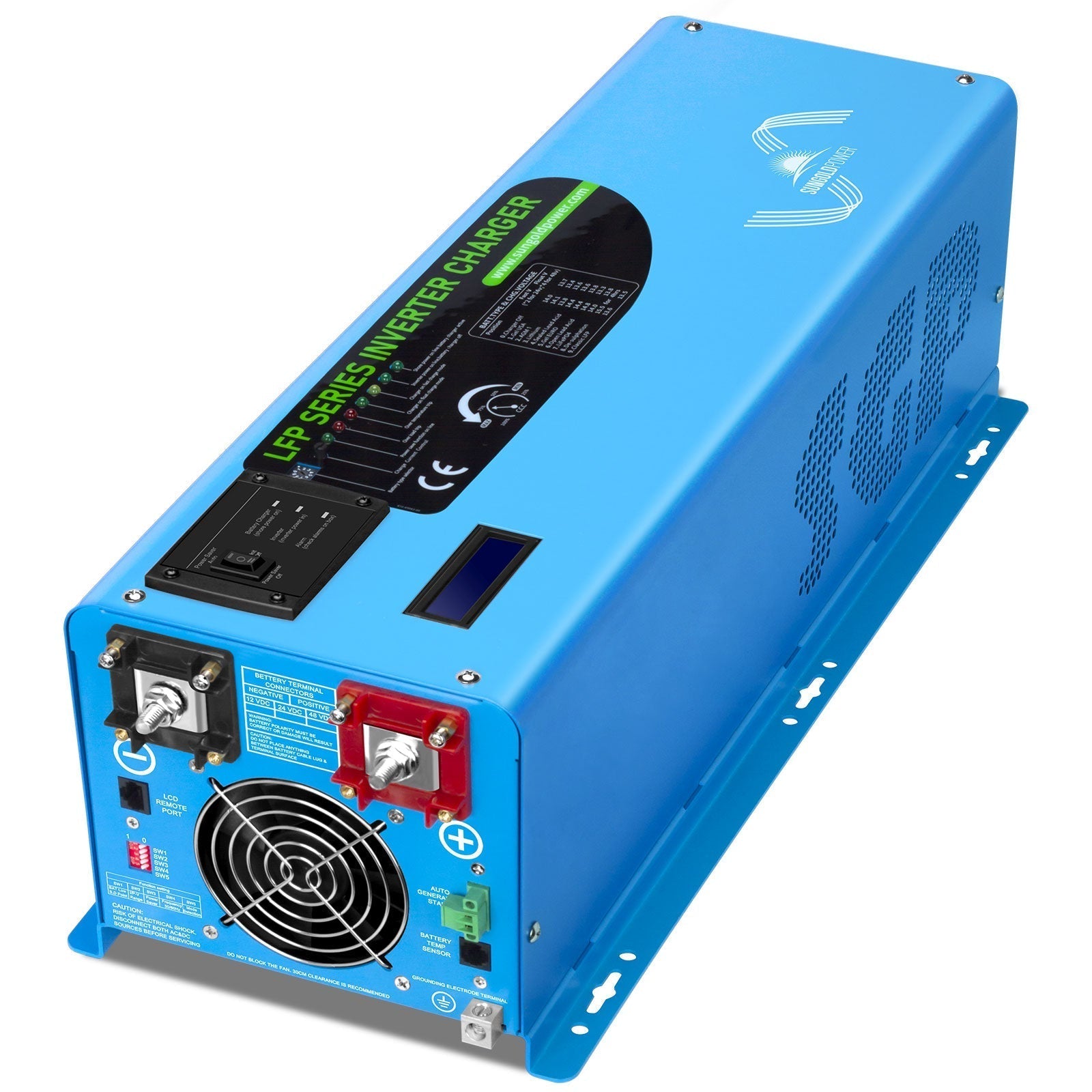

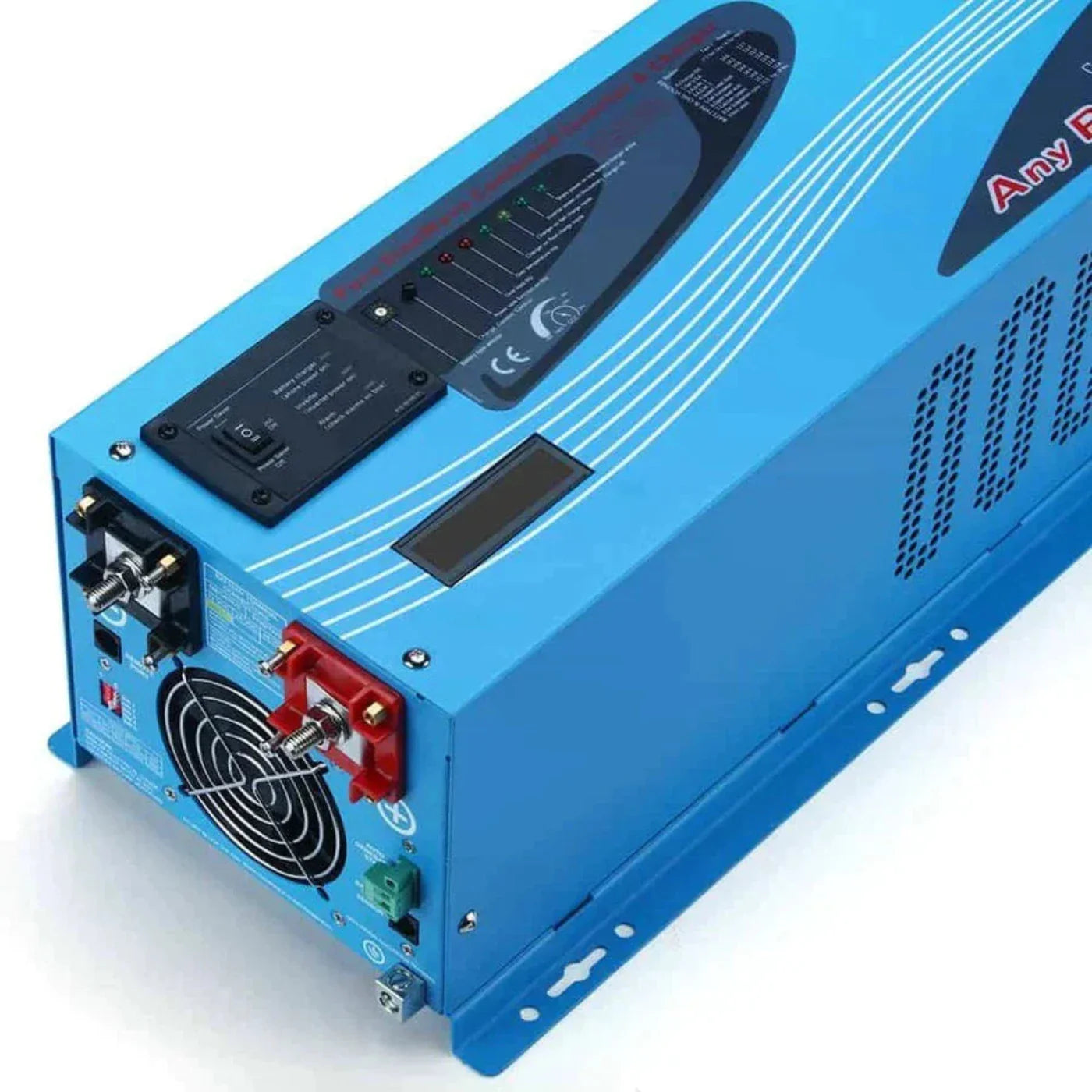

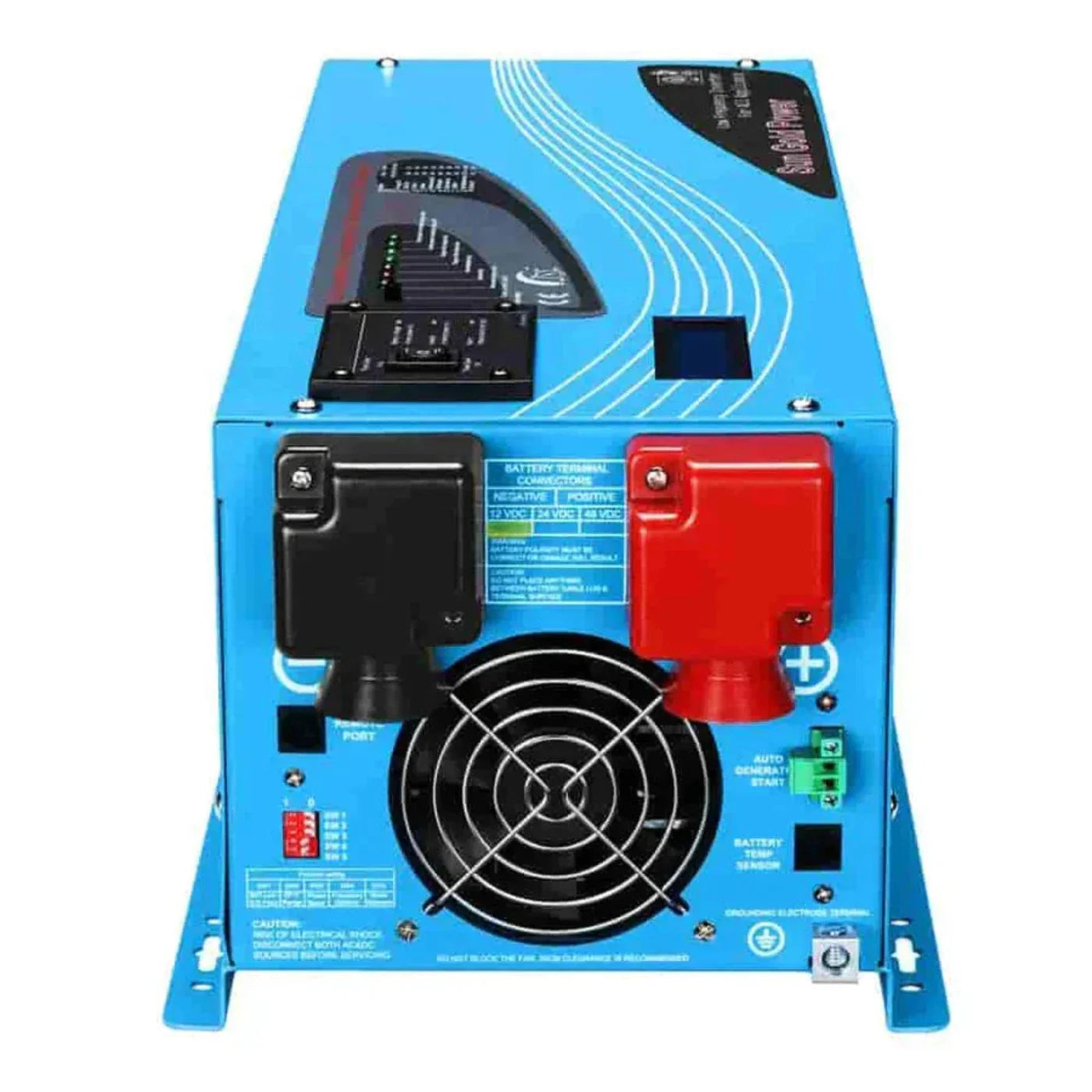

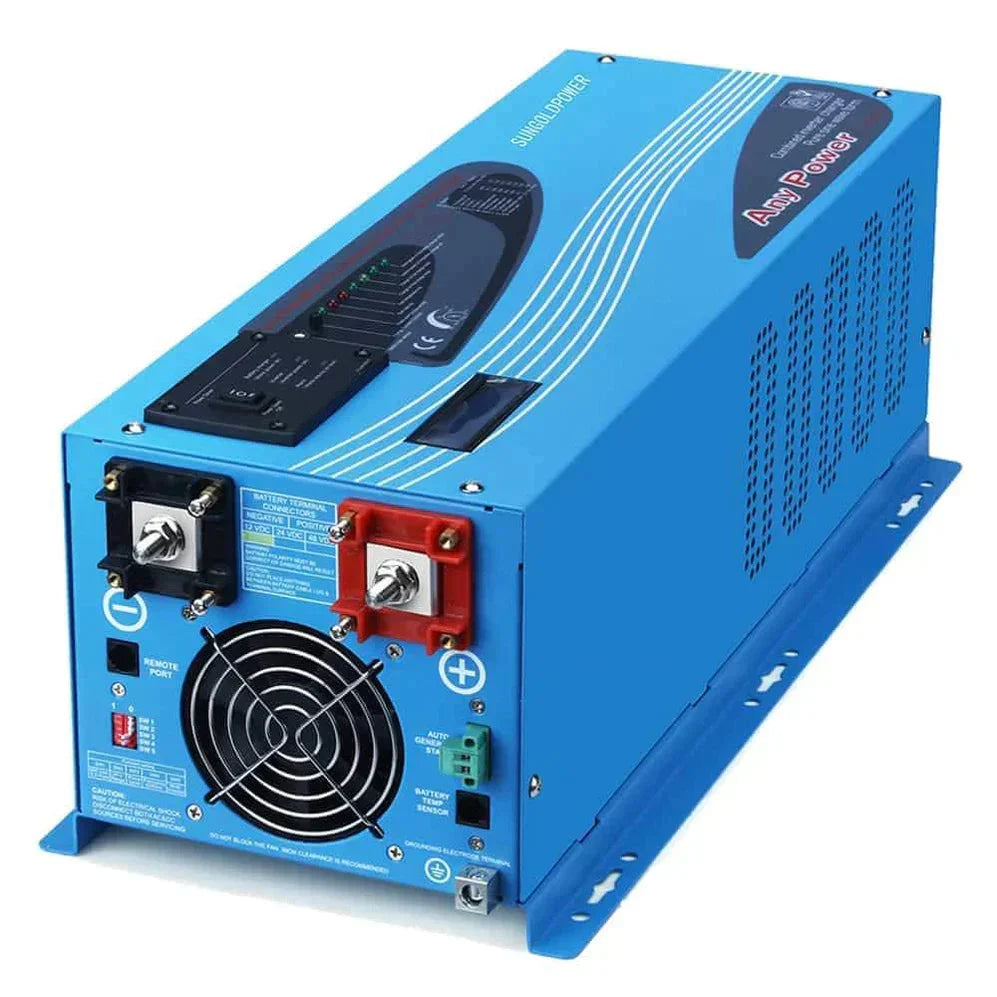

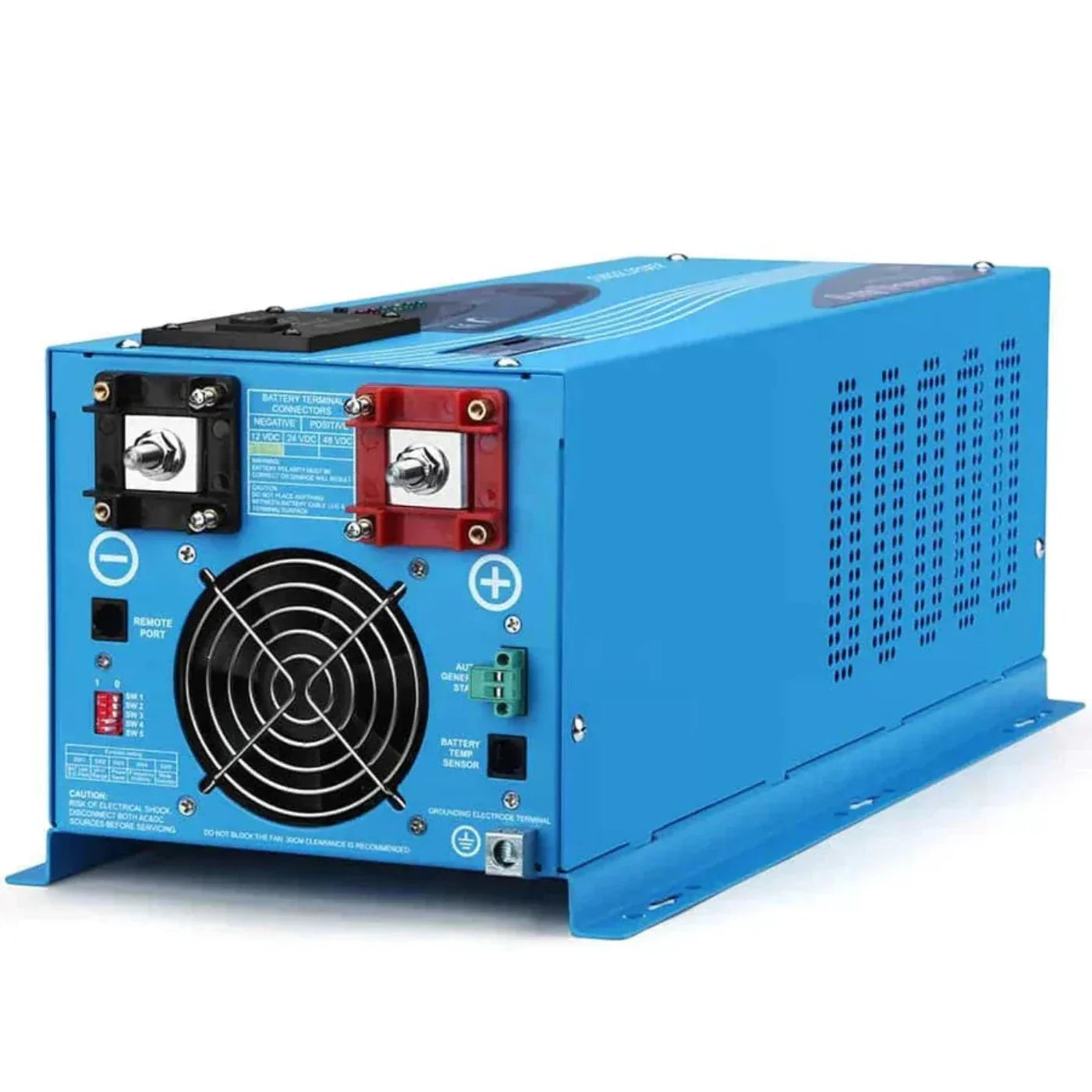

4000W DC 24V Split Phase Pure Sine Wave Inverter With Charger - LFP4K24V240VSP

"Integrity Is Long-lasting, Mutual Benefit And Win-win Cooperation" Is The Sungoldpower Business Philosophy And Long-term Development Goals.

Product Highlight:

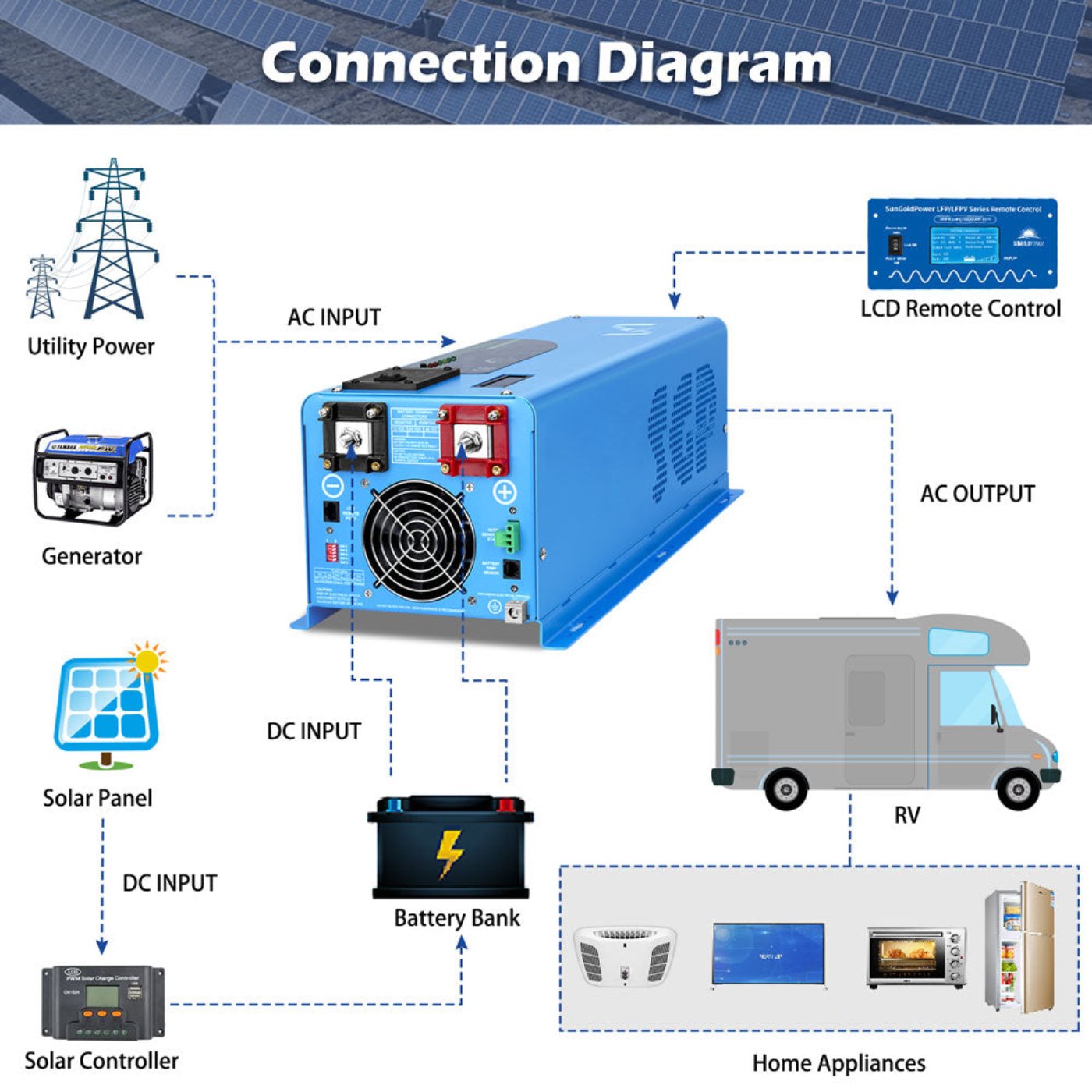

• ★ This LFP Series Pure Sine Wave Inverter is a combination of an inverter, battery charger, and AC auto-transfer switch. Low frequency, low Idle Current, BTS cable, remote control.

• ★The split-phase 4000-watt power inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.

• ★ AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.

• ★ Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch.

• ★ Auto Gen Start: The inverter can start up a generator when the battery voltage goes low, and turn the generator off after battery charging is finished.

Specification

Main Features:
*4000W Low Frequency Pure Sine Inverter With Charger.

*AC/Battery Priority Selector.

*Automatic Generator Start.

*Safety and Convenient.

*The low frequency inverter can power all kinds of appliances.

*LCD Display, Remote Control.

*Low Idle Consumption.

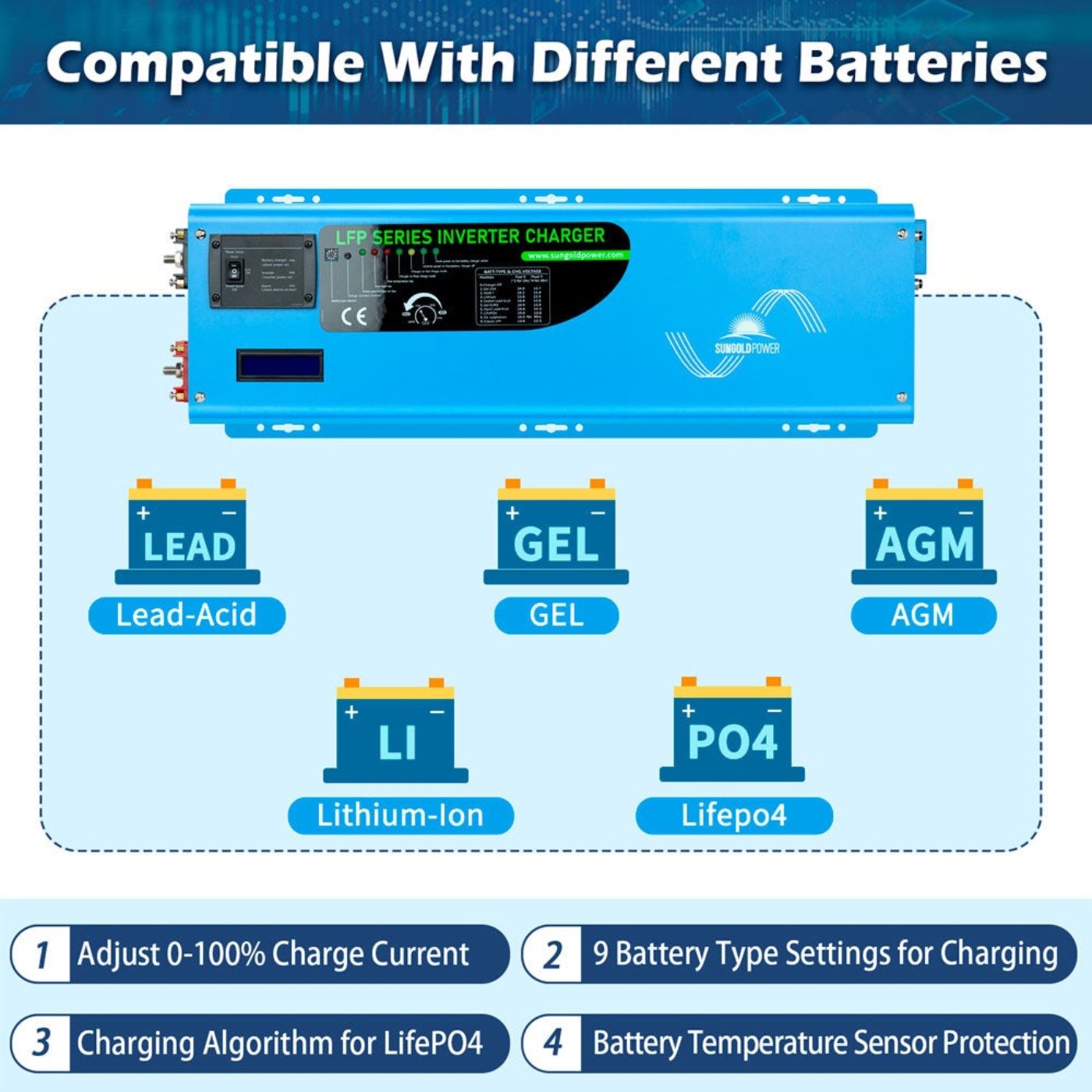

*9 battery type settings for charger.

*Multi Stage Smart charger 50+/-5A, charger can be disable.

*10msec typical transfer time.

Inverter Output:
*Continuous Output Power: 4000W

*Surge Rating: 12000W (20 Seconds)

*AC Output: AC 120V and AC 240V

*AC Input: 240V

*Output Wave: Pure Sine Wave (bypass mode)

*Typical Transfer Time: 10ms (MAX)

*Nominal Efficiency: >88%

DC Input:
*Nominal Input Voltage: 24.0Vdc

*Minimum Start Voltage: 20.0Vdc

*Low Battery Alarm: 21.0Vdc-22.0Vdc

*Low battery Trip: 20.0Vdc-21.0Vdc (select by SW1)

*High Voltage Alarm: 32.0Vdc

*Low battery Voltage Restart: 26Vdc

*Idle Consumption: 48W

*Power Saver Mode Idle Consumption: 19W

AC Charger :
*Charger Rate: 50+/-5A

*AC input Range (Grid or Generator): 140V-270VAC/184V-253VAC (select by SW2)

*Over Charge Protection Shut down: 31.4V

*Selectable Charge Setting based on battery type

*Adjustable charge current: off 0%-100%

*3-step intelligent battery charger

Product Guide

4000W DC 24V Split Phase Pure Sine Wave Inverter With Charger
