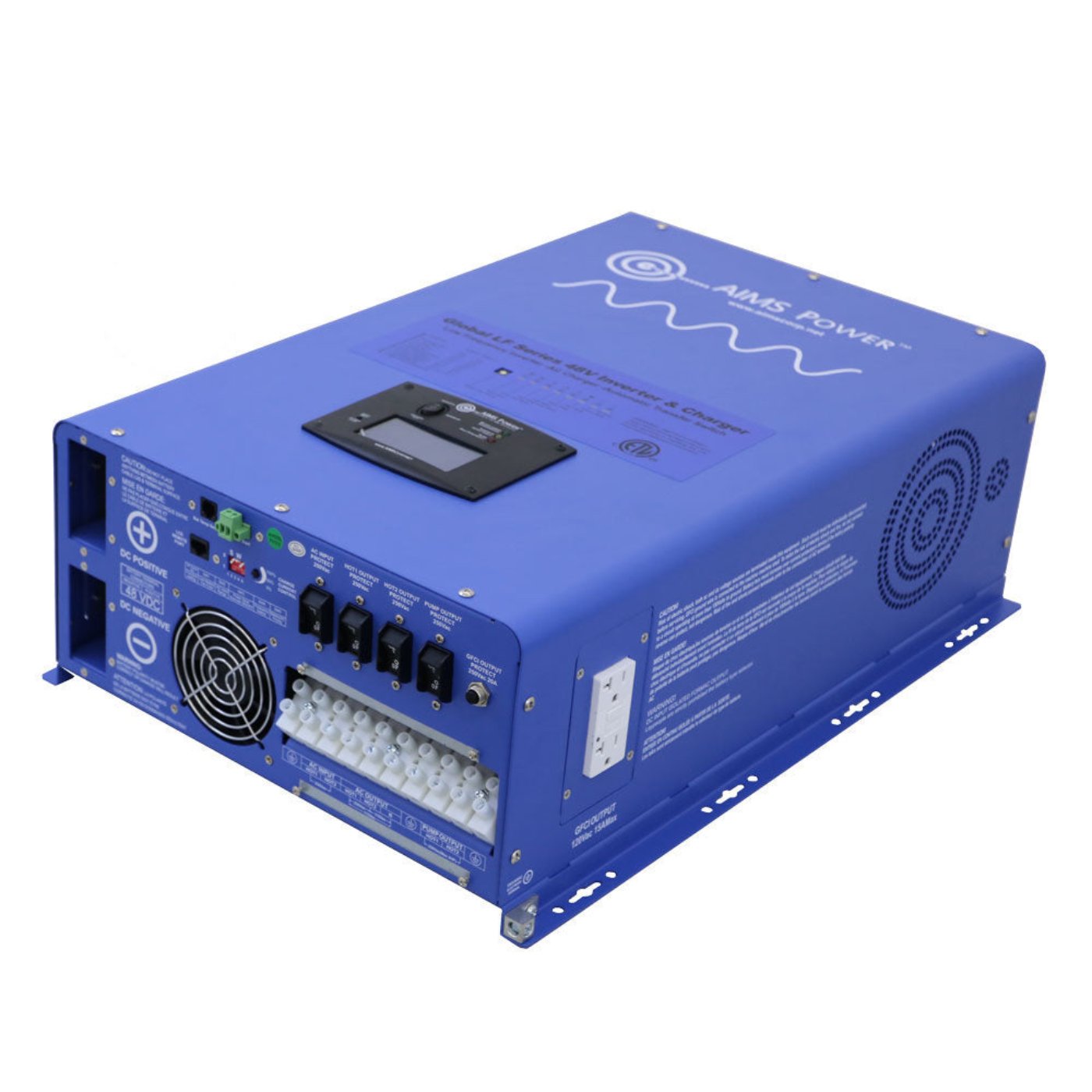

Aims Power 12000 Watt 48V Pure Sine Split Phase Inverter Charger - PICOGLF120W48V240VS

At Aims Power, We’re Passionate About Designing And Developing Off-grid And Renewable Energy Solutions.

Our line of ETL listed to UL 48 Volt DC split phase 120/240 Volt AC inverter chargers is the power house for back up, off grid systems. Built with a 48 Volt DC input, these inverter chargers perform with very little power loss. Users receive a notable increase in efficiency in large systems when compared to using inverters that accept 12 or 24 volts.

See Features Below:

• 12000 watt low frequency inverter 110/220Vac Split Phase

• 36000 watt surge for 20 seconds -3x surge capability

• Battery priority selector

• Terminal block

• Marine coated and protected

• Multi stage smart charger 120 Amp charges gel, lead, AGM, and lithium (LiFePO4)

• Remote panel available

• 60hz or 50 hz selectable dip switch

• 10msec typical transfer time

• Selectable 25W power save mode (hibernation)

• 8 battery charger settings

• Automatic transfer switch

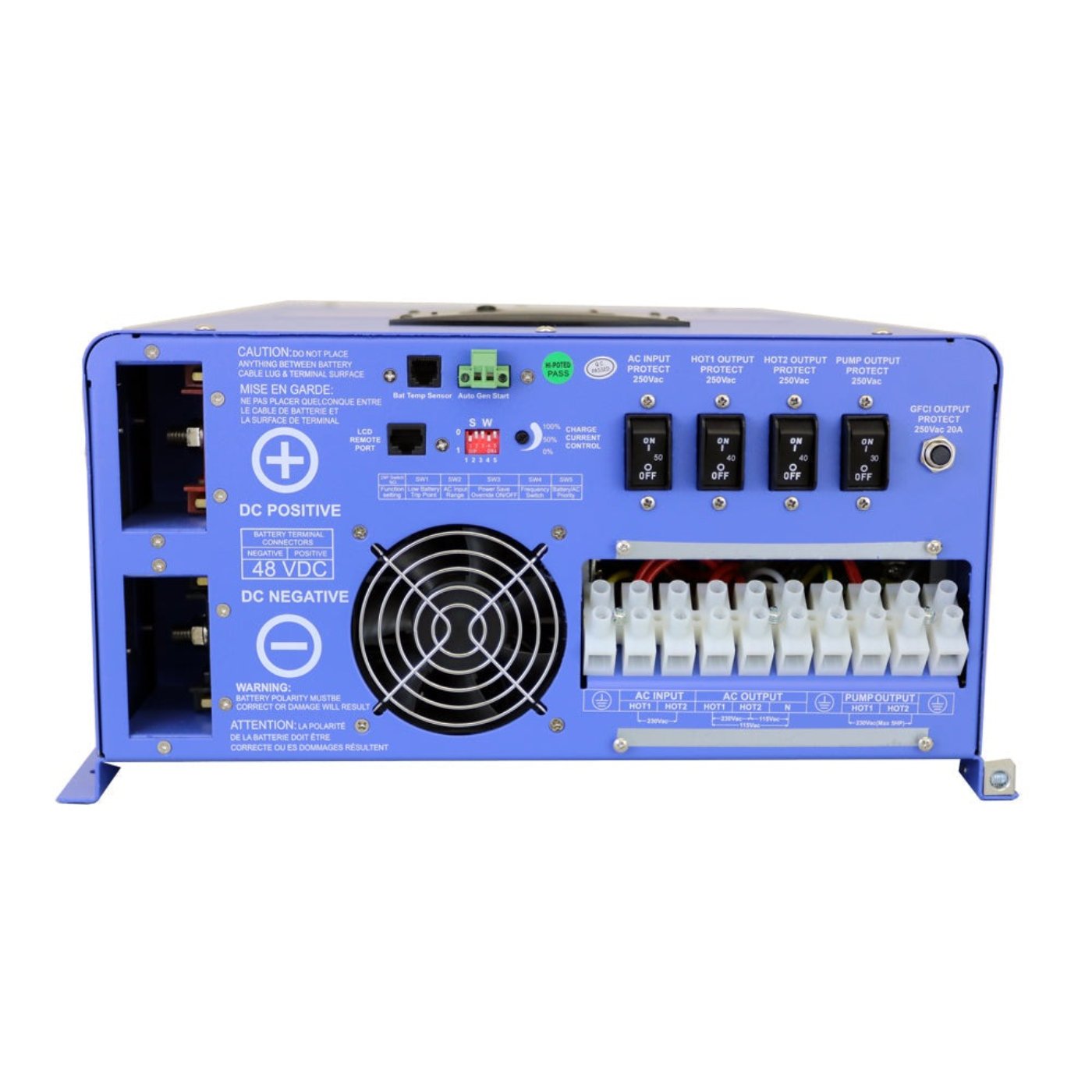

ne of the most sought-after features this inverter has is the direct-connect terminal block, which allows users to surpass the 8Kw or 12Kw capacity and harness its 300% surge power (up to 24Kw or 36Kw watts for 20 seconds as previously noted). Have a hunting cabin or off-grid vacation home? This AIMS Power inverter charger is perfect for supplying reliable electricity to the entire house.

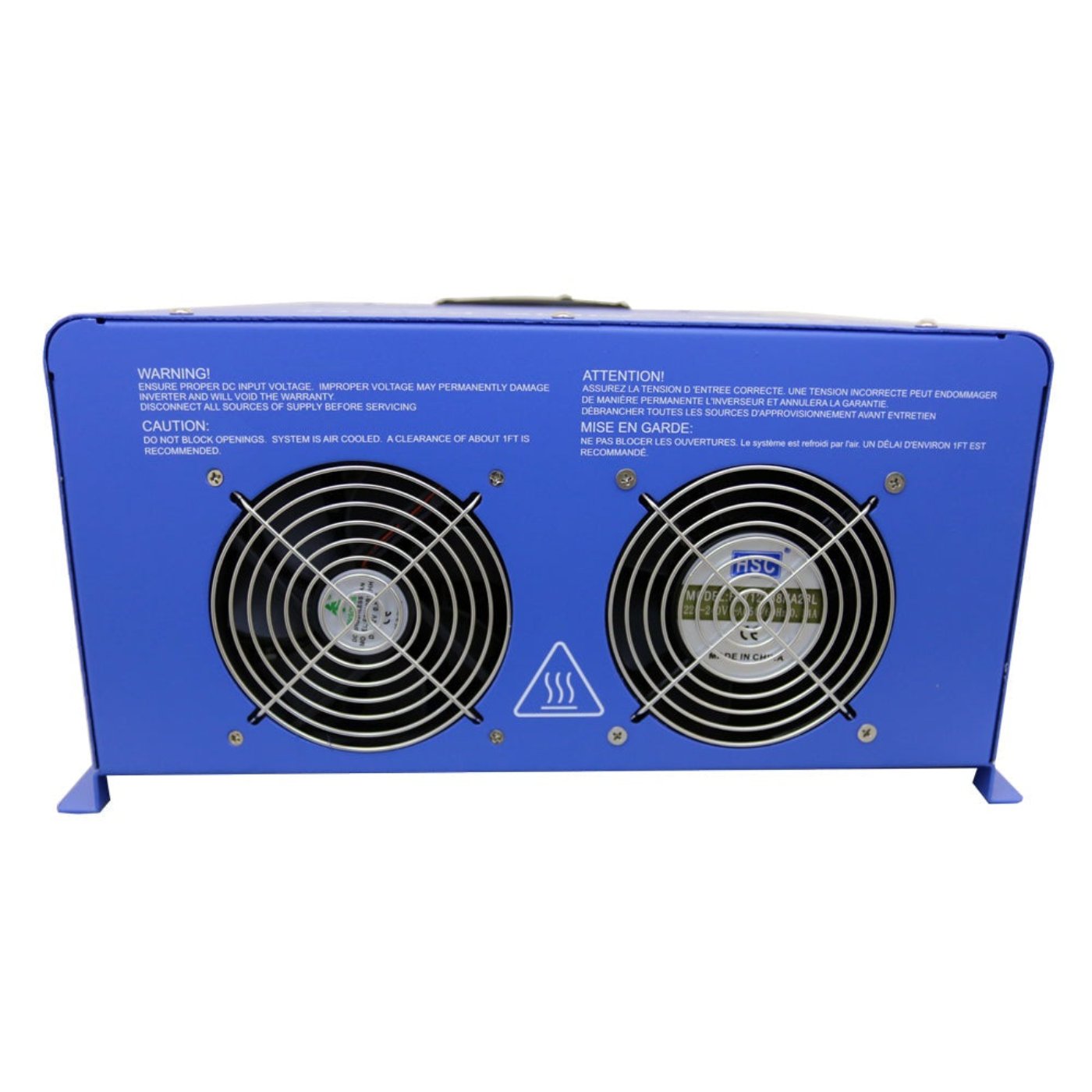

This inverter is also built to withstand reasonable heat and temperature fluctuations because of its over-temperature protection and dual thermally-controlled fans. And it’s protected from humidity or airborne dust and dirt by virtue of its marine-coated (or “conformal-coated”) boards. This inverter provides the reliability needed in any business or residential emergency backup power application.

Specifications

Product Guide

AIMS Power 12,000 Watt 48 volt Inverter Charger 120/240vac - PICOGLF120W48V240VS
