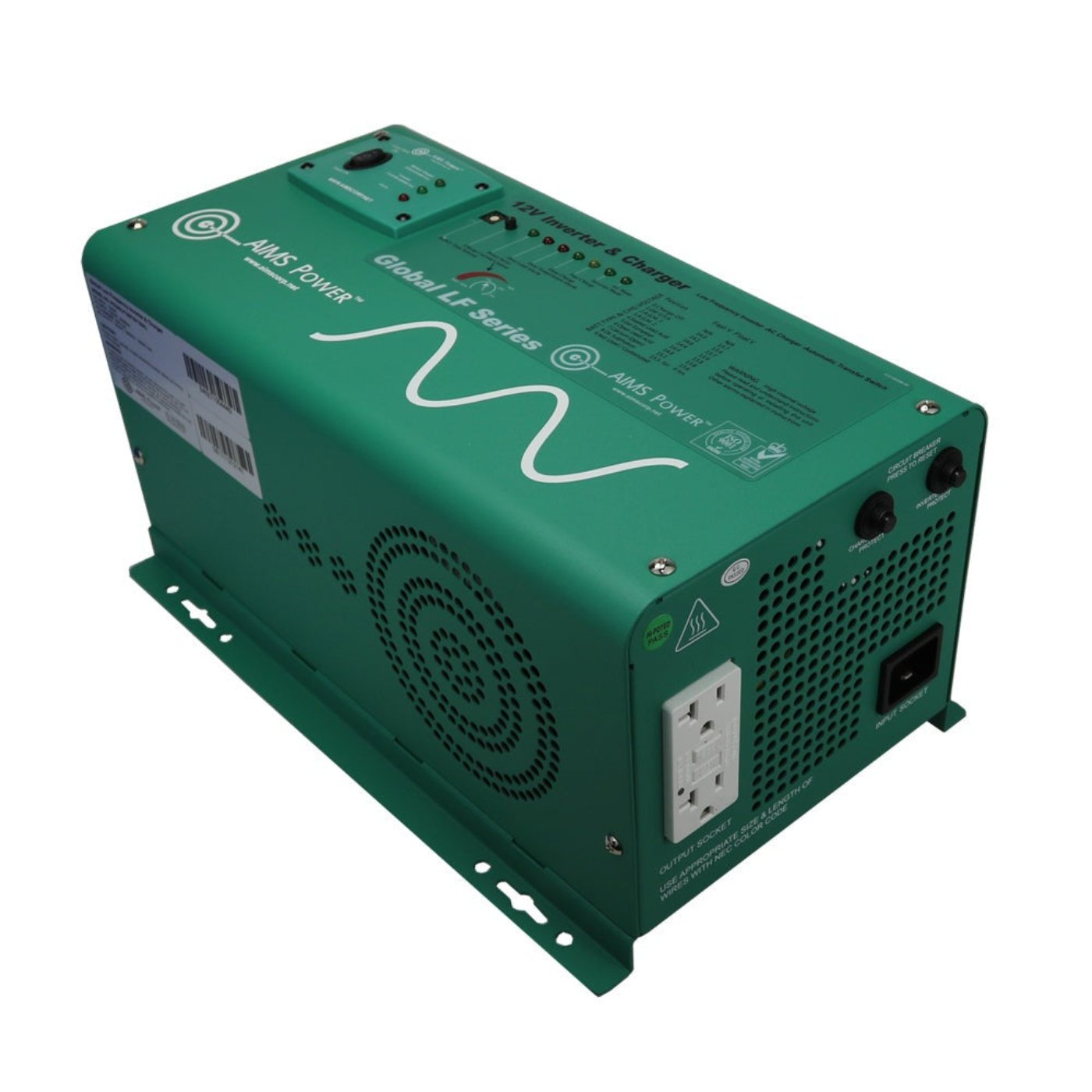

The AIMS 1250 watt low frequency inverter charger is perfect for most off grid systems, semi-trucks, 5th wheels, toy haulers or any remote locations needing power. Providing 1250 watts of continuous, clean and reliable pure sine wave power, ideal for sensitive electronics and household appliances. AIMS developed this inverter with less bells and whistles, making if more affordable and easy to use for applications that don't require a lot of extra features. We consider this our better of our good, better, best product lines.
See Features Below:
1250 watt continuous
3750 watt surge for 20 seconds 300% surge capability (don’t use the surge mode often)
AC input cable
GFCI outlet
Marine coated and protected
Multi stage smart charger 35 A
LCD or LED remote panel available
AC input cord included
Thermal and load based fan
Low voltage recovery
Power save mode
Auto frequency
10msec typical transfer time
Optional 25W power save mode
7 battery type settings for charger
1 year warranty and free tech support
If needed, this inverter has the capability of producing 3750 watts of total surge power for 20 seconds, for start-up applications like refrigerators, computers, tools, motors, fans and microwaves (if running more than 3000 watt often, we strongly recommend purchasing a larger inverter).
This inverter boasts a 35 amp charger and automatic transfer switch. For use with shore power or generator power to recharge your batteries or as a back-up for your sump pump, medical equipment, appliances, tools and most anything up to 10 AC amps.
Output Specifications | |
---|---|
Continuous output power | 1250 Watt |
Surge rating | 3750 Watt (20 Seconds) |
Output waveform | pure sine |
Output voltage | 100/110/ 120 VAC |
Nominal efficiency | >88% (peak) |
Line mode efficiency | >95% |
Output frequency | 60Hz +/- 0.3Hz |
Typical transfer time | 10ms (max) |
GFCI | 10 A outlet |
THD | < 10% DC |
Output breaker – 15 amps | |
Input Specifications | |
Nominal input voltage | 12.0 VDC |
Minimum start voltage | 10.0 VDC |
Low battery alarm | 10.5 Vdc-11.0 VDC |
Low battery trip | 10.0Vdc-10.5 VDC |
High voltage alarm | 16.0 VDC |
Charger/input breaker – 15 A | |
Low battery voltage restart | 15.5 VDC |
Idle consumption | <50 Watt when power saver on |
Charger Specifications | |
Output voltage | depends on battery type |
Charger rate | 35A |
Over charge protection shutdown | 15.7V |
Selectable charge setting based on battery type | |
Adjustable charge current off-20%-100% | |
Four stage smart charger | |
Transfer Switch Specifications | |
10 A automatic transfer load | |
10 ms (max) transfer time | |
Dimensions | |
Unit weight | 38 lbs. |
Unit size L x W x H | 15 3/4 x 8 3/4 x 7 3/8 inches |
Shipping weight | 42 lbs. |
Shipping size | L x W x H: 20.75 x 12.75 x 12.50 inches |
