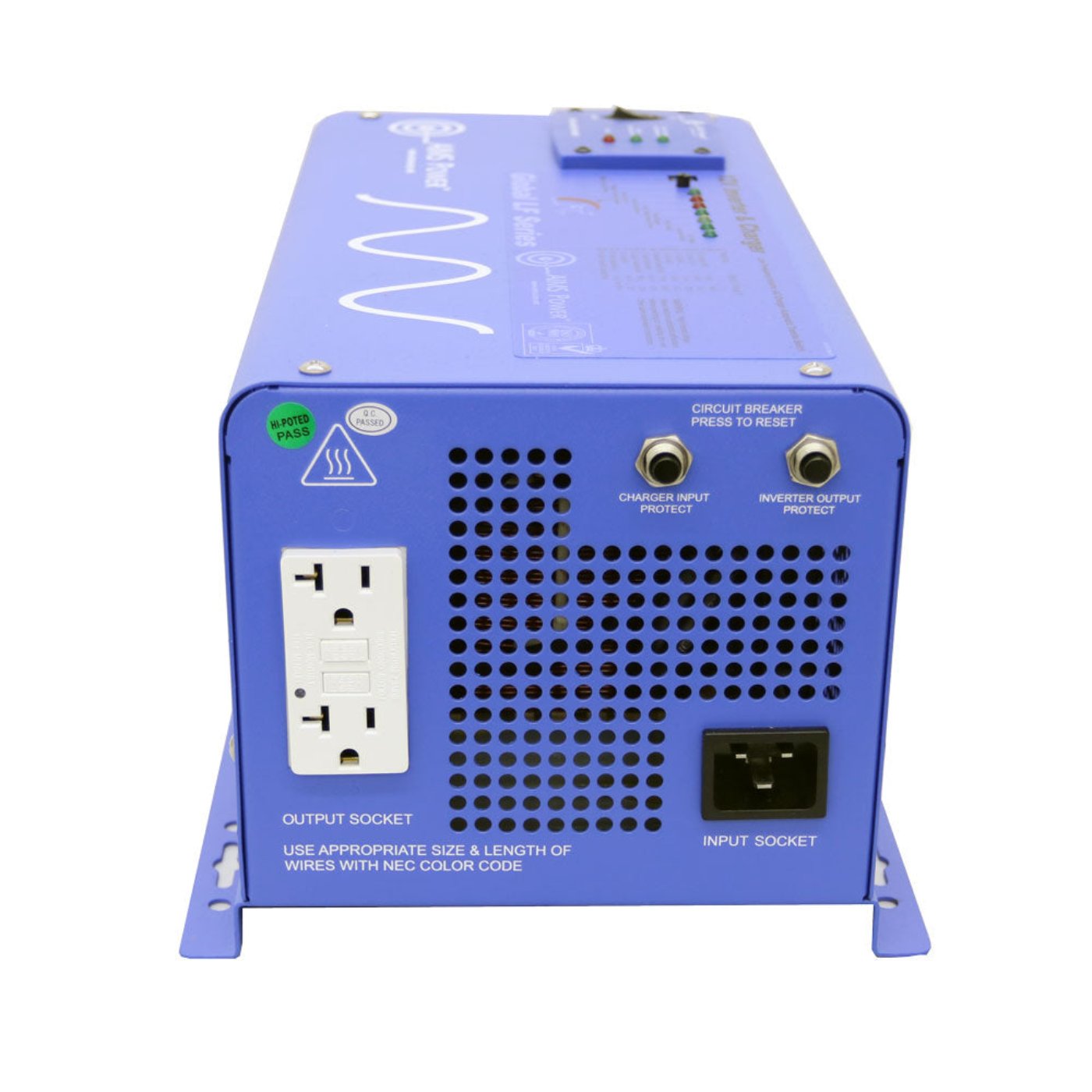

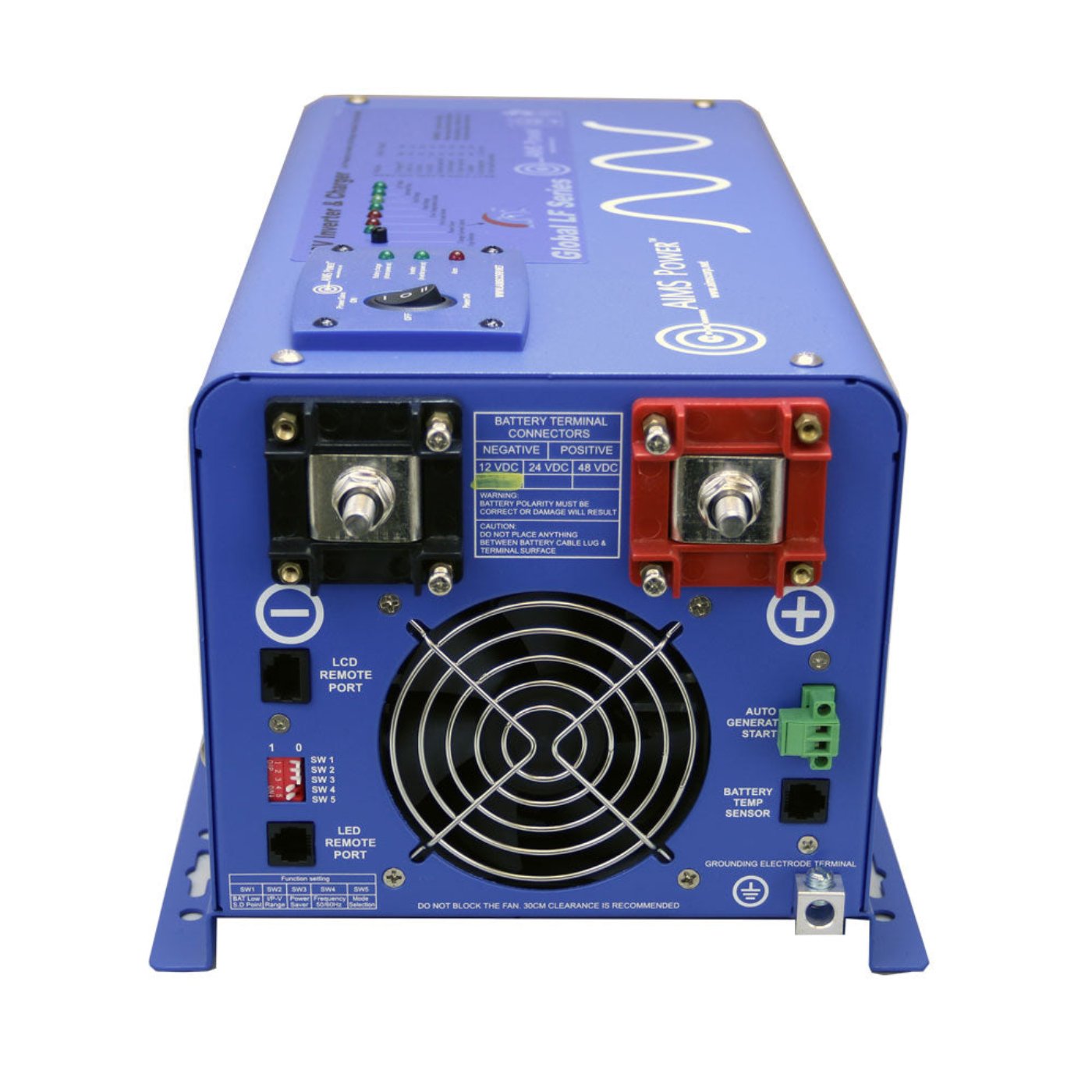

AIMS Power 1500 Watt Pure Sine Low Frequency Inverter with built-in battery charger and transfer switch. This inverter charger is perfect for small-sized industrial applications that depend upon power being available even under heavy load. This heavy-duty inverter charger is ready to go wherever you need it. Use this product for renewable solar, off-grid home and business back up power, mobile and emergency backup power applications anywhere that uses 110 or 120 volts of alternating current.
See Features Below:
1500 watt low frequency inverter
4500 watt surge for 20 seconds -3x surge capability
Battery priority selector
Terminal block
GFCI - 15 amps
Marine coated and protected
Multi stage smart charger 50 Amp for gel, AGM, lead and lithium LiFePO4
Remote panel available
Auto frequency
10msec typical transfer time
Selectable 25W power save mode (hibernation)
7 battery type settings for charger
Automatic transfer switch
This inverter is also great in a smaller RV or boat. If 1500 watts is not enough power, check out our full line of low frequency inverter chargers available in 12, 24 & 48 volt versions. This AIMS power inverter charger is capable of accepting any source of 120v AC power to charge batteries, including a gas or diesel generator or shore power at an RV park/truck stop. It will even accept power from an extension cord plugged into your wall outlet at home.
Inverter Output Specifications | |
---|---|
Continuous Output Power | 1500 Watts |
Surge Rating | 4500 Watts (20 Seconds) |
Output Waveform | Pure Sine/Same as input (Bypass Mode) |
Output Voltage 100-110-120Vac | |
Nominal Efficiency | >88% (Peak) |
Line Mode Efficiency | >95% |
Output Frequency | 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz |
Bypass terminal breaker - 20 amps | |
Typical Transfer Time | 10ms (Max) |
THD | < 10% DC |
Input Specifications | |
Nominal Input Voltage | 12.0Vdc |
Minimum Start Voltage | 10.0Vdc |
Low Battery Alarm | 10.5Vdc-11.0Vdc |
Low Battery Trip | 10.0Vdc-10.5Vdc |
High Voltage Alarm | 16.0Vdc |
Low Battery Voltage Restart | 13.3Vdc |
Charger Breaker - 20 amps | |
Idle Consumption | 13.5 Watts |
Power Saver Mode Idle Consumption | 8 Watts |
Charger Specifications | |
Output Voltage | Depends on battery Type |
Charger Rate | 50A |
Dimensions | |
Unit Weight | 33 lbs. |
Unit Size L x W x H | 14.1 x 8.74 x 7.10 inches |
Shipping Weight | 42 lbs. |
Shipping L x W x H 20.75 x 12.75 x 12.5 inches |
