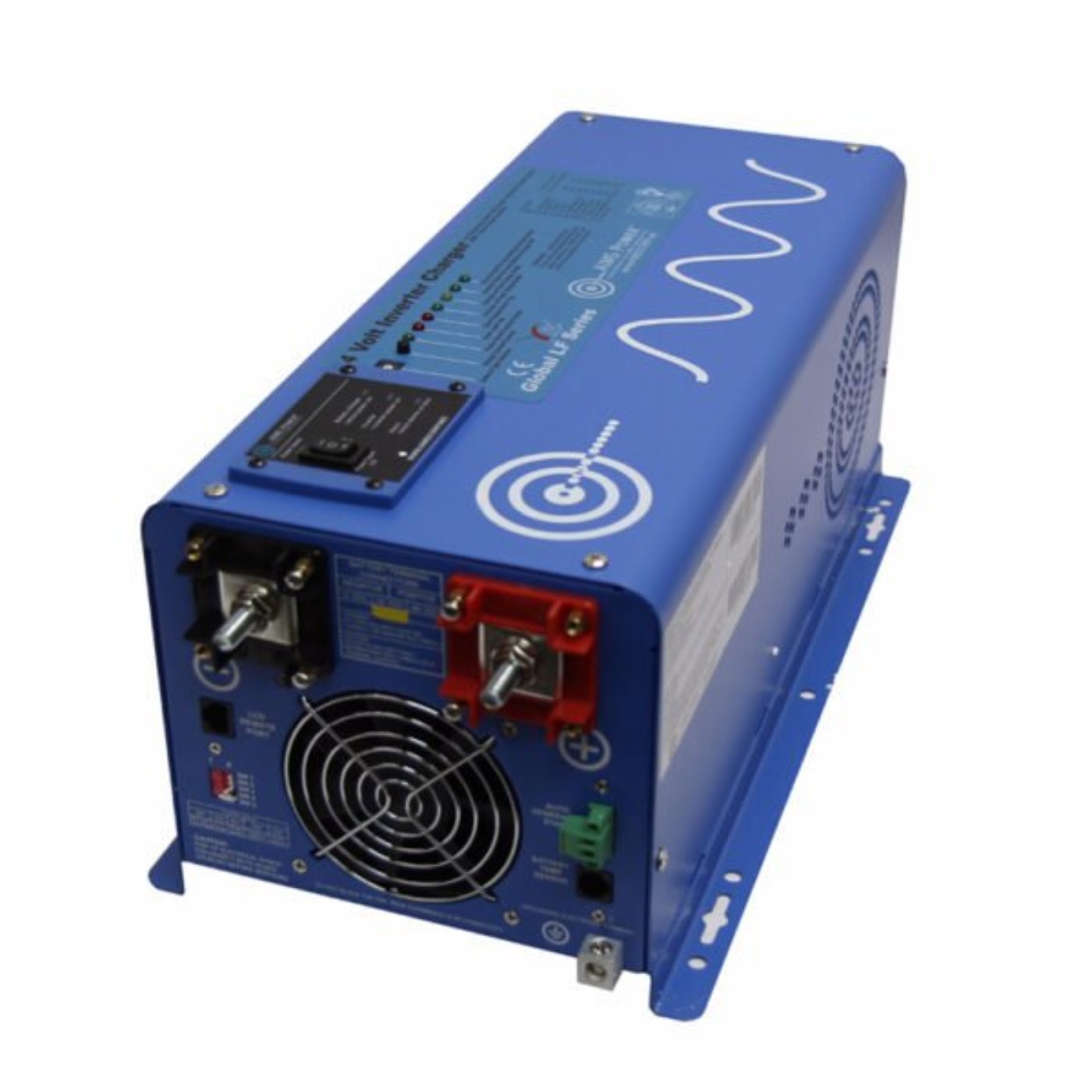

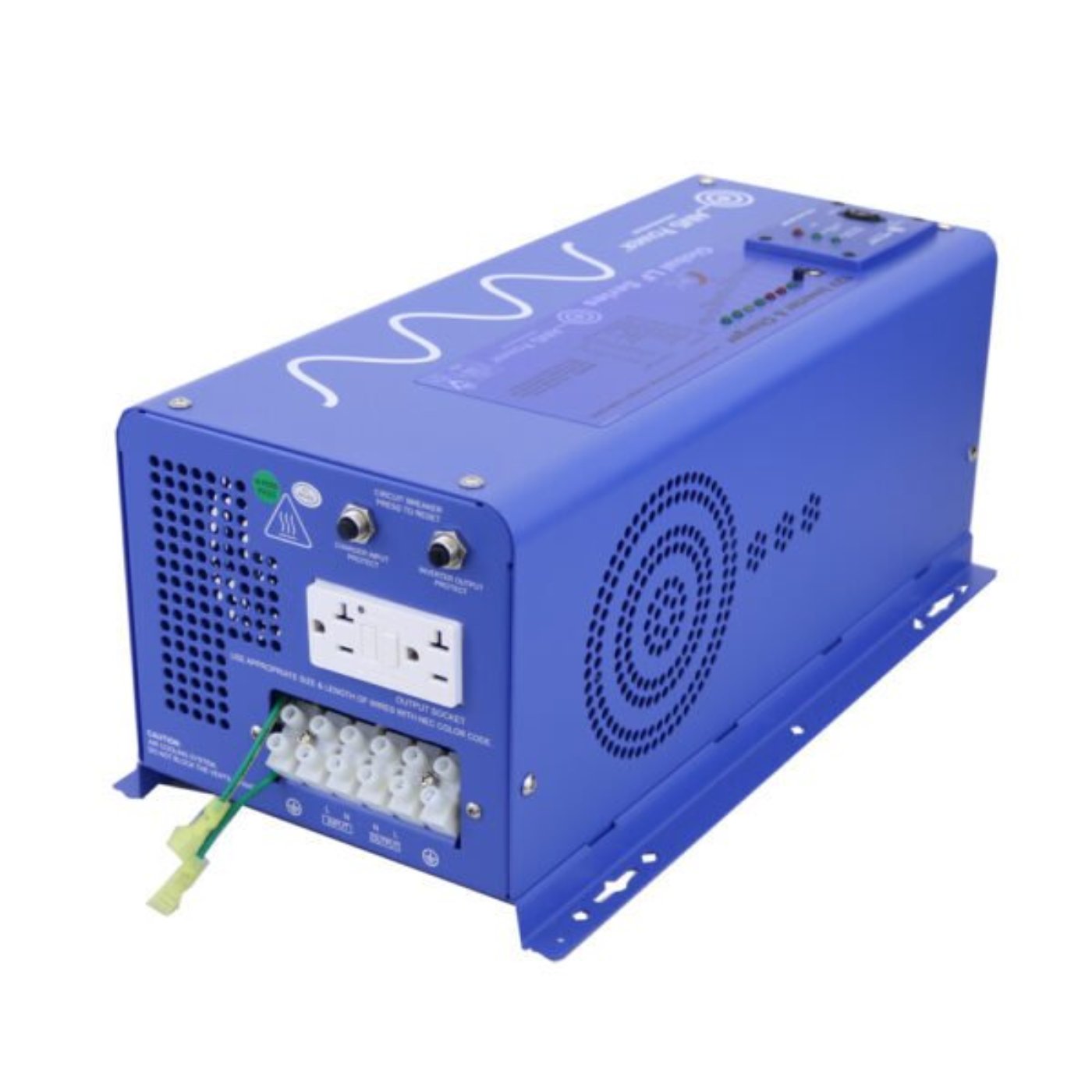

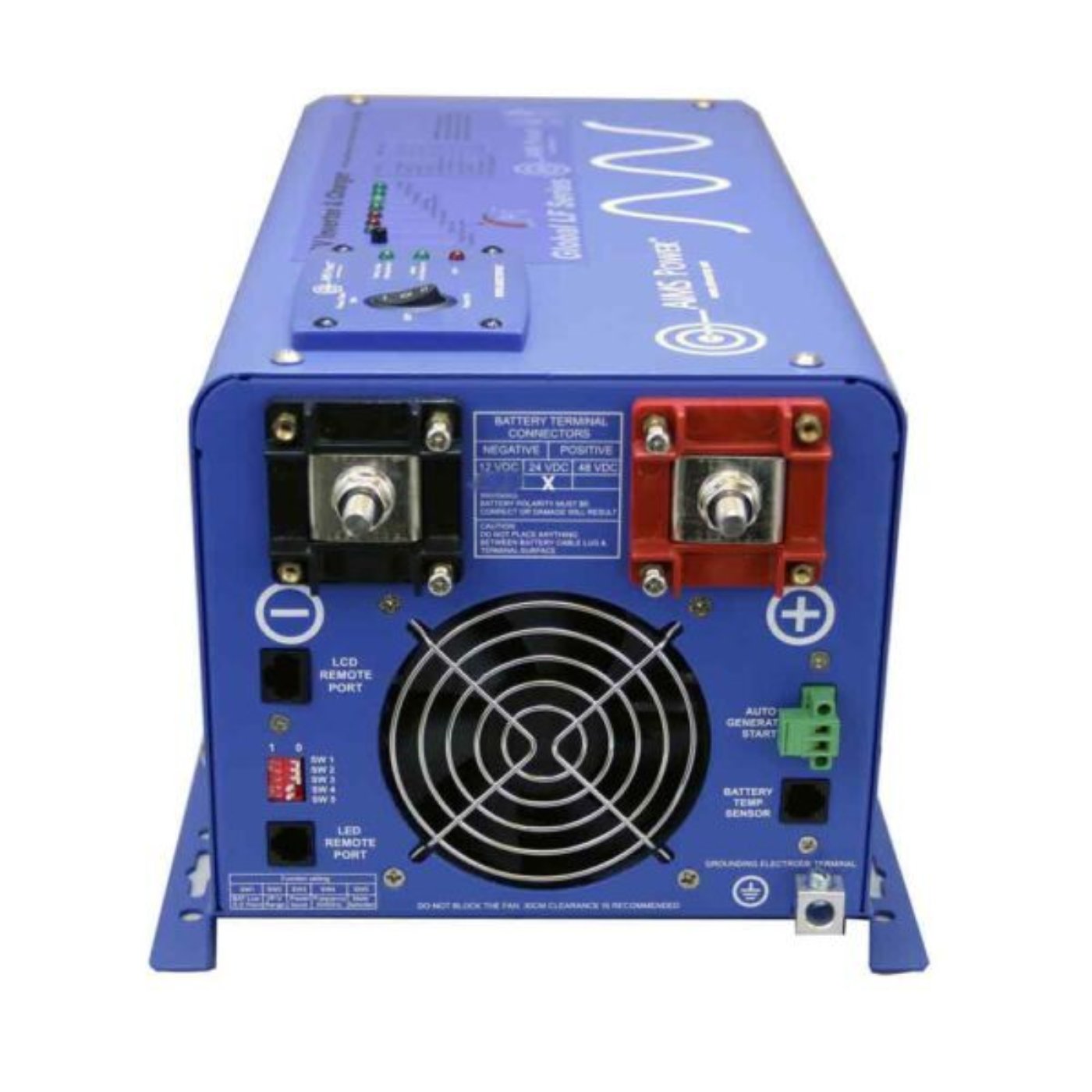

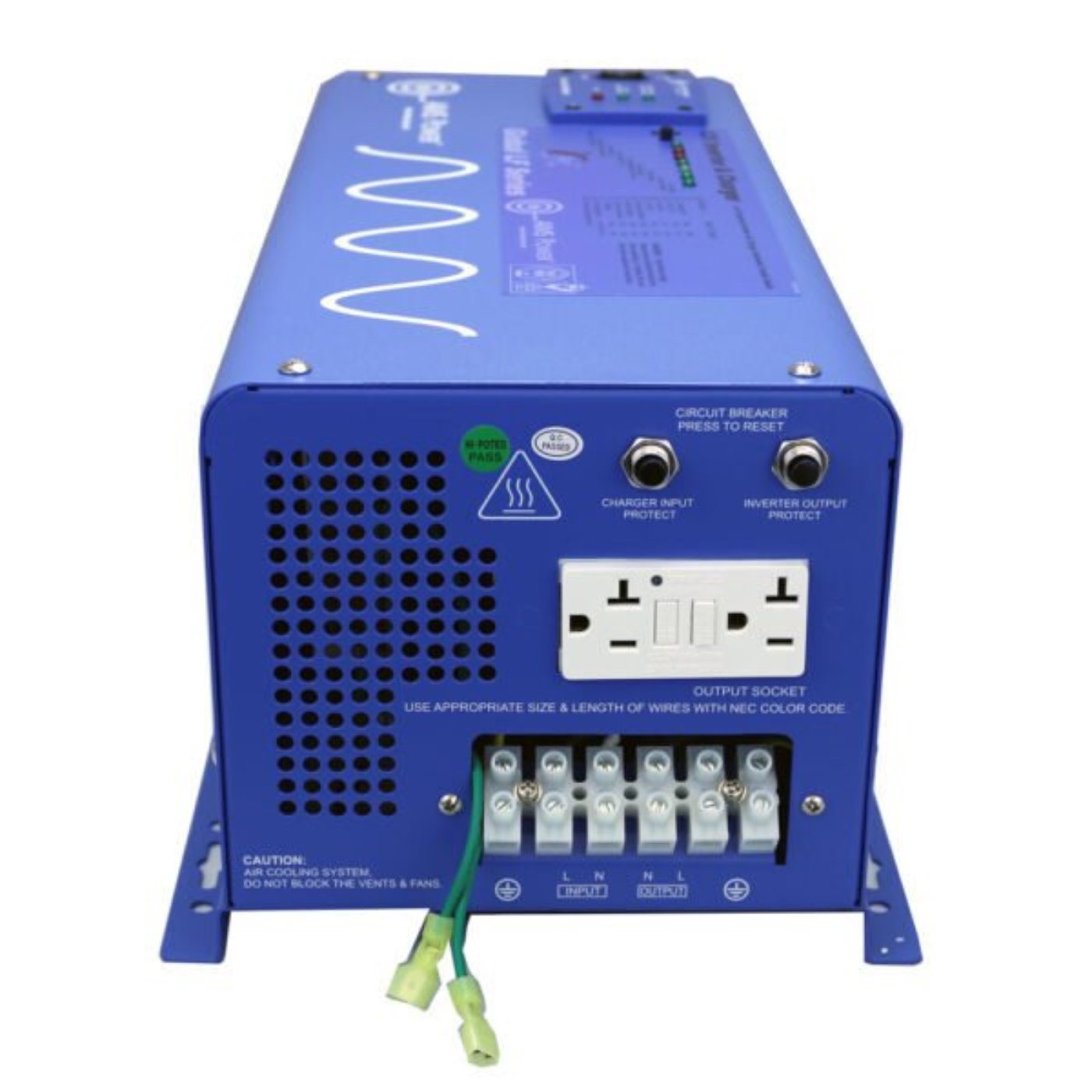

Aims Power 2000 Watt 24V Pure Sine Inverter Charger - PICOGLF20W24V120VR

At Aims Power, We’re Passionate About Designing And Developing Off-grid And Renewable Energy Solutions.

This 2000 watt 24 volt low frequency AIMS Power inverter charger is three products in one.

1. An inverter that transforms DC (direct current) power stored by batteries into AC (alternating current) electricity that can be used to power tools and appliances of all varieties.

2. A built-in 30 amp transfer switch, which will automatically detect when you’re switching from shore power to battery-bank power.

3. A built-in 30 amp battery charger which uses AC power, like from the grid or from a fuel-powered generator, that can be used to recharge a battery bank as well. The battery-type selector on the top of the unit allows the ability to adjust the voltage provided to the bank.

Combine this inverter charger with a deep-cycle battery bank for off-grid home or business, solar,  mobile and emergency backup power.

This inverter is also available in 12 and 48 volt models. The 2000 watt 12 volt Pure Sine Inverter Charger and 2000 watt 48 volt Pure Sine Inverter Charger are in stock and ready for same-day shipping as well.

It’s an industrial-grade unit with the ability to withstand surges of up to 6000 watts for 20 seconds, and  it achieves this by virtue of its direct connect terminal block. This feature is one of the more sought-after in the inverter industry, allowing users to surpass the 1,500 watt maximum output of a GFCI outlet that would typically be seen on an inverter.

This inverter also features a battery-type selector, which helps user regulate the voltage going into the battery bank. This capability can be a big money-saver since treating the battery bank properly will maximize its lifespan.

Check out the 4000 watt low frequency AIMS Power inverter charger for a comparable unit that can handle the startup surges (up to 12,000 watts for 20 seconds) of tools with larger electrical requirements, such as an air compressor.

As with all AIMS Power inverters, the PICOGLF30W24V120V is covered under a 30-day money back guarantee as well as a one year manufacturer’s warranty and free technical support.

See Features Below:

• 2000 watt low frequency inverter

• 6000 watt surge for 20 seconds 300% surge capability

• Battery priority selector

• AC direct connect terminal Block

• Marine coated and protected

• Multi stage smart charger 30 Amp for gel, AGM, lead and lithium LiFePO4

• Remote panel available

• Auto frequency

• 10msec typical transfer time

• Selectable 25W power save mode (hibernation)

• 7 battery type settings for charger

• Automatic transfer switch

Specifications

Inverter Output Specifications:

• Continuous Output Power: 2000 Watts

• Surge Rating: 6000 Watts (20 Seconds)

• Output Waveform: Pure Sine/Same as input (Bypass Mode)

• Nominal Efficiency: >88% (Peak)

• Line Mode Efficiency: >95%

• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz

• Typical Transfer Time: 10ms (Max)

• THD: < 10% DC

• Ambient Operating Temperature: 14°F to 122°F (-10°C to 50°C)

Input Specifications

• Nominal Input Voltage: 24.0Vdc

• Minimum Start Voltage: 20.0Vdc

• Low Battery Alarm: 21.0Vdc-22.0Vdc

• Low battery Trip: 20.0Vdc-21.0Vdc

• High Voltage Alarm: 32.0Vdc

• Low battery Voltage Restart: 26.6Vdc

• Idle Consumption: 26.5 watts

• Power Saver Mode Idle Consumption: 12.2 watts

Charger Specifications

• Output voltage: Depends on Battery Type

• Charger Rate: 30A

• Over Charge Protection Shutdown 31.4V

• Selectable Charge Setting

• Adjustable Charge Current: off-20%-100%

• Four Stage Smart Charger

Transfer Switch Specifications

• 30 amp auotmatic transfer switch

• 10 ms (max)

Dimensions

• Unit Weight: 50 lbs.

• Unit Size L x W x H: 16.48 x 8.74 x 7.1 inches

• Shipping Weight: 53 lbs.

• Shipping L x W x H 23.5 x 13.0 x 12.5 inches

Product Guide

Aims Power 2000 Watt 24V Pure Sine Inverter Charger Product Manual

Delivery

Order shipment preparation take 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
