Aims Power 2000 Watt 48V Pure Sine Inverter Charger - PICOGLF20W48V120VR

At Aims Power, We’re Passionate About Designing And Developing Off-grid And Renewable Energy Solutions.

This is an industrial-grade unit with the ability to withstand surges of up to 6000 watts for 20 seconds, and  it achieves this by virtue of its direct connect terminal block. This feature is one of the more sought-after in the inverter industry, allowing users to surpass the 1,500 watt maximum output of a GFCI outlet that would typically be seen on an inverter.

The 2000 watt 48 volt low frequency AIMS Power inverter charger transforms DC (direct current) power, produced by solar panels and stored by batteries, into AC (alternating current) electricity that can be used to run most all tools and appliances. This inverter also has a built in AC-to-DC battery converter charger, which allows users to recharge their battery bank from an AC source such as a fuel-powered generator, shore power or a regular outlet at home.

The inverter also has conformal-coated (marine-coated) boards, making it marine-grade and resistant to dust and/or water vapor that travel through the air and could otherwise be damaging to the unit. This feature is great for boating applications, like powering a stereo system, for instance.

As with all AIMS Power inverters, the PICOGLF30W48V120V is covered under a 30-day money back guarantee as well as a one year manufacturer’s warranty and free technical support.

See Features Below:

• 2000 watt low frequency inverter

• 6000 watt surge for 20 seconds 300% surge capability

• Battery priority selector

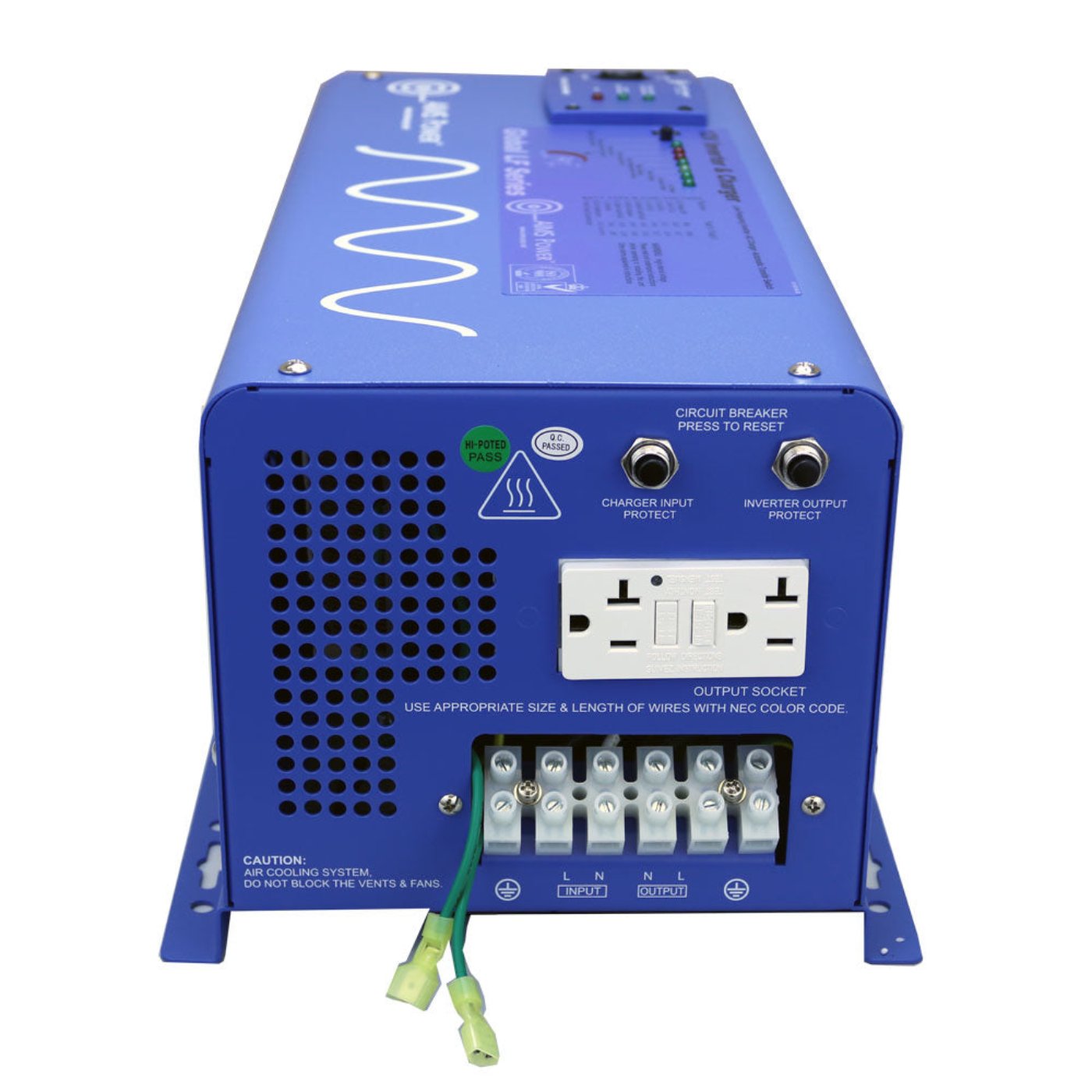

• AC direct connect terminal block

• Marine coated and protected

• Multi stage smart charger 20 Amp for gel, AGM, lead and lithium LiFePO4

• Remote panel available

• Auto frequency

• 10msec typical transfer time

• selectable 25W power save mode (hibernation)

• 7 battery type settings for charger

• Automatic transfer switch

Specifications

Inverter Output Specifications:

• Continuous Output Power: 2000 Watts

• Surge Rating: 6000 Watts (20 Seconds)

• Output Waveform: Pure Sine/Same as input (Bypass Mode)

• Nominal Efficiency: >88% (Peak)

• Line Mode Efficiency: >95%

• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz

• Typical Transfer Time: 10ms (Max)

• THD: < 10% DC

• Ambient Operating Temperature: 14°F to 122°F (-10°C to 50°C)

Input Specifications

• Nominal Input Voltage: 48.0Vdc

• Minimum Start Voltage: 40.0Vdc

• Low Battery Alarm: 42.0Vdc-44.0Vdc

• Low Battery Trip: 40.0Vdc-42.0Vdc

• High Voltage Alarm: 64.0Vdc

• Low Battery Voltage Restart: 53.2Vdc

• Idle Consumption: 28 watts

• Power Saver Mode Idle Consumption: 12.7 Watts

Charger Specifications

• Output voltage: depends on battery type

• Charger rate: 20A

• Over charge protection shutdown 62.8V

• Selectable charge setting based on battery type

• Adjustable charge current off-20%-100%

• Four stage smart charger

Transfer Switch Specifications

• 30 amp auotmatic transfer switch

• 10 ms (max)

Dimensions

• Unit Weight: 42 lbs.

• Unit Size L x W x H: 16.48 x 8.74 x 7.1 inches

• Shipping Weight: 53 lbs.

• Shipping L x W x H 23.5 x 13.0 x 12.5 inches

Product Guide

AIMS Power 2000 Watt 48 volt Inverter Charger – PICOGLF20W48V120VR
