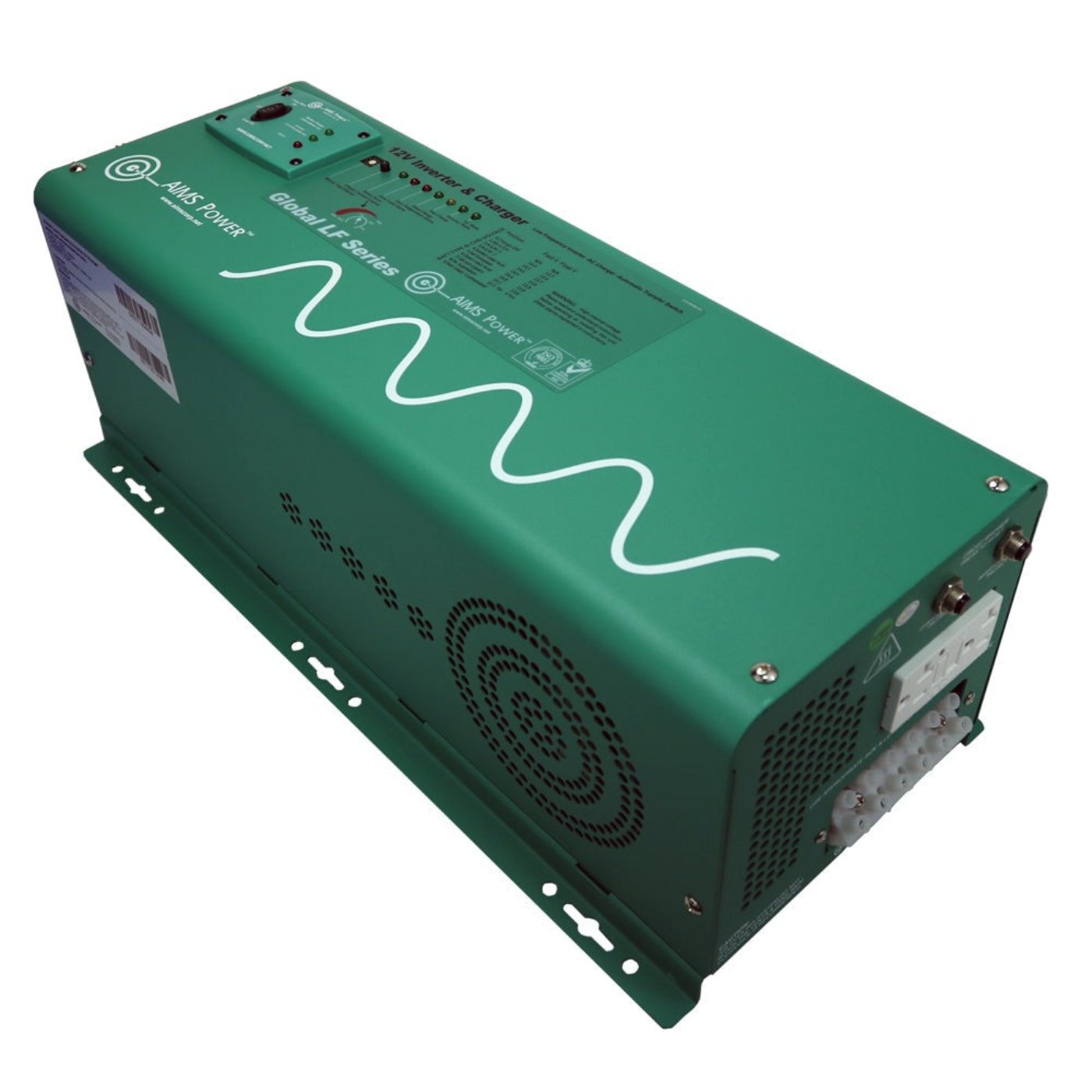

Aims Power 2500 Watt 12V Pure Sine Inverter Charger - PICOGLF25W12V120AL

At Aims Power, We’re Passionate About Designing And Developing Off-grid And Renewable Energy Solutions.

The AIMS 2500 watt low frequency inverter charger is perfect for most off grid systems, semi-trucks, 5th wheels, toy haulers or any remote locations needing power. Providing 2500 watts of continuous, clean and reliable pure sine wave power, ideal for sensitive electronics and household appliances. AIMS developed this inverter with less bells and whistles, making if more affordable and easy to use for applications that don't require a lot of extra features. We consider this our better of our good, better, best product lines.

If needed, this inverter has the capability of producing 7500 watts of total surge power for 20 seconds, for start-up applications like refrigerators, computers, tools, motors, fans and microwaves.

This inverter boasts a 85 amp charger and automatic transfer switch. For use with shore power or generator power to recharge your batteries or as a back-up for your sump pump, medical equipment, appliances, tools and most anything up to 20 AC amps.

See Features Below:

• 2500 watt continuous

• 7500 watt surge for 20 seconds 300% surge capability (don’t use the surge mode often)

• AC direct connect terminal block

• GFCI outlet

• Marine coated and protected

• Multi stage smart charger 85 A

• LCD or LED remote panel available (LED available in Dec.)

• Thermal and load based fan

• Low voltage recovery

• Power save mode

• Auto frequency

• 10msec typical transfer time

• Optional 25W power save mode

• 7 battery type settings for charger

• 1 year warranty and free tech support

Specifications

Output Specifications:

• Continuous output power: 2500 Watt

• Surge rating: 7500 Watt (20 seconds)

• Output waveform: pure sine/same as input (bypass mode)

• Output voltage: 100-110-120 VAC

• Nominal efficiency: >88% (peak)

• Line mode efficiency: >95%

• Output frequency: 60Hz +/- 0.3Hz

• Typical transfer time: 10ms (max)

• Terminal output breaker/ transfer load: 30 amps automatic

• THD: < 10% DC

Input Specifications:

• Nominal input voltage: 12.0 VDC

• Minimum start voltage: 10.0 VDC

• Low battery alarm: 10.5Vdc-11.0 VDc

• Low battery trip: 10.0Vdc-10.5 VDC

• High voltage alarm: 16.0 VDC

• Low battery voltage restart: 15.5 VDC

• Input breaker / charger breaker – 30 amps

• Idle consumption: 55 watts

• Power saver mode idle consumption: <21.7 watts

Charger Specifications:

• Output voltage: depends on battery type

• Charger rate: 85 A

Dimensions:

• Unit weight: 46 lbs

• Unit size: L x W x H: 21 1/2 x 8 3/4 x 7 3/8 inches

• Shipping weight: 50 lbs.

• Shipping size: L x W x H: 23.5 x 13.0 x 12.5 inches

Product Guide

AIMS Power 2500 Watt POWER INVERTER CHARGER - PICOGLF25W12V120AL
