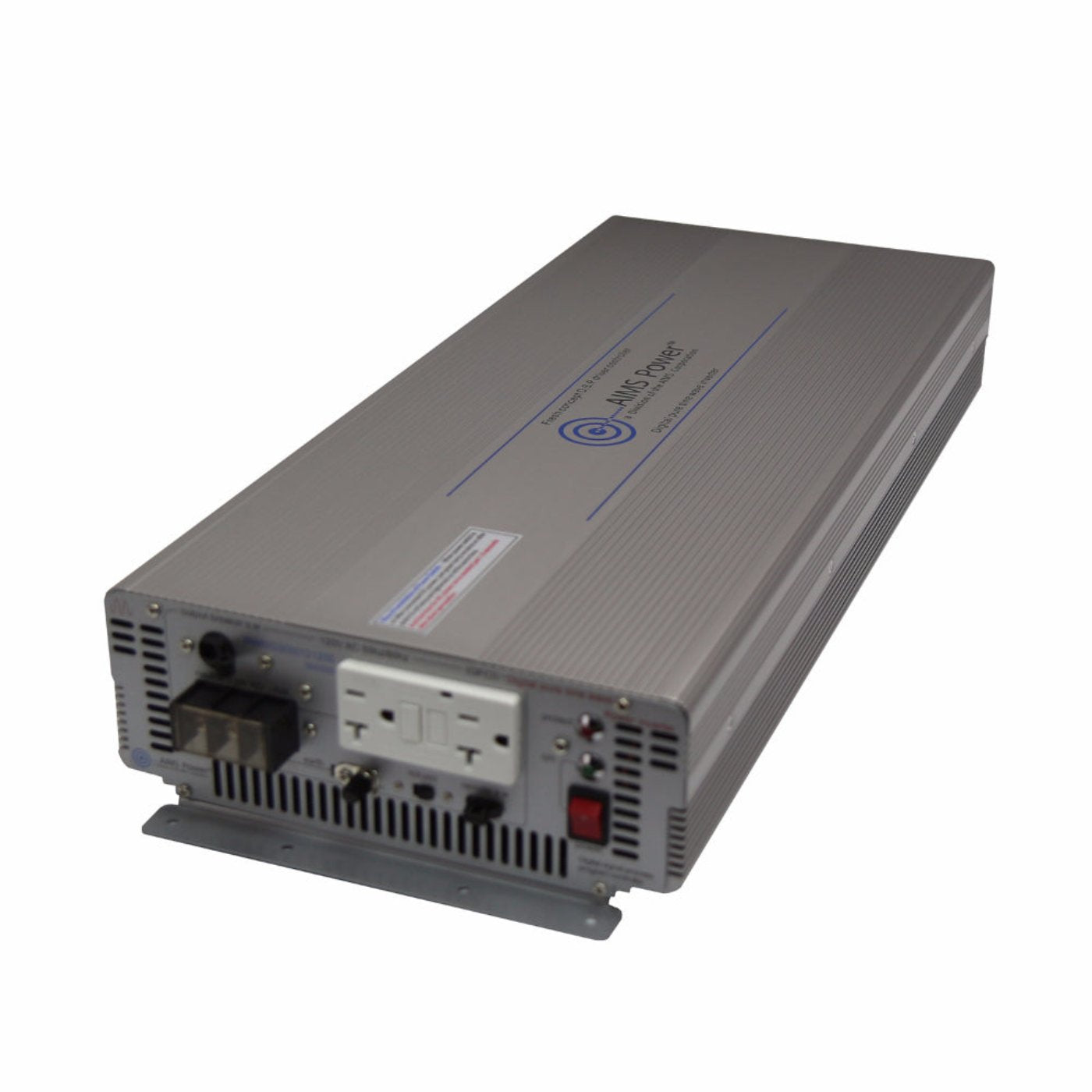

AIMS Power is proud to bring you this new 3000 Watt Pure Sine Power Inverter, designed for harsh environments, which has been completely overhauled and now boasts a dual GFCI outlet and is FCC certified. This product also includes a thermally controlled fan, allowing for increased efficiency and less noise.
See Features Below:
3000 Watt continuous power
6000 Watt surge
24 Volt DC input
Pure sine wave
60hz or 50hz switch
Highly efficient - improved output at low voltage
1 - GFCI Dual Outlet
Direct connect AC Terminal Block

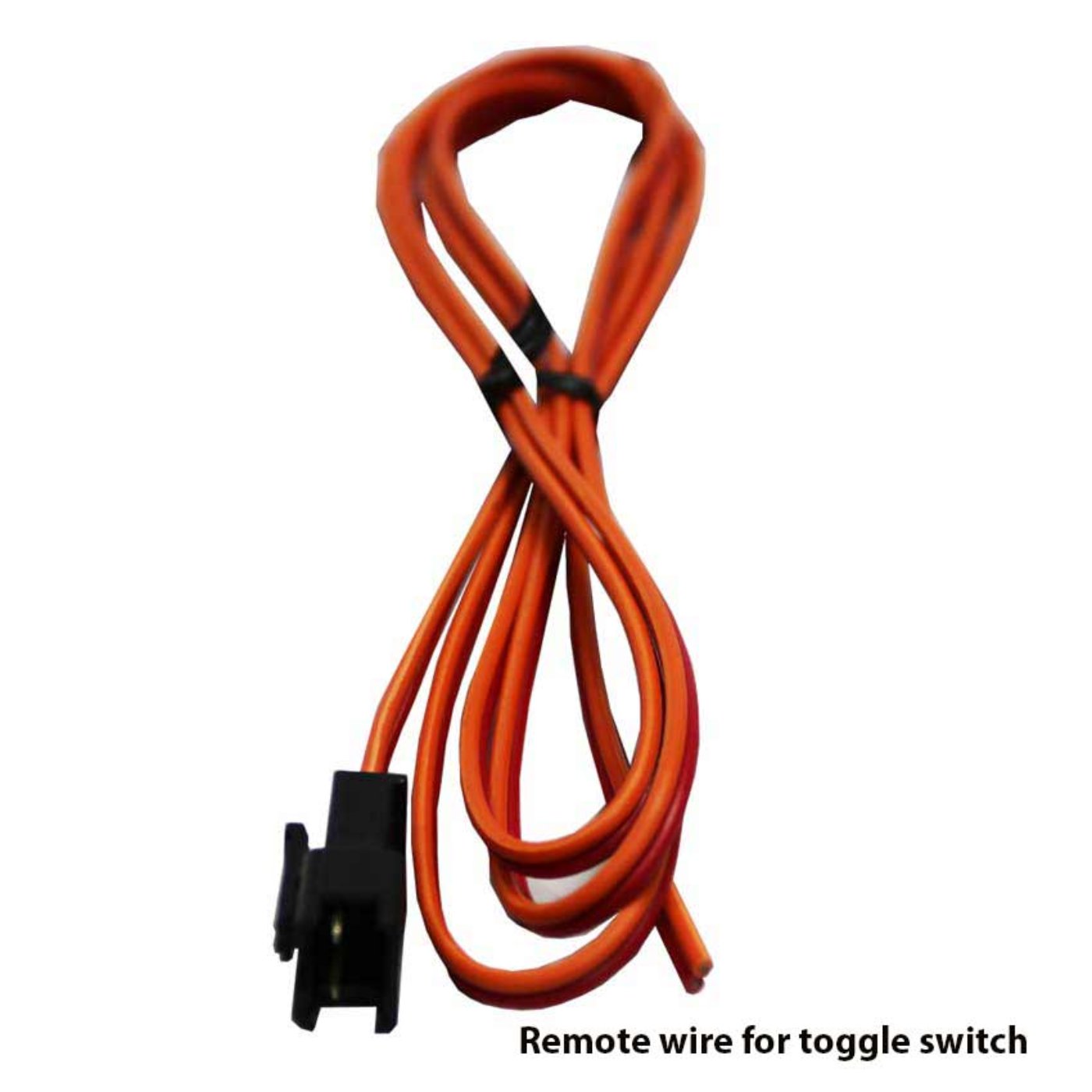

Connector and cable for remote on/off switch
Isolated ground & neutral
Short circuit protection (GFCI and AC Breaker)
On/off switch
5 Function Protection LED indicator
AC Breaker
DC volt meter included
Dual cooling fans thermally controlled
Instruction manual
1 year tech support
1 Year Warranty Parts and Labor replacement
It will continue to put out stable, pure sine power and maintain output voltage, even as you battery bank voltage decreases. High output performance is achieved through a DSP (Digital Signal Process) drive. This inverter is ideal for running nonlinear loads (such as variable speed motors and small compressors). Pure sine power is also preferred for LaserJet printers, sensitive electronics, computer servers, microwaves, medical equipment, any with a circuit board and cordless drill battery chargers. An external battery voltage sensor will allow you to monitor your battery capacity and power consumption.
Continuous output power | 3000 Watts |
---|---|
Surge power capability (peak power) | 6000 Watts |
DC input / operating voltage | 21-32 Volts |
Output voltage | 120 Volts ac |
Output voltage regulation | +/- 3% |
Output wave form | pure sine wave |
Output frequency | 50/60 Hz |
Battery low voltage alarm | 21 +/- 0.5 Volts |
Battery low voltage shutdown | 20 v +/- 0.5 Volts |
No load power consumption | fan off <0.45 DC amps or fan on <0.67 DC amps |
THD | <5% |
Full load efficiency | 90% |
1/3 load efficiency | 95% |
No load minimum operating temperature | -4 degrees Fahrenheit |
Full load maximum operating temperature | 176 degrees Fahrenheit (automatic shutdown) |
GFCI Reset able AC Outlet | |
High input voltage shutdown | 34V |
Low input voltage shutdown | 20V |
Internal blade fuse protection | |
Product size (L x W x H) | 20.47” x 8.86” x 3.50” |
Weight | 16.09 lbs unit boxed 20 lbs |
AIMS 3000 Watt Pure Sine 24 Volt Power Inverter - PWRIG300024120S
