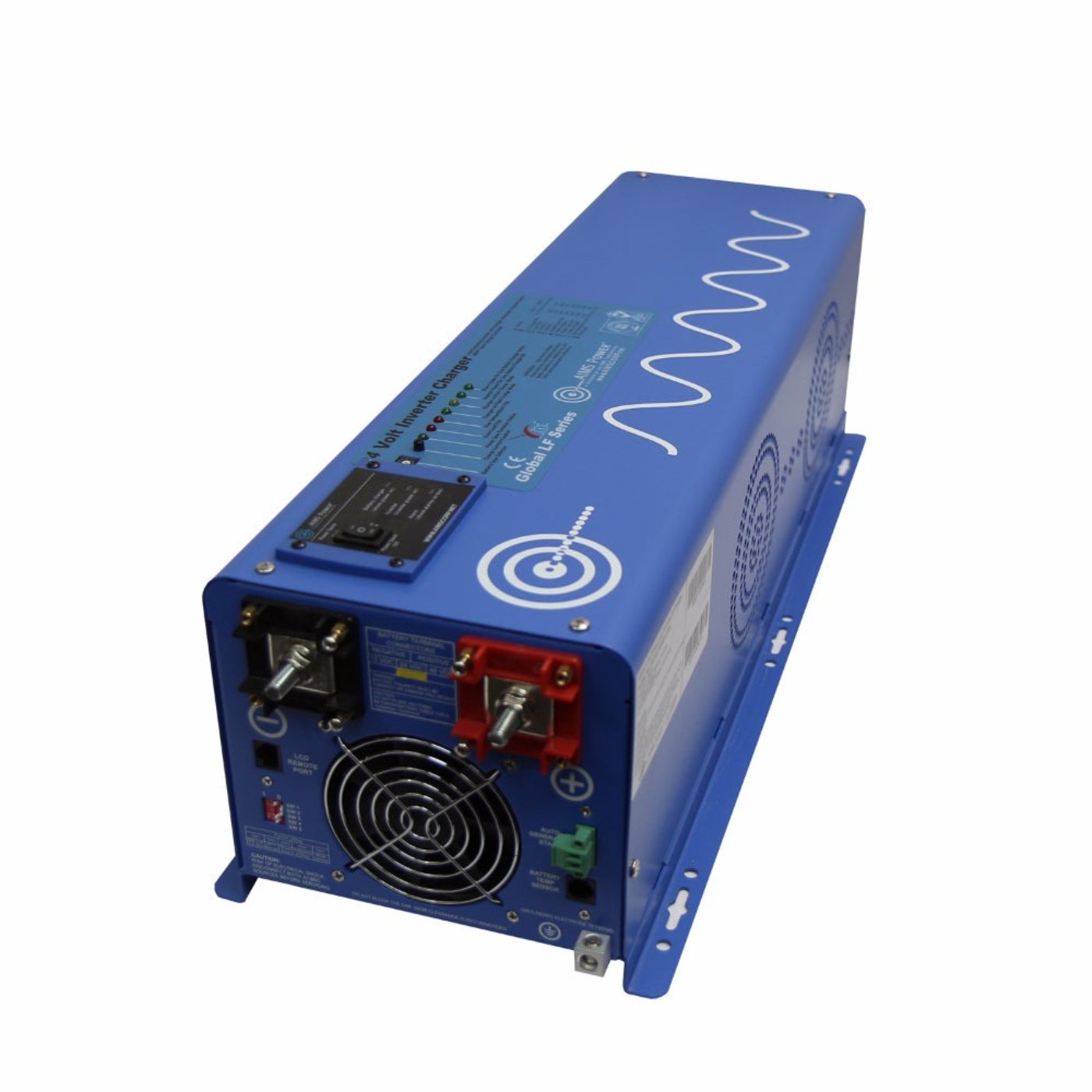

Aims Power 4000 Watt 24V Pure Sine Inverter Charger - PICOGLF40W24V120V

At Aims Power, We’re Passionate About Designing And Developing Off-grid And Renewable Energy Solutions.

The AIMS Power 4000 watt 24 volt pure sine low frequency inverter charger is one of the best in its class. This inverter charger is a perfect product to create an environmentally-friendly power system with. Its high-wattage capacity allows for use in almost any application, and this inverter charger’s 24 volt capacity allows for maximum efficiency.

This inverter charger is perfect for industrial use but can also be a great tool for savvy consumers. Use this product for renewable solar, off-grid home and business back up power, mobile and emergency backup power applications anywhere that uses 110 or 120 volts of alternating current.

With the product’s battery priority mode, the inverter charger can run directly off of a battery back-up system instead of a generator or tertiary source of AC Power. The inverter charger comes with a Power Saver mode that pulses every 3 seconds, attempting to detect a necessary load of 25 watts or more before it will turn on. Otherwise, the inverter charger will “sleep” and draw about half an amp per hour, saving precious battery reserve power until it’s needed.

See Features Below:

• 4000 watt low frequency inverter

• 12000 watt surge for 20 seconds 300% surge capability

• 24 Volt DC

• Battery Priority Selector

• Terminal Block

• Marine Coated and Protected

• Multi Stage Smart charger 50 Amp

• Charges lithium LiFePO4, GEL, AGM and lead batteries. We recommend to check battery charging specifications for all batteries.

• Remote panel available

• Auto frequency

• 10msec typical transfer time

• Selectable 25W power save mode (hibernation)

• 7 battery type settings for charger

• Automatic transfer switch

Specifications

Inverter Output Specifications:

• Continuous Output Power: 4000 Watts

• Surge Rating: 12000 Watts (20 Seconds)

• Output Waveform: Pure Sine/Same as input (Bypass Mode)

• Output Voltage 100-110-120Vac

• Nominal Efficiency: >88% (Peak)

• Line Mode Efficiency: >95%

• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz

• Typical Transfer Time: 10ms (Max)

• THD: < 10% DC

• Ambient operating temperature: 14°F to 122°F (-10°C to 50°C)

Input Specifications

• Nominal Input Voltage: 24.0Vdc

• Minimum Start Voltage: 20.0Vdc

• Low Battery Alarm: 21.0Vdc-22.0Vdc

• Low battery Trip: 20.0Vdc-21.0Vdc

• High Voltage Alarm: 32.0Vdc

• Low battery Voltage Restart: 26.6Vdc

• Idle Consumption: 52.5 Watts

• Idle Consumption with Power Saver Mode ON: <25 Watts

Charger Specifications

• Output voltage: Depends on battery Type

• Charger Rate: 50A

• Over Charge Protection Shutdown 31.4V

• Selectable Charge setting based on battery type

• Adjustable charge current off-20%-100%

• Four Stage Smart Charger

Transfer Switch Specifications

• 40 amp automatic transfer switch

• 10 ms (max)

Dimensions

• Unit Weight: 62 lbs.

• Unit Size L x W x H: 27.88 x 8.74 x 7.10 inches

• Shipping Weight: 72 lbs.

• Shipping L x W x H 30.5 x 14.25 x 13.75 inches

Delivery

Order shipment preparation take 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
