Aims Power 4000 Watt Pure Sine Inverter Charger 12VDC/240VAC Input and 120/240VAC Split Phase Output - PICOGLF4012120240VS

At Aims Power, We’re Passionate About Designing And Developing Off-grid And Renewable Energy Solutions.

Combine this solar inverter charger with a deep-cycle battery bank for off-grid, mobile and emergency backup power.

The most popular feature of this unit is the direct connect terminal block, which allows a 300 percent surge capacity for up to 20 seconds. When using the terminal block, this inverter peaks at 12000 watts with the power to run many tools and appliances with a startup surges, such as a refrigerators, freezers, microwaves and blow dryers.

If you’re looking for an inverter with similar capabilities but a lower wattage capacity, check out the 2000 watt low frequency AIMS Power inverter charger.

Use this product for renewable solar, off-grid home and business back up power, mobile and emergency backup power applications anywhere that uses 110/120 OR 2208/230/240 volts of alternating current. The inverter accepts 12 volts DC, which makes it great for vehicle upfitting as well as boat and RV applications that use a 12 volt battery system.  The inverter outputs 120/240 volts AC. The inverter also charges at 120 Volts.

See Features Below:

• 4000 watt low frequency inverter

• 12,000 watt surge for 20 seconds 300% surge capability

• 120/240 VAC output Split Phase Charges with 120 Vac multi-stage smart charger

• 115 Amp battery priority selector

• Charges lithium LiFePO4, gel, AGM and lead batteries. We recommend checking battery charging specifications for all batteries.

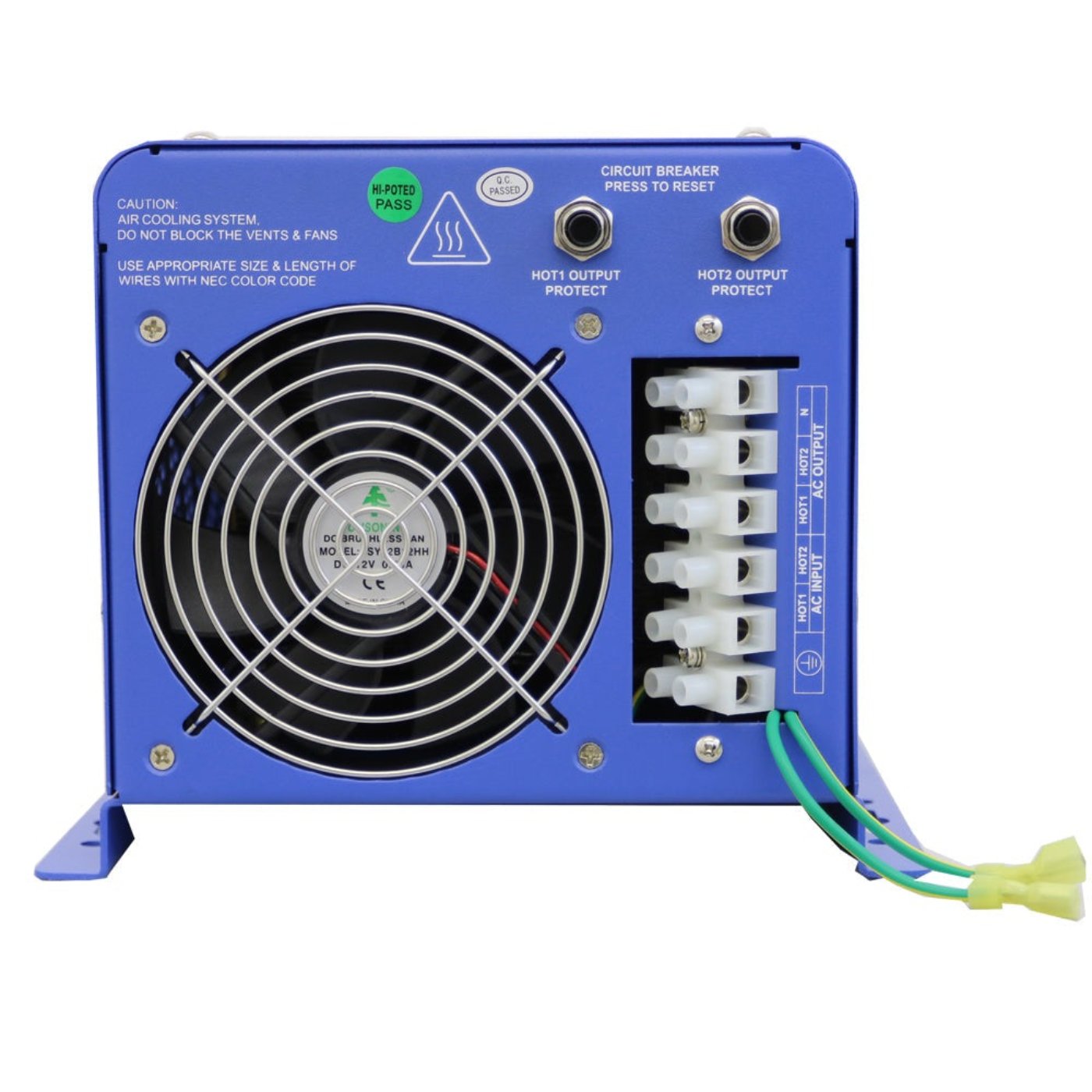

• Direct connect AC terminal block

• Marine coated and protected

• Remote panel available auto frequency

• 10msec typical transfer time optional 25W power save mode

• 7 battery type settings for charger

• 7 Automatic transfer switch

Specifications

Input Specifications

• Nominal Input Voltage: 12.0Vdc

• Minimum Start Voltage: 10.0Vdc

• Low Battery Alarm: 10.5Vdc-11.0Vdc

• Low battery Trip: 10.0Vdc-10.5Vdc

• High Voltage Alarm: 16.0Vdc Low battery

• Voltage Restart: 15.5Vdc

• Idle Consumption: 50 Watts

• Power Saver Mode Idle Consumption: 21 Watts

Charger Specifications

• Output voltage: Depends on battery Type

• Charger Rate: 115A Over

• Charge Protection Shutdown 15.7V

• Selectable Charge setting based on battery type

• Adjustable charge current off-20%-100%

• Four Stage Smart Charger

• Transfer Switch Specifications 40 amp automatic transfer switch 10 ms (max)

Dimensions

• Unit weight: 75 lb

• Unit size: L x W x H: 31.5 x 8.75 x 7.25 inches

• Shipping weight: 87 lb

• Shipping size: L x W x H: 35.5 x 14.50 x 13.50 inches

• Shipping Weight: 75 lbs. Shipping L x W x H 30.5 x 14.5 x 13.75 inches
