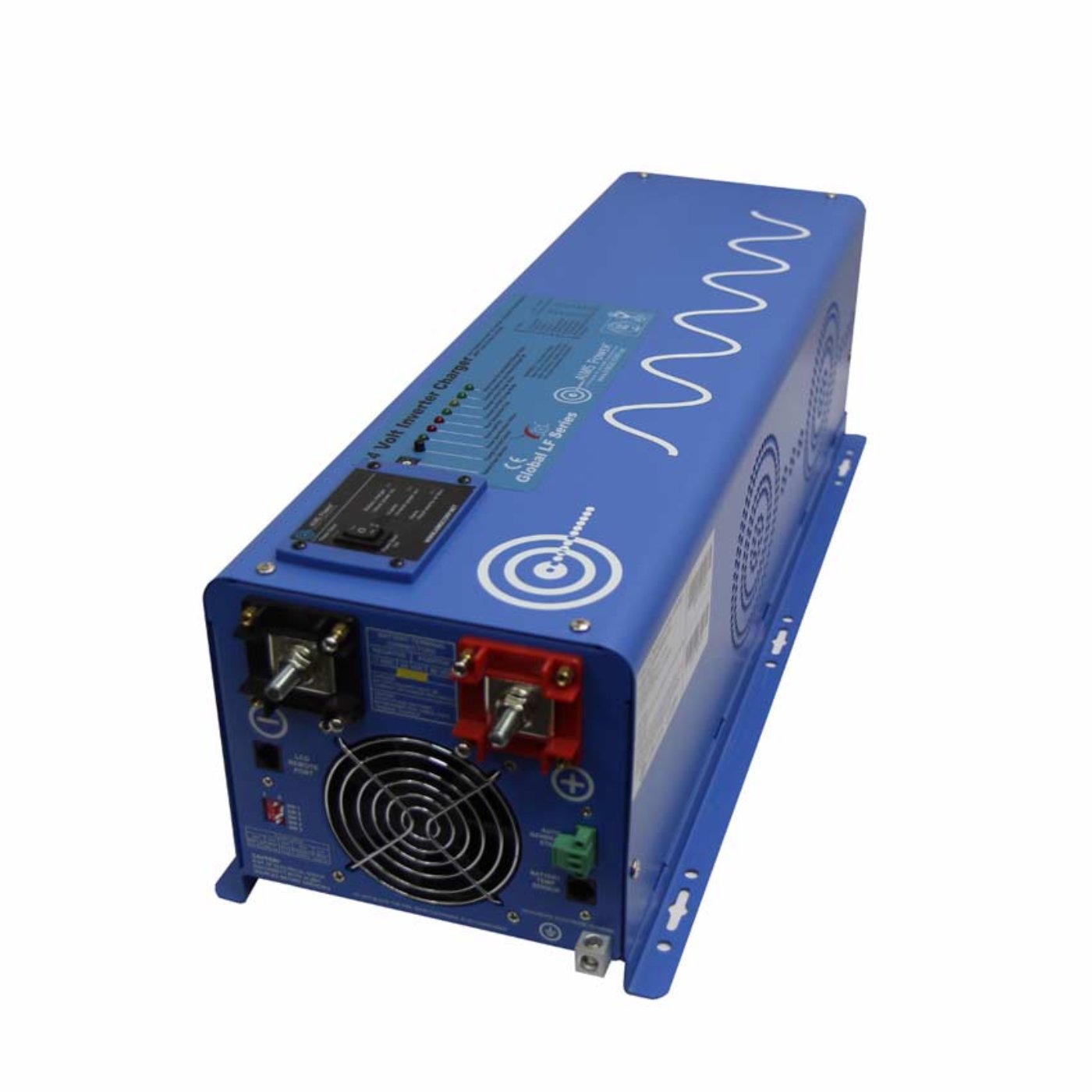

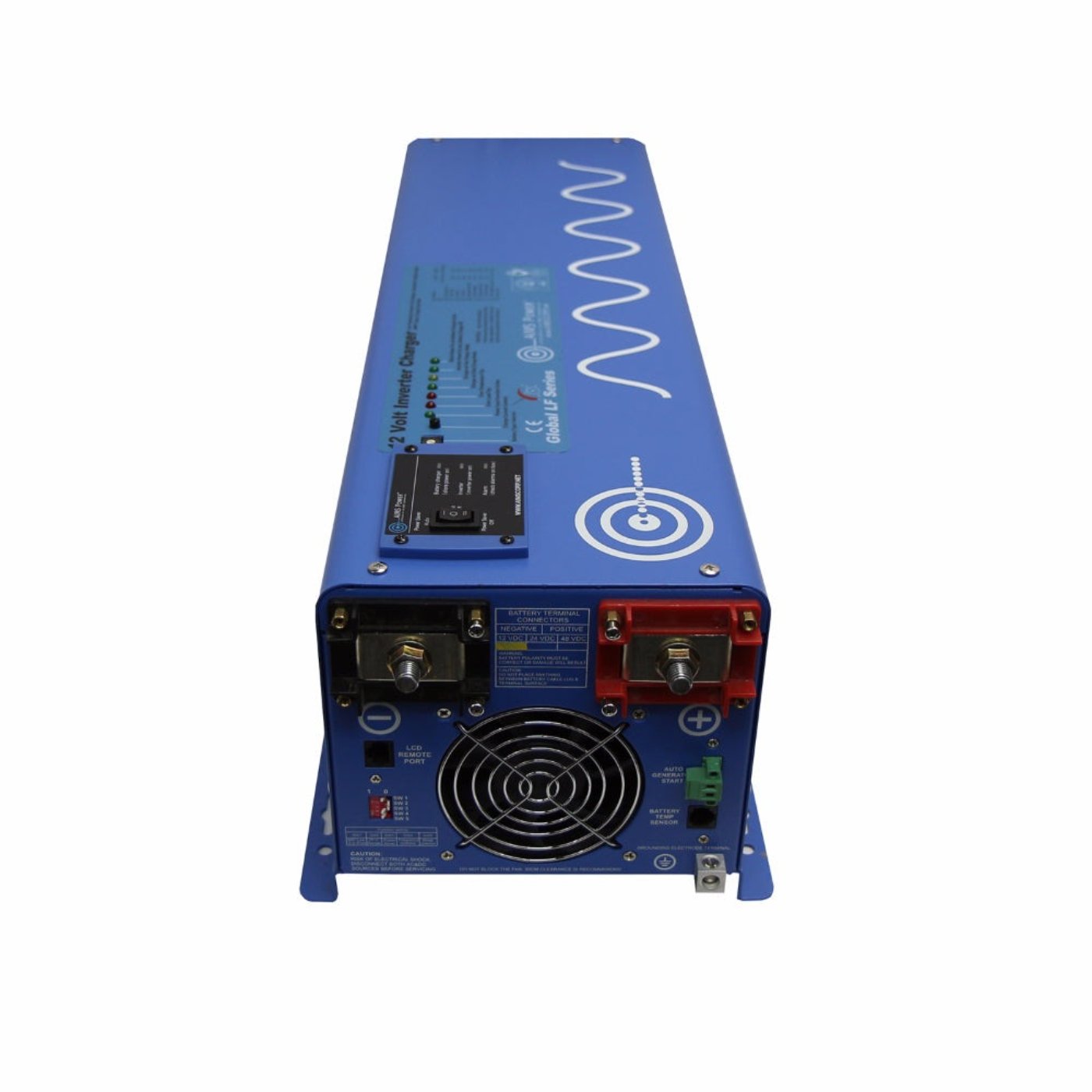

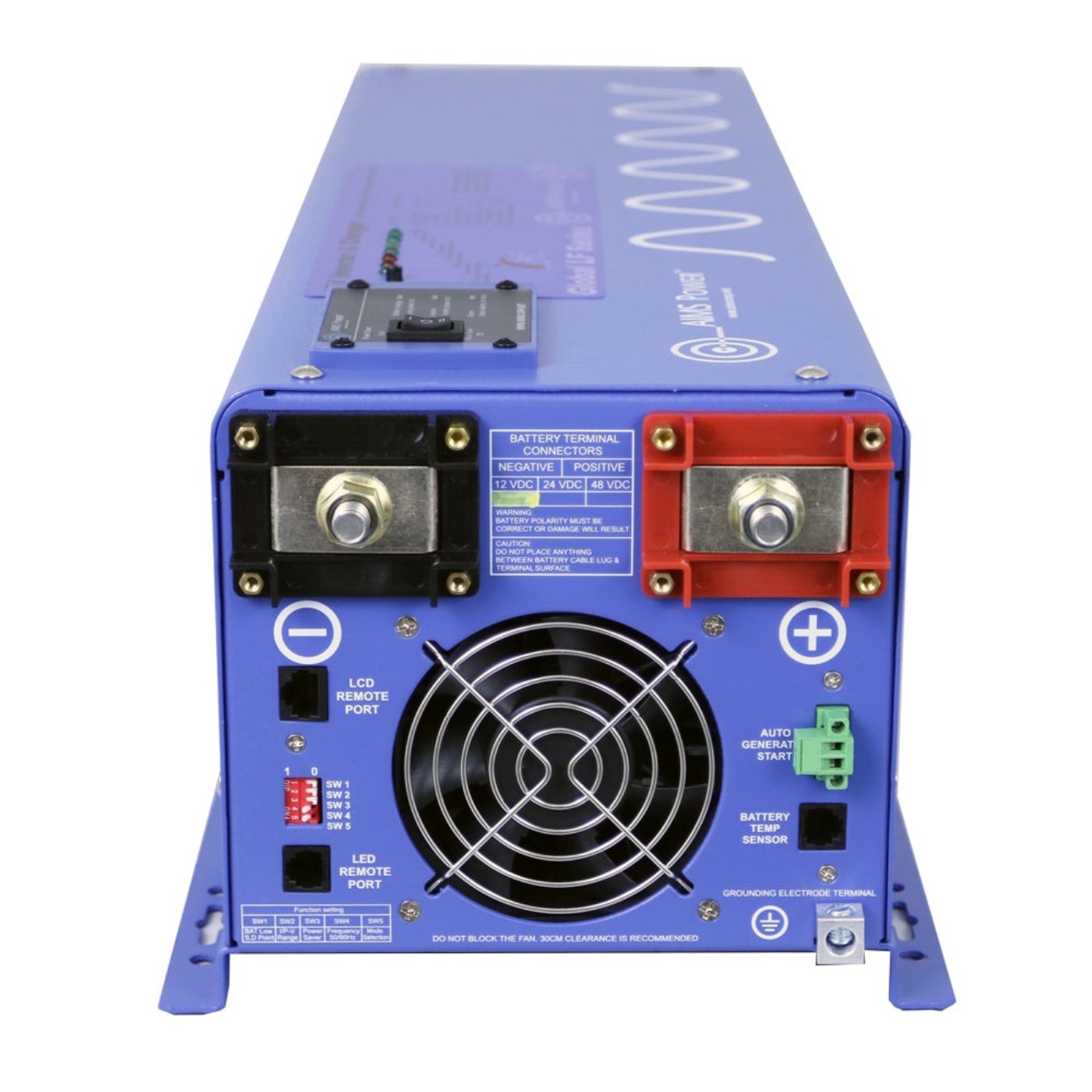

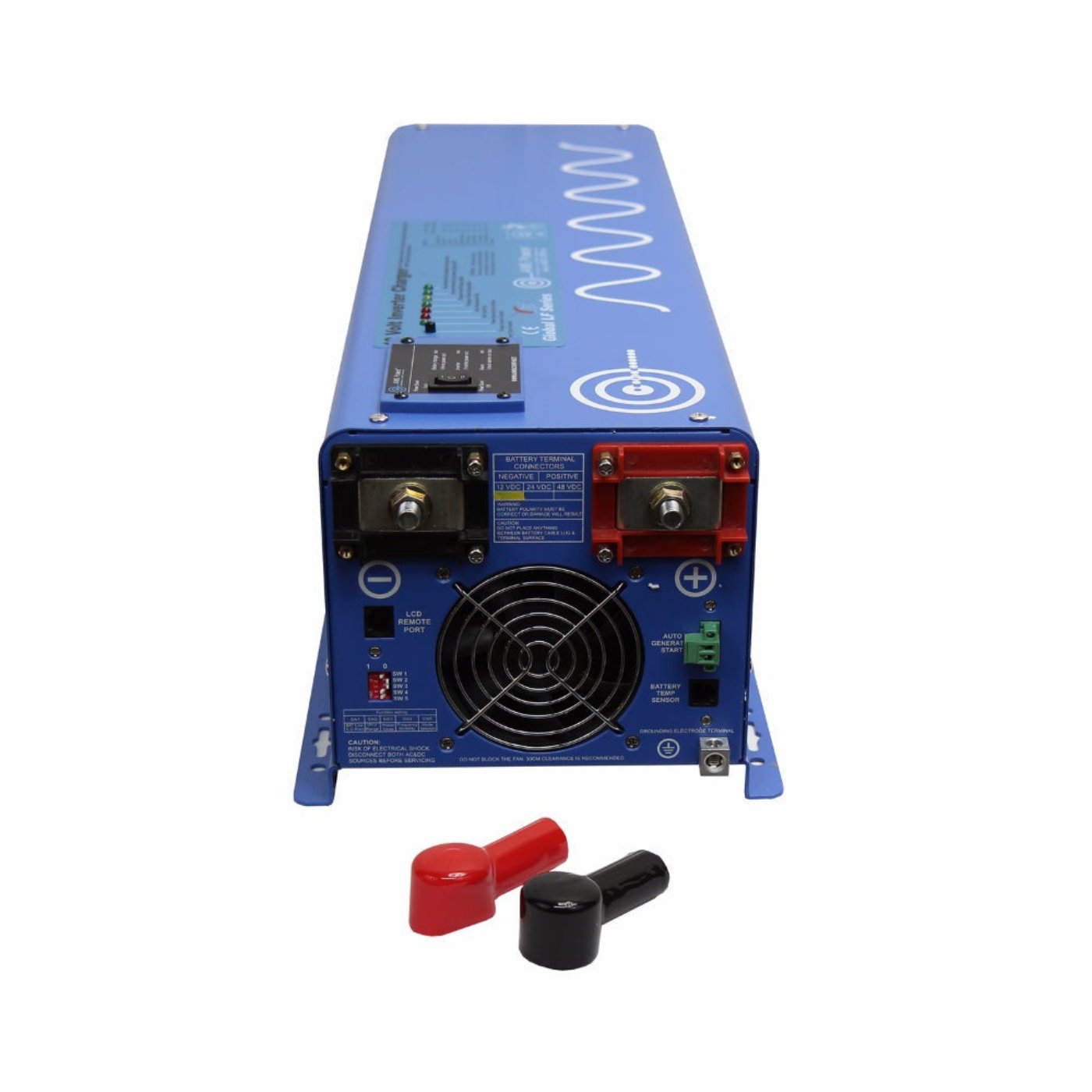

Aims Power 4000 Watt Pure Sine Inverter Charger 12VDC/240VAC Input & 120/240VAC Split Phase Output - PICOGLF40W12V240VS

At Aims Power, We’re Passionate About Designing And Developing Off-grid And Renewable Energy Solutions.

Combine this solar inverter charger with a deep-cycle battery bank for off-grid, mobile and emergency backup power.

The most popular feature of this unit is the direct connect terminal block, which allows a 300 percent surge capacity for up to 20 seconds. When using the terminal block, this inverter peaks at 12000 watts with the power to run many tools and appliances with a startup surges, such as a refrigerators, freezers, microwaves and blow dryers.

If you’re looking for an inverter with similar capabilities but a lower wattage capacity, check out the 2000 watt low frequency AIMS Power inverter charger.

During a big storm that knocks out electricity, a battery-bank and power inverter running a sump pump could be the difference that saves a home from flooding. The power to run a heater could save someone thousands of dollars by keeping plumbing pipes from freezing.

Also great for emergency backup power applications is the automatic transfer switch on this unit, which keeps the power supply uninterrupted in the event of an outage. With the inverter hooked up to shore power, it will detect the loss of electricity and start pulling energy from a connected battery bank instead to keep the power supply constant.

See Features Below:

• 4000 watt low frequency inverter

• 12000 watt surge for 20 seconds 300% surge capability

• 120/240 Vac output split phase(/li>

• Battery priority selector

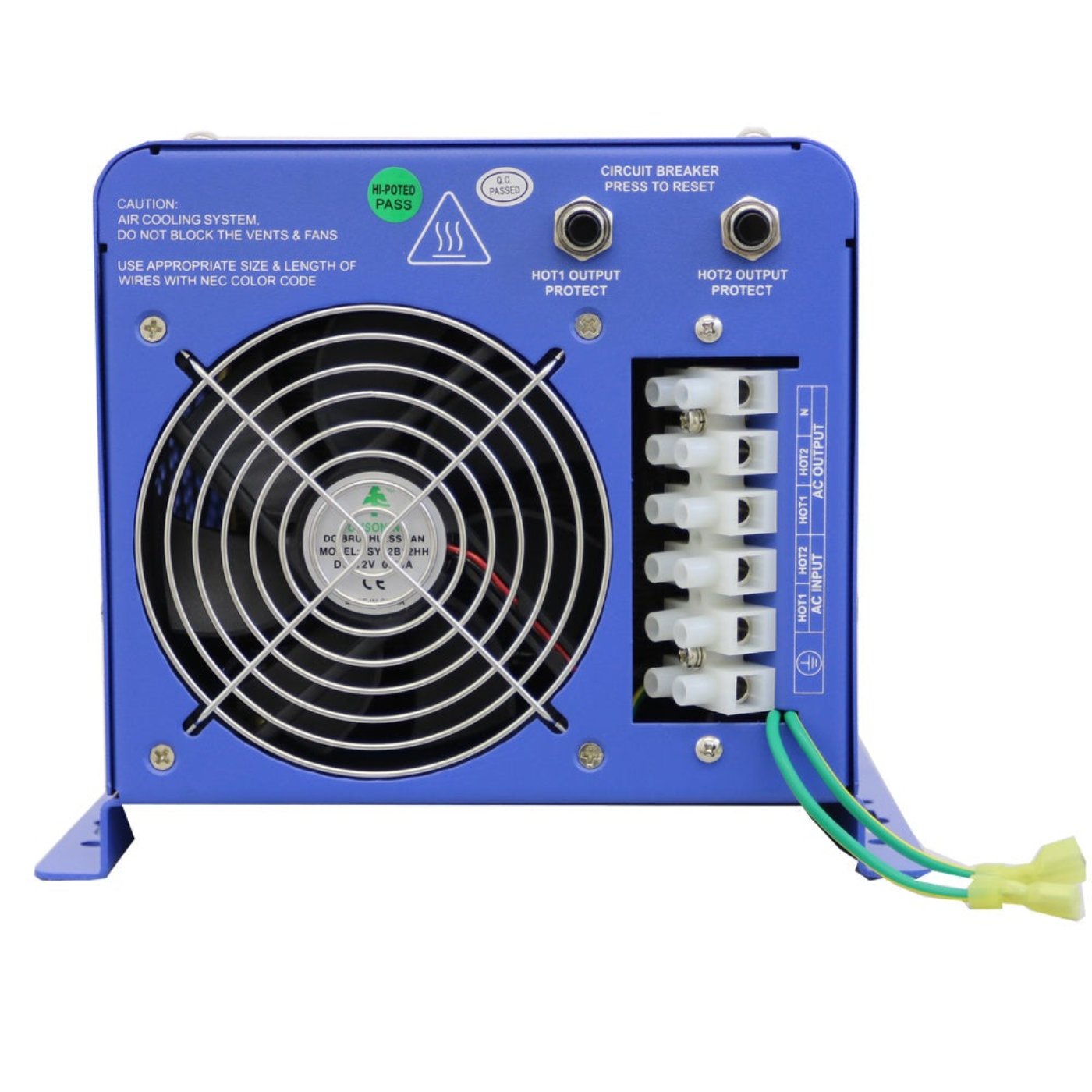

• AC direct connect terminal block

• Marine coated and protected

• Multi stage smart charger 115 Amp

• Charges lithium LiFePO4, gel, AGM and lead batteries. We recommend checking battery charging specifications for all batteries.

• Remote panel available

• Auto frequency

• 10msec typical transfer time

• Selectable 25W power save mode (hibernation)

• 7 battery type settings for charger

• Automatic transfer switch

Specifications

Inverter Output Specifications:

• Continuous Output Power: 4000 Watts

• Surge Rating: 12000 Watts (20 Seconds)

• Output 120/240 Vac - Split Phase 50 or 60hz

• Output Waveform: Pure Sine/Same as input (Bypass Mode)

• Nominal Efficiency: >88% (Peak)

• Line Mode Efficiency: >95%

• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz

• Typical Transfer Time: 10ms (Max)

• THD: < 10% DC

• Ambient Operating Temperature: 14°F to 122°F (-10°C to 50°C)

Input Specifications

• Nominal Input Voltage: 12.0Vdc

• Minimum Start Voltage: 10.0Vdc

• Low Battery Alarm: 10.5Vdc-11.0Vdc

• Low battery Trip: 10.0Vdc-10.5Vdc

• High Voltage Alarm/shutdown: 16.0Vdc

• Low Battery Voltage Restart: 13.3Vdc

• Idle Consumption: 50 Watts

• Power Saver Mode Idle Consumption: 21 Watts

Charger Specifications

• Output voltage: Depends on battery Type

• Charger Rate: 115A

• Over Charge Protection Shutdown 15.7V

• Selectable Charge setting based on battery type

• Adjustable charge current off-20%-100%

• Four Stage Smart Charger

Transfer Switch Specifications

• 40 amp automatic transfer switch

• 10 ms (max)

Dimensions

• Unit Weight: 64 lbs.

• Unit Size L x W x H: 27.88 x 8.5 x 7.0 inches

• Shipping Weight: 75 lbs.

• Shipping L x W x H 30.5 x 14.5 x 13.75inches
