Aims Power 555 Watt Monocrystalline Solar Panel - PV300MONO

At Aims Power, We’re Passionate About Designing And Developing Off-grid And Renewable Energy Solutions.

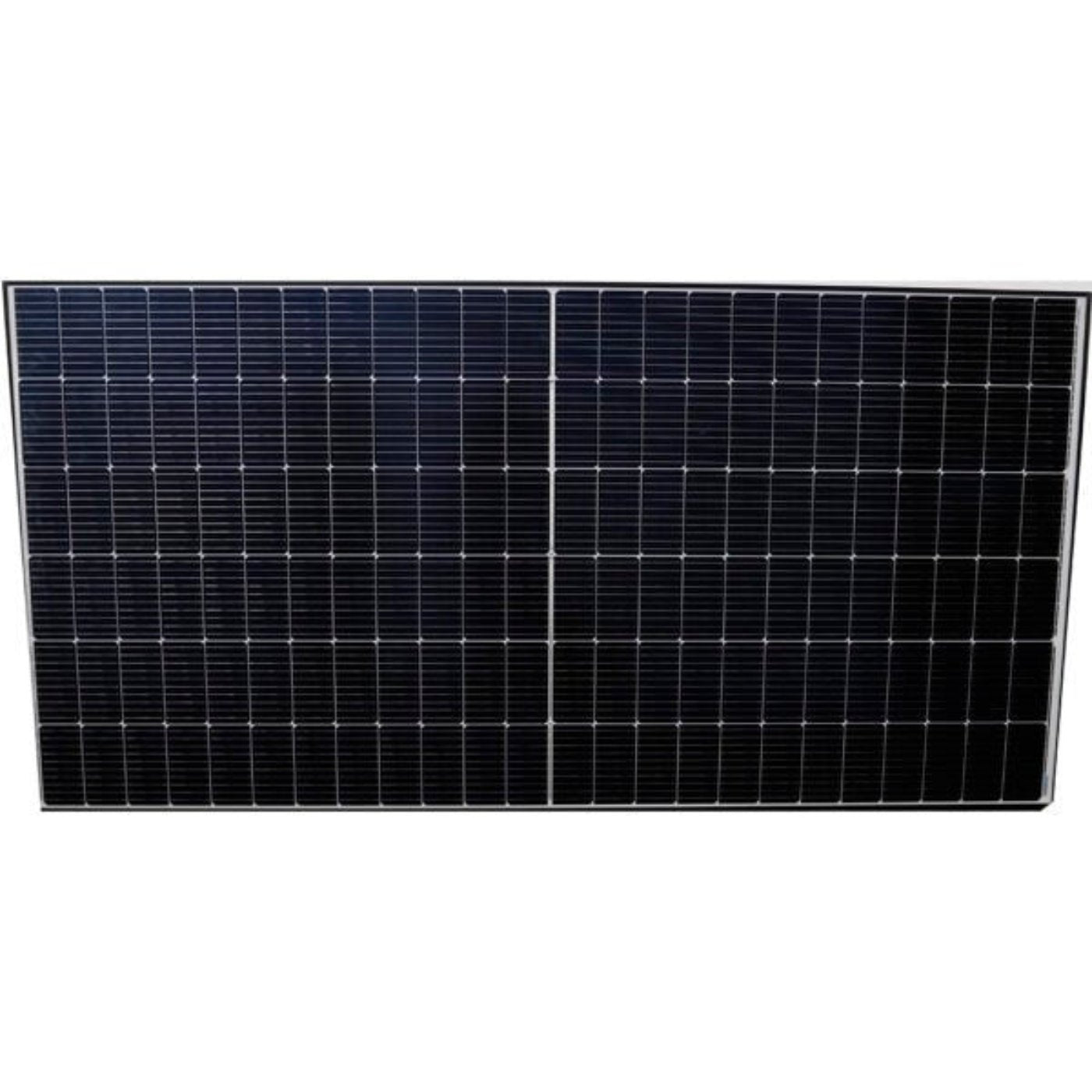

The 555 Watt Monocrystalline Solar Panel from AIMS Power is a versatile performer constructed with tempered glass and a stronger surface to protect from harsh weather conditions. The solar cells used in the panel provide high light transmission and the textured glass allows for more efficient power solar harvesting.

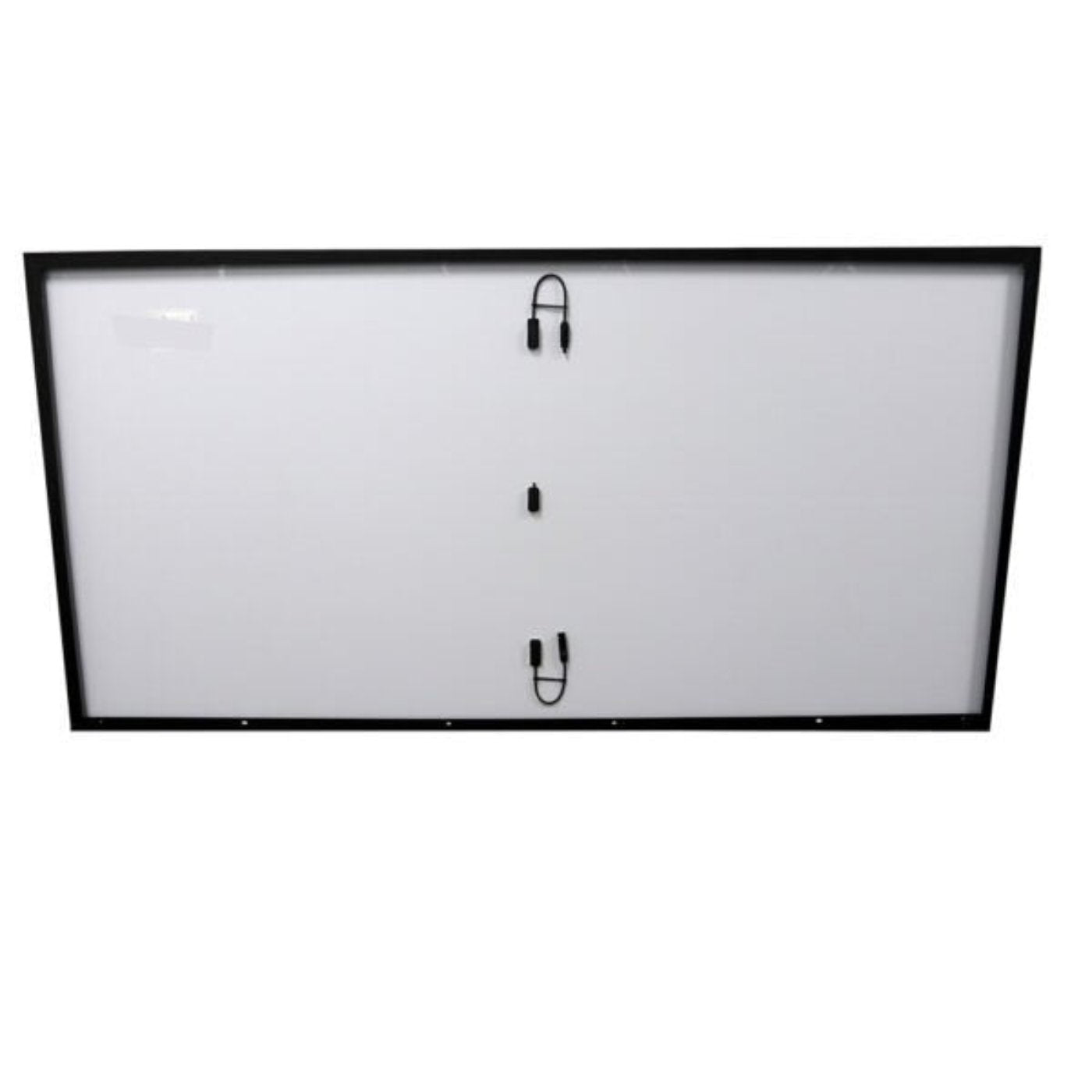

The panel also includes a bypass diode that minimizes the power drop caused by shade. Easy to install using the pre-drilled holes on the aluminum outer frame. Perfect for home, business and industrial applications for back up or off grid power. You can also use to tie to the grid or with our hybrid inverters. Packed with power. Includes 12″ cable with female and male MC4 compatible connectors.

See Features Below:

• Monocrystalline efficient solar harvesting

• Strong surface for harsh environment

• Panels capable of 0 to +3 Watts over rated capacity

• Pre-drilled aluminum frame

• Tempered glass

• 25 Year limited warranty

Specifications

• Maximum Power (Watts): 555 watts

• (Vmp): 42.11 volts  operating voltage

• (Imp): 13.18 amps operating current

• (Voc):50.02 volts open circuit voltage

• (Isc): 14.07 amps

• Number of Cells (pcs): 6*24 = 144

• Front Glass Thickness (mm): 3.2 mm

• Temperature Coefficients of Isc (%) °C: -0.048

• Temperature Coefficients of Voc (%) °C: -0.29

• Temperature Coefficients of Pm (%) °C: -0.37

• Temperature Range: -40°C to +85°C

• Tolerance Wattage: 0-3 watts

• Surface Maximum Load Capacity: 6000Pa snow and 3600Pa wind

• Allowable Hail Load: 45mm at 30.7m/s

• Bypass Diode Rating (A): 10

• Cell Efficiency (%): 22%

• Module Efficiency (%): 21.5%

• Warranty: 91.2% of 12 years, 80.6% of 25 years

• Weight Per Panel (lbs): 60 lbs

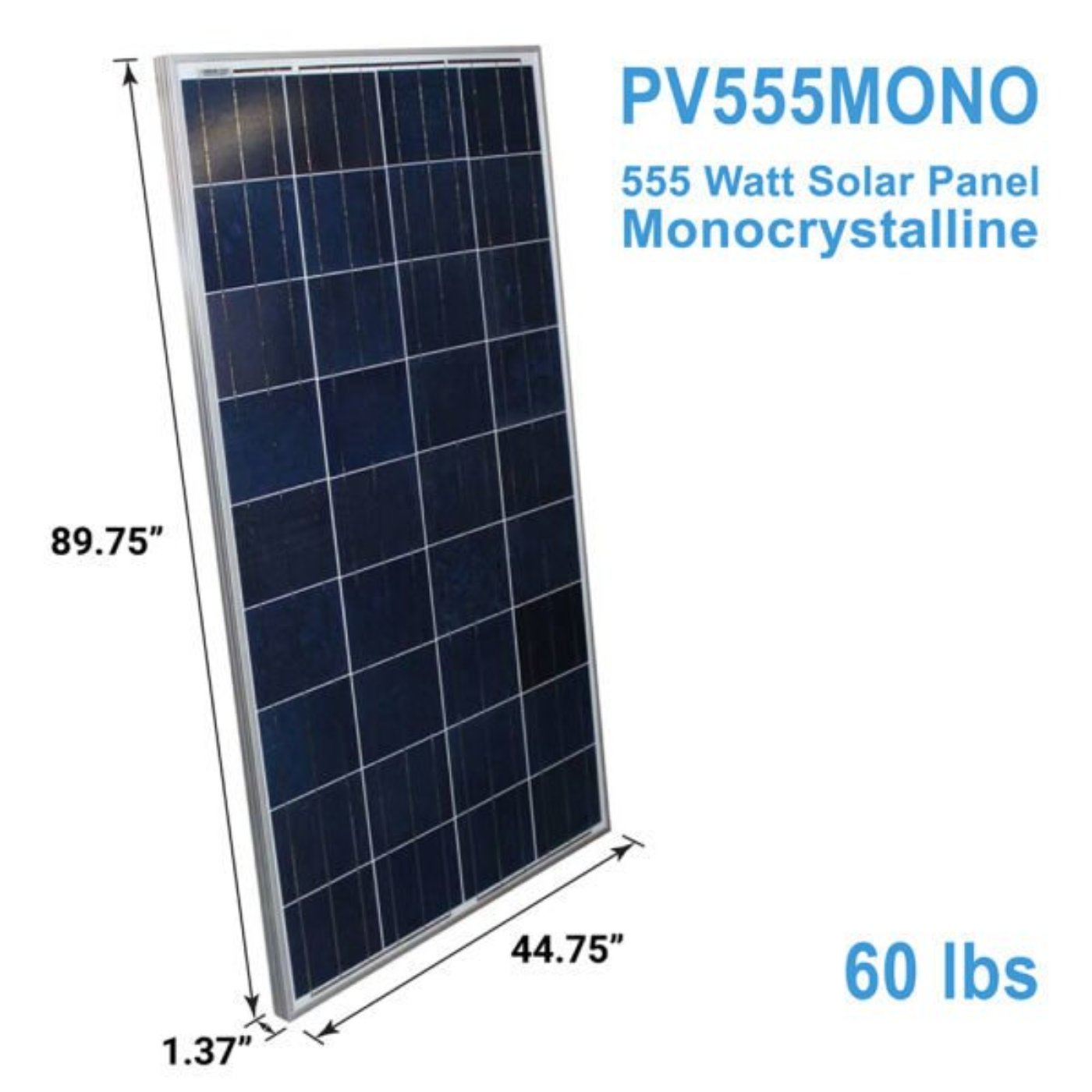

• Dimensions (inches): 89.75 x 44.75 x 1.37

Delivery

Order shipment preparation take 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
