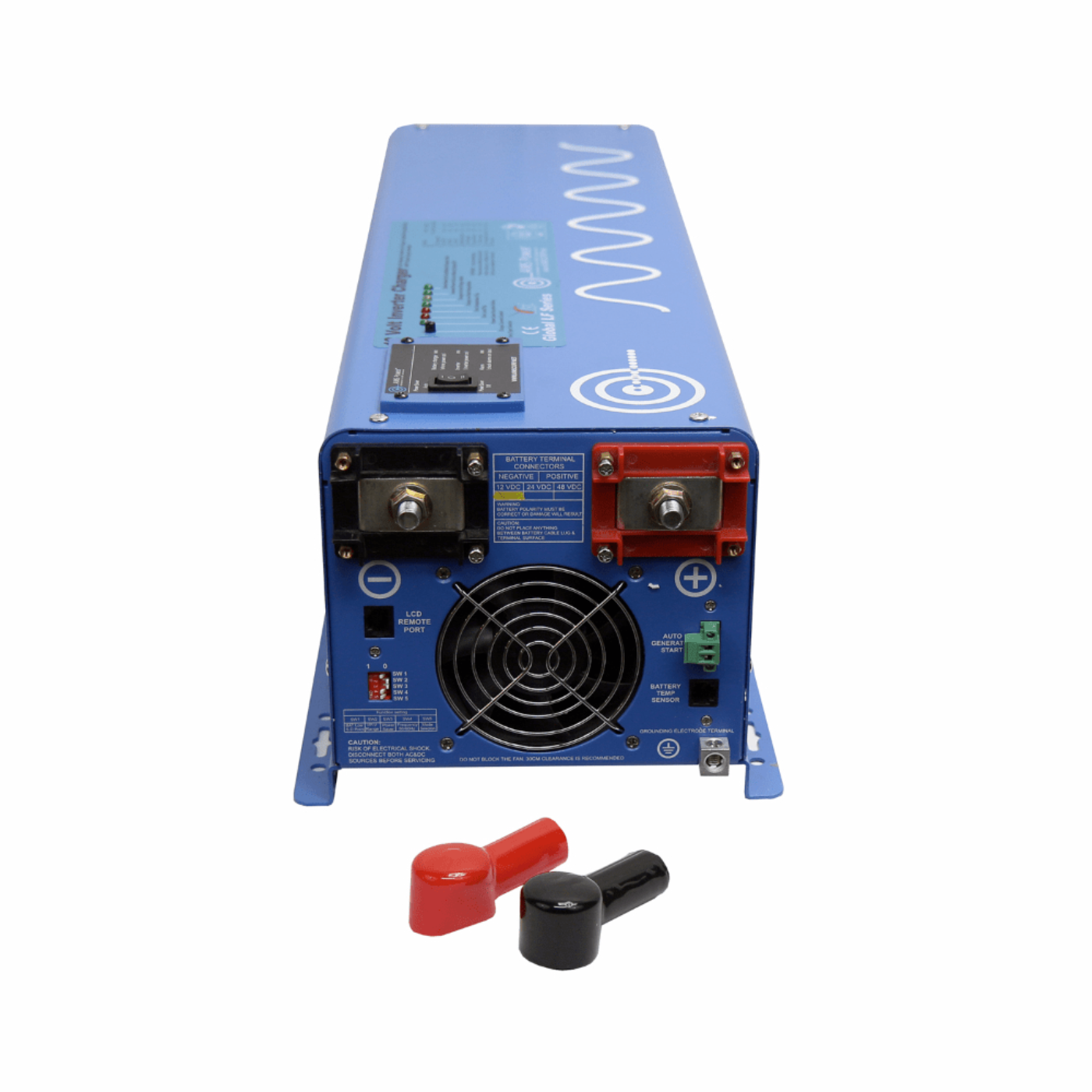

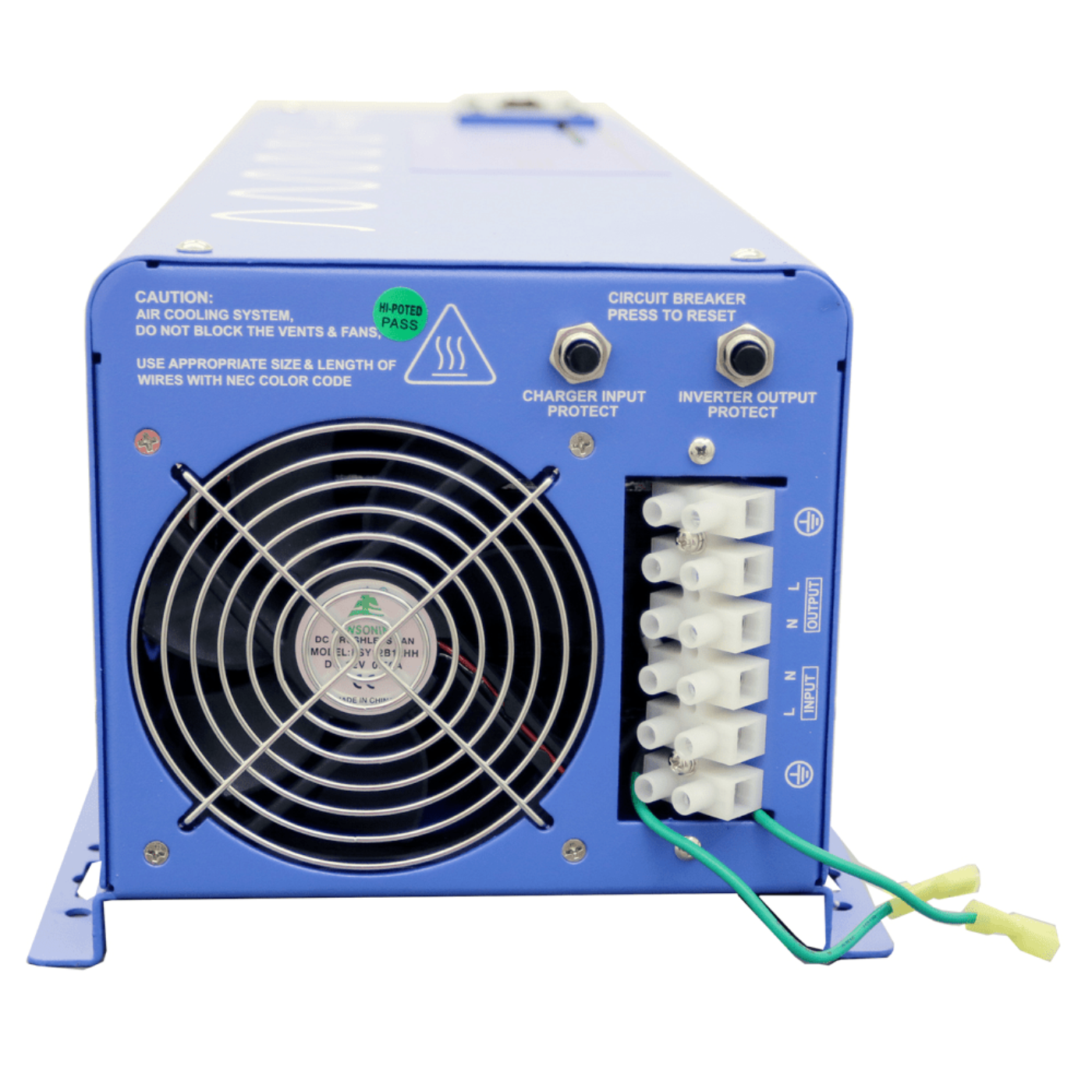

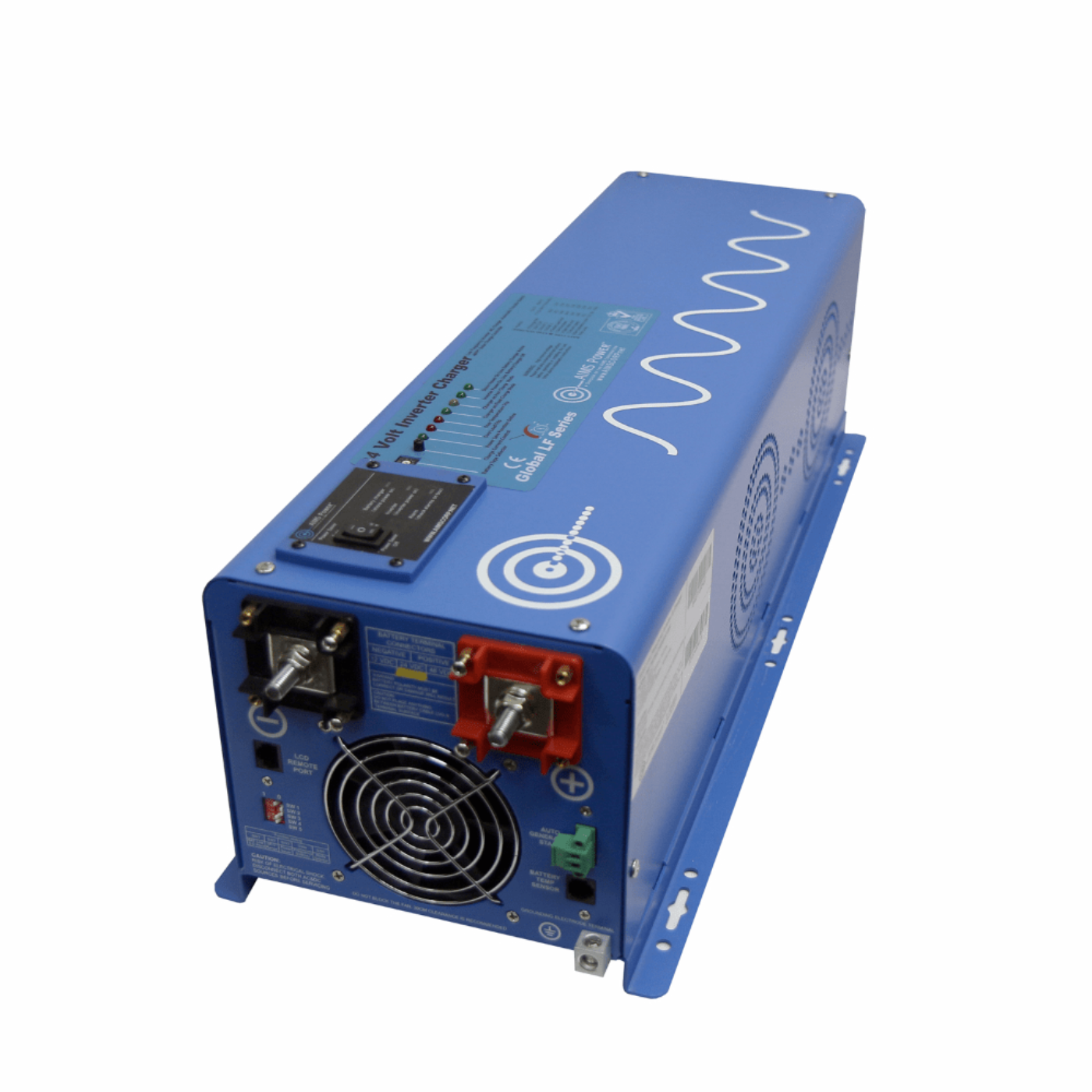

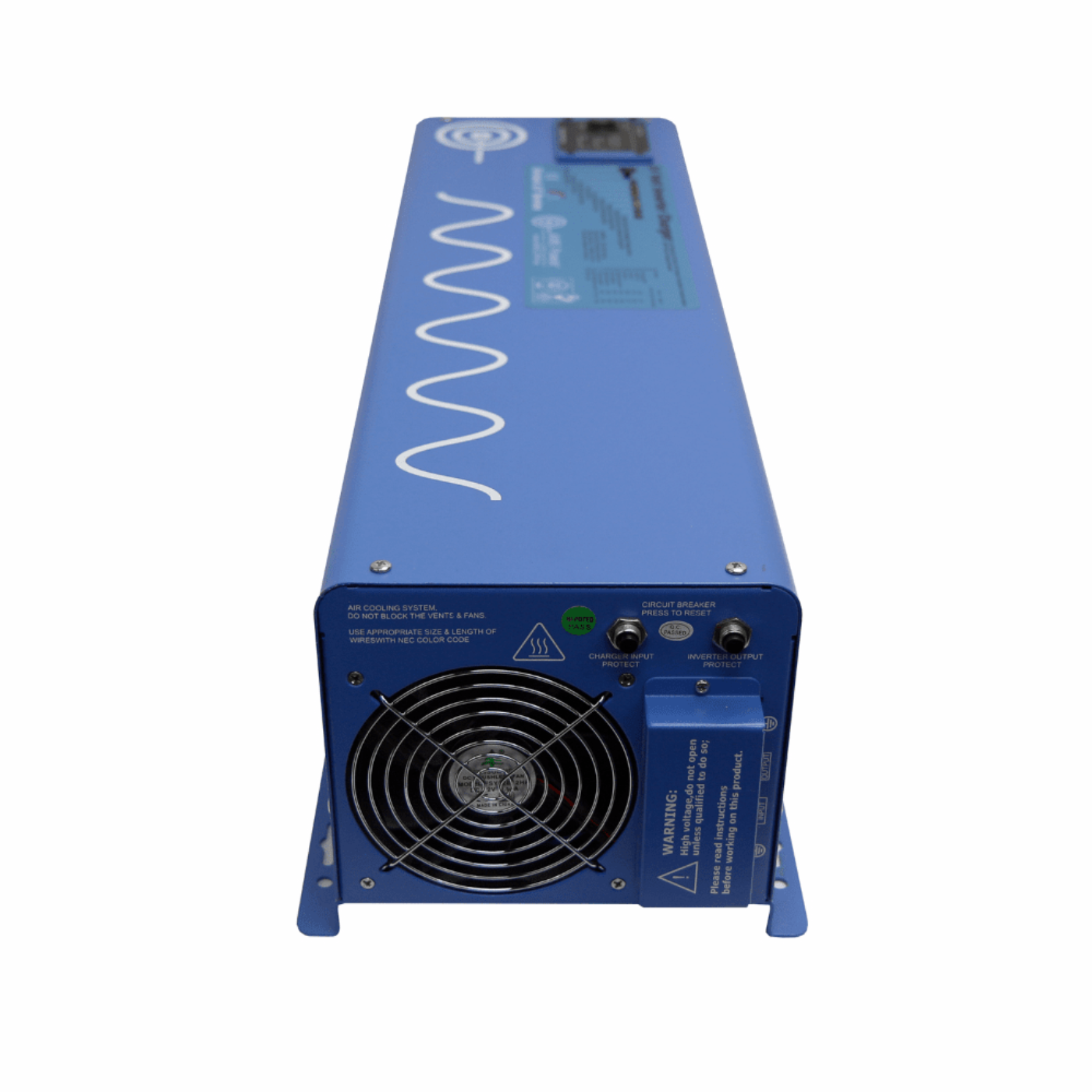

Aims Power 6000 Watt 48V Pure Sine Inverter Charger - PICOGLF60W48V120V

At Aims Power, We’re Passionate About Designing And Developing Off-grid And Renewable Energy Solutions.

This AIMS Power inverter is perfect for nearly any job, because it can handle even the most rugged conditions. It’s built to withstand reasonable heat and temperature fluctuations because of its over-temperature protection and dual thermally-controlled fans.  And it’s protected from humidity or dust and dirt by virtue of its marine-coated or “conformal-coated” boards. This inverter provides the reliability needed in any business or residential emergency backup power applications.

Use this product for renewable solar, off-grid home and business back up power, mobile and emergency backup power applications anywhere.

See Features Below:

• 6000 watt low frequency inverter 110 Vac Single Phase

• 18000 watt surge for 20 seconds -3x surge capability

• Battery priority selector

• AC direct connect terminal block

• Marine coated and protected

• Multi stage smart charger 80 Amp charges gel, lead, AGM, Lithium

• Remote panel available

• 60hz or 50 hz selectable dip switch

• 10msec typical transfer time

• Optional 25W power save mode

• 7 battery type settings for charger

Specifications

Inverter Output Specifications:

• Continuous Output Power: 6000 Watts

• Surge Rating: 18000 Watts (20 Seconds)

• Output Waveform: Pure Sine/Same as input (Bypass Mode)

• 100-110-120Vac

• Nominal Efficiency: >88% (Peak)

• Line Mode Efficiency: >95%

• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz

• Typical Transfer Time: 10ms (Max)

• THD: < 10% DC

• Ambient Operating temperature: 14°F to 122°F (-10°C to 50°C)

Input Specifications

• Nominal Input Voltage: 48.0Vdc

• Low Battery Alarm: 42.0Vdc-44.0Vdc

• Low Battery Trip: 40.0Vdc-42.0Vdc

• High Voltage Alarm: 64.0Vdc

• Low Battery Voltage Restart: 53.2Vdc

• Idle Consumption: 4.16 amps DC

• Power Saver Mode Idle Consumption: <0.83 amps DC
