Aims Power 6000 Watt 24V Pure Sine Inverter Charger - PICOGLF60W24V240VS

At Aims Power, We’re Passionate About Designing And Developing Off-grid And Renewable Energy Solutions.

The most popular feature of this unit is the direct connect terminal block, which allows a 300 percent surge capacity for up to 20 seconds. When using the terminal block, this inverter peaks at 18000 watts with the power to run many tools and appliances with a startup surges, such as a refrigerators, freezers, microwaves and blow dryers.

If you’re looking for an inverter with similar capabilities but a lower wattage capacity, check out the 2000 watt low frequency AIMS Power inverter charger.

Use this product for renewable solar, off-grid home and business back up power, mobile and emergency backup power applications anywhere that uses 110/120 OR 220/230/240 volts of alternating current. The inverter accepts 24 volts DC, which makes it great for vehicle upfitting as well as boat and RV applications that use a 24 volt battery system.  The inverter outputs 120/240 volts AC.

Also great for emergency backup power applications is the automatic transfer switch on this unit, which keeps the power supply uninterrupted in the event of an outage. With the inverter hooked up to shore power, it will detect the loss of electricity and start pulling energy from a connected battery bank instead to keep the power supply constant.

This inverter also has an optional remote port, allowing you to turn the product on and off from a distance. Click here to purchase the remote.

See Features Below:

• 6000 watt low frequency inverter 110/220Vac Split Phase

• 18000 watt surge for 20 seconds -3x surge capability

• Battery Priority Selector

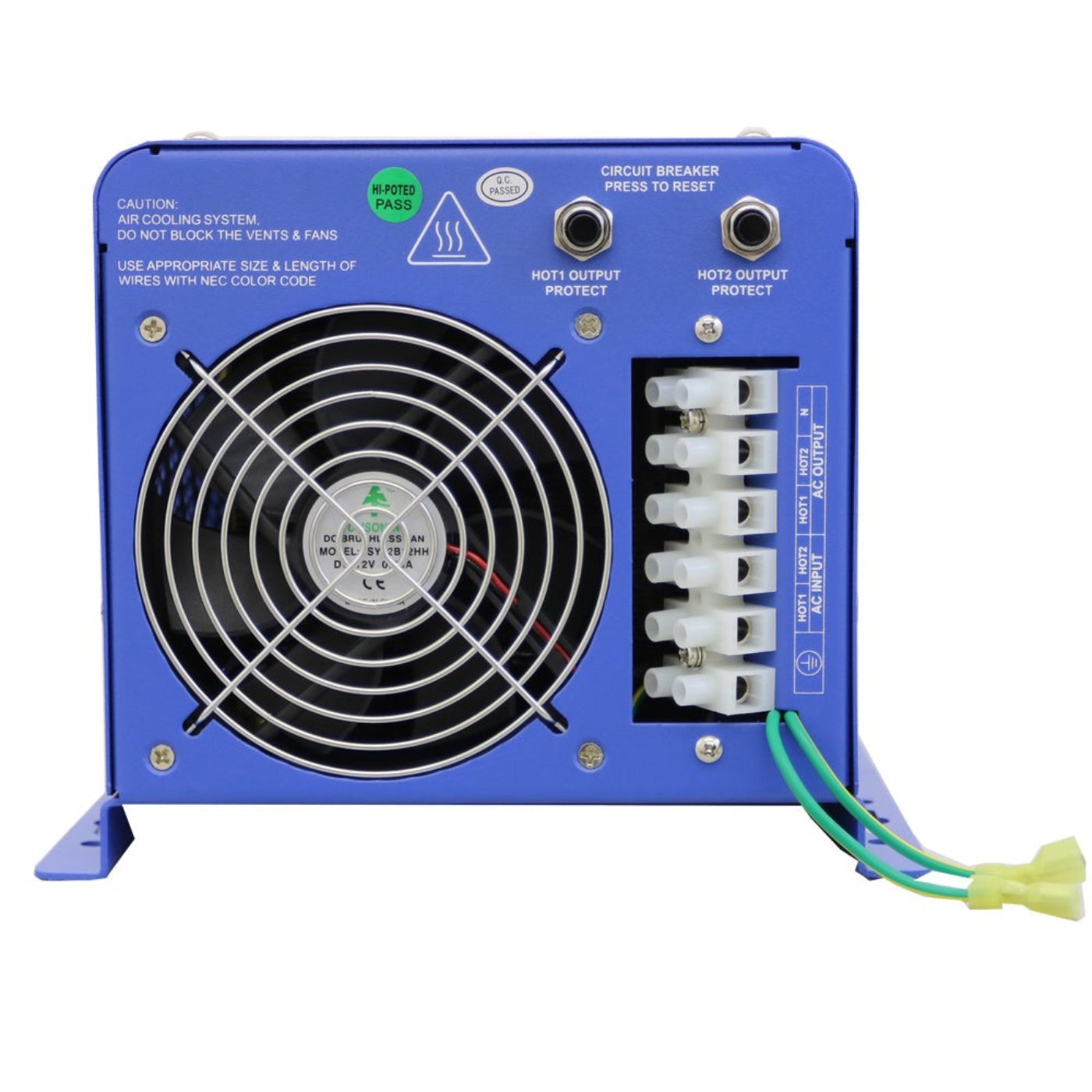

• Terminal Block

• GFCI

• Marine Coated and Protected

• Multi Stage Smart charger 85 Amp charges GEL, Lead, AGM, Lithium

• remote panel available

• auto frequency

• 10msec typical transfer time

• selectable 25W power save mode (hibernation)

• 8 battery charger settings

Specifications

Inverter Output Specifications:

• Continuous Output Power: 6000 Watts

• Surge Rating: 18000 Watts (20 Seconds)

• Output Waveform: Pure Sine/Same as input (Bypass Mode)

• Nominal Efficiency: >88% (Peak)

• Line Mode Efficiency: >95%

• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz

• Typical Transfer Time: 10ms (Max)

• THD: < 10% DC

• Ambient operating temperature: 14°F to 122°F (-10°C to 50°C)

Input Specifications

• Nominal Input Voltage: 24.0Vdc

• Low Battery Alarm: 21.0Vdc-22.0Vdc

• Low battery Trip: 20.0Vdc-21.0Vdc

• High Voltage Alarm: 32.0Vdc

• Low battery Voltage Restart: 26.6Vdc

• Idle Consumption: 76.8 Watts

• Idle Consumption in Power Saver Mode: 29 Watts

Charger Specifications

• Output voltage: Depends on battery Type

• Charger Rate: 85A

Dimensions

• Unit Weight: 79 lbs.

• Unit Size L x W x H: 27.88 x 8.5 x 7.0 inches

• Shipping Weight: 84 lbs.

• Shipping L x W x H 30.5 x 14.5 x 13.75 inches
