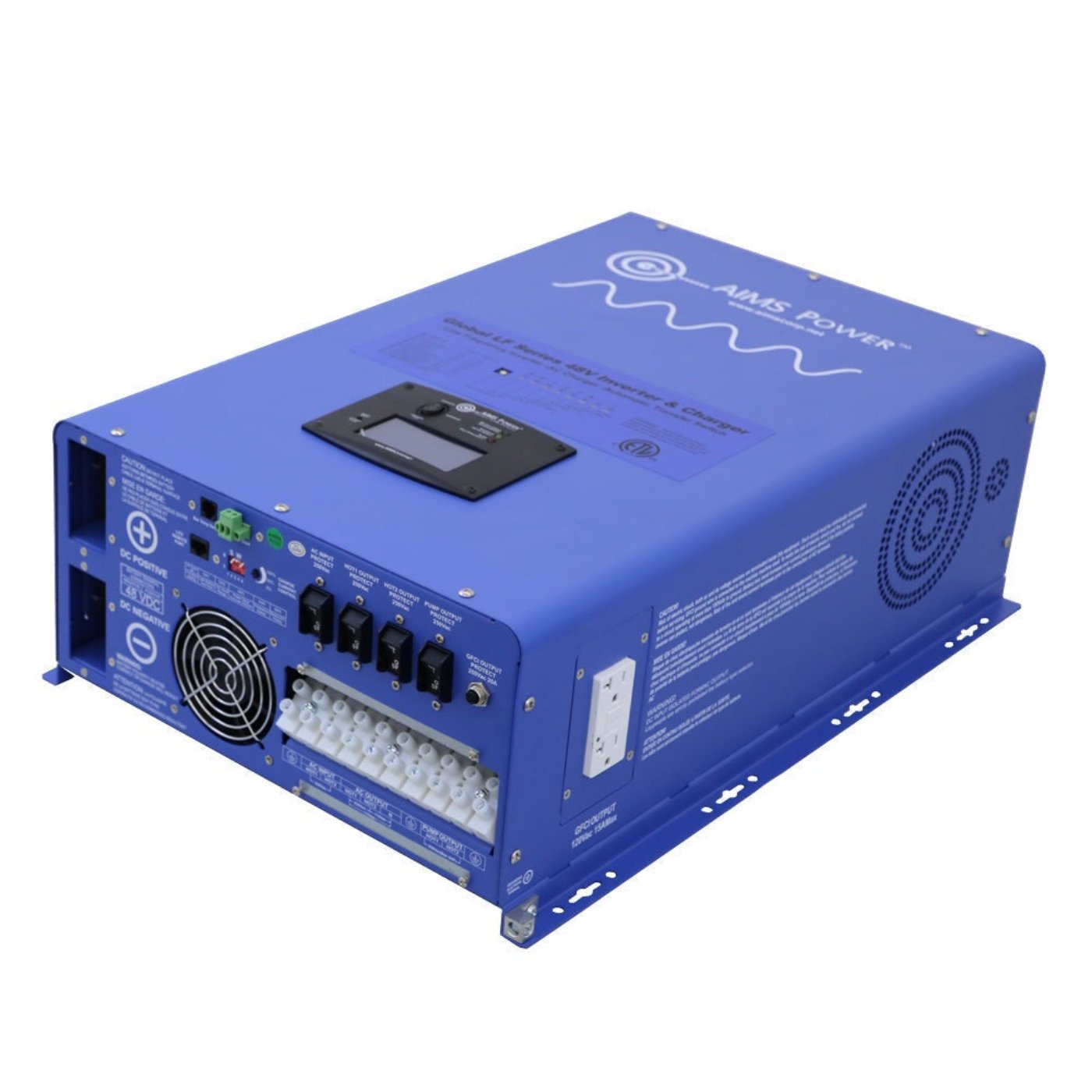

Aims Power 8000 Watt 48V Pure Sine Inverter Charger ETL Listed - PICOGLF80W48V240VS

At Aims Power, We’re Passionate About Designing And Developing Off-grid And Renewable Energy Solutions.

Our line of ETL listed to UL 1741 Standards 48 Volt DC to 120/240 Volt AC inverter chargers is the power house for back up, off grid systems. Built with a 48 Volt DC input, these inverter chargers perform with very little power loss. Users receive a notable increase in efficiency in large systems when compared to using inverters that accept 12 or 24 volts.

This can be an attractive feature for sustainability lovers looking to live as efficiently as possible. The most common use for this inverter is emergency backup power for residences and businesses. You’ll always be prepared for the next power outage with access of up to 12,000 watts (depending on model) of continuous power and 36,000 watts of surge (for up to 20 seconds).

The unit is repairable, and we stand behind it with a free two-year warranty and tech support. Make a step in the right direction when it comes to preserving this beautiful planet by choosing an inverter powered by renewable energy when building your next electrical system.

See Features Below:

• 8000 Watt low frequency inverter 110/120/220/230/240 Vac Split Phase

• 24000 Watt surge for 20 seconds -3x surge capability

• ETL Listed to UL 1741 Standards

• CSA STDC 22.2 NO.107.1

• Battery priority selector

• AC direct connect terminal block

• Marine coated and protected

• Multi stage smart charger 80 Amp charges GEL, Lead, AGM, Lithium

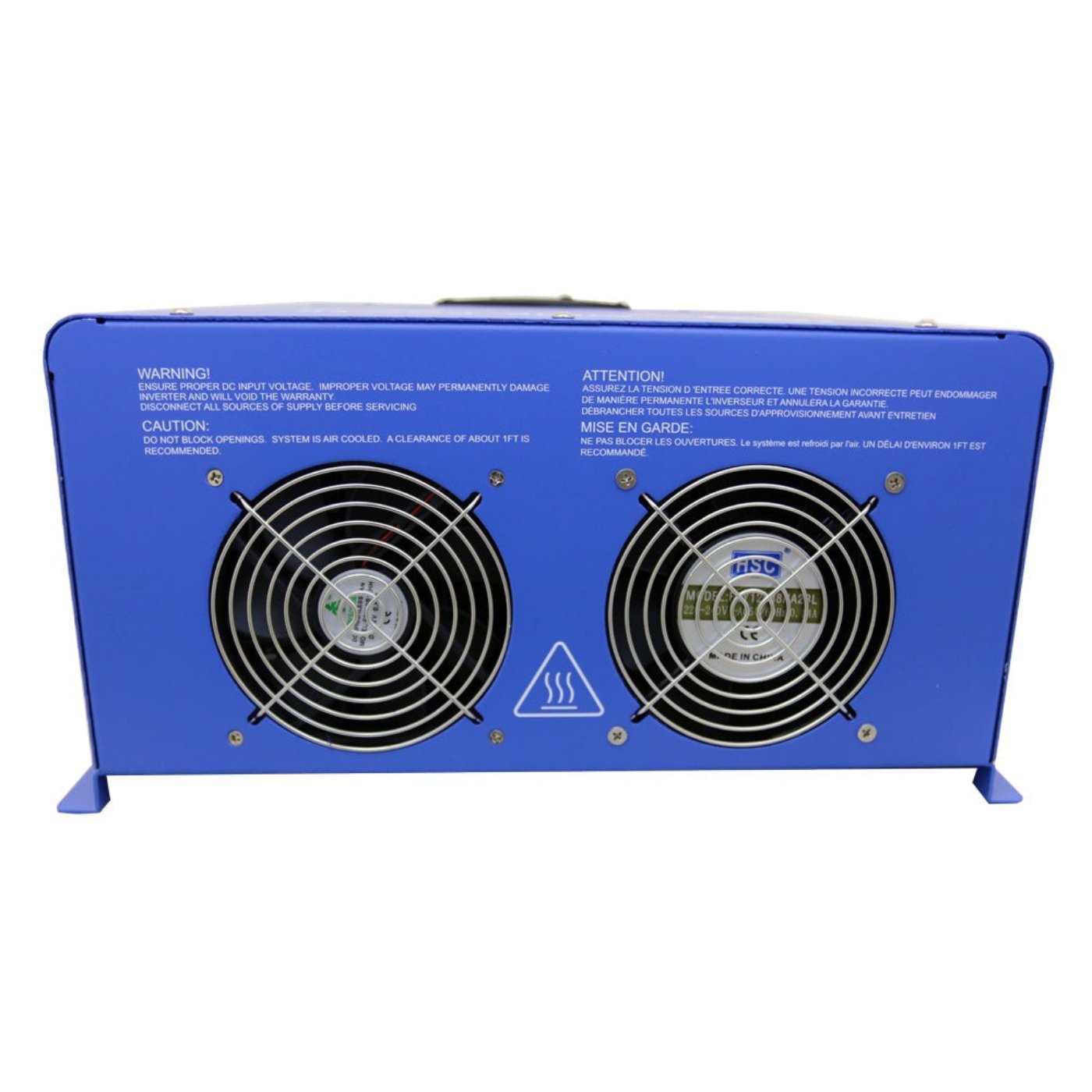

• Three cooling fans - thermal and load based

• Remote panel available

• 60hz or 50 hz selectable dip switch

• 10msec typical transfer time

• Mounting plate included

• Selectable 25W power save mode (hibernation)

• 8 battery charger settings

• 4 stage battery charger

• 2 year warranty

Specifications

Inverter Output Specifications:

• Continuous Output Power: 8000 Watts

• Surge Rating: 24000 Watts (20 Seconds)

• Output Waveform: Pure Sine/Same as input (Bypass Mode)

• 100-110-120Vac / 220-230-240Vac

• Nominal Efficiency: >88% (Peak)

• Line Mode Efficiency: >95%

• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz

• Typical Transfer Time: 10ms (Max)

• THD: < 7% under full linear load

• Ambient operating temperature: 14°F to 122°F (-10°C to 50°C)

Input Specifications

• Nominal input voltage: 48.0Vdc

• Low battery alarm: 42.0Vdc-44.0Vdc

• Low battery trip: 40.0Vdc-42.0Vdc

• High voltage alarm: 64.0Vdc

• Low battery voltage restart: 62.0Vdc

• Idle consumption: 100 Watts

• Power saver mode idle consumption: <25 Watts

• Automatic transfer switch - 50A @ 220/230/240V

• Bypass - 50A @ 220/230/240V

Charger Specifications

• Output voltage: depends on battery type

• Charger rate: 80A

• Four stage smart charger with current adjust dial 20-100%

Dimensions

• Unit weight: 132 lbs.

• Unit size L x W x H: 23.3 x 16.3 x 7.9 inches

• Shipping weight: 176 lbs.

• Shipping size L x W x H 30 x 21.25 x 15.25 inches
