Aims Power Dual Lithium Battery Cabinet Set 230VDC |192AMPS | 44,160 Watt Hours - KITHY230VBATMS

At Aims Power, We’re Passionate About Designing And Developing Off-grid And Renewable Energy Solutions.

• POWERFUL: The AIMS Power lithium (LiFePO4) battery cabinets are designed to work with the AIMS Power hybrid inverters. The powerful lithium batteries installed in the pre-wired cabinet provide power for critical loads, load sharing during night hours, or when grid power is at peak rates.

• STORAGE: Combined, these two batteries create a 230VDC 192 AH battery bank that stores an impressive 44,228 Watts of usable power. The lithium battery design allows for deeper depletion of battery and a much more manageable weight and size than a similar battery bank with lead type batteries.

• EASY TO USE: When the battery cabinet is used with an AIMS hybrid inverter, this bank can be set to charge when grid rates are low or charged using solar first, then grid if needed. You can also program the hybrid/battery to power loads during peak grid hours. This helps offset your power bill!

• TRUSTWORTHY: Includes a 5 year manufacturer’s warranty. Buy with confidence. AIMS Power has been in business for over 22 years. All tech and warranty support in Nevada.

See Features Below:

• Pre-programmed to work seamlessly with AIMS hybrid inverter

• Pre-wired for easy installation and set up

• Five year limited warranty

• Requires only 3 simple wires to connect to the inverter (positive, negative and CAN)

• Superior BMS for optimal performance

• Expandable – max 3 per inverter (1 master and 2 slaves)

• Cell balancing

• More efficient during high watt usage

• Natural cooling

• Eye bolts for lifting included

Specifications

• Voltage DC: 230.4V

• Amp hours: 96

• kWh 22.1 (22,114 watt hours)

• Cabinet includes qty 6 38.4V lithium packs wired in series.

• Max charge/discharge current 50amps

• Cycle life >3500

• Cut off discharge voltage – 180V

• Max charge voltage- 262.8

• Efficiency >97%

• IP grade – IP54

• Weight – 650 lbs

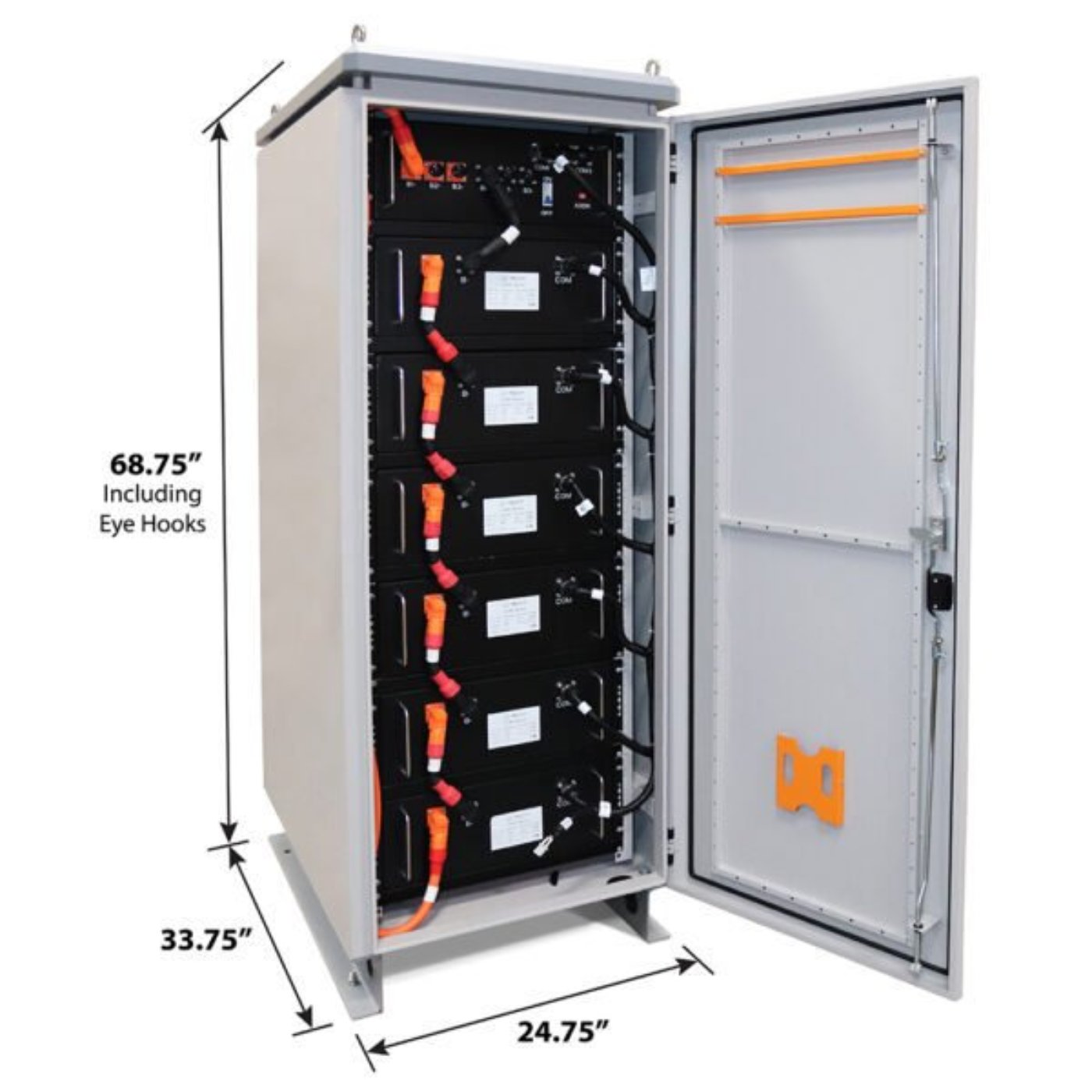

• Dimensions (inches) – 68.75H x 33.75D x 24.75W
