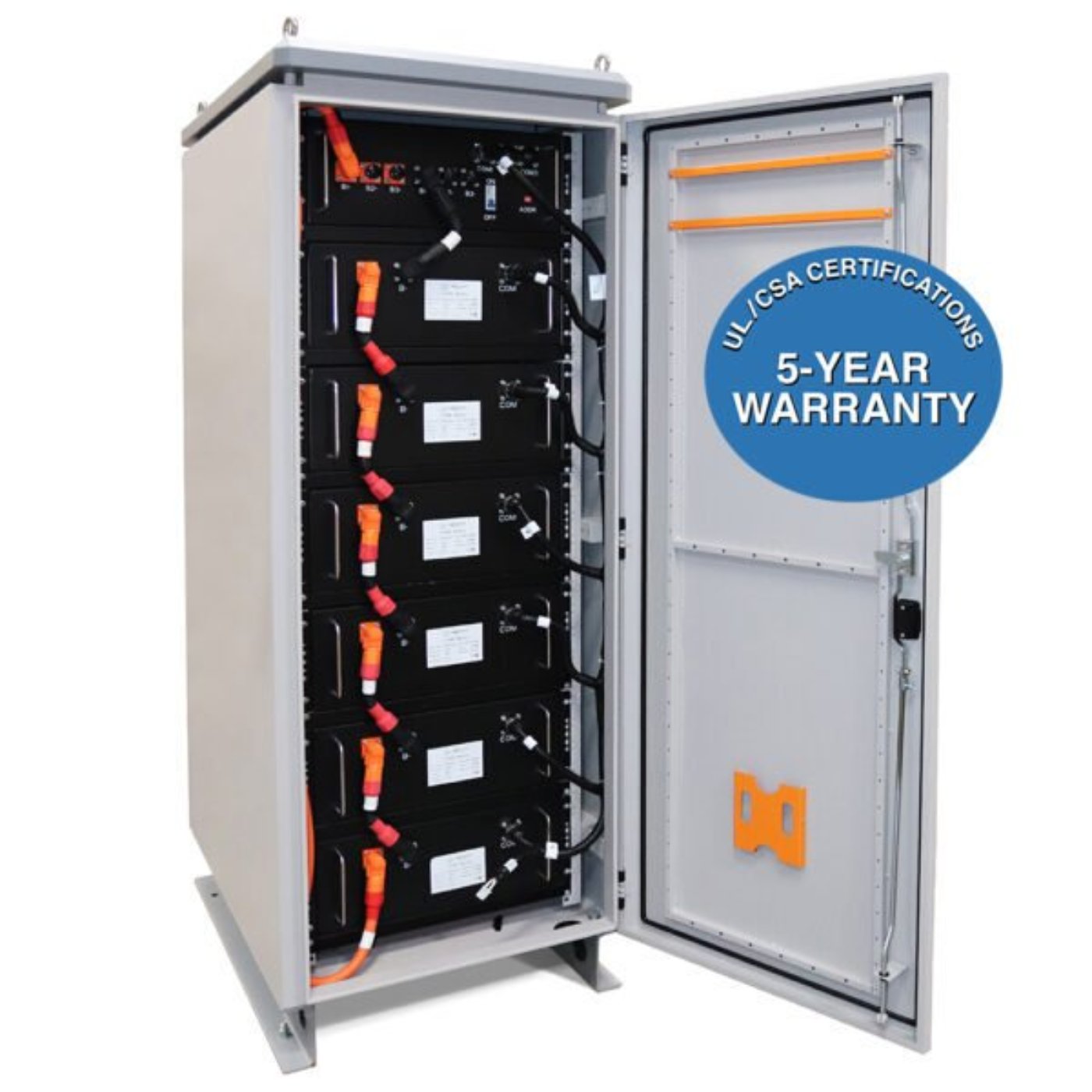

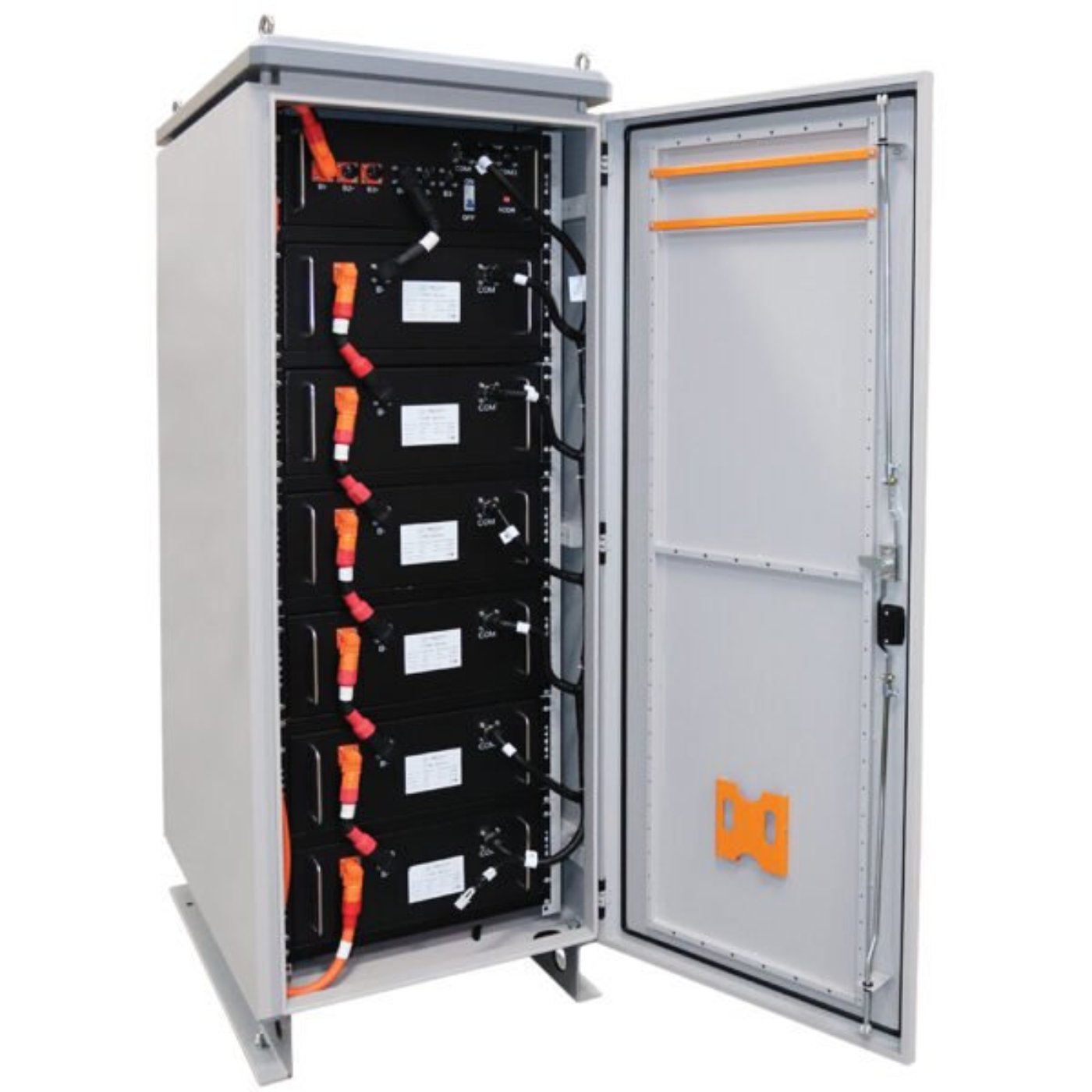

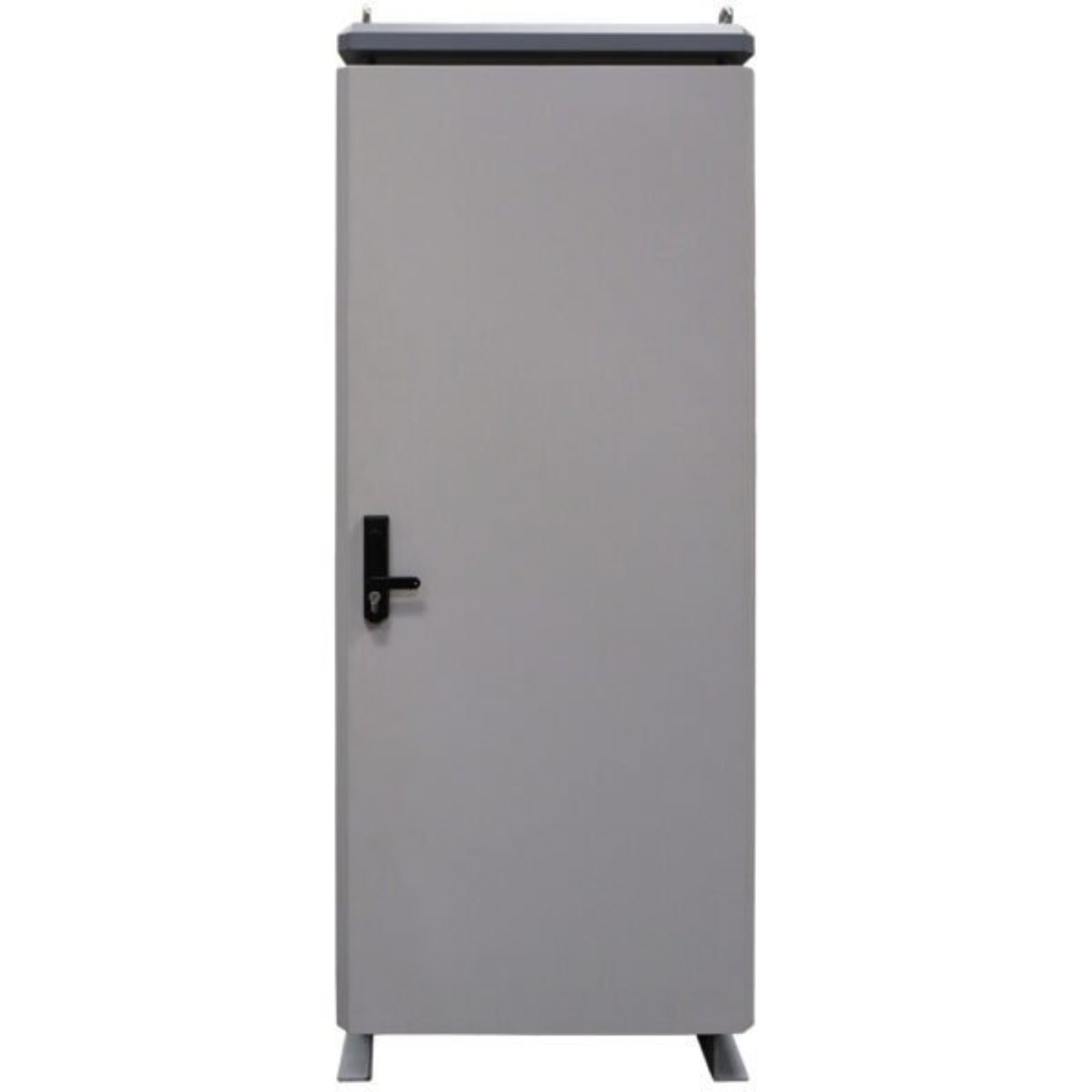

Aims Power Lithium Battery Cabinet 230VDC 96AMPS 22,114 Watt Hours! MASTER - LFP230V96A-M

Features

• Pre-programmed to work seamlessly with AIMS hybrid inverter

• Pre-wired for easy installation and set up

• Five year limited warranty

• Requires only 3 simple wires to connect to the inverter (positive, negative and CAN)

• Superior BMS for optimal performance

• Expandable – max 3 per inverter (1 master and 2 slaves)

• Cell balancing

• More efficient during high watt usage

• Natural cooling

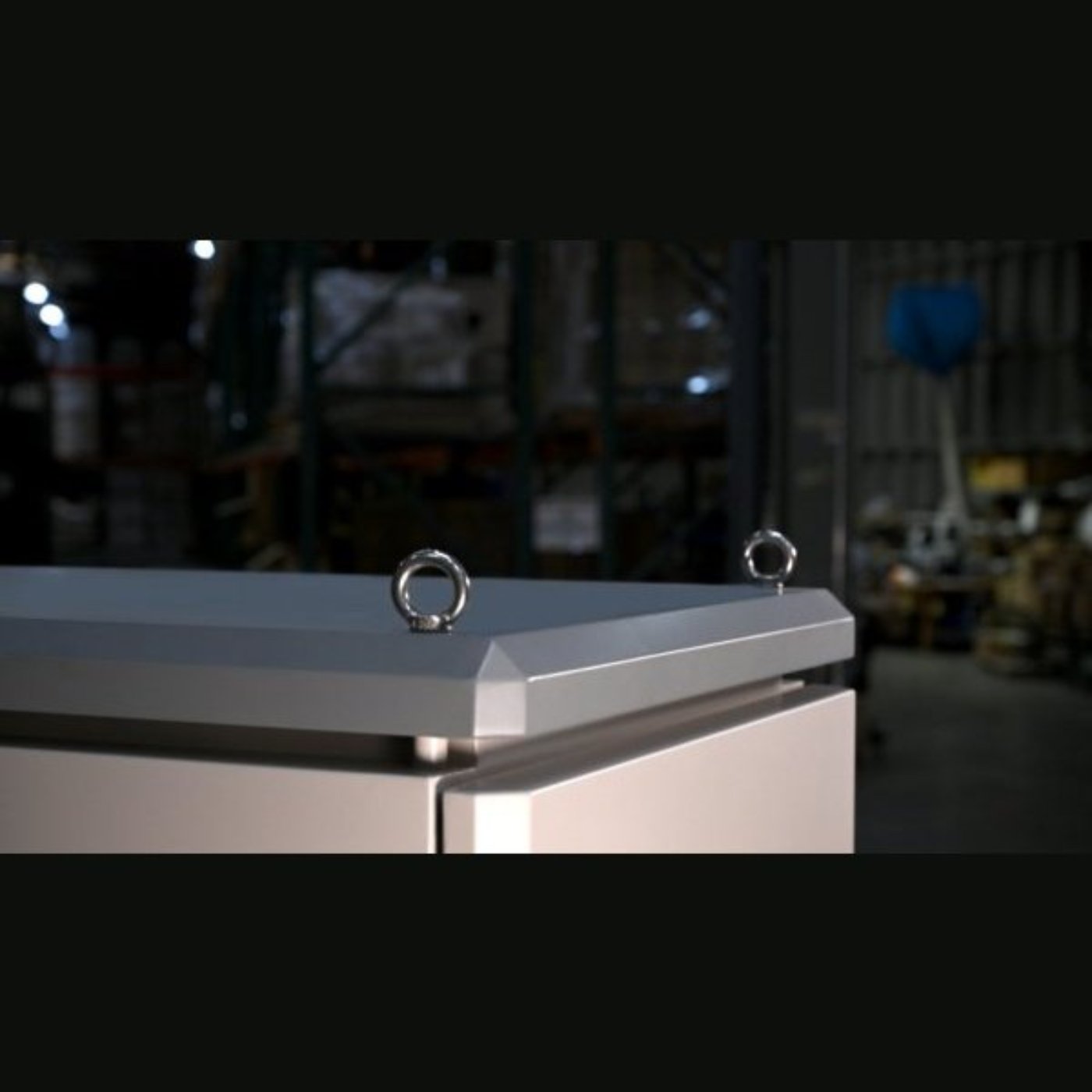

• Eye bolts for lifting included

Specifications

• Voltage DC: 230.4V

• Amp hours: 96

• kWh 22.1 (22,114 watt hours)

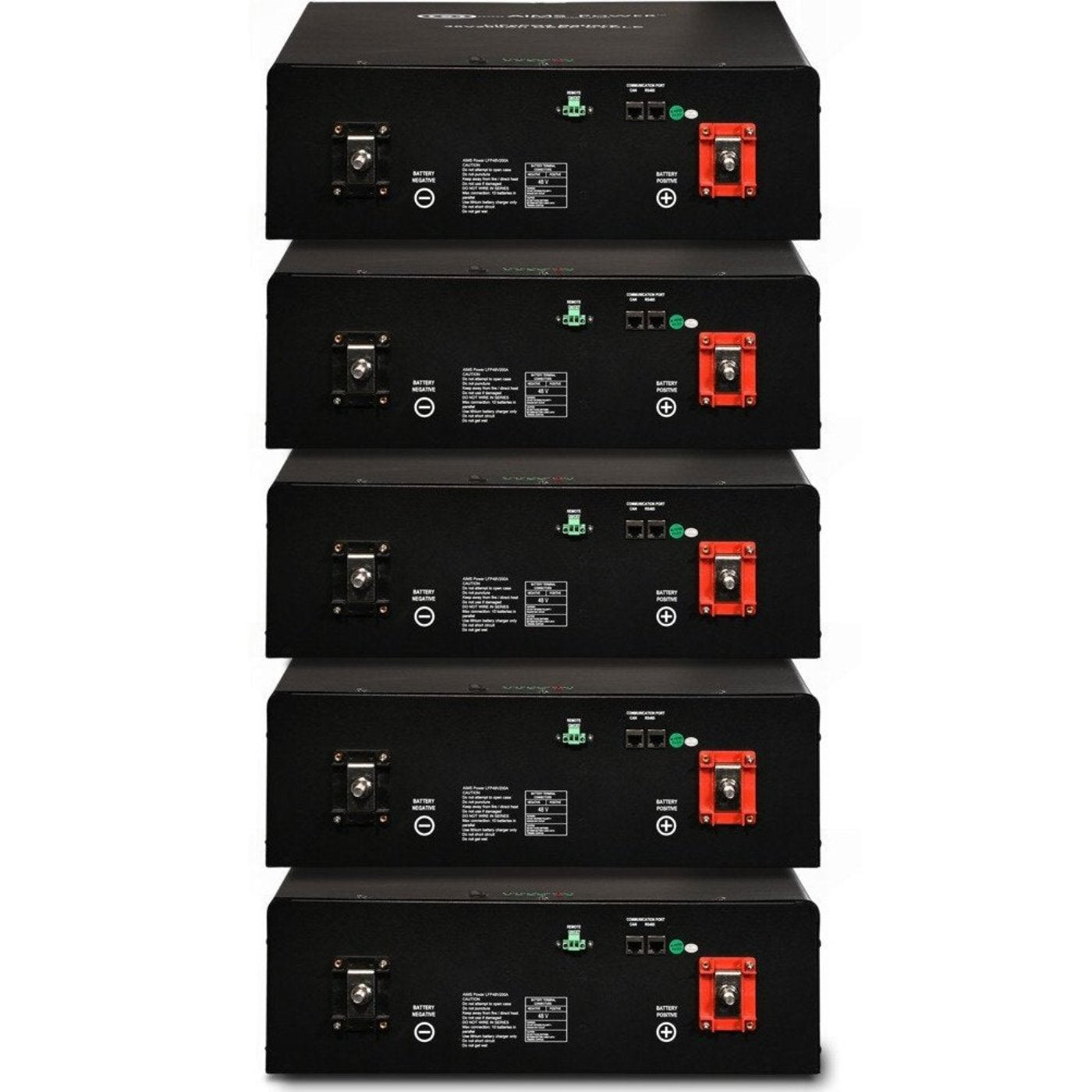

• Cabinet includes qty 6 38.4V lithium packs wired in series.

• Max charge/discharge current 50amps

• Cycle life >3500

• Cut off discharge voltage – 180V

• Max charge voltage- 262.8

• Efficiency >97%

• IP grade – IP54

• Weight – 650 lbs

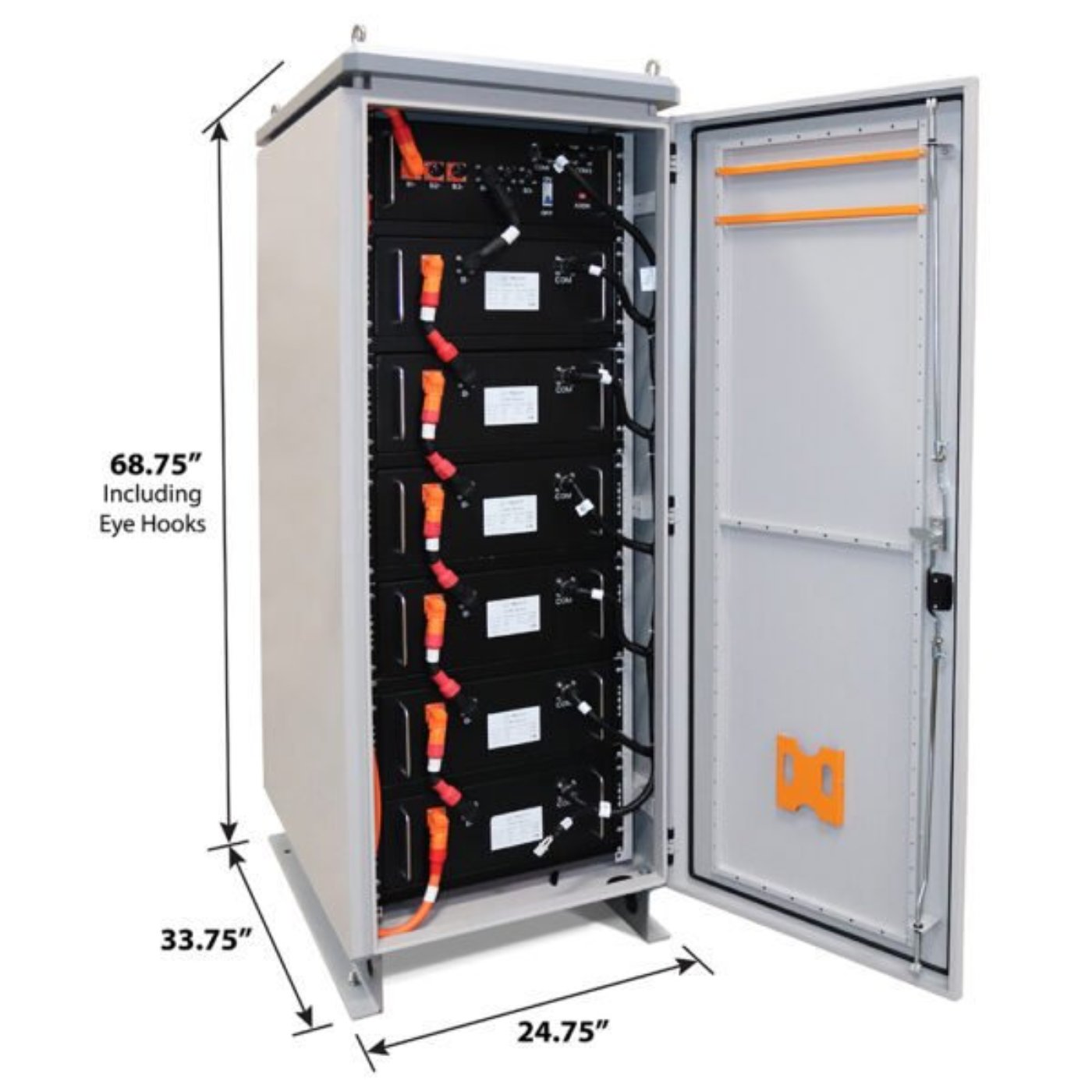

• Dimensions (inches) – 68.75H x 33.75D x 24.75W

Video

What Our Experts Think

The Aims Power Lithium Battery Cabinet 230VDC 96AMPS offers a massive storage capacity and robust performance for demanding energy needs. Here’s why it stands out:

• High Storage Capacity: Provides 22,114 Watt-hours, ensuring extended power backup for large off-grid, solar, or backup systems.
• Impressive Output: 230VDC and 96 Amps deliver consistent and reliable power for industrial and commercial energy applications.
• LiFePO4 Technology: Lithium Iron Phosphate ensures superior safety, longer lifespan, and greater efficiency compared to traditional battery types.
• Scalable & Flexible: Designed to integrate seamlessly with other energy systems, allowing for future scalability and adaptability.
• Eco-Friendly: Longer-lasting and more sustainable than conventional batteries, reducing waste and the need for frequent replacements.

Ideal for those requiring high-capacity, long-lasting energy storage with minimal maintenance and a focus on efficiency.

Q&A

Q: What is the Aims Power LFP230V96A-M?
A: It is a high-capacity lithium battery cabinet providing 230VDC output, 96 AMPS, and 22,114 watt-hours of energy storage, designed for large-scale power solutions.

Q: What are the key features?
A: 230VDC output, 96 AMPS, 22,114 watt-hours storage, LiFePO4 lithium battery technology, high efficiency, and built-in protection features for long-lasting and reliable performance.

Q: Where can this battery cabinet be used?
A: Ideal for large off-grid systems, commercial and industrial energy storage, and backup power solutions that require high-capacity storage and consistent power supply.

Q: Why should I choose this battery cabinet?
A: It offers substantial energy storage, long lifespan, and safety features, making it perfect for businesses, large homes, and high-demand backup power applications.

Maintenance Tips

• Regular Cleaning: Keep the battery cabinet free of dust and debris by wiping it down regularly with a dry cloth.
• Inspect Connections: Check the battery terminals and wiring for corrosion or loose connections to ensure proper functionality.
• Monitor Temperature: Ensure the system is installed in a well-ventilated, cool, and dry area to prevent overheating.
• Check Battery Health: Use monitoring tools to regularly assess battery performance and identify potential issues early.
• Avoid Deep Discharge: Maintain the battery charge between 20% and 80% to maximize its lifespan.
• Routine Inspections: Inspect the cabinet for signs of damage, leaks, or wear to ensure continued safe operation.
