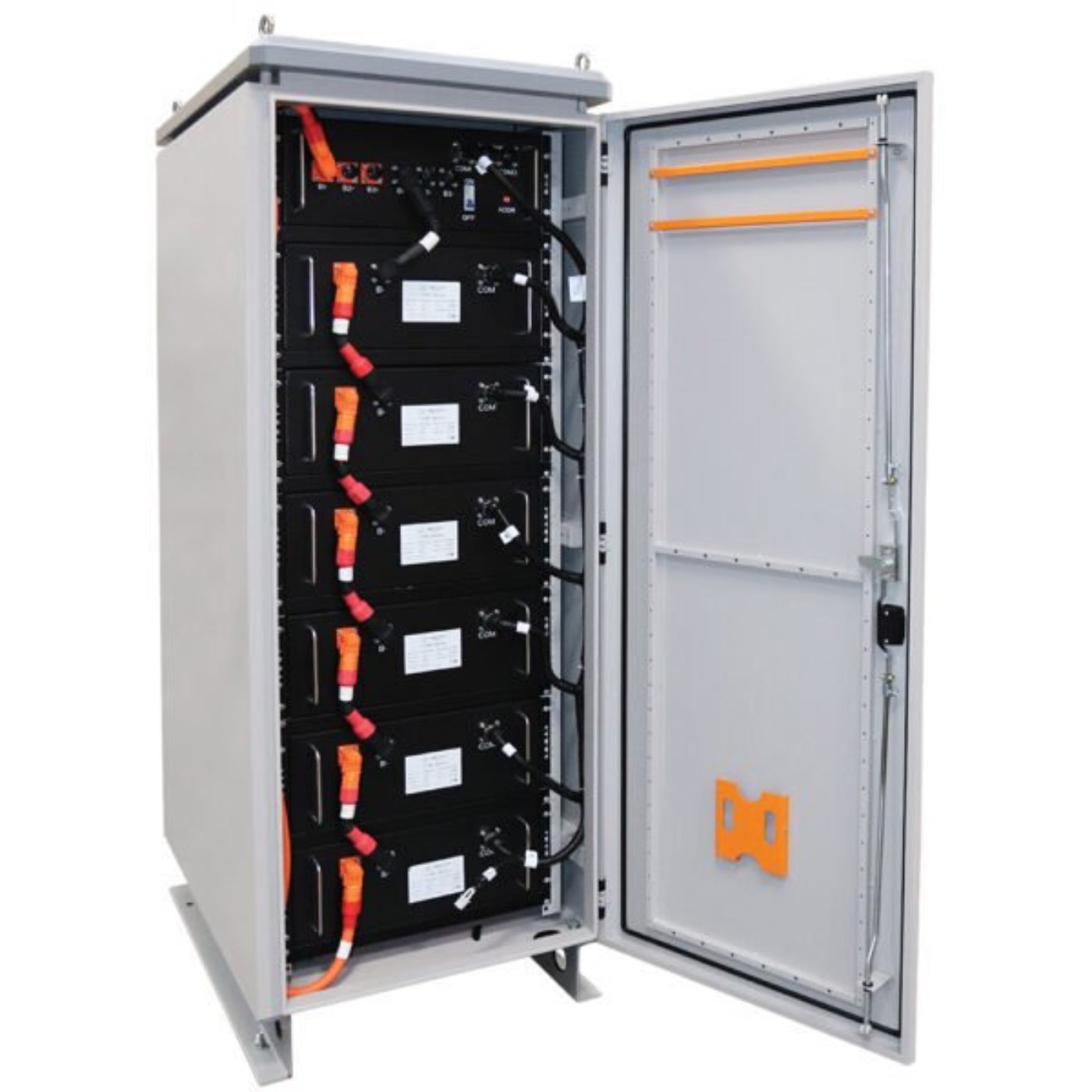

Aims Power Lithium Battery Cabinet 230VDC 96AMPS 22,114 Watt Hours! SLAVE - LFP230V96A-S
Brand: Aims Power
Aims Power Lithium Battery Cabinet 230VDC 96AMPS 22,114 Watt Hours! SLAVE - LFP230V96A-S
Popular Add-Ons
Add-Ons Bundle
$200.00
$70.00
$100.00
$30.00
Bundle Offer
$300.00
$100.00
Recently Viewed Products
Brand:
ePower Go
Damage Protection
If your order is damaged during shipping, refuse it and contact us for solutions
- $100.00
- $100.00
- Unit price
- per
Brand:
ePower Go
Loss Protection
If your order is lost during shipping, contact us for a replacement
- $30.00
- $30.00
- Unit price
- per
Brand:
ePower Go
Theft Protection
- $20.00
- $20.00
- Unit price
- per
Brand:
Senville
Senville AURA 18000 BTU Mini Split Concealed Duct Air Conditioner and Heat Pump - SENA/18HF/ID
Senville AURA 18000 BTU Mini Split Concealed Duct Air Conditioner and Heat Pump - SENA/18HF/ID Looking for the best concealed duct mini split air conditioner heat pump that will offer a versatile and affordable solution to cooling and heating your tiny home? Look no...
- From $1,339.99
$1,489.99- From $1,339.99
- Unit price
- per
DJI Matrice 350 TB65 Intelligent Flight Battery - CP.EN.00000457.01 The TB65 Intelligent Flight Battery adopts high-performance, high-energy cells and can be charged up to 400 cycles, reducing the cost for a single flight. Additionally, it has enhanced heat dissipation performance and an auto-heating system. Features...
- $658.99
$700.00- $658.99
- Unit price
- per
ParfactWorks 1000W LED Grow Light - ZE1000 Cultivate thriving indoor plants with the ParfactWorks ZE1000, a powerhouse LED grow light designed to deliver exceptional results. This industry-leading fixture boasts a massive 1000 watts of power, drawing only a fraction of the energy compared to...
- $811.99
$954.99- $811.99
- Unit price
- per
Luxury Spas- Studio Series Oscar 6 Person Cloud Gray WS-007 offers high-quality relaxation. The Oscar 6-person round home spa has a luxurious cloud gray interior and offers spacious and ergonomic seating, perfect for relaxing and socializing with loved ones. Designed with gatherings in mind,...
- $6,549.99
- $6,549.99
- Unit price
- per
Cummins RS13A - 13kW Quiet Connect™ Series Home Standby Generator The Cummins Quiet Connect Series 13-18kW Air-Cooled Standby Generator is the perfect power backup during an outage. It is powered by a 999 cc engine which runs from 13 to 20 kilowatts both on...
- $3,830.00
$3,999.00- $3,830.00
- Unit price
- per
At Aims Power, We’re Passionate About Designing And Developing Off-grid And Renewable Energy Solutions.
Features
-
Pre-programmed to work seamlessly with AIMS hybrid inverter
-
Pre-wired for easy installation and set up
-
Five year limited warranty
-
Requires only 3 simple wires to connect to the MASTER LITHIUM BATTERY CABINET. The slave cabinet is parallel wired to the master cabinet for extra stored power
-
Superior BMS for optimal performance (WHEN USED WITH THE MASTER)
-
Expandable – max 3 per inverter (1 master and 2 slaves)
-
Cell balancing
-
More efficient during high watt usage
-
Natural cooling
-

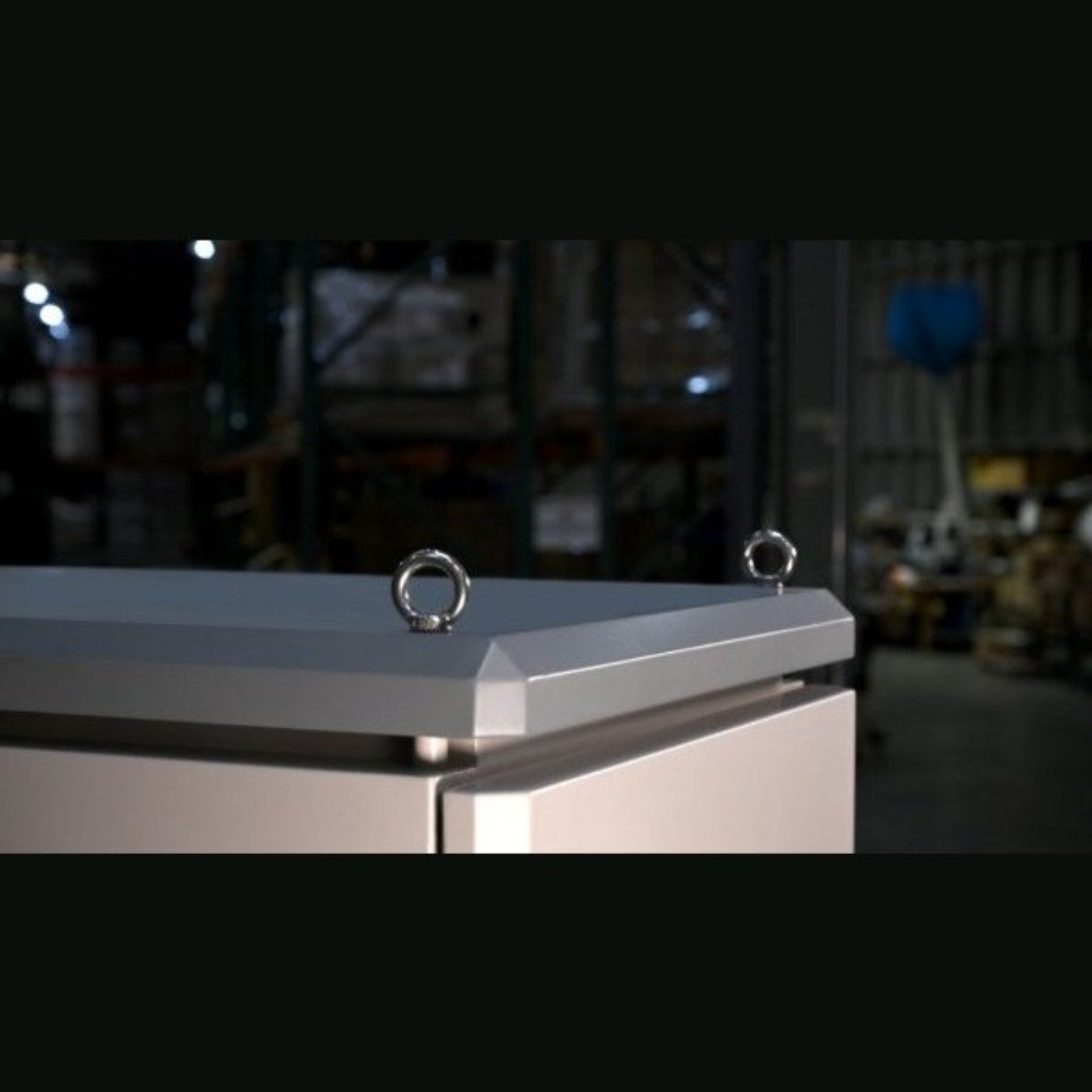

Eye bolts for lifting included
Specifications
-
Voltage DC: 230.4V
-
Amp hours: 96
-
kWh 22.1 (22,114 watt hours)
-
Cabinet includes qty 6 38.4V lithium packs wired in series.
-
Max charge/discharge current 50amps
-
Cycle life >3500
-
Cut off discharge voltage – 180V
-
Max charge voltage- 262.8
-
Efficiency >97%
-
IP grade – IP54
-
Weight – 650 lbs
-

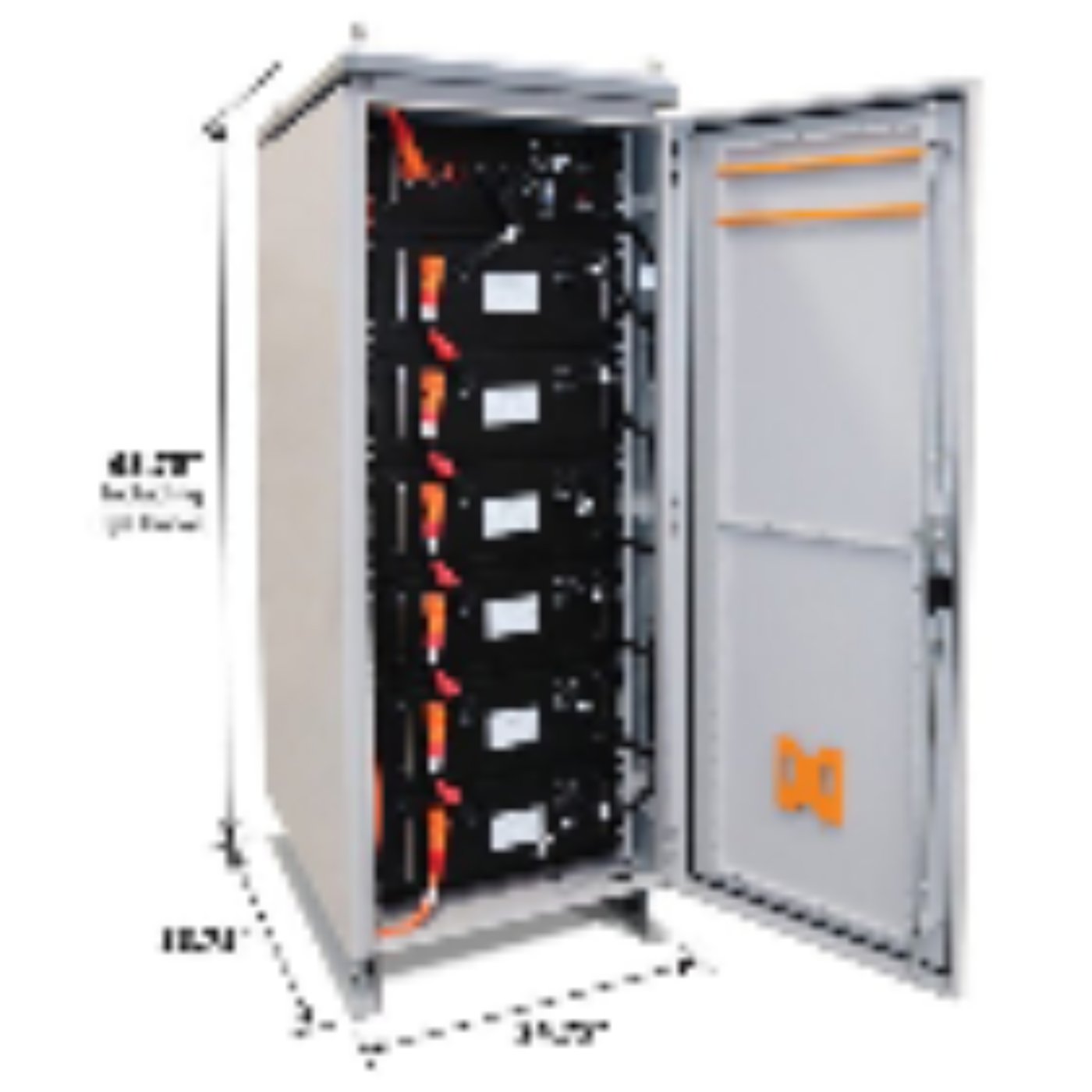

Dimensions (inches) – 68.75H x 33.75D x 24.75W
Video
What Our Experts Think
The Aims Power Lithium Battery Cabinet 230VDC 96AMPS SLAVE is an exceptional energy storage solution, designed for high-demand applications. Here's why it excels:
- Massive Storage: 22,114 Watt-hours provide substantial energy capacity for large-scale off-grid or backup power systems.
- High Output: 230VDC and 96 Amps ensure consistent and reliable power for industrial, commercial, or residential use.
- LiFePO4 Technology: Lithium Iron Phosphate (LiFePO4) delivers superior safety, efficiency, and a long lifespan compared to traditional lead-acid batteries.
- Expandable: Designed as a slave unit, it integrates seamlessly with master units for scalable, expandable power solutions.
- Eco-Friendly: A long lifespan with minimal environmental impact, making it a more sustainable option than conventional battery systems.
Perfect for users who need reliable, scalable energy storage with a focus on efficiency and longevity.
Q&A
Q: What is the Aims Power LFP230V96A-S?
A: It is a high-capacity lithium battery cabinet designed as a slave unit, providing 230VDC output, 96 AMPS, and 22,114 watt-hours of energy storage to complement a master battery system.
Q: How does the slave unit differ from the master unit?
A: The slave unit (LFP230V96A-S) is designed to expand the capacity of a master battery system (LFP230V96A-M), providing additional energy storage and power without the need for a separate primary inverter.
Q: What are the key features?
A: 230VDC output, 96 AMPS, 22,114 watt-hours storage, LiFePO4 lithium battery technology, high efficiency, and built-in safety features for optimal performance.
Q: Where can this battery cabinet be used?
A: Ideal for expanding large off-grid systems, commercial energy storage, and backup power applications where high-capacity storage is needed.
Q: Why should I choose this slave unit?
A: It allows you to scale up energy storage when paired with a master unit, ensuring reliable, long-lasting power for demanding off-grid or backup energy systems.
Maintenance Tips
- Regular Cleaning: Wipe down the cabinet to remove dust and dirt, ensuring proper airflow and system performance.
- Inspect Battery Connections: Check terminals and cables for corrosion, wear, or loose connections to maintain optimal power flow.
- Monitor Temperature: Install the cabinet in a cool, dry, and well-ventilated area to prevent overheating and ensure safe operation.
- Battery Health Monitoring: Use available monitoring tools to track battery status and performance for early detection of issues.
- Avoid Deep Discharge: Keep the battery charge between 20% and 80% to extend battery life.
- Inspect for Damage: Regularly check the cabinet for any signs of physical damage or wear that could impact functionality.
