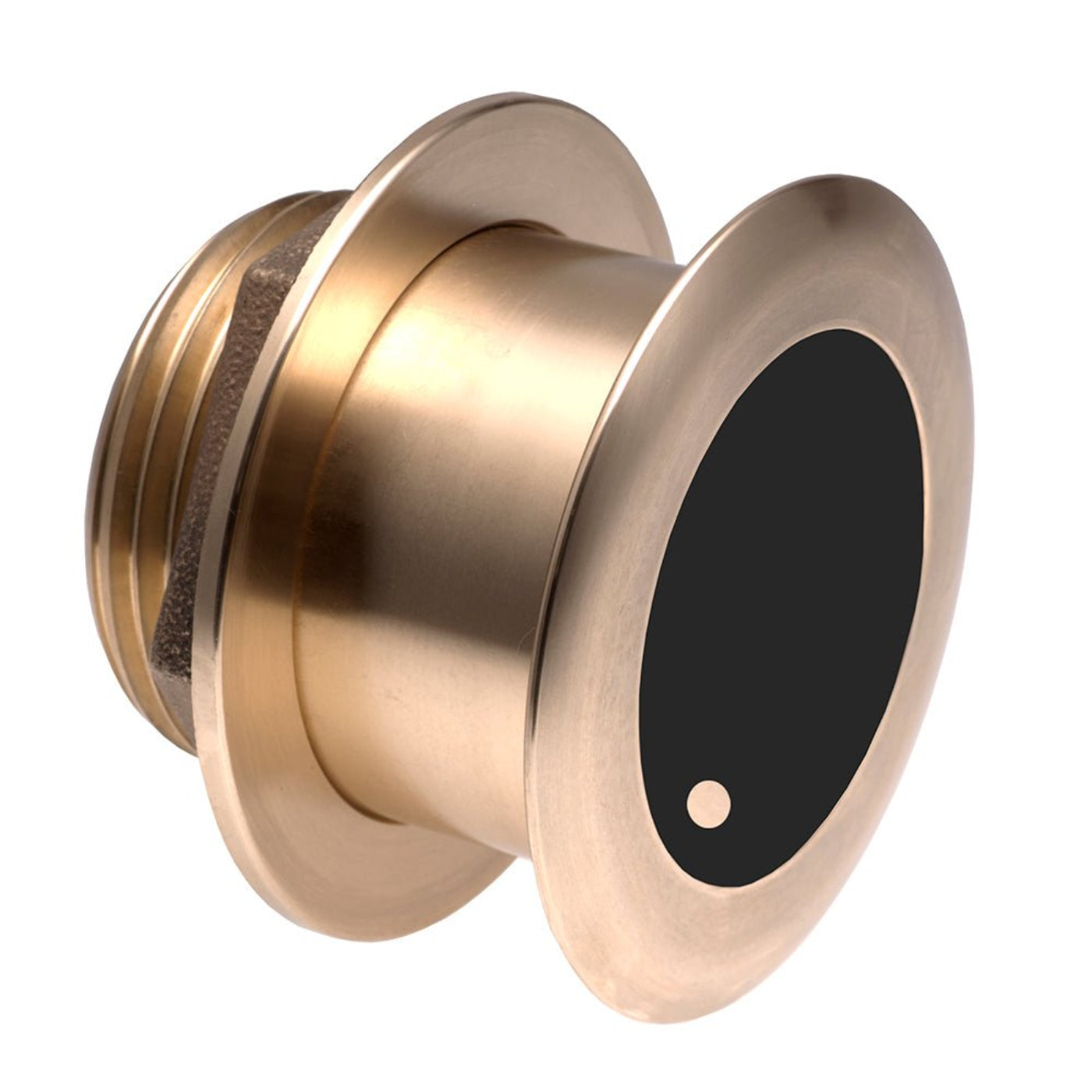

Airmar B175HW Bronze Thru Hull 12° Tilt - 1kW - Requires Mix and Match Cable - CW68032

Airmar B175HW Bronze Thru Hull 12° Tilt - 1kW - Requires Mix and Match Cable - B175C-12-HW-MM

Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers

A unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.

Features

• Depth & fast-response water-temperature sensor

• 12 degree tilted version, 1KW

• High—CHIRPS from 150 kHz to 250 kHz

• 25° constant beamwidth

• 100 kHz of total bandwidth from one transducer

• Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth

• Boat Size: 8 m (25’) and above

• Hull Type: Fiberglass or wood

• Exclusive Xducer ID® technology

Specification

What Our Experts Think

• Superior Performance: The Airmar B175HW delivers exceptional high-frequency performance, making it ideal for shallow water sonar applications.
• Durable Design: Its robust bronze housing ensures long-lasting durability, perfect for the harsh marine environment.
• Precise Imaging: The 12° tilt angle offers a balance between shallow and deep water imaging, providing clear and detailed sonar returns.
• Mix & Match Flexibility: Requires a "Mix & Match" cable, offering versatility to work with different marine electronics.
• Ideal for Coastal Waters: Particularly suited for coastal and inshore fishing, where high-resolution imaging is essential for spotting fish and structure.

Q&A

Q: What type of cable is required for the Airmar B175HW?
A: The Airmar B175HW requires a "Mix and Match" cable, sold separately, to ensure proper compatibility and performance.

Q: Can this transducer be used for both freshwater and saltwater?
A: Yes, the Airmar B175HW is designed for both freshwater and saltwater applications, providing accurate depth and fish finding capabilities.

Q: What is the optimal installation angle for the Airmar B175HW?
A: This transducer features a 12° tilt, providing an ideal angle for optimal sonar performance when mounted on a hull.

Q: Is the Airmar B175HW compatible with all marine electronics?
A: The B175HW is compatible with most marine electronics, but be sure to confirm compatibility with your specific model before installation.

Q: Does the Airmar B175HW include a mounting kit?
A: No, the transducer does not come with a mounting kit. It requires a separate installation process.

Maintenance Tips

• Regular Inspection: Periodically check for any debris or buildup on the transducer surface, which can affect performance.
• Clean After Use: Rinse the transducer with fresh water after each use to prevent saltwater corrosion and buildup.
• Inspect for Damage: Look for any visible cracks or wear on the bronze housing to ensure the transducer remains fully functional.
• Check Cable Connections: Ensure the “Mix and Match” cable connections are secure and free from corrosion to maintain proper signal transmission.
• Winterize for Storage: If storing the vessel for winter, remove the transducer and store it in a dry place to avoid damage from freezing temperatures.
