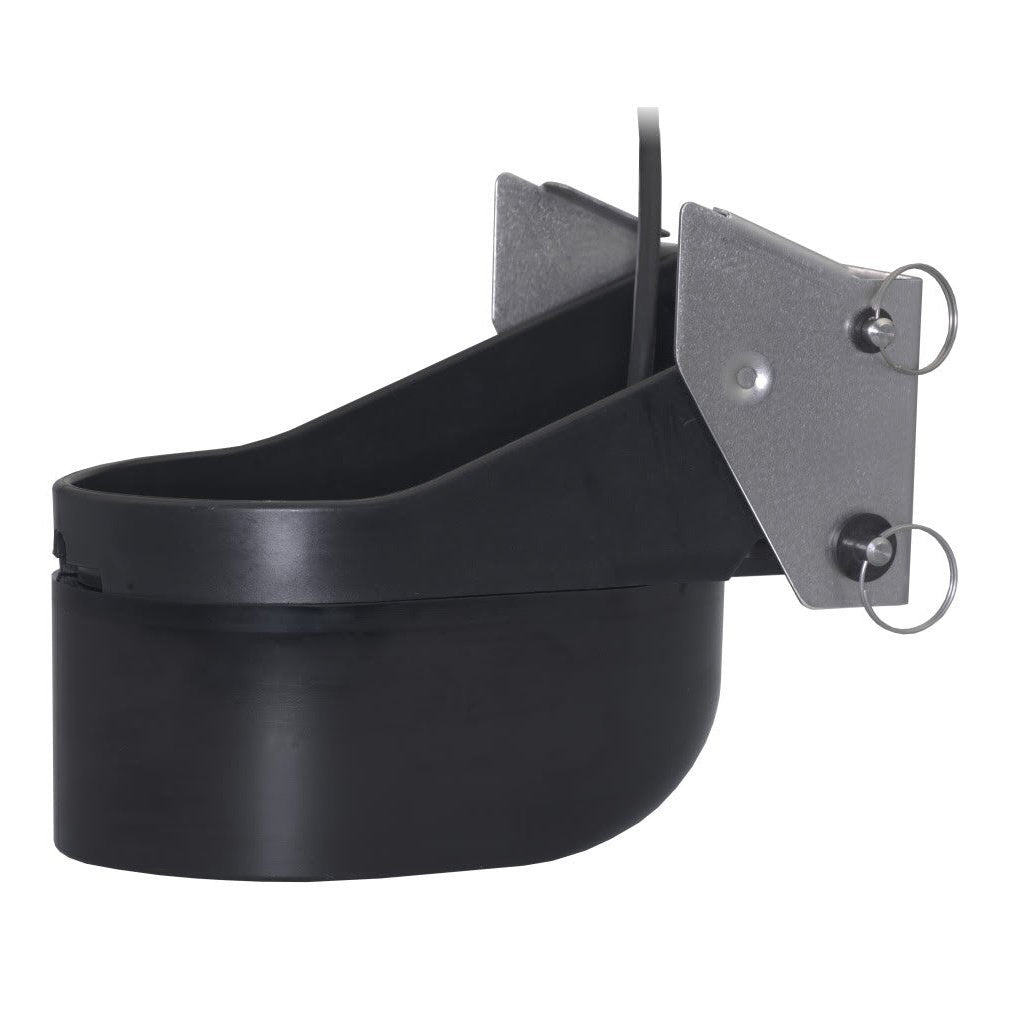

Airmar TM260 Transom Mount 1kW Blue Connector f/Simrad & Lowrance - CW66247

Airmar TM260 Transom Mount 1kW Blue Connector f/Simrad & Lowrance - TM260-BL

Powerful, Yet Sensitive! The TM260 takes the legendary performance of the B260 to your vessel’s transom. This top-of-the-line, broadband, transom-mount brings crystal clear imaging to any of today’s fishfinders. The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260’s rugged mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).

Features

• Transom-Mount, Urethane Housing

• Depth and Temperature

• Maximum Depth Range: 50 kHz— 529 m to 735 m (1,800’ to 2,500’), 200 kHz—206 m to 294 m (700’ to 1,000’)

• Boat Size: 8 m to 12 m (25’ to 40’)

• Top-of-the-line narrow-beam transom-mount

• Designed for bottom fishing

• Wide 19° beam at 50 kHz

• Narrow 6° beam at 200 kHz

• Interfaces to any 600 W or 1 kW sounder

• Cable length: 10m (33 ft)

• Kick-up assembly locks in the “up” position and will not damage the transom

• Accommodates transom angles between 3° and 21°

Specification
