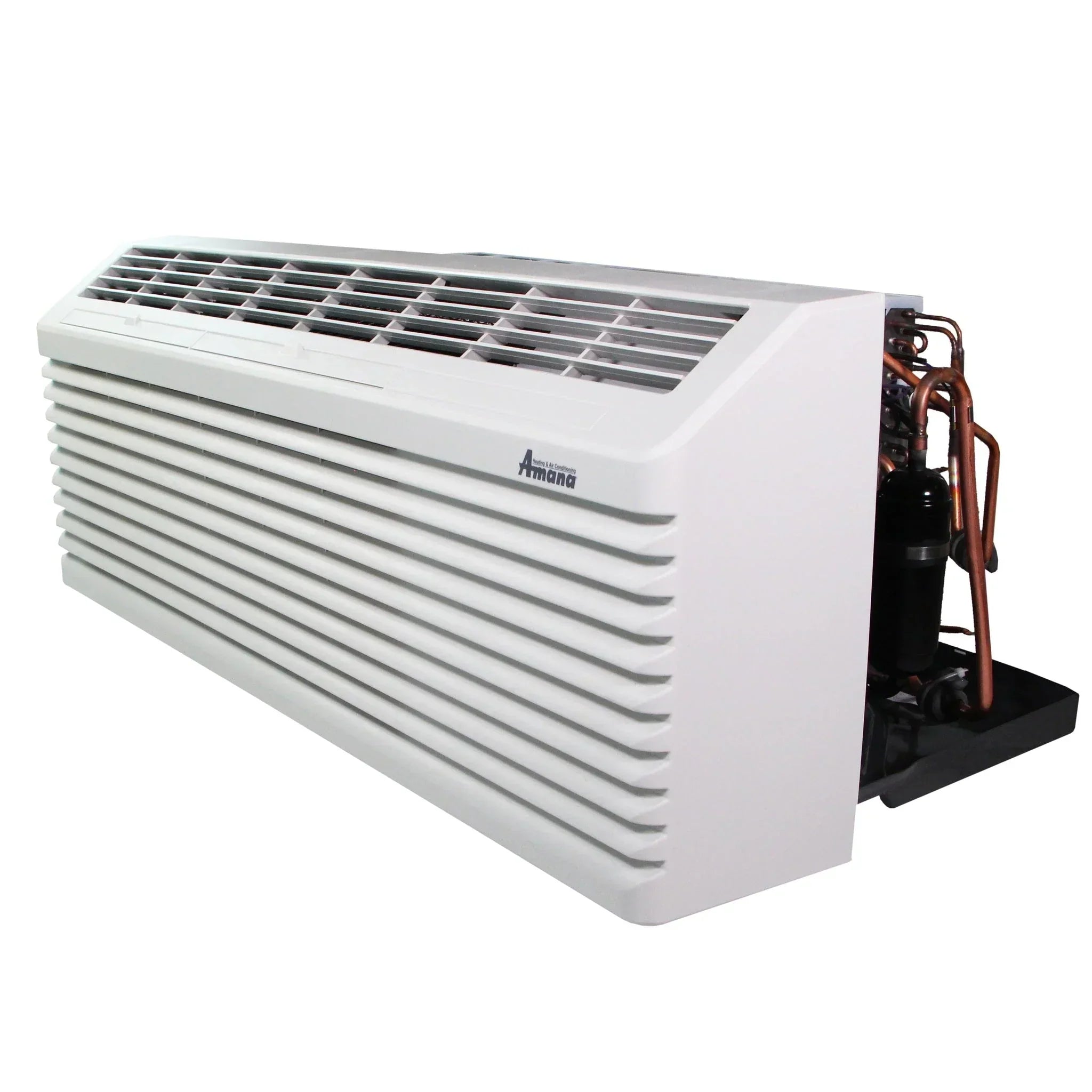

AMANA PTAC 14,800 BTU AC with 5kW Heater – APTC15J50048

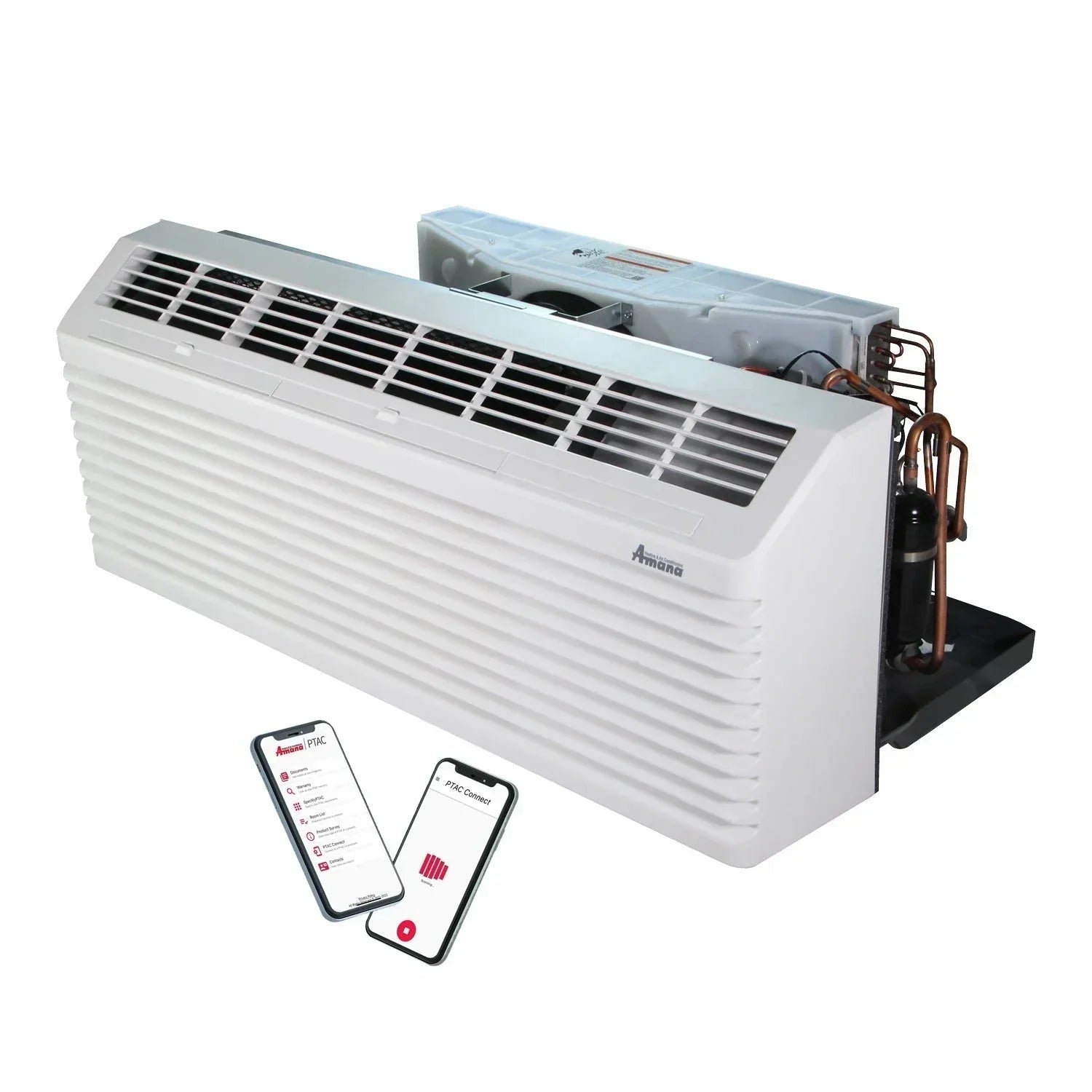

AMANA PTAC 14,800 BTU Air Conditioner PTC153J50AXXX with 5 kW Heater 30 Amp plug R32 - APTC15J50048

From day one, every Amana brand product has been made with the same core philosophy: to provide customers with high-quality products that are reliable, meet their needs and last longer than the rest. And we keep that philosophy firmly in mind when we build our Amana brand Packaged Terminal Air Conditioners (PTACs). Whether you are in the hotel/hospitality industry or provide assisted living services, Amana brand PTACs are designed to provide your business with plain-and-simple product durability and advanced energy management features, while helping you to create the best indoor comfort possible.

• Indoor tangential fan for quiet operation and optimal air distribution

• Reliable design with R-32 refrigerant filter drier and high-pressure switch

• Compatible with the Eden Wireless.

Unrivaled product customization options including Make-up Air, Smart vent and Economizer, Lighting Control, Seacoast, Hydronic and more:

ENERGY EFFICIENCIES: With EERs up to 14.0 and COPs up to 3.9, our unit's high efficiencies may qualify you for many of the rebates offered by electrical power companies.

QUIET OPERATION: Our PTAC has been redesigned to be the quietest PTAC we have ever built. The unit's state-of-the-art design and construction provide a quiet environment, allowing guests to enjoy peaceful, sleep-filled nights.

• Two fan motors (indoor/outdoor)

• Indoor tangential fan for quiet operation

• STC of 29

R32 REFRIGERANT: With a GWP (Global Warming Potential) of 677, California compliant R32 refrigerant is our choice for Amana brand PTACs. Available in every configuration of our PTAC, R32 refrigerant can provide up to 12% more efficiency than R410A refrigerant, lower lifetime emissions compared to R454B, and can use up to 40% less refrigerant charge than R410A.

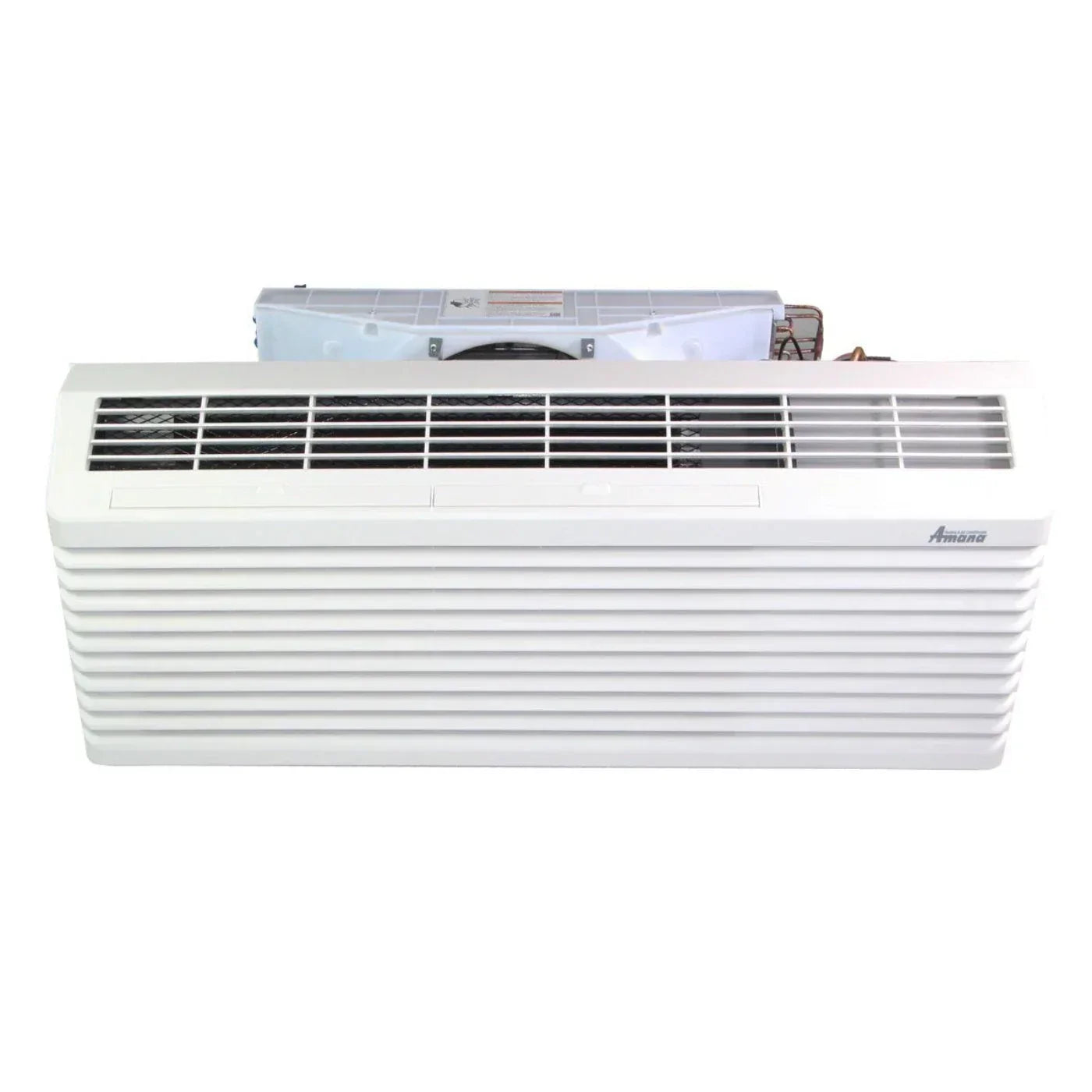

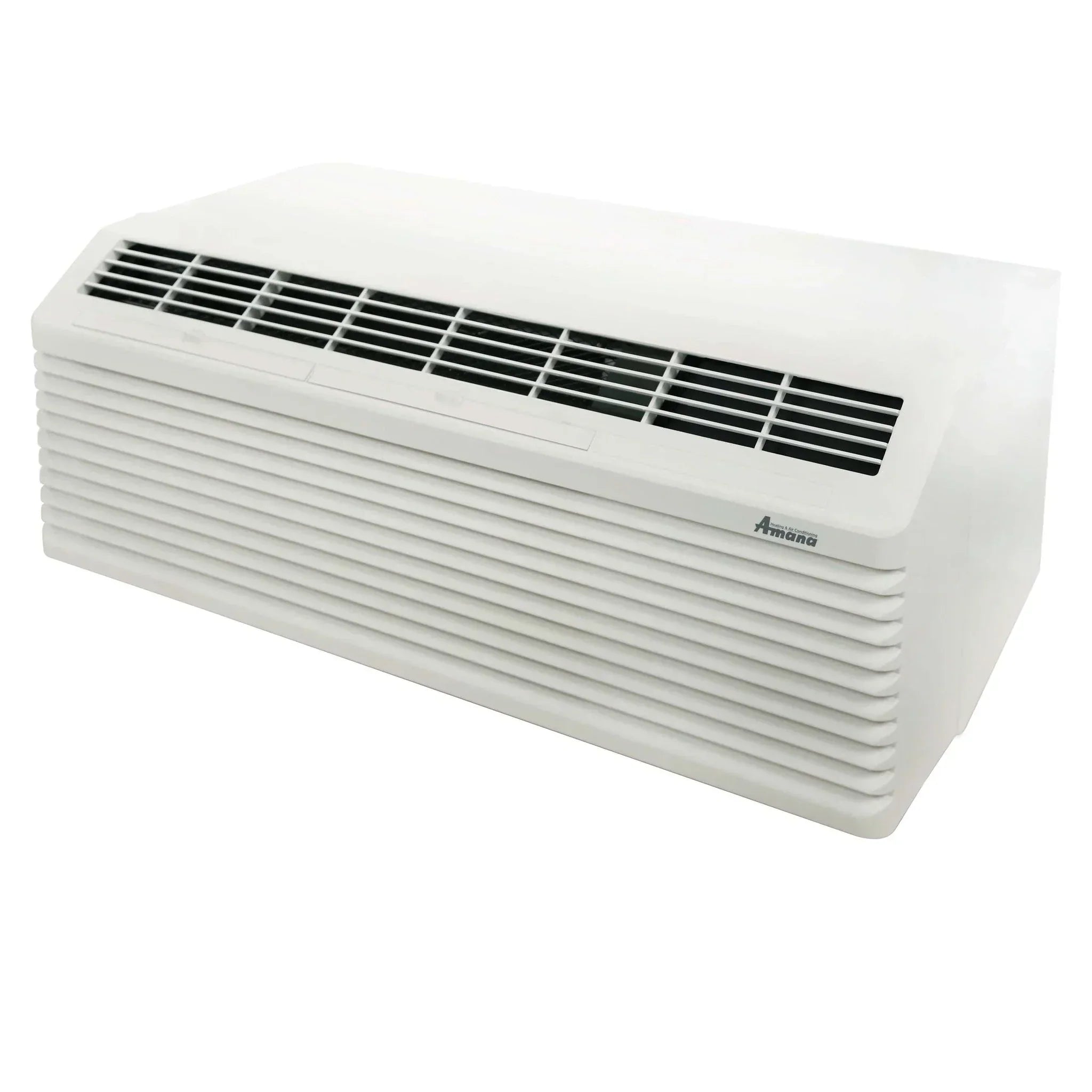

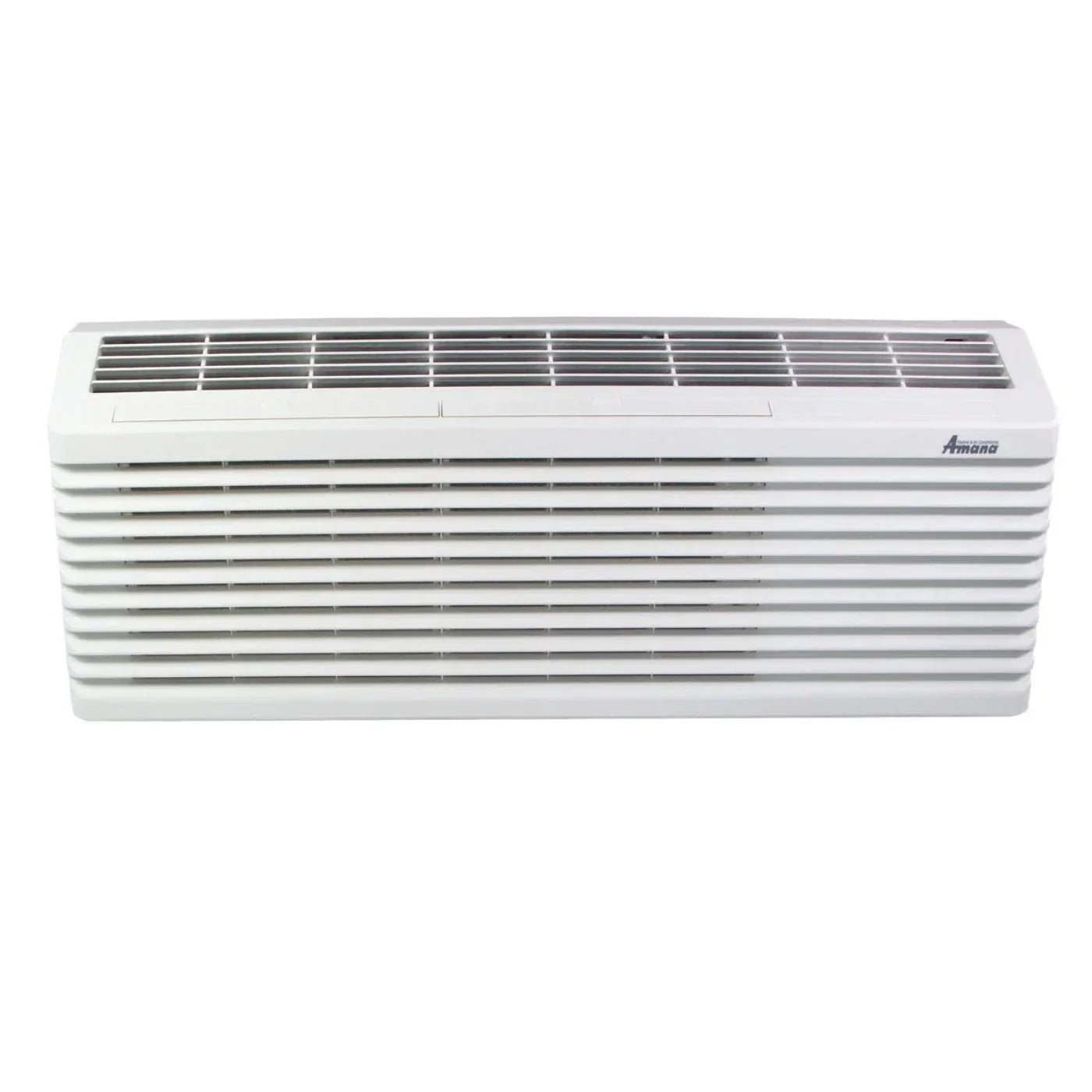

QUIET WHITE ROOM FRONT: Our newly redesigned Quiet White front cover provides a striking balance between attractive styling and practical design. This cover provides distinctive contours and a modern appearance to enhance the character of even the most luxurious room.

ASSEMBLED IN THE USA FOR OVER 45 YEARS: Assembled at our plant in Waller, Texas, using Goodman resources including engineering, production, and testing.

FIVE-YEAR LIMITED WARRANTY: Enjoy one of the most comprehensive warranties in the industry. First year includes parts and labor; second through fifth years includes parts and labor on certain sealed system components, on certain functional parts only.

100% RUN TESTED: All units are 100% run tested at our plant in Waller, Texas, including leak checks during manufacturing and prior to shipment at the warehouse.

FILTER DRYER FOR SEALED SYSTEM REFRIGERANT: Standard in all units to protect the compressor and lengthen the life of the unit by removing moisture and preventing acid formation.

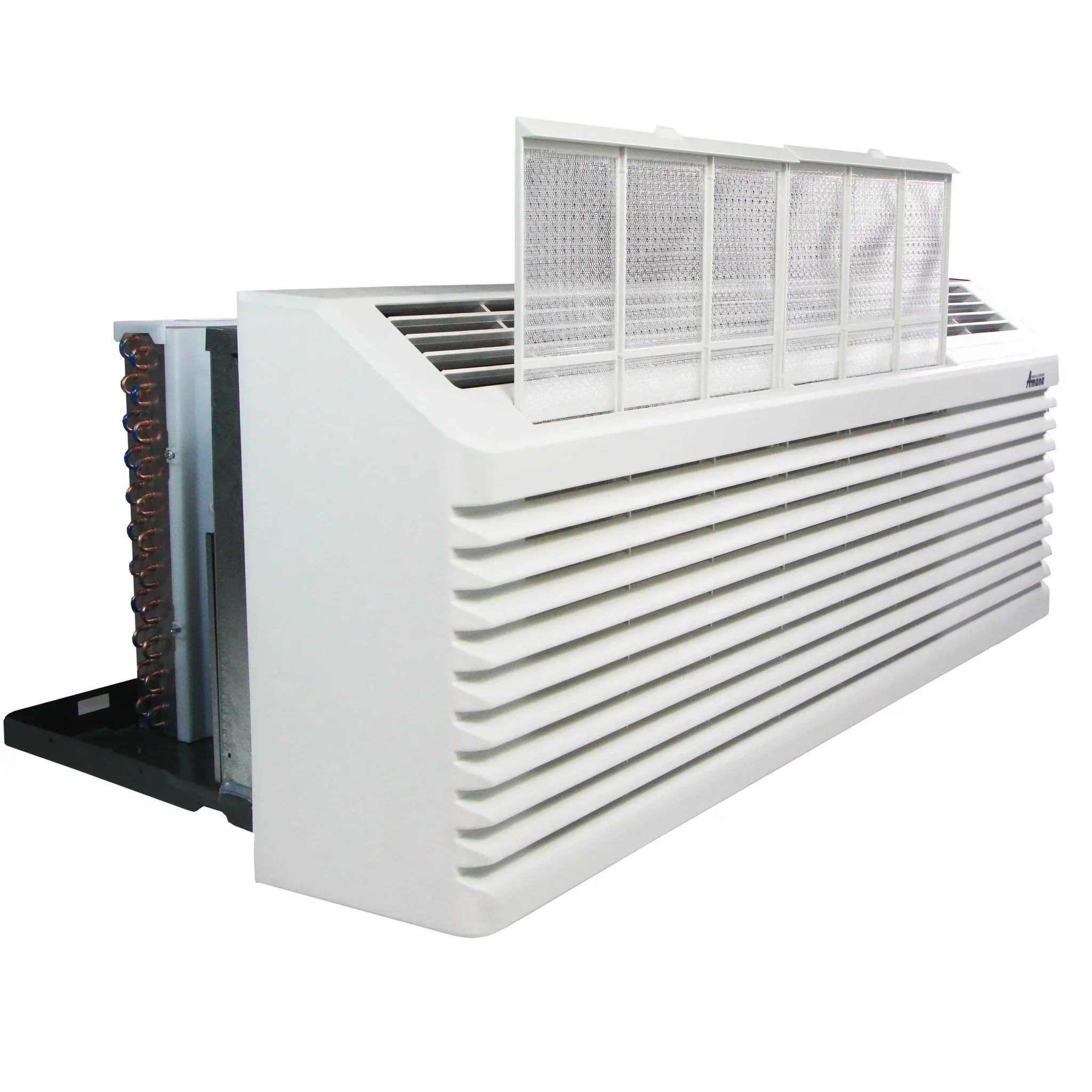

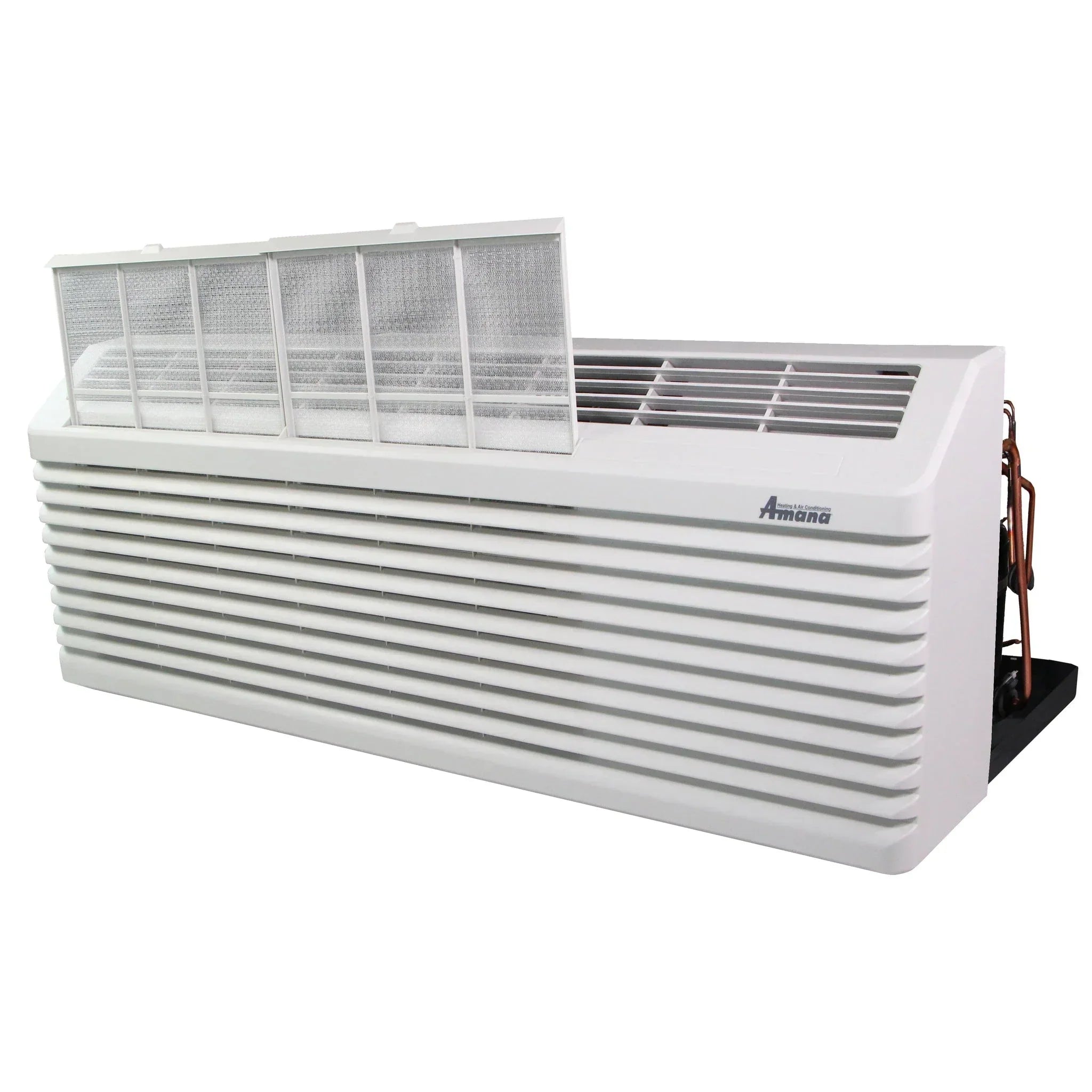

EASY PULL-OUT FILTERS: Our filters are washable and easy to maintain.

7 5/8" UNIT FRONT DEPTH: Enhance valuable room space with our slim unit front, which has a sleek 75/8" depth, one of the shallowest silhouettes in the industry today. The front can be secured to the chassis with a hidden screw in order to inhibit guest tampering.

ROOM FREEZE PROTECTION: When the unit senses temperatures of 40°F or below, the unit activates the fan motor and either the electric resistance heater or the hydronic heater.

ZERO FLOOR CLEARANCE: The unit can be installed flush to a finished floor, if desired (please note that some accessories do not have zero clearance).

30-SECOND FAN-OFF DELAY: The fan continues to run 30 seconds after the compressor has stopped in either cooling or heat pump mode, and after electric heat has been turned off. This improves efficiency by dispersing the conditioned air on the coils into the room.

COMPRESSOR LOCK-IN: This feature helps prolong the life of the compressor by preventing short-cycling. When the compressor is switched from OFF to ON because room temperature has risen or fallen below the specified limit, it will remain on for at least 4 minutes.
If the temperature set-point is changed during these 4 minutes, the lock-in feature is overridden.

AUTOMATIC EMERGENCY HEAT: No more “my unit is not heating” complaints during the middle of the night. Heat pump units will automatically switch over to electric resistance heat if the heat pump compressor system fails or if the heating load is greater than the unit capacity.

CONSTANT FAN MODE: Take advantage of continuous fan operation. Each unit can be configured with our Amana brand mobile app or paired with a supporting thermostat to provide constant fan operation.

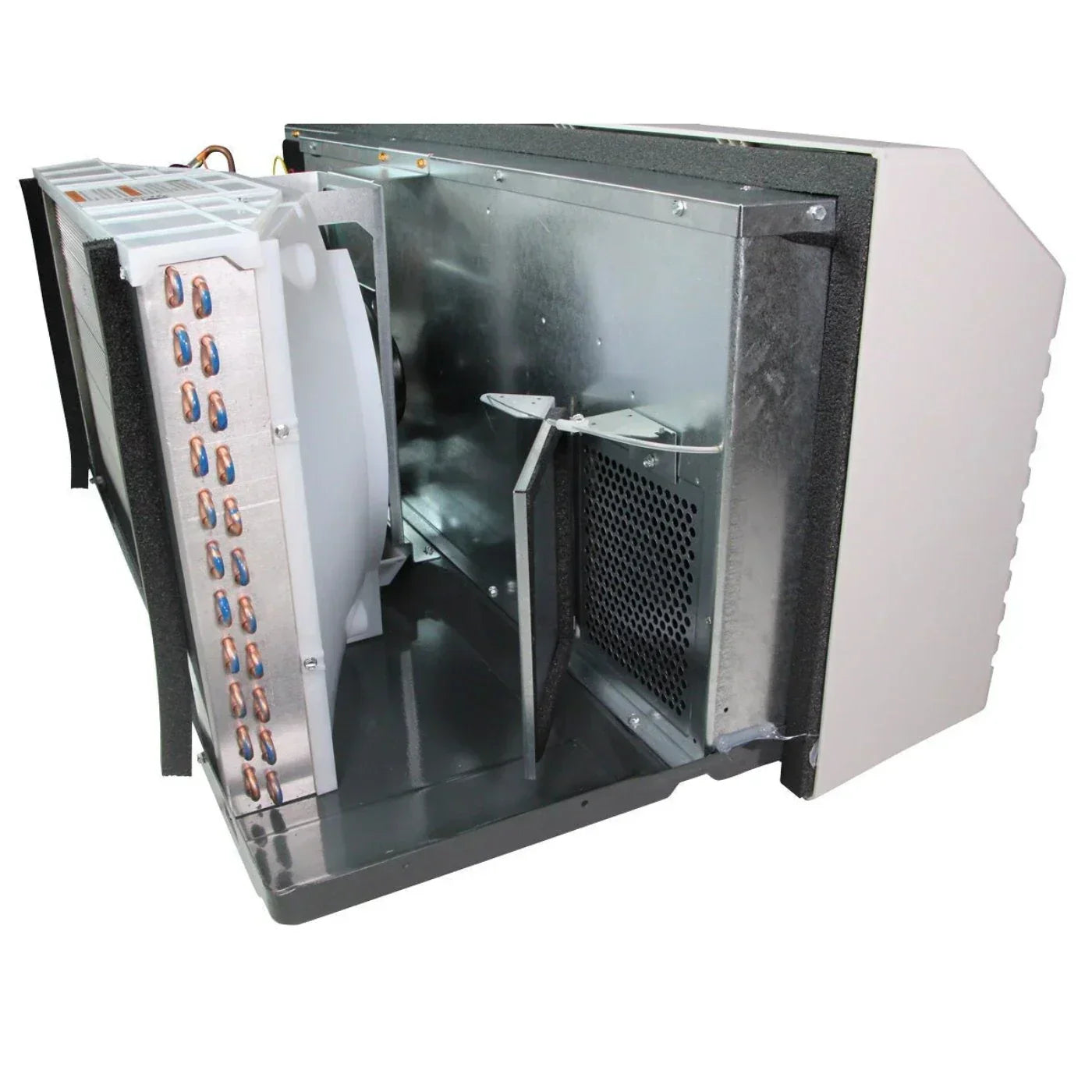

HIDDEN VENTILATION CONTROL: The ventilation control lever is hidden from the occupant's view to allow you to manage ventilation requirements.

HIGH-PRESSURE SWITCH: Protects the unit from high pressure and damage to the unit, helping to ensure long unit life.

Features

• Quiet Operation: Redesigned with indoor tangential fan for optimal air distribution and minimal noise.

• Advanced Energy Management: Compatible with Eden Wireless for seamless integration into energy management systems.

• Customization Options: Includes Smart Vent, Economizer, and other customizable features for enhanced efficiency.

• Integrated Bluetooth Connectivity: Connects to Amana mobile app for easy configuration and diagnostics.

• R32 Refrigerant: Environmentally friendly refrigerant with enhanced efficiency and lower emissions.

• Quiet White Room Front: Modern, sleek design that enhances room aesthetics.

Specifications

What include

• 9,000 BTU Amana Unit

• 5KW Electric Heater

• Power Cord: 6-15P (15 AMP PLUG)

• Installation Manual

• User’s Manual

Product Manual

Product Manual - APTC15J50048

What Our Experts Think

• Powerful Performance: Provides 14,800 BTUs of cooling and a 5 kW heater for exceptional comfort throughout the year.
• Eco-Friendly R32 Refrigerant: Utilizes R32 refrigerant, offering better energy efficiency and reduced environmental impact compared to traditional refrigerants.
• Energy Efficient: Engineered to reduce energy consumption while maintaining high performance and cost-effective operation.
• Durable Design: Built with premium materials for long-lasting reliability and a sleek, modern look.
• Simple Installation: Comes with a 30-amp plug, ensuring a straightforward and quick installation process.
• Quiet Operation: Designed to run quietly, ensuring a peaceful and comfortable environment without compromising cooling or heating efficiency.

Q&A

Q: What is the AMANA PTAC 14,800 BTU Air Conditioner with 5 kW Heater?
A: This Packaged Terminal Air Conditioner (PTAC) features 14,800 BTU cooling capacity, a 5 kW electric heater, and eco-friendly R32 refrigerant for efficient, year-round climate control in commercial and residential settings.

Q: What are its key features?
A: Key features include 14,800 BTU cooling, 5 kW heating capacity, energy-efficient R32 refrigerant, quiet operation, and compatibility with a 30-amp plug.

Q: Is it energy-efficient?
A: Yes, the use of R32 refrigerant provides higher energy efficiency and reduces environmental impact compared to traditional refrigerants.

Q: Is this unit suitable for commercial or residential use?
A: Yes, it’s ideal for both commercial and residential spaces, including hotels, apartments, and multi-unit buildings.

Q: What are its power requirements?
A: The unit requires a 30-amp electrical connection and fits standard PTAC wall sleeves.

Q: Does it provide reliable year-round climate control?
A: Yes, the cooling and 5 kW heating ensure consistent comfort throughout the year in all seasons.

Maintenance Tips

1. Clean Air Filters Monthly: Wash or replace filters regularly to maintain proper airflow and improve efficiency.
2. Inspect Coils: Clean the evaporator and condenser coils to prevent dirt buildup, ensuring optimal cooling and heating performance.
3. Check Drain Lines: Ensure the condensate drain is clear to prevent water leaks and blockages.
4. Monitor Heater and Cooling Functions: Test the heat pump’s heating and cooling modes to ensure smooth operation and address any irregularities.
5. Inspect Electrical Connections: Verify the 30-amp plug and wiring are securely connected and free from damage.
6. Annual Professional Service: Schedule a yearly inspection to check refrigerant levels (R32), heater performance, and overall unit health.
