AMANA 9,000 BTU PTAC Heat Pump w/ 2.5kW Heater R32 - APTH09J20029

AMANA 9,000 BTU PTAC Heat Pump w/ 2.5kW Heater R32 - APTH09J20029

Unrivaled product customization options including Make-up Air, Smart vent and Economizer, Lighting Control, Seacoast, Hydronic and more:

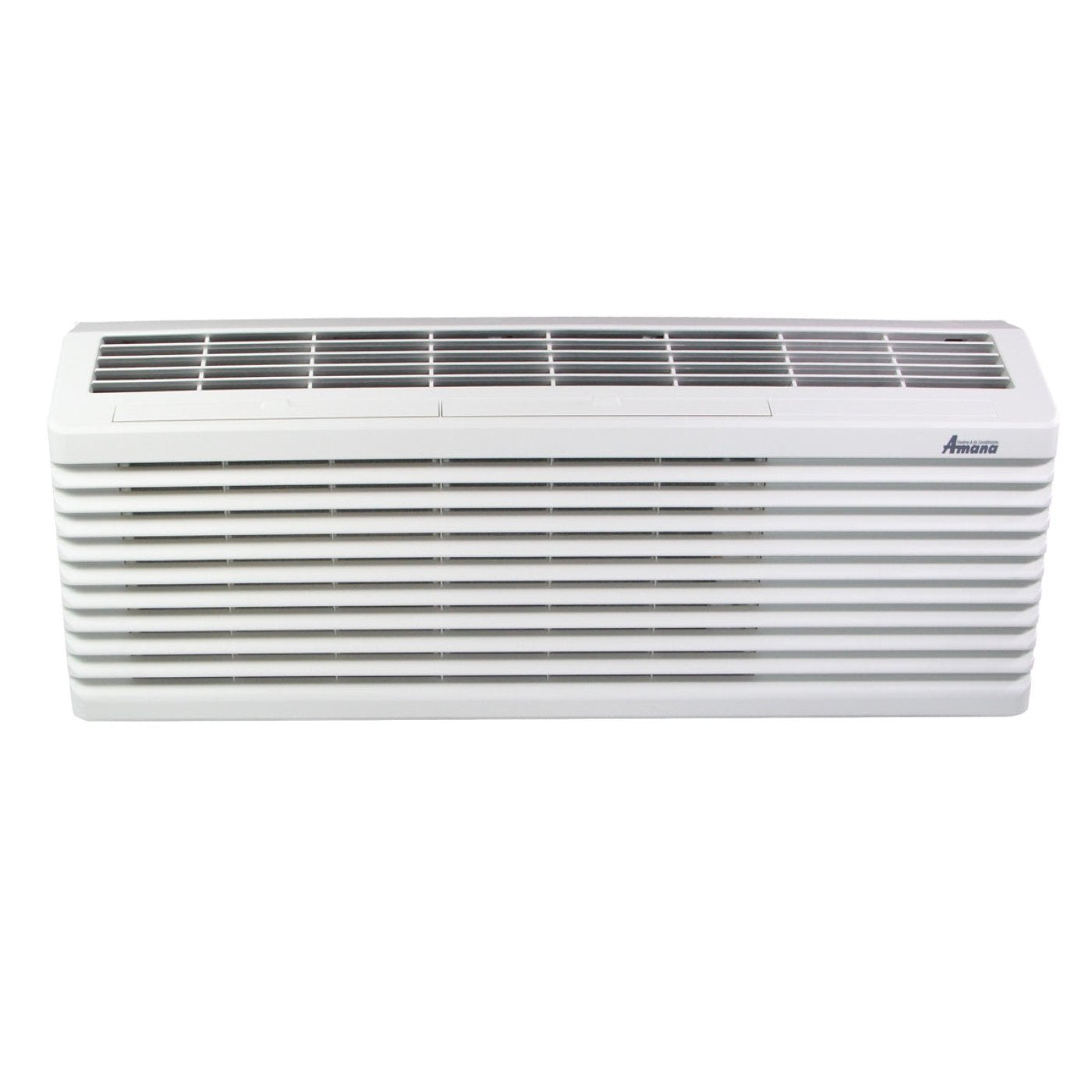

QUIET WHITE ROOM FRONT: Our newly redesigned Quiet White front cover provides a striking balance between attractive styling and practical design. This cover provides distinctive contours and a modern appearance to enhance the character of even the most luxurious room.

ASSEMBLED IN THE USA FOR OVER 45 YEARS: Assembled at our plant in Waller, Texas, using Goodman resources including engineering, production, and testing.

FIVE-YEAR LIMITED WARRANTY: Enjoy one of the most comprehensive warranties in the industry. First year includes parts and labor; second through fifth years includes parts and labor on certain sealed system components, on certain functional parts only.

100% RUN TESTED: All units are 100% run tested at our plant in Waller, Texas, including leak checks during manufacturing and prior to shipment at the warehouse.

FILTER DRYER FOR SEALED SYSTEM REFRIGERANT: Standard in all units to protect the compressor and lengthen the life of the unit by removing moisture and preventing acid formation.

7 5/8" UNIT FRONT DEPTH: Enhance valuable room space with our slim unit front, which has a sleek 75/8" depth, one of the shallowest silhouettes in the industry today. The front can be secured to the chassis with a hidden screw in order to inhibit guest tampering.

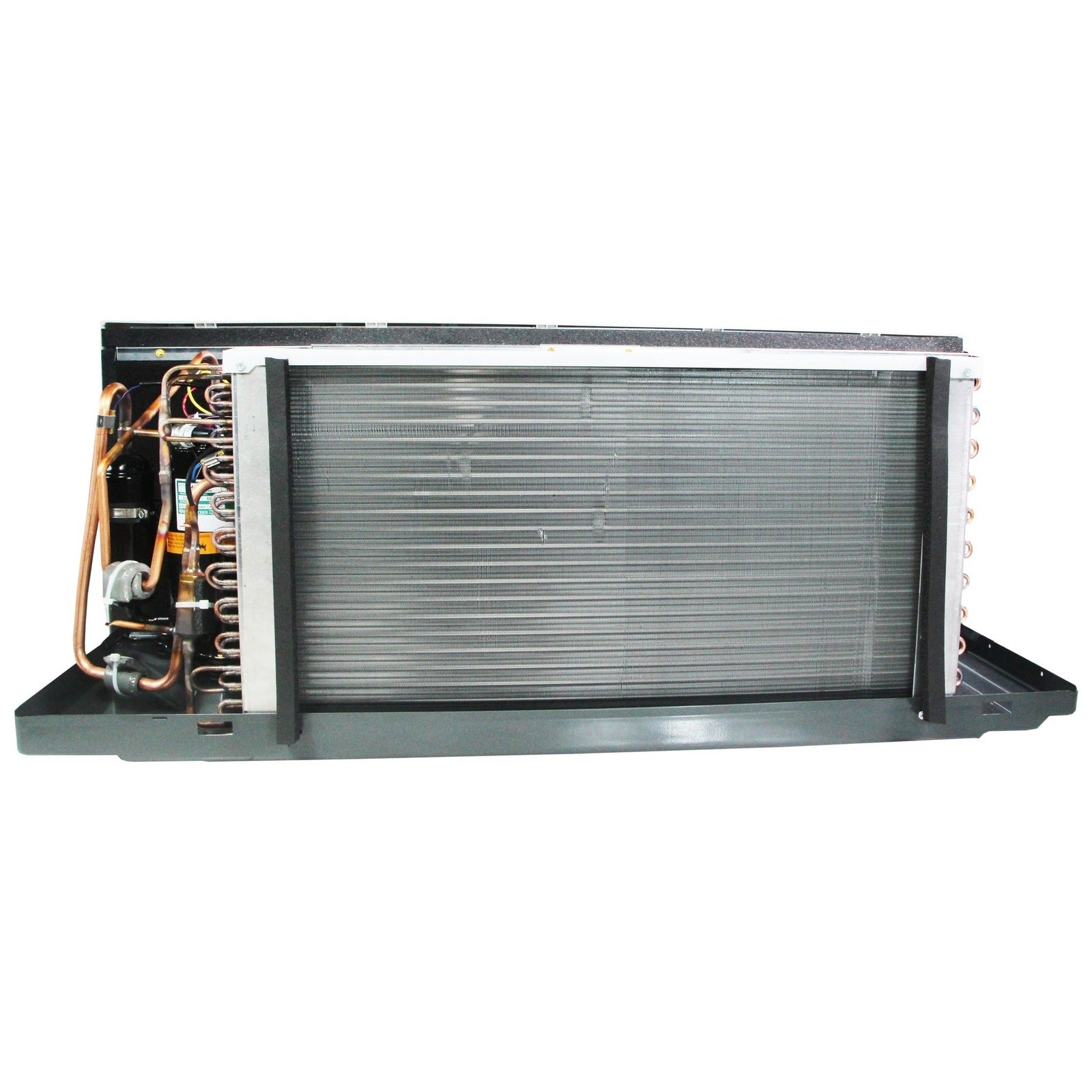

CONDENSATE DISPERSION SYSTEM: Our condensate dispersion system removes condensate from the indoor cooling operation by throwing water directly onto the outdoor coil for rapid evaporation and increased cooling efficiencies. The slinger ring on the enhanced fan draws water up and into the fan blades. This water is then atomized and evaporated into the atmosphere through the condenser. Increased surface area from the coil allows more water to be evaporated on the sides of the coils and helps to minimize condensate run-off.

ROOM FREEZE PROTECTION: When the unit senses temperatures of 40°F or below, the unit activates the fan motor and either the electric resistance heater or the hydronic heater.

ZERO FLOOR CLEARANCE: The unit can be installed flush to a finished floor, if desired (please note that some accessories do not have zero clearance).

30-SECOND FAN-OFF DELAY: The fan continues to run 30 seconds after the compressor has stopped in either cooling or heat pump mode, and after electric heat has been turned off. This improves efficiency by dispersing the conditioned air on the coils into the room.

COMPRESSOR LOCK-IN: This feature helps prolong the life of the compressor by preventing short-cycling. When the compressor is switched from OFF to ON because room temperature has risen or fallen below the specified limit, it will remain on for at least 4 minutes.
If the temperature set-point is changed during these 4 minutes, the lock-in feature is overridden.

AUTOMATIC EMERGENCY HEAT: No more "my unit is not heating" complaints during the middle of the night. Heat pump units will automatically switch over to electric resistance heat if the heat pump compressor system fails or if the heating load is greater than the unit capacity.

Features

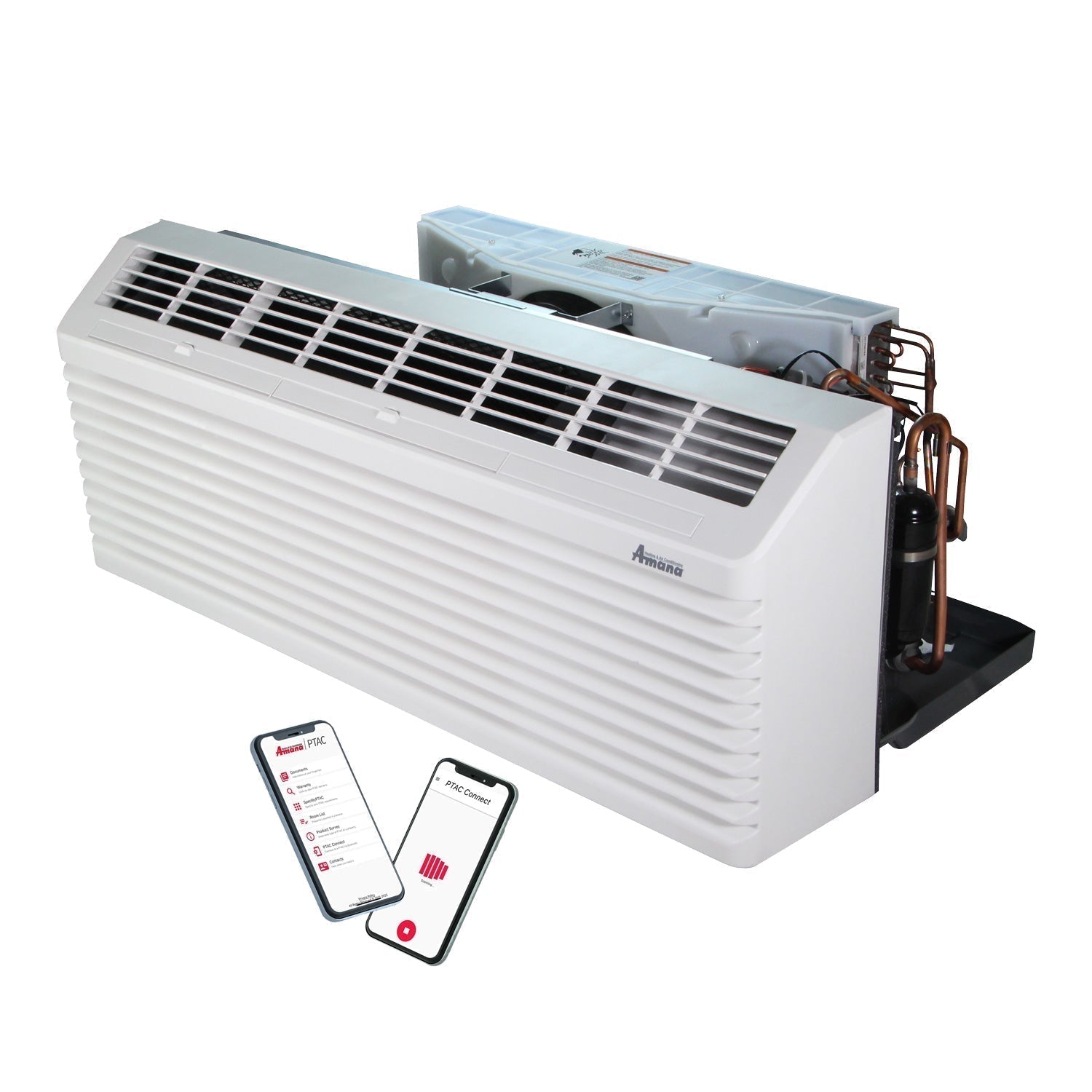

• Integrated Bluetooth and RF connectivity for convenient control via mobile app.

• Designed and assembled in the U.S.A., ensuring quality craftsmanship.

• Achieves an impressive EER value of up to 11.0 for energy efficiency.

• Modern Quiet White color scheme with streamlined design reduces operational noise.

• Includes a heat pump for reversible operation, ideal for maintaining comfort year-round.

• Suitable for use with new or existing PTAC thermostats for optimal performance.

Specifications

INCLUDED

• 9,000 BTU Amana Unit

• 2.5KW  Electric Heater

• Power Cord: 6-15P (15 AMP PLUG)

• Installation Manual

• User's Manual

Product Manual

Manual - APTH09J20029

What Our Experts Think

• Efficient Cooling & Heating: Provides 9,000 BTUs of cooling and a 2.5 kW heater, perfect for medium-sized rooms, offering reliable comfort year-round.
• Eco-Friendly R32 Refrigerant: Uses R32 refrigerant, which improves energy efficiency and reduces environmental impact compared to traditional refrigerants.
• Energy Efficient: Designed to minimize energy consumption while delivering consistent, powerful performance, helping to reduce operational costs.
• Durable & Compact: Built with high-quality materials for long-lasting durability and a sleek, space-saving design ideal for various settings.
• Easy Installation: Equipped with a 15-amp plug, making installation simple and efficient for residential or light commercial use.
• Quiet Operation: Operates quietly, maintaining a peaceful and comfortable environment without compromising performance.

Q&A

Q: Is it energy-efficient?
A: Yes, the R32 refrigerant enhances energy efficiency, while the heat pump ensures reliable cooling and heating with minimal energy use.

Q: Is this unit suitable for commercial or residential use?
A: Yes, it is ideal for both commercial and residential applications, such as small hotel rooms, apartments, and offices.

Q: What are its power requirements?
A: The unit requires a 15-amp electrical connection and fits standard PTAC wall sleeves.

Q: Does it provide reliable year-round comfort?
A: Yes, the combination of 9,000 BTU cooling and 2.5 kW heating ensures consistent comfort throughout all seasons.

Maintenance Tips

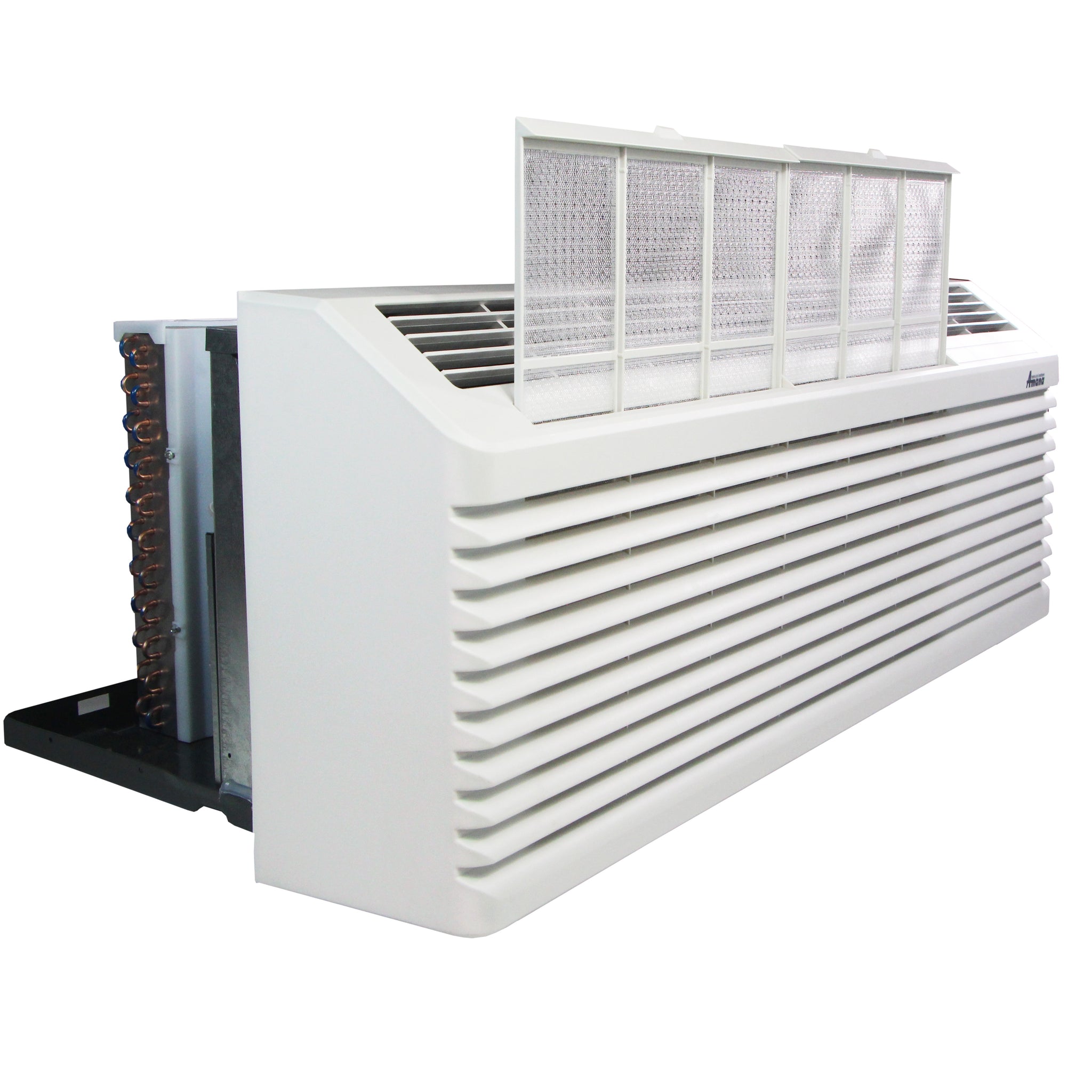

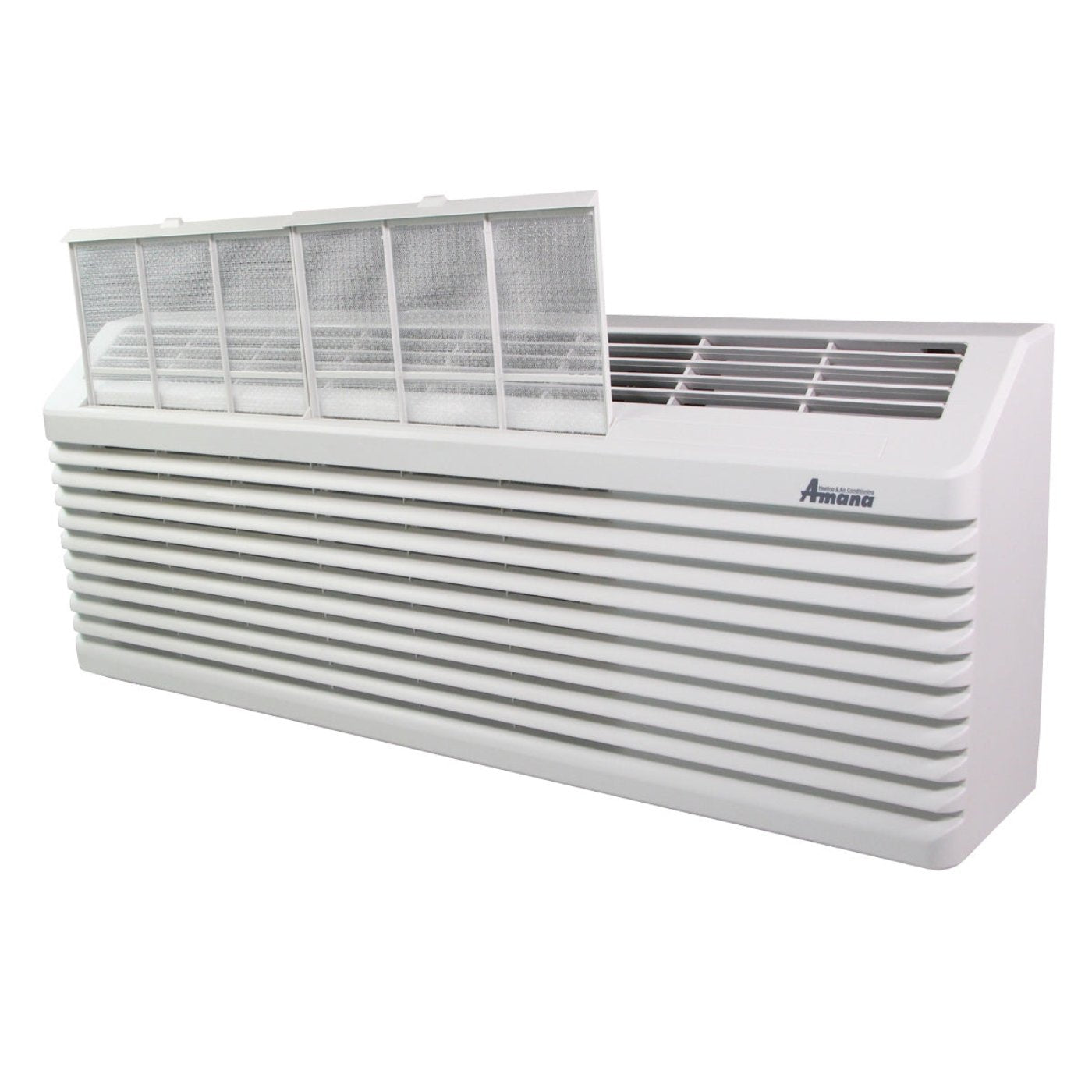

1. Clean Air Filters Monthly: Wash or replace filters regularly to ensure proper airflow and energy efficiency.
2. Inspect Coils: Clean the evaporator and condenser coils to prevent dirt buildup, maintaining effective cooling and heating performance.
3. Clear Drain Lines: Ensure condensate drain lines are free from blockages to prevent water damage.
4. Monitor Heat Pump and R32 Refrigerant: Test both heating and cooling modes for smooth operation, and check refrigerant levels (R32) as needed.
5. Inspect Electrical Connections: Ensure the 15-amp plug and wiring are securely connected and free from damage.
