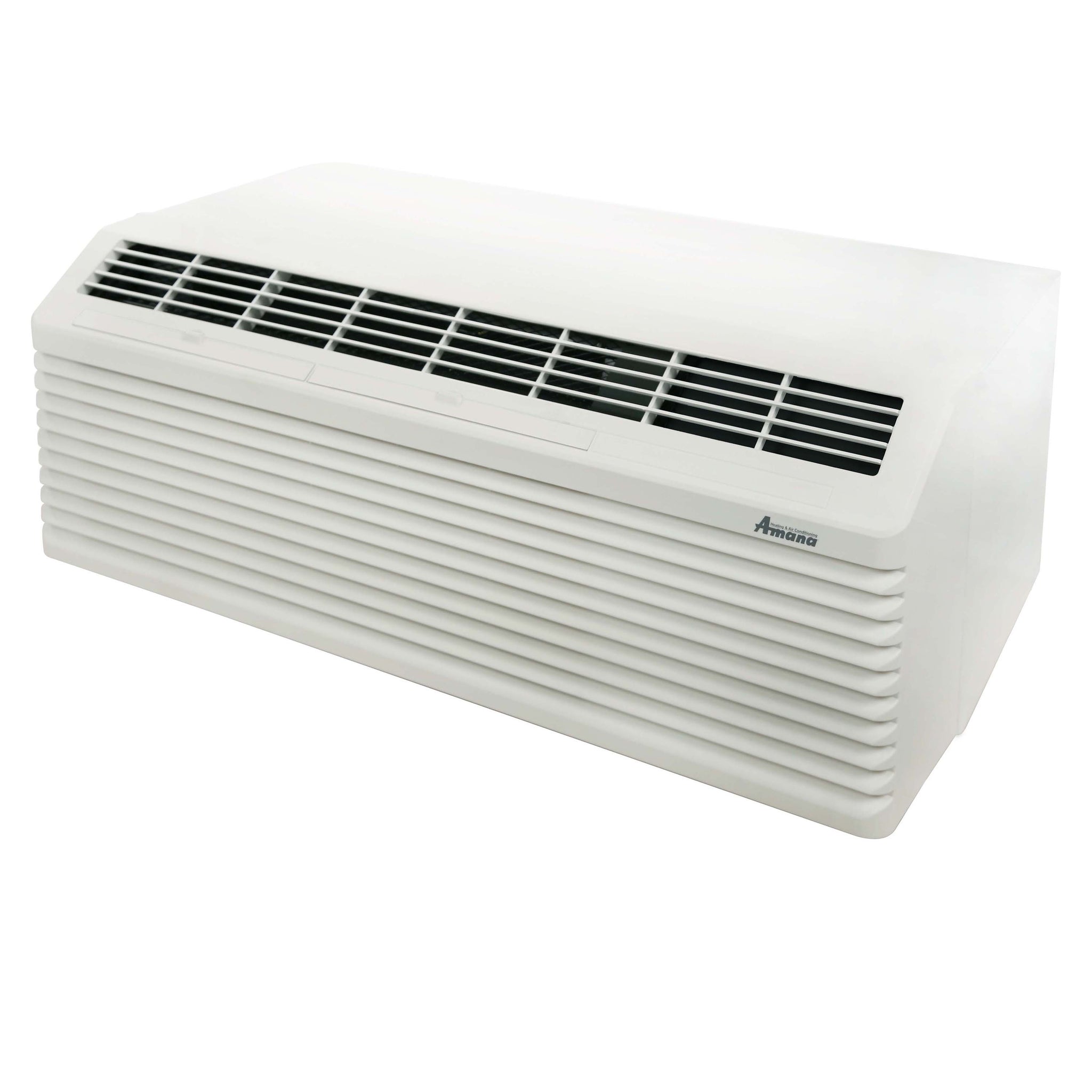

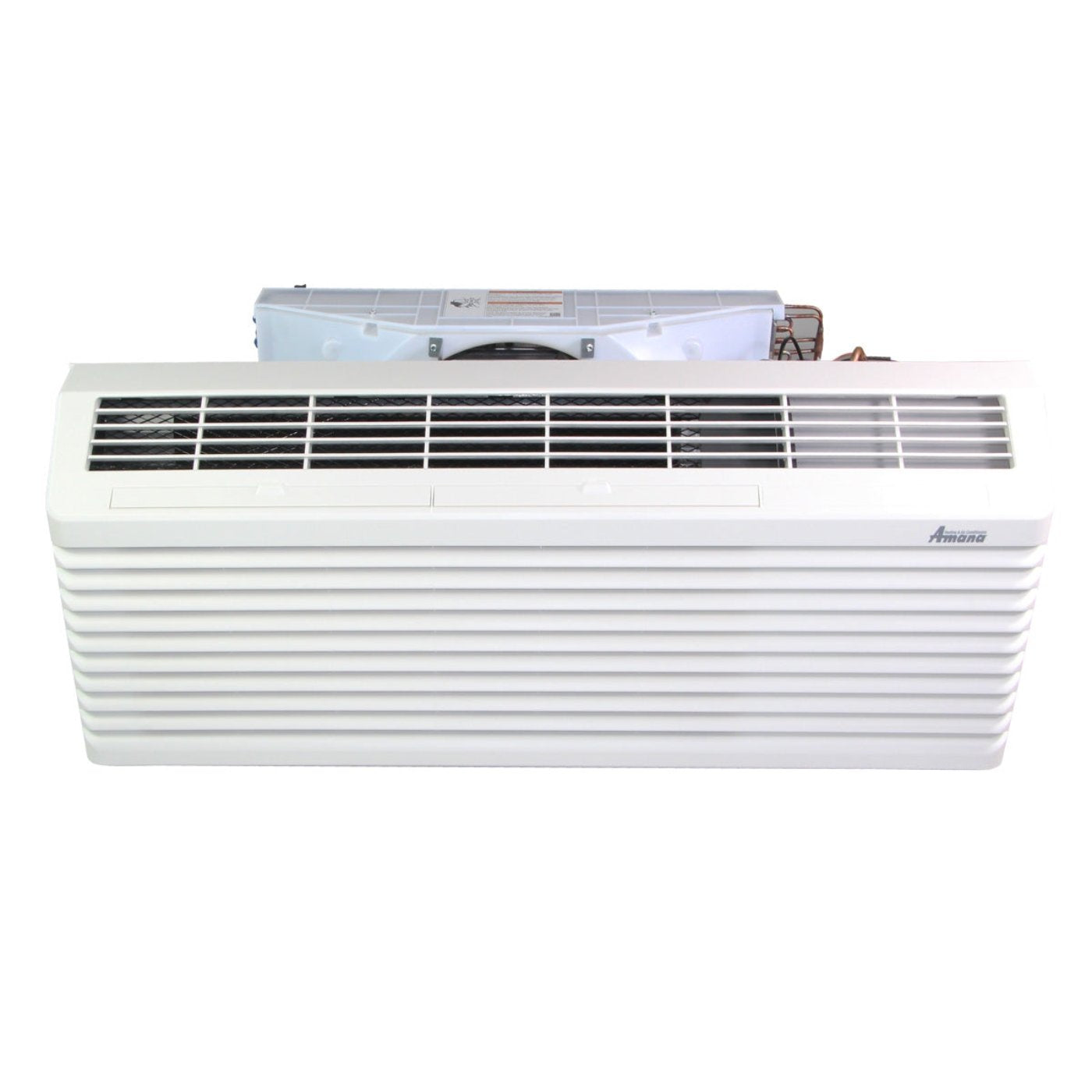

AMANA 12,000 BTU PTAC Heat Pump w/ 2.5kW Heater R32 - APTH12J20032

AMANA 12,000 BTU PTAC Heat Pump w/ 2.5kW Heater R32 - APTH12J20032

QUIET OPERATION: Our PTAC has been redesigned to be the quietest PTAC we have ever built. The unit's state-of-the-art design and construction provide a quiet environment, allowing guests to enjoy peaceful, sleep-filled nights.

100% RUN TESTED: All units are 100% run tested at our plant in Waller, Texas, including leak checks during manufacturing and prior to shipment at the warehouse.

FILTER DRYER FOR SEALED SYSTEM REFRIGERANT: Standard in all units to protect the compressor and lengthen the life of the unit by removing moisture and preventing acid formation.

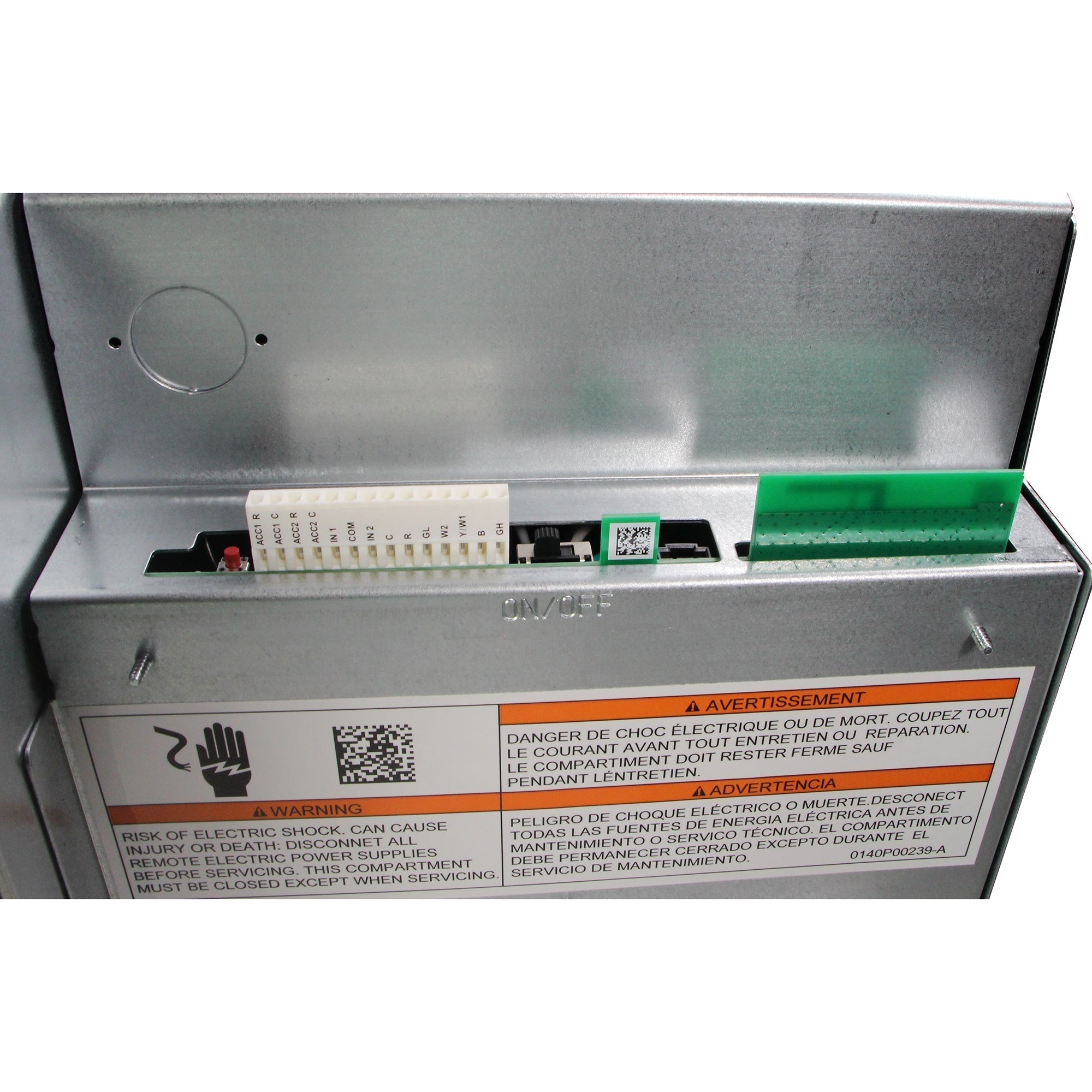

FRONT DESK CONTROL: Each unit comes equipped with the Eden control and energy management software. Using the Eden software and the PTAC's integrated RF antenna, all units can be wirelessly connected to a central hub for enhanced energy savings and diagnostics. Amana® brand PTACs also have a low-voltage interface capability with a field-supplied front desk ON/OFF switch.

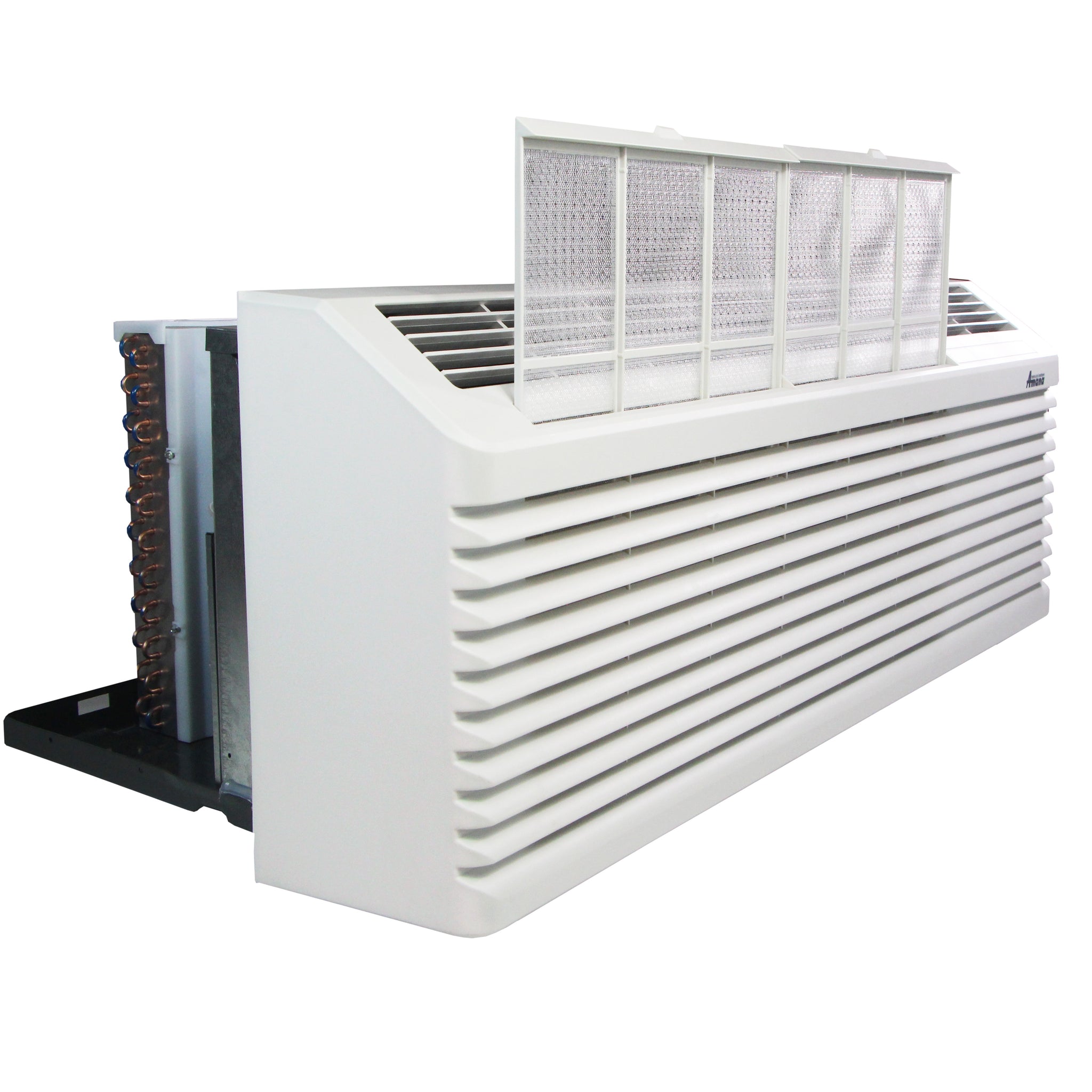

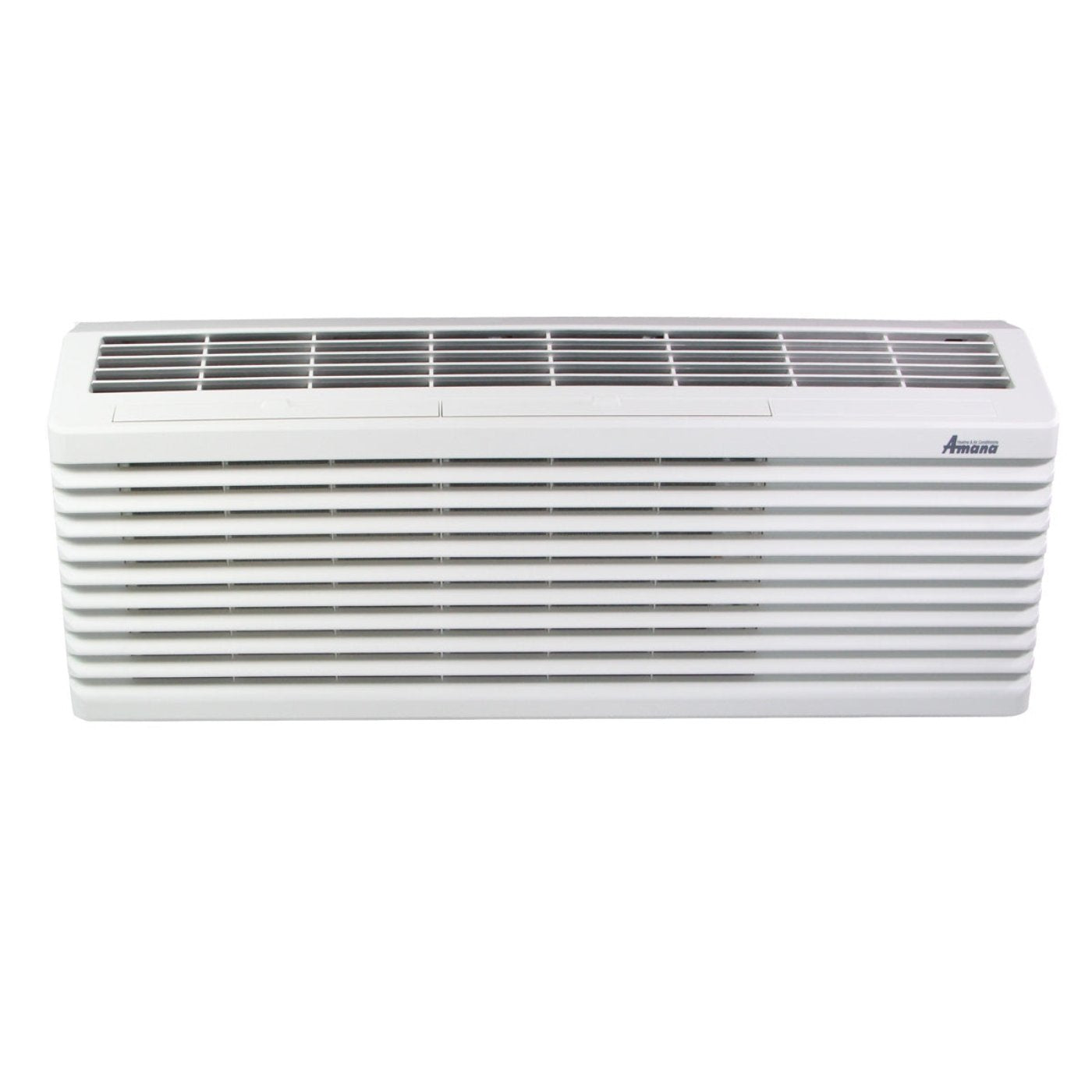

7 5/8" UNIT FRONT DEPTH: Enhance valuable room space with our slim unit front, which has a sleek 75/8" depth, one of the shallowest silhouettes in the industry today. The front can be secured to the chassis with a hidden screw in order to inhibit guest tampering.

ROOM FREEZE PROTECTION: When the unit senses temperatures of 40°F or below, the unit activates the fan motor and either the electric resistance heater or the hydronic heater.

ZERO FLOOR CLEARANCE: The unit can be installed flush to a finished floor, if desired (please note that some accessories do not have zero clearance).

30-SECOND FAN-OFF DELAY: The fan continues to run 30 seconds after the compressor has stopped in either cooling or heat pump mode, and after electric heat has been turned off. This improves efficiency by dispersing the conditioned air on the coils into the room.

COMPRESSOR LOCK-IN: This feature helps prolong the life of the compressor by preventing short-cycling. When the compressor is switched from OFF to ON because room temperature has risen or fallen below the specified limit, it will remain on for at least 4 minutes.
If the temperature set-point is changed during these 4 minutes, the lock-in feature is overridden.

AUTOMATIC EMERGENCY HEAT: No more "my unit is not heating" complaints during the middle of the night. Heat pump units will automatically switch over to electric resistance heat if the heat pump compressor system fails or if the heating load is greater than the unit capacity.

Features

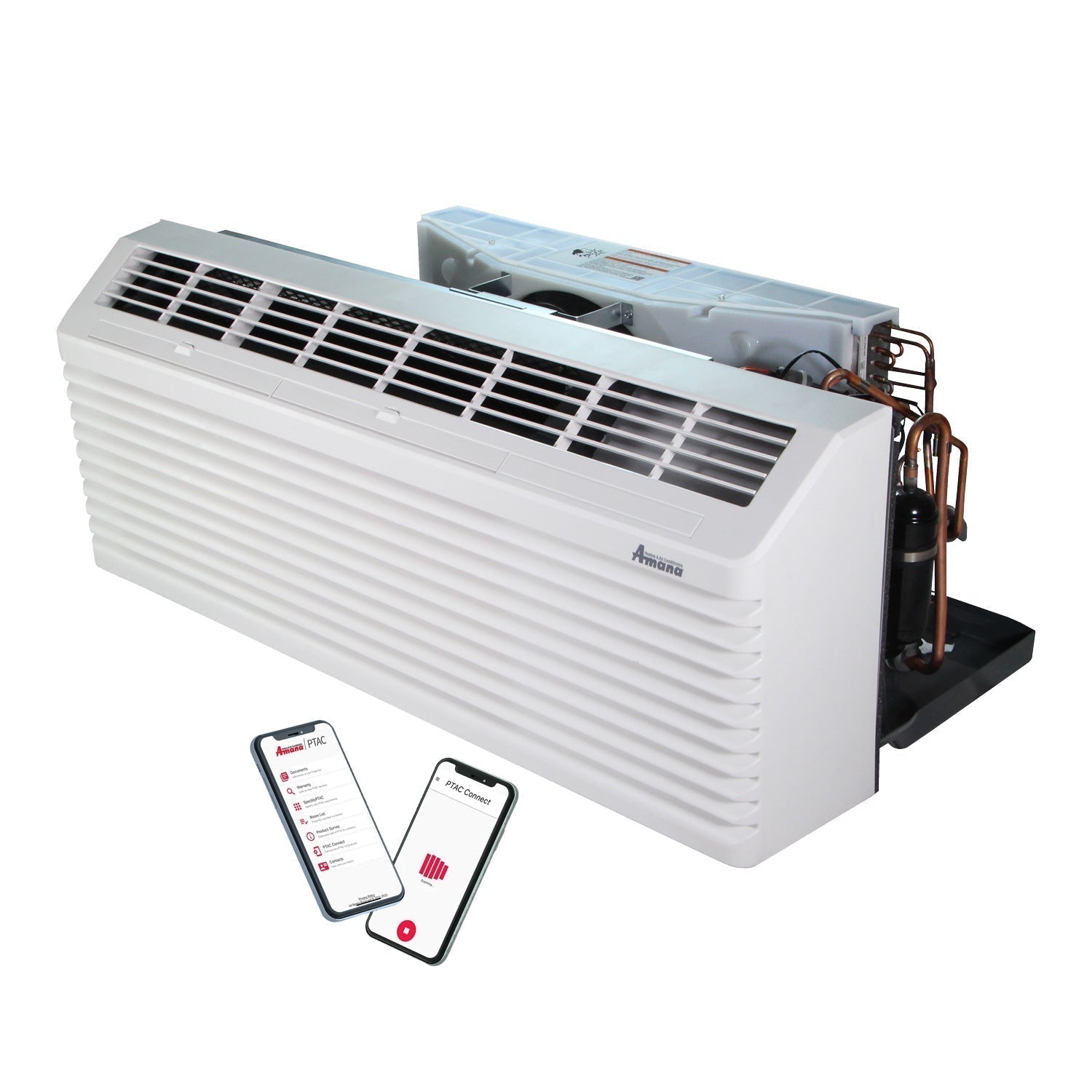

• Integrated Bluetooth and RF connectivity for convenient control via mobile app.

• Designed and assembled in the U.S.A., ensuring quality craftsmanship.

• Achieves an impressive EER value of up to 11.0 for energy efficiency.

• Modern Quiet White color scheme with streamlined design reduces operational noise.

• Includes a heat pump for reversible operation, ideal for maintaining comfort year-round.

• Suitable for use with new or existing PTAC thermostats for optimal performance.

Specifications

INCLUDED

• 12,000 BTU Amana Unit

• 2.5KW  Electric Heater

• Power Cord: 6-15P (15 AMP PLUG)

• Installation Manual

• User's Manual

Product Manual

Manual - APTH12J20032

What Our Experts Think

• Reliable Year-Round Comfort: Provides 12,000 BTU cooling capacity and a 2.5 kW heater with heat pump functionality, perfect for maintaining a comfortable environment in medium-sized spaces throughout the year.
• Eco-Friendly R32 Refrigerant: Utilizes R32 refrigerant, known for its energy efficiency and lower environmental impact compared to traditional refrigerants.
• Energy-Efficient Heat Pump: The integrated heat pump ensures efficient heating, reducing energy usage compared to conventional heating systems while still providing reliable warmth during colder months.
• 15 Amp Plug Compatibility: Features a 15-amp plug, making it compatible with most standard residential and commercial electrical systems for easy installation.
• Quiet Operation: Operates quietly to deliver effective cooling and heating without disruptive noise, ideal for bedrooms, offices, and hotels.
• Durable and Reliable: Built with durable materials, this PTAC unit is designed to last, offering reliable performance in high-traffic commercial and residential environments.

Q&A

Q: What is the Amana PTAC 12,000 BTU Air Conditioner Heat Pump?
A packaged terminal air conditioner (PTAC) offering 12,000 BTU cooling capacity, heat pump functionality, and a 2.5 kW electric heater, designed for energy-efficient climate control in spaces up to 550 sq. ft.

Q: Who is it for?
Ideal for hotels, motels, offices, and residential spaces that require an efficient PTAC unit with both heating and cooling capabilities and eco-conscious refrigerant technology.

Q: What's included in the package?
Amana PTAC unit (12,000 BTU AC, heat pump, 2.5 kW heater), 15 Amp plug, R32 refrigerant, installation kit, and user manual.

Maintenance Tips

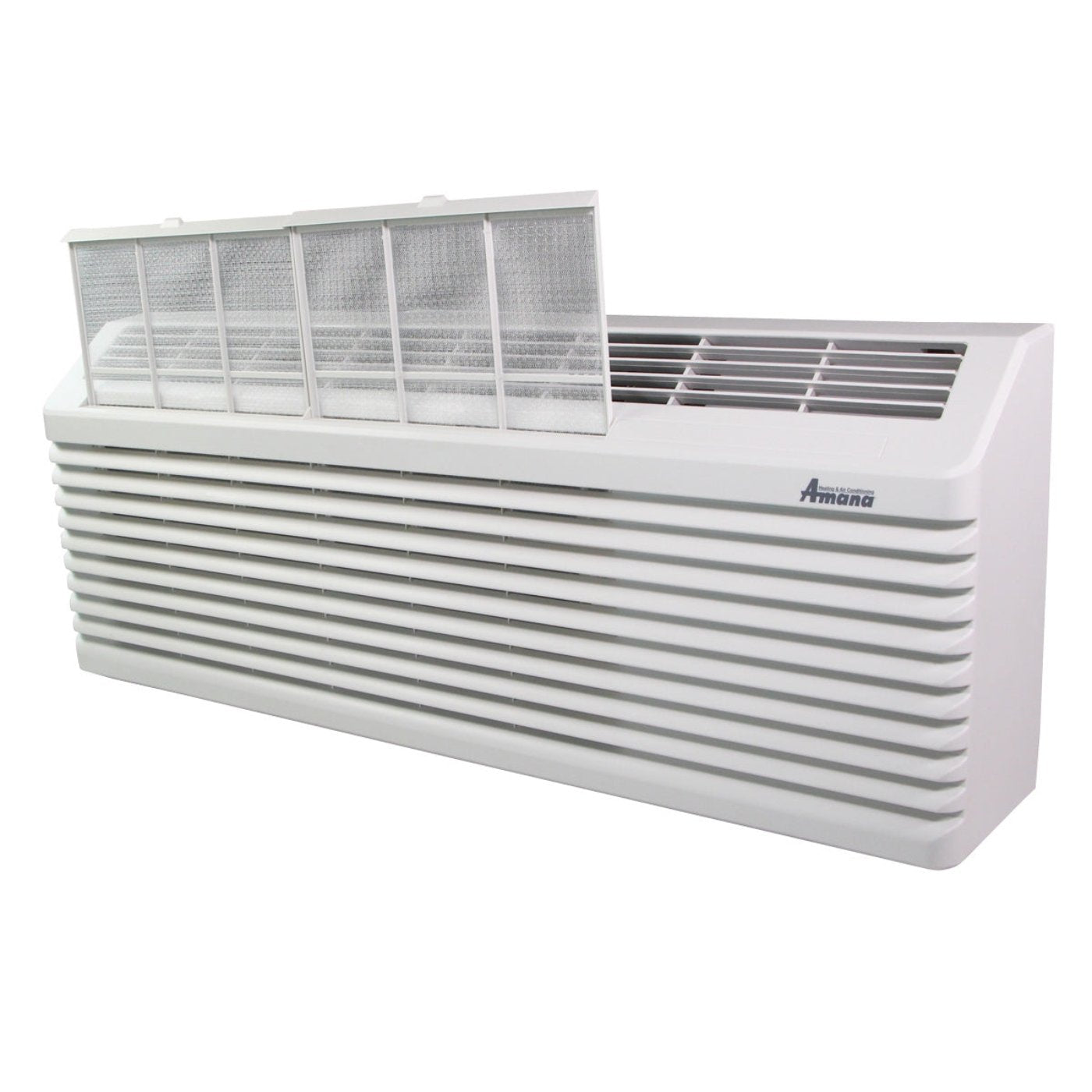

1. Clean the Air Filter: Clean or replace the air filter every 2-4 weeks to maintain optimal airflow and air quality. Use a vacuum or wash with warm, soapy water, then ensure it is fully dry before reinserting.

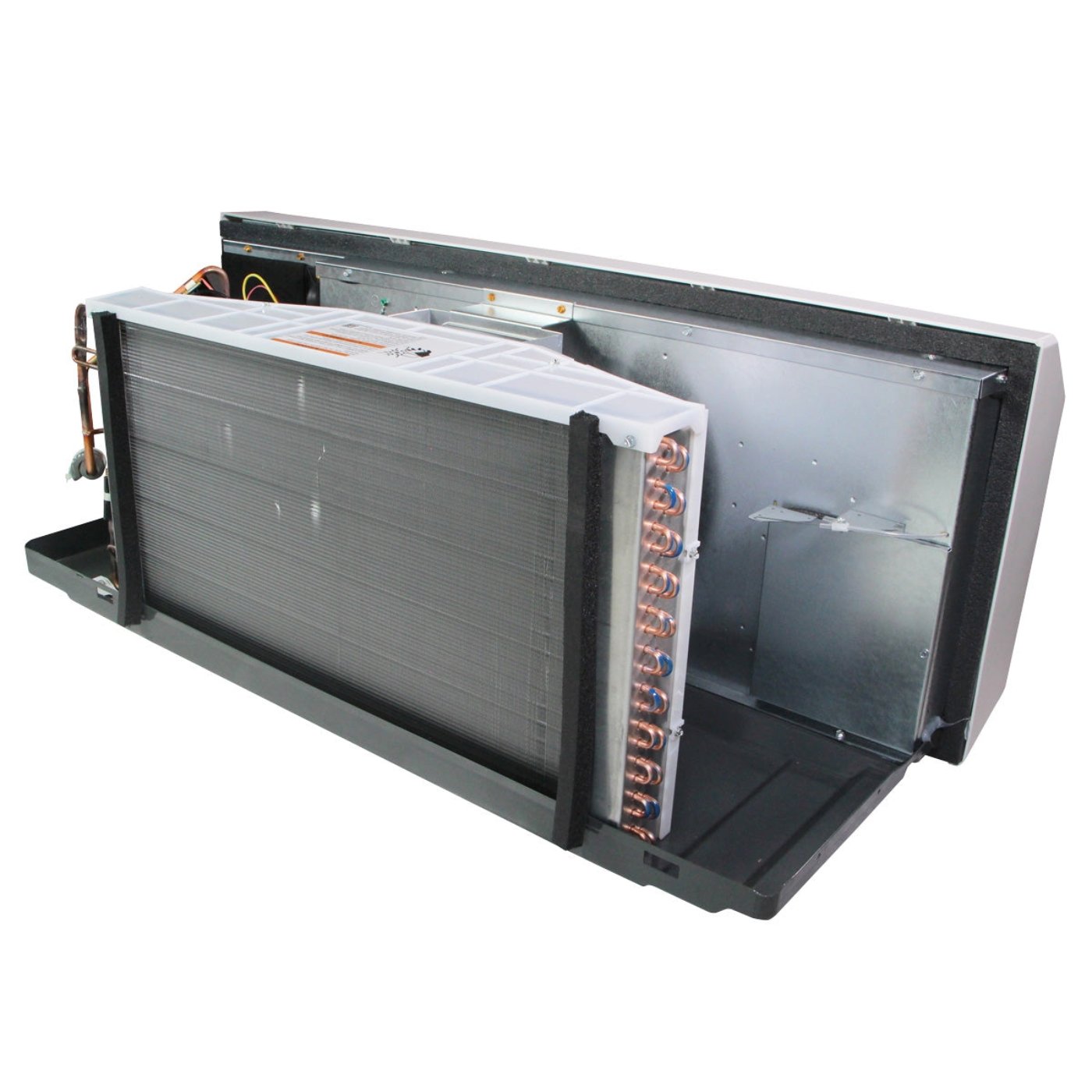

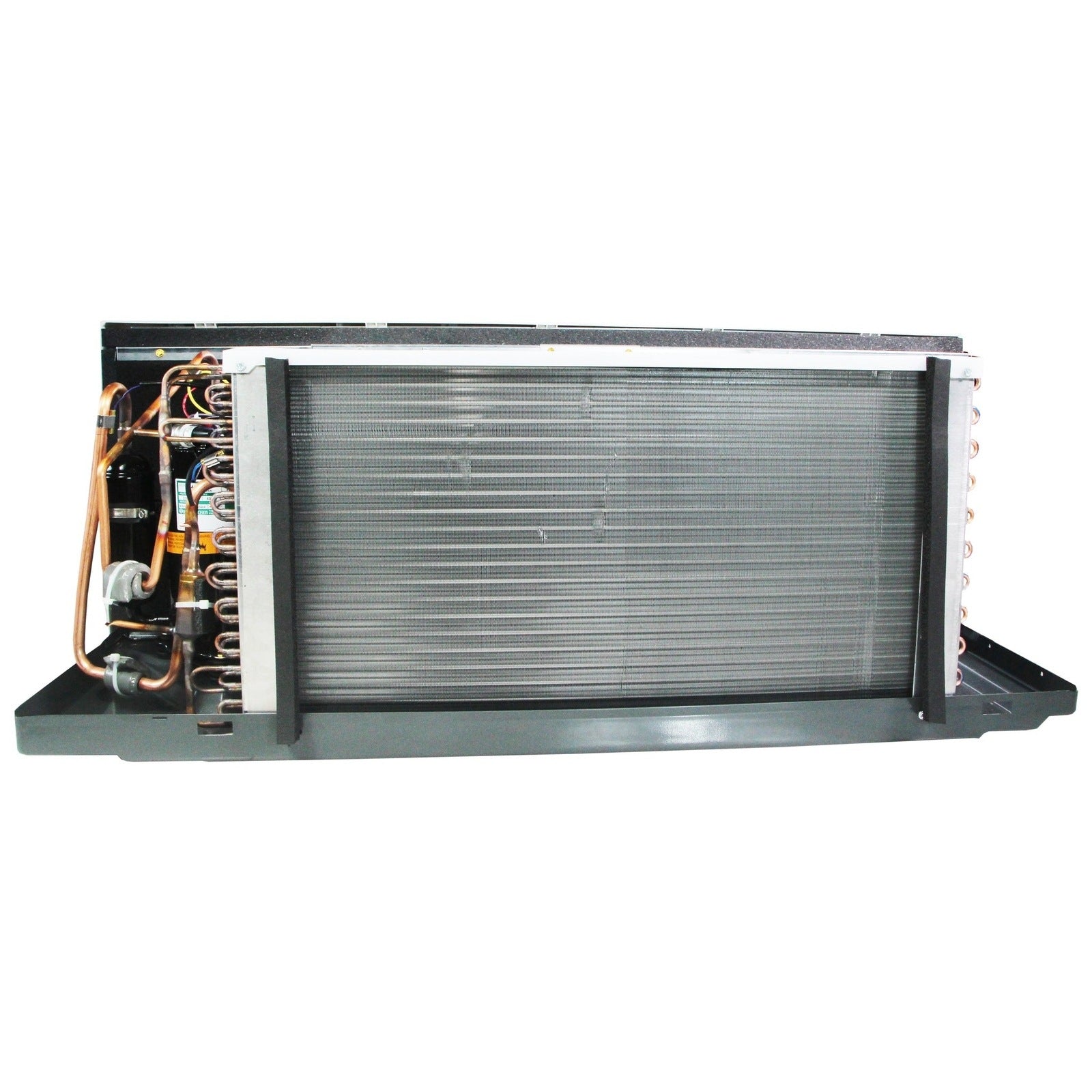

2. Clean the Coils: Inspect and clean the evaporator and condenser coils every 6 months to remove accumulated dirt and dust. Use a soft brush or vacuum to prevent buildup that can reduce cooling and heating performance.
3. Check the Drainage System: Ensure the condensate drainage system is free of obstructions to prevent water buildup, mold, or leaks. Clean the drain pan and drainage lines periodically.
4. Inspect for Air Leaks: Inspect the installation area for any air gaps or leaks around the unit that can affect energy efficiency. Proper sealing ensures better performance and reduces energy waste.
5. Test the Heater: Run the 2.5 kW heater periodically to ensure it is functioning properly, especially before the colder months. Clean the heating elements to avoid dust buildup that can affect performance.
