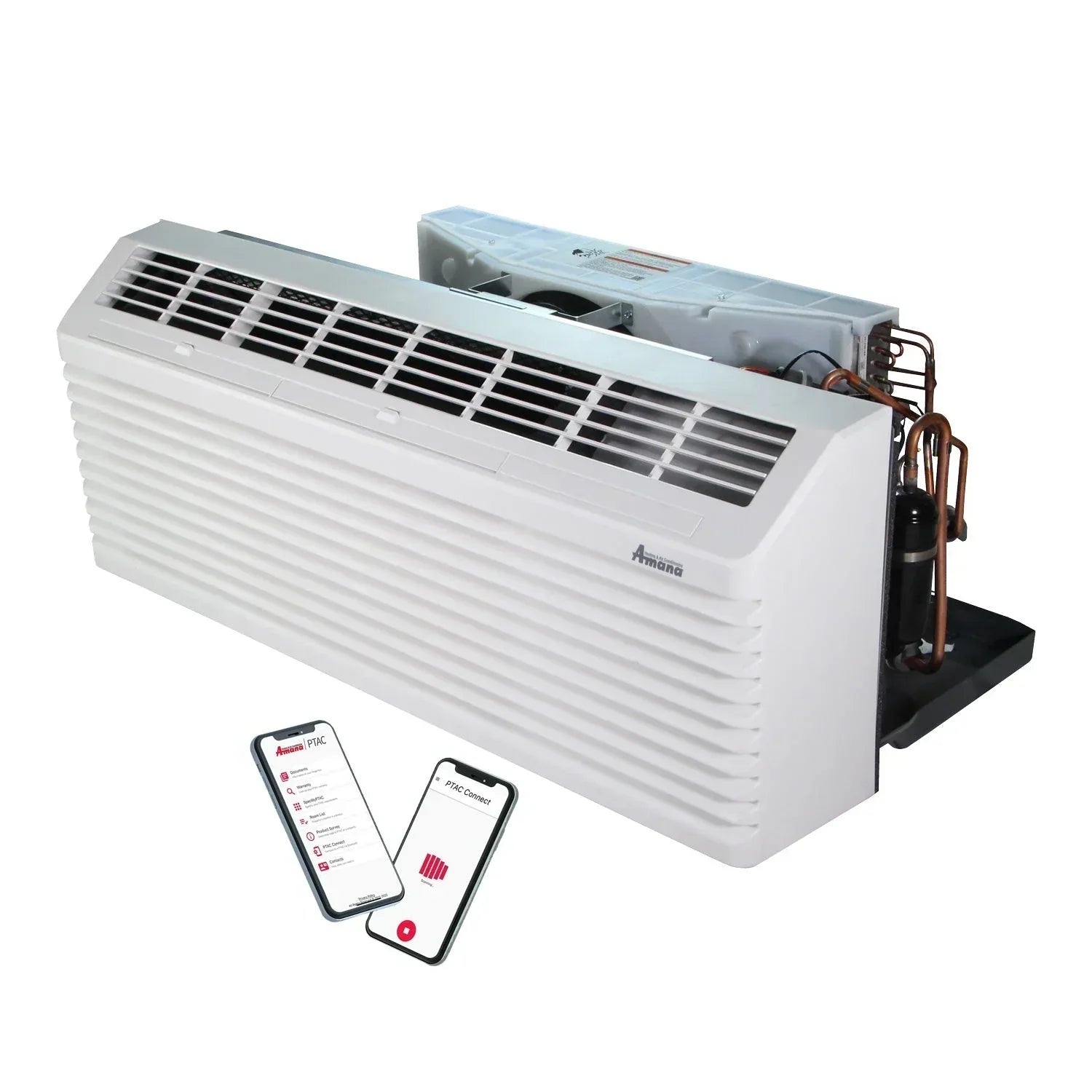

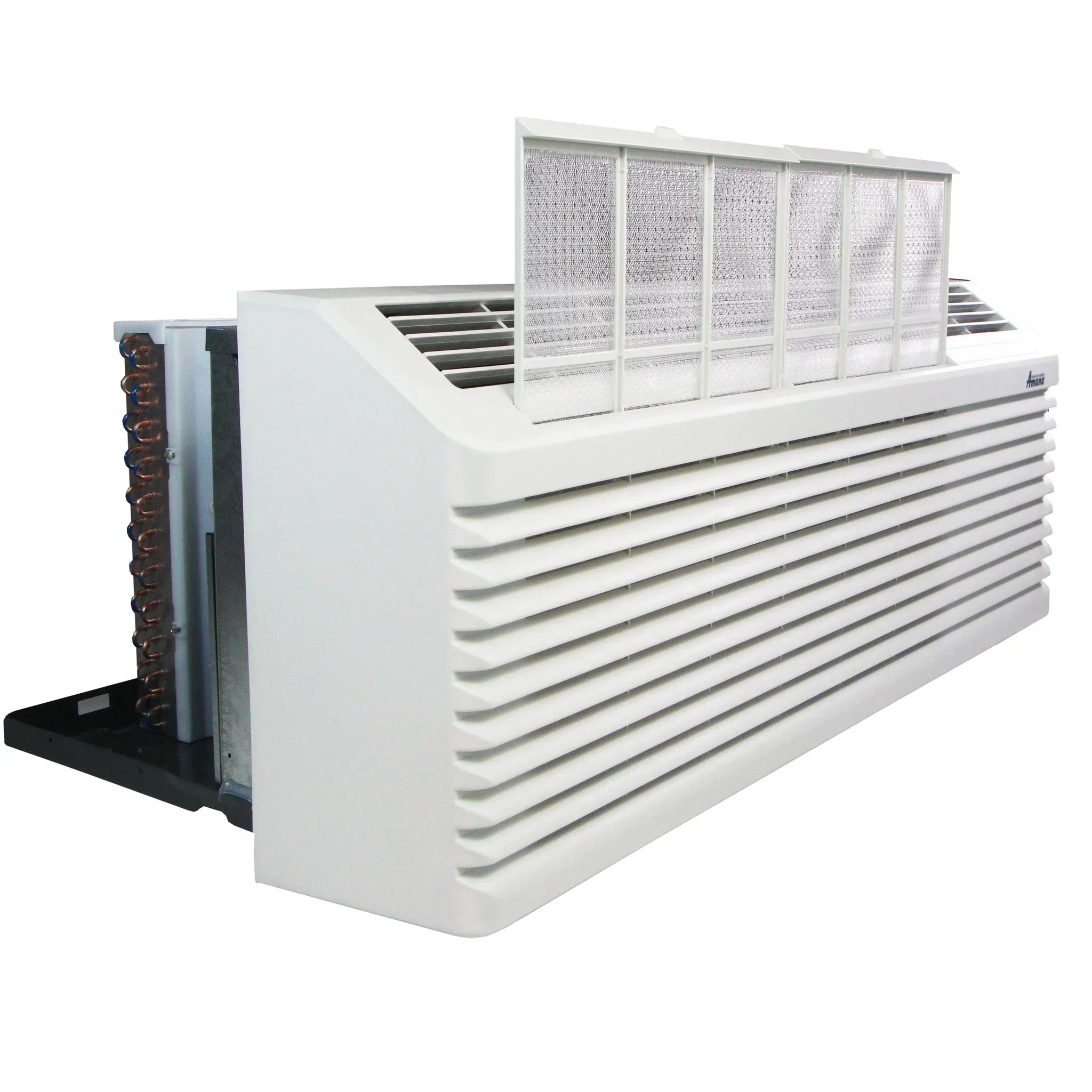

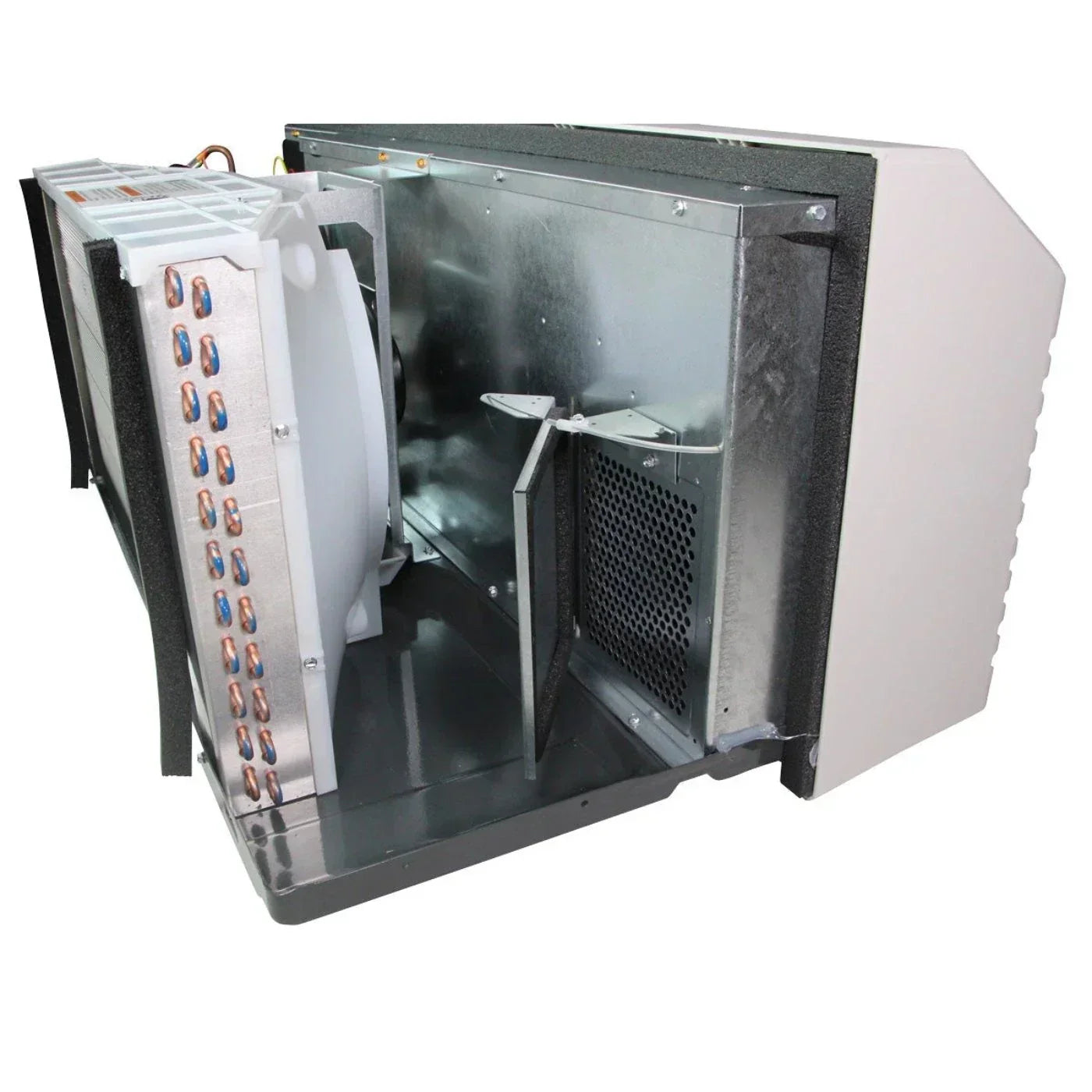

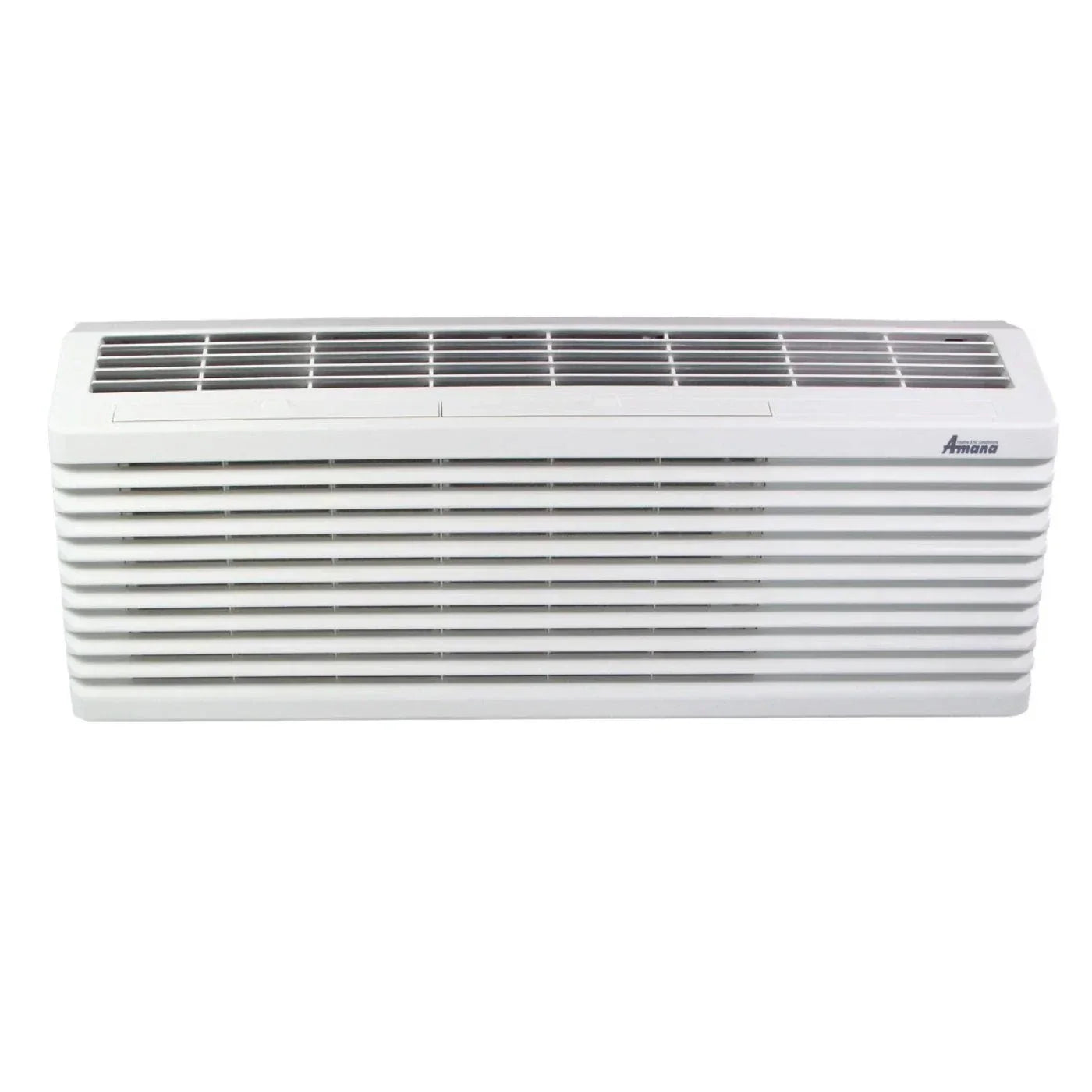

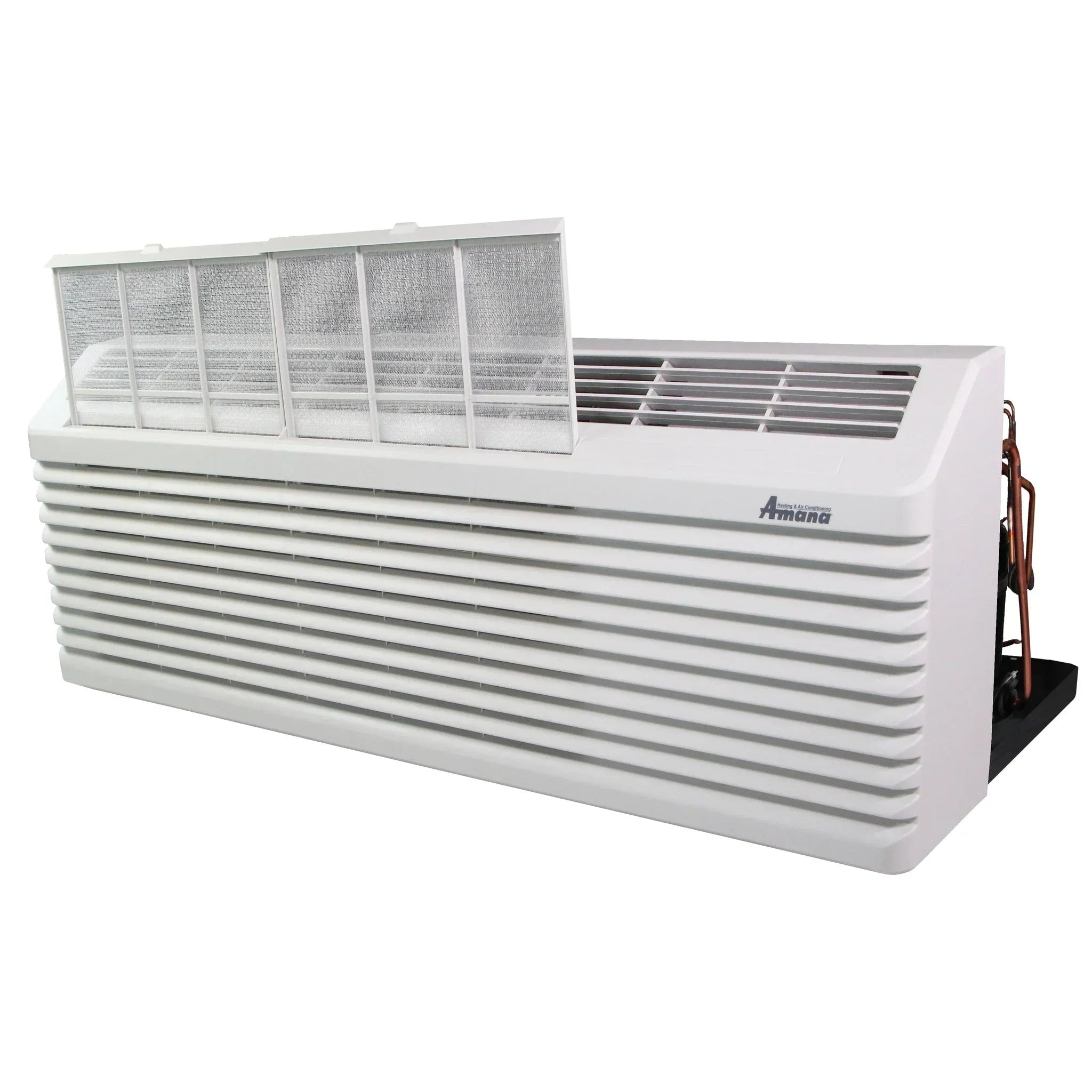

AMANA 7,000 BTU PTAC AC w/ 2.5kW Heater R32 - APTC07J20038

AMANA 7,000 BTU PTAC AC w/ 2.5kW Heater R32 - APTC07J20038

ROOM FREEZE PROTECTION: When the unit senses temperatures of 40°F or below, the unit activates the fan motor and either the electric resistance heater or the hydronic heater.

ZERO FLOOR CLEARANCE: The unit can be installed flush to a finished floor, if desired (please note that some accessories do not have zero clearance).

30-SECOND FAN-OFF DELAY: The fan continues to run 30 seconds after the compressor has stopped in either cooling or heat pump mode, and after electric heat has been turned off. This improves efficiency by dispersing the conditioned air on the coils into the room.

COMPRESSOR LOCK-IN: This feature helps prolong the life of the compressor by preventing short-cycling. When the compressor is switched from OFF to ON because room temperature has risen or fallen below the specified limit, it will remain on for at least 4 minutes.
If the temperature set-point is changed during these 4 minutes, the lock-in feature is overridden.

AUTOMATIC EMERGENCY HEAT: No more "my unit is not heating" complaints during the middle of the night. Heat pump units will automatically switch over to electric resistance heat if the heat pump compressor system fails or if the heating load is greater than the unit capacity.

HIDDEN VENTILATION CONTROL: The ventilation control lever is hidden from the occupant's view to allow you to manage ventilation requirements.

HIGH-PRESSURE SWITCH: Protects the unit from high pressure and damage to the unit, helping to ensure long unit life.

Features

• Indoor Tangential Fan: Ensures quiet operation with optimal air distribution.

• EER up to 14.0 and COPs up to 3.9: High energy efficiencies potentially qualifying for utility rebates.

• Two Fan Motors (Indoor/Outdoor): Enhanced performance and reliability.

• Integrated RF Communications: Connects to Eden wireless thermostat and energy management system.

• R32 Refrigerant: Efficient and environmentally friendly with reduced emissions.

• Quiet White Room Front: Modern design with quiet operation.

• Assembled in the USA: Built in Waller, Texas, with Goodman resources.

• Five-Year Limited Warranty: Comprehensive coverage for peace of mind.

• 100% Run Tested: Ensures reliability and performance out of the box.

Specifications

WHAT'S INCLUDED:

• 7,000 BTU Amana Unit

• 2.5KW Electric Heater

• Power Cord: 6-15P (15 AMP PLUG)

• Installation Manual

• User's Manual

Manual

Manual - APTC07J20038

What Our Experts Think

• Compact & Versatile: Provides 7,000 BTUs of cooling and a 2.5 kW heater, ideal for smaller spaces requiring efficient climate control.
• Eco-Friendly R32 Refrigerant: Uses R32 refrigerant for enhanced energy efficiency and a lower environmental impact compared to traditional options.
• Energy Efficient: Designed to reduce energy usage while maintaining reliable cooling and heating performance.
• Durable & Attractive: Built with high-quality materials to ensure long-term durability and a sleek design that complements any space.

Q&A

Q: Is it energy-efficient?
A: Yes, the R32 refrigerant improves energy efficiency and reduces environmental impact, while the heat pump ensures efficient heating and cooling.

Q: Is this unit suitable for commercial or residential use?
A: Yes, it is perfect for both commercial and residential applications such as small hotel rooms, apartments, and offices.

Q: What are its power requirements?
A: The unit requires a 15-amp electrical connection and fits standard PTAC wall sleeves.

Q: Does it provide reliable year-round comfort?
A: Yes, the combination of 7,000 BTU cooling and 2.5 kW heating ensures consistent comfort throughout the year in both warm and cold seasons.

Maintenance Tips

1. Clean Air Filters Monthly: Wash or replace filters regularly to ensure proper airflow and energy efficiency.
2. Inspect Coils: Clean both the evaporator and condenser coils to prevent dirt buildup and maintain effective cooling and heating.
3. Clear Drain Lines: Ensure condensate drain lines are free from clogs to prevent water damage.
4. Monitor Heat Pump and R32 Refrigerant: Check that both heating and cooling modes operate smoothly and verify refrigerant levels (R32) as needed.
5. Inspect Electrical Connections: Ensure the 15-amp plug and wiring are secure and undamaged.
