 1. Guaranteed Depth Control; Within ±0.004''
2.Chatter-free clutch has positive engagement which allows for a smoother, more accurate operation and more rapid reversal. Radial Float is SELF-CENTERING to compensate for hole center-misalignment.
2.Unique Double Spring mechanism produces automatic feed and cushion drive. There are 2 springs for the feed and 2 springs for the reversal. Pre-set torque control permits easy operation of tap brake torque control.

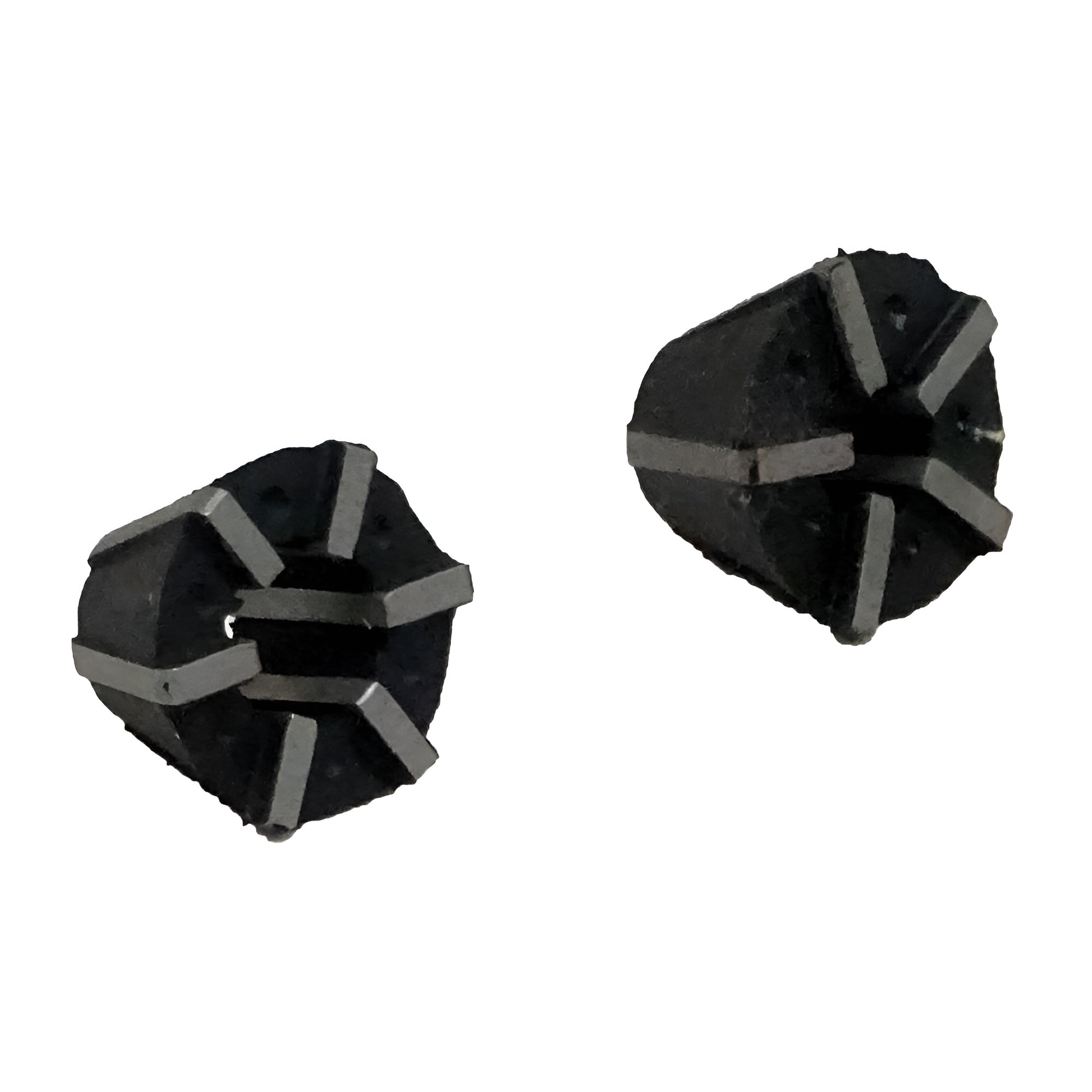

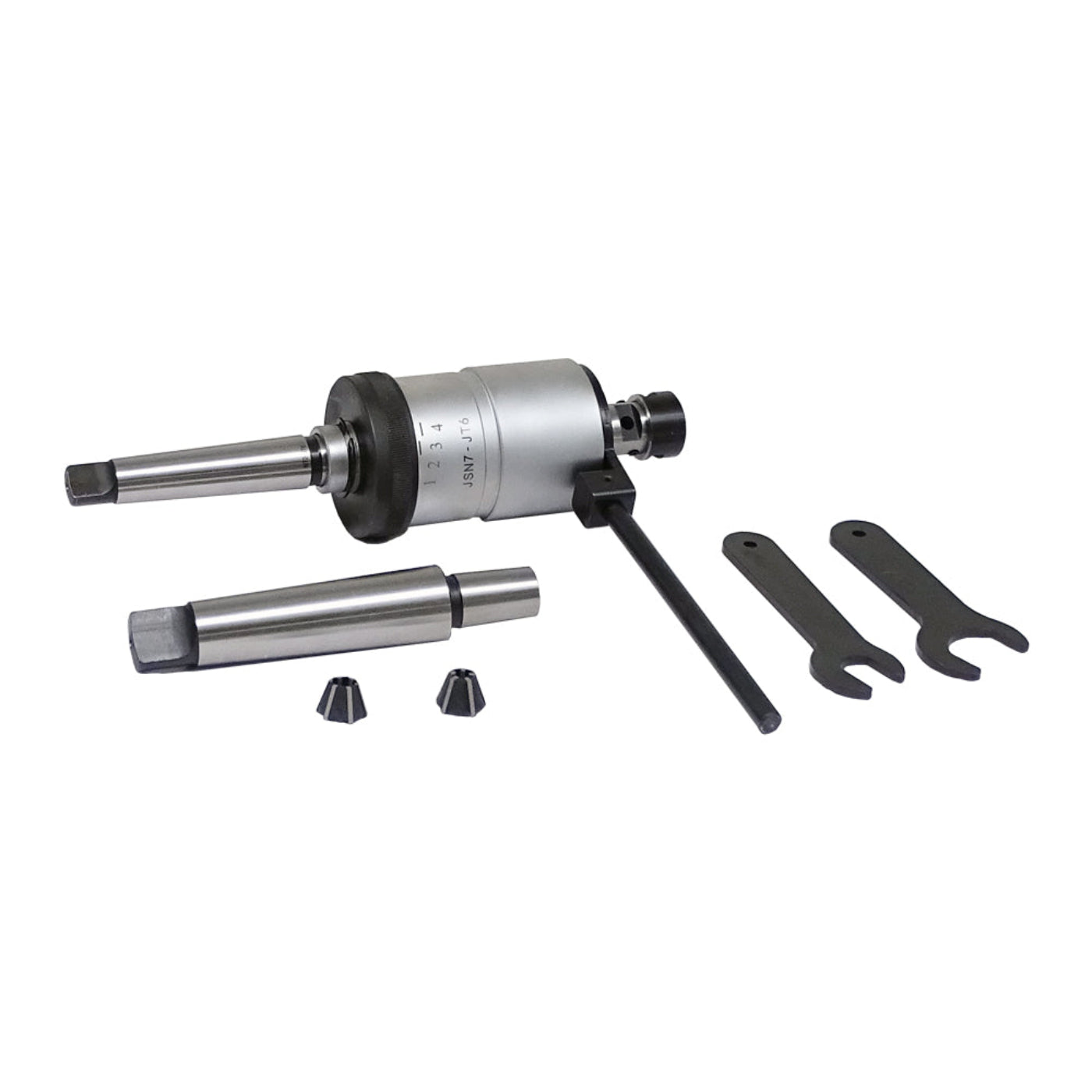

3.Head comes complete with 2 collets.
4.Tapping Capacity in steel: #4-1/2''(M2-M7), Jacobs Taper J-6, REC. Max. Speed: 1500RPM
5.For Drill Presses, Drill Units E ManuallyOperated Machines With Rotating Spindles

The threads of the shaft and nut are finely machined after heat treatment, with good axiality and high accuracy

Some parts are machined on the machining center, with accurate dimensions and high surface quality

The stop arm is made by laser cutting and precision grinding

The material of the parts here has been changed to copper sleeve, which is more wear-resistant, flexible protection, and has a longer service life

5.Method and step

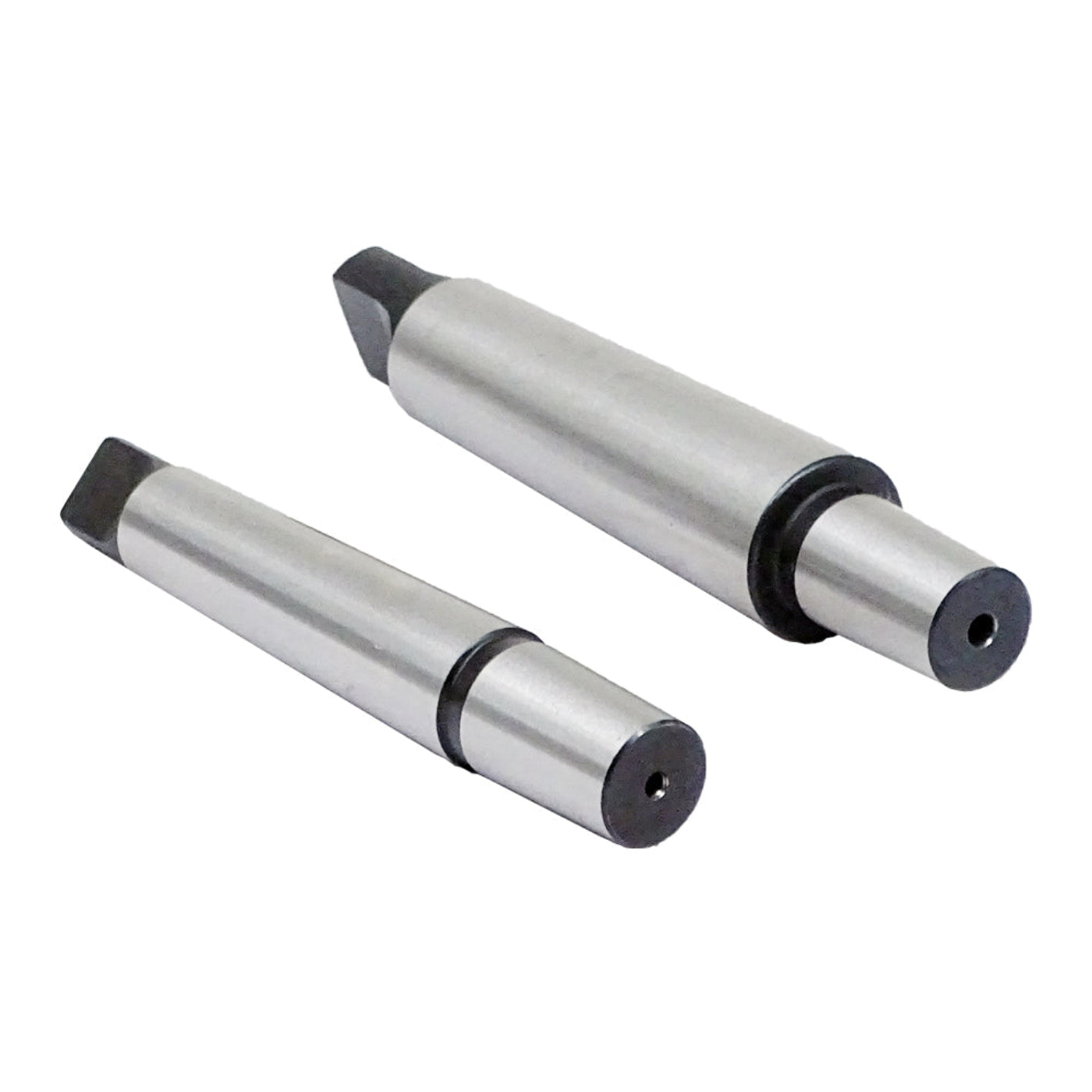

Mounting the chuck:Clean up the connecting parts of both the adaptor and the chuck and mount them onto the machine spindle after they have been assembled.
Mounting the tap: Insert the tap into the chuck while watching the position of the tap handle from a window. Then, insert the square hole of the clamping device and tighten the lock nut with a wrench prior to fastening the top screw of the clamping device
Mounting the brake rod: Referring to Figures 1,the brake should be of a certain rigidity to with stand the torque of a reversing tap(Arod made of steel 45#,ψ20-30,HRC45 is recommended) is mounted either on the no rotating part of the spindle end or on the worktable
a.The brake rod is mounted on the worktable
b.The brake rod is mounted on the column of the machine tool
c.The brake rod is mounted on the spindle quill
d.The brake rod is mounted on the flange of the spindle quill end

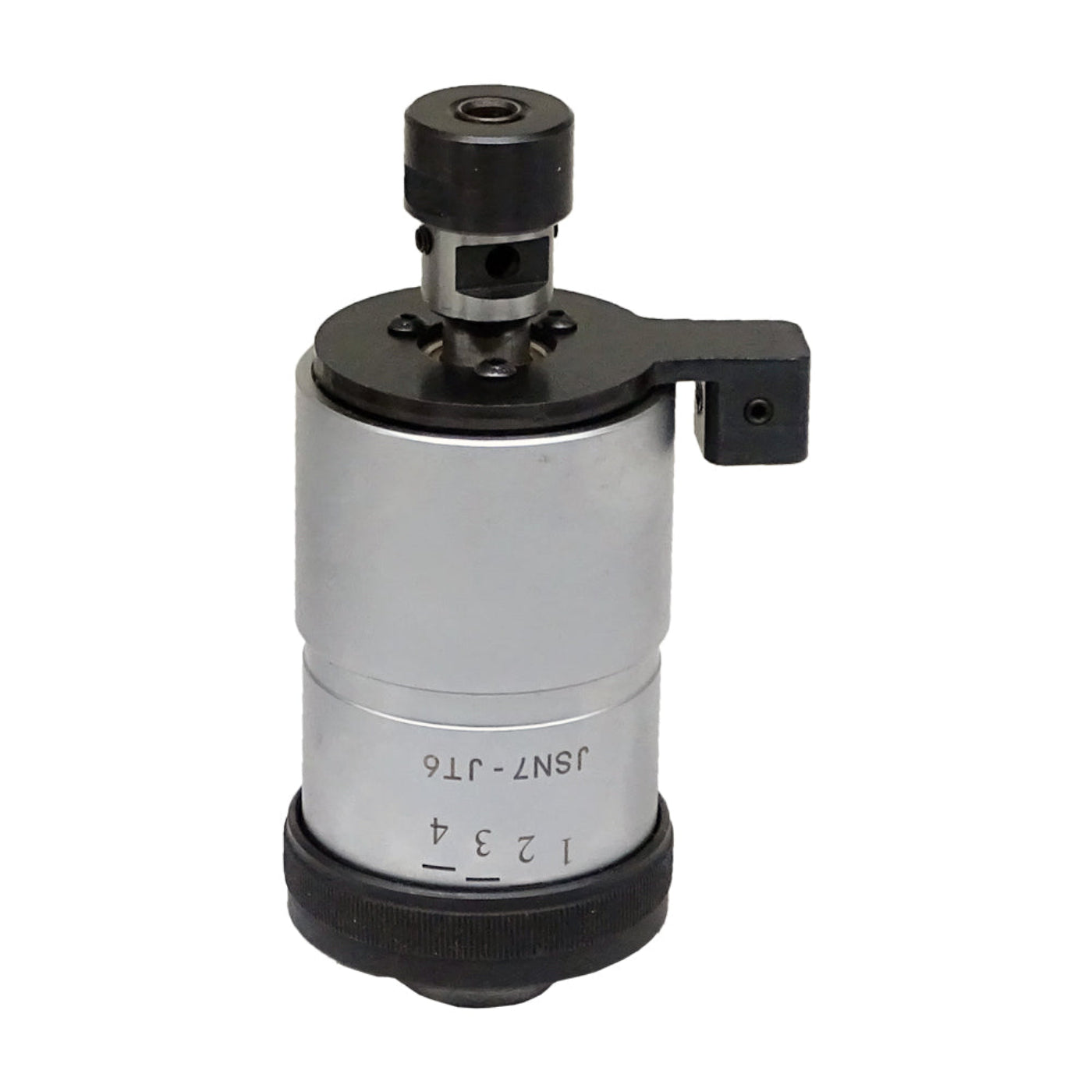

Adjusting the torque: Aoroper torque shown with numbers 1,2,3,4 on the main body periphery is selected according to the diameter to be topped and the material of the work piece, showing that the chuck can stand the toeque varies form small to large and can be selected by the operator hinself.In case of materials which are difficult to be tapped, two operations are recommended.
Tapping: The operator should align the tap mounted on the machine tool with the machined screw blank hole on the work piece and operate referring to Figures.

How to adjust the torque
You can choose a suitable torque level from numbers 1, 2, 3, 4on the main body circumference based on the diameter andmaterial of the work piece. The chuck can withstand differenttorque levels from low to high and can be adjusted by theoperator himself. For materials that are hard to tap, it isadvisable to do two passes."

Specifications

What Our Experts Think

The KAKA Industrial Bodee Self-Reversing Tapping Head Set is a precision tool designed for efficient and accurate tapping operations. Here’s why it stands out:

• Self-Reversing Mechanism – Enables quick and smooth direction changes for faster tapping.
• Precision Performance – Ensures accurate threading with minimal effort.
• Durable Construction – Built for longevity and consistent results in industrial applications.
• Versatile Compatibility – Works with various drill presses and tapping machines.
• Time-Saving Design – Reduces operator fatigue and improves workflow efficiency.

Q&A

Q: What is the KAKA Industrial Bodee Self-Reversing Tapping Head Set - BJ0101001?
A: It is a self-reversing tapping head designed for efficient and precise tapping operations, allowing for automatic reversal without manually changing spindle direction.

Q: What are the key features of this tapping head set?
A: It features self-reversing capability, adjustable torque control, high precision, and durable construction for extended use.

Q: What type of applications is this tapping head suitable for?
A: It is ideal for machining, metalworking, and manufacturing, ensuring smooth and accurate thread cutting in various materials.

Q: What are the benefits of a self-reversing tapping head?
A: It increases efficiency, reduces operator effort, prevents tap breakage, and ensures consistent threading by automatically reversing after each tap cycle.

Q: What machines is this tapping head compatible with?
A: It is compatible with drill presses, milling machines, and other tapping equipment with the appropriate spindle connection.

Q: Why choose the KAKA Industrial Bodee Tapping Head?
A: It offers reliable performance, ease of use, and high precision, making it an excellent choice for both professional and industrial applications.

Maintenance Tips

• Lubricate Regularly – Apply appropriate cutting oil to reduce wear and ensure smooth operation.
• Inspect for Wear – Check the chuck, jaws, and reversing mechanism for signs of damage or misalignment.
• Keep it Clean – Remove metal shavings and debris after each use to prevent jamming.
• Check Spring Tension – Ensure the self-reversing mechanism functions properly by maintaining correct spring tension.
• Store Properly – Keep in a dry, clean environment to prevent rust and contamination.
• Use within Capacity – Operate within the recommended tap size range to avoid excessive strain on components.
