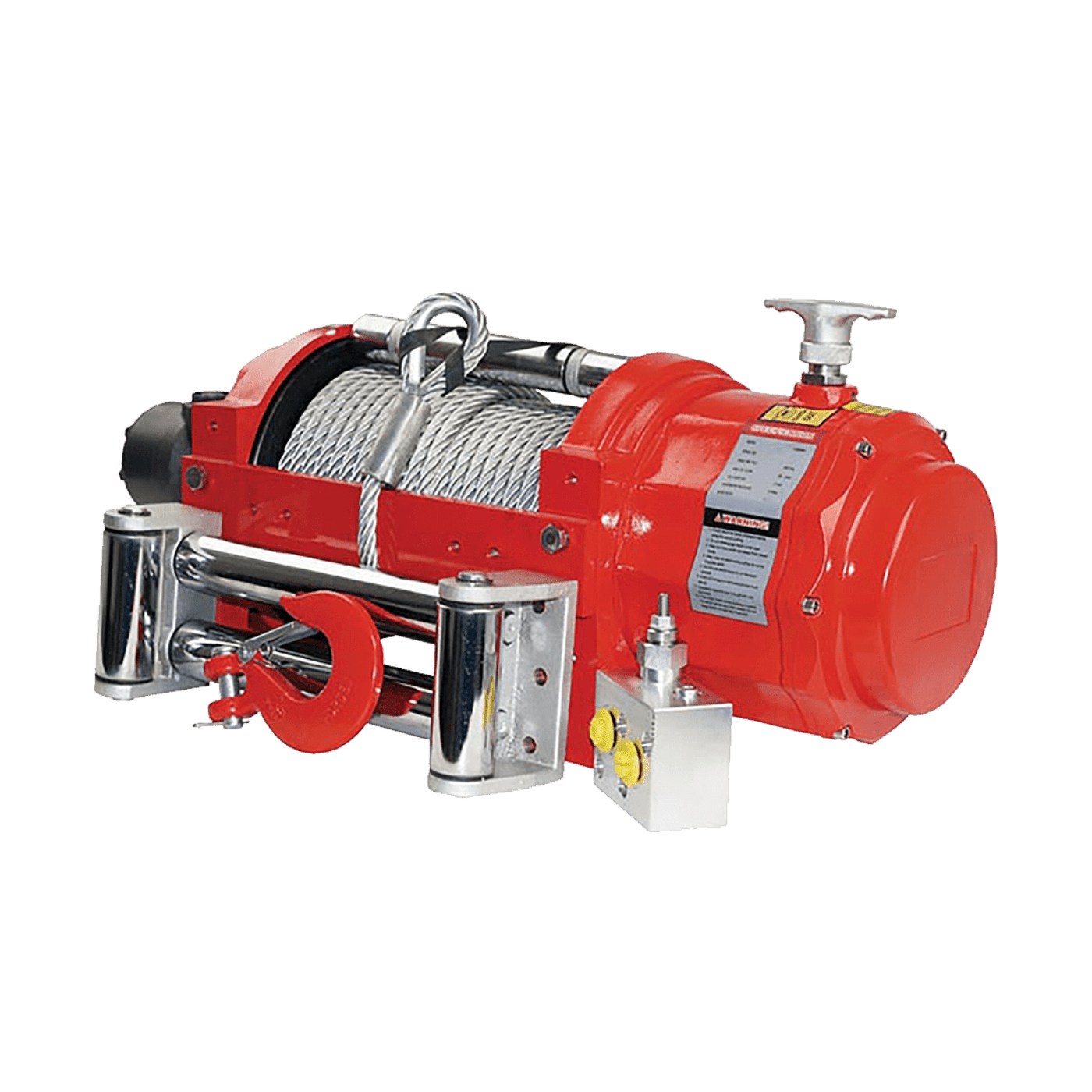

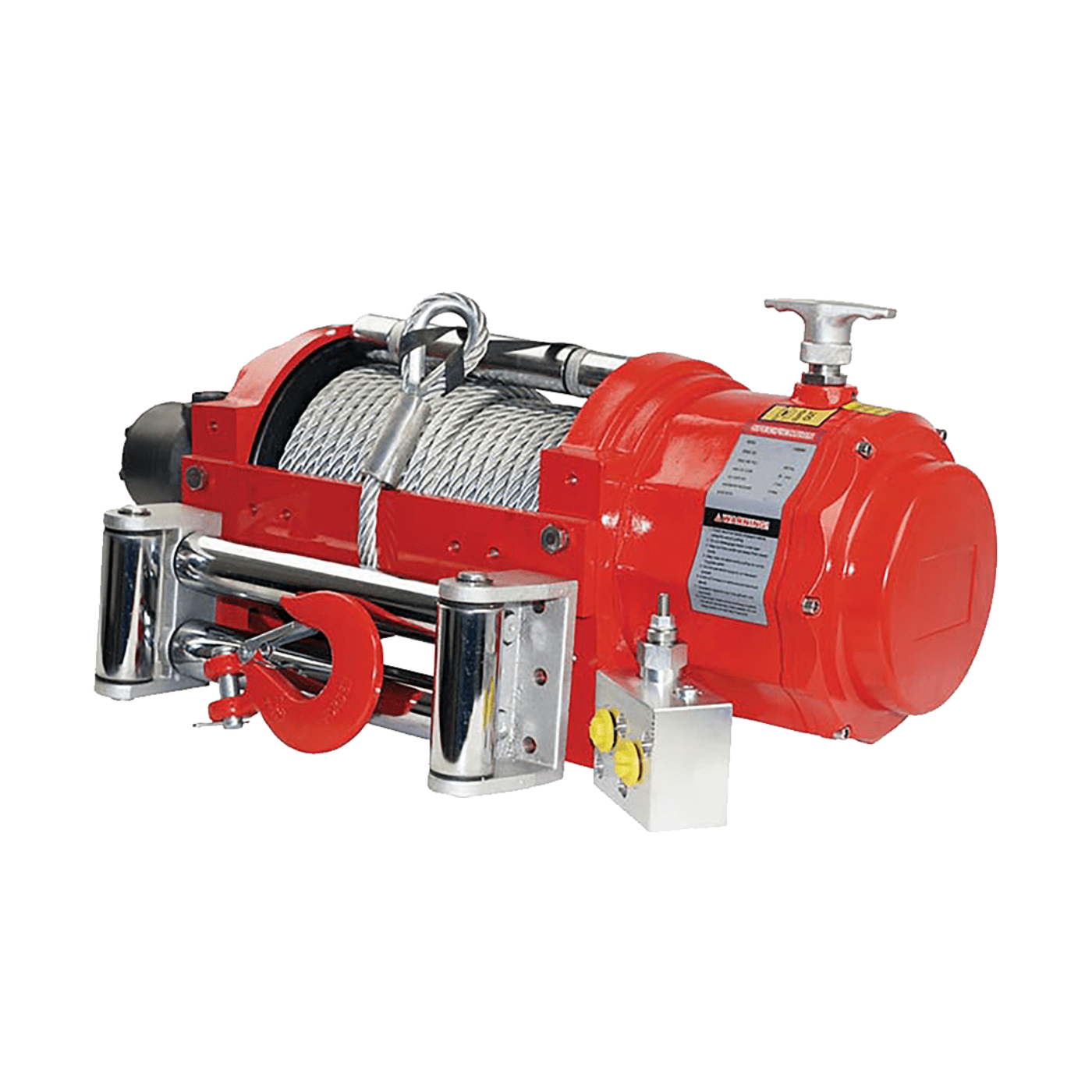

DK2 15,000LB NW HYDRAULIC WINCH


COMPACT & TOUGH. WARRIOR HYDRAULIC WINCHES FOR INDUSTRIAL AND COMMERCIAL APPLICATIONS. VALUE WITHOUT COMPROMISE.

Hydraulic winches for industrial and commercial applications. The special heat treated planetary gearing system combined with a highly efficient and powerful hydraulic motor ensures maximum performance over the full load range. Complete with internal brake to ensure maximum control and load holding.

Features

  • Patented heavy duty gearing

  • Integral, automatic failsafe brake

  • Spring engaged manual freespool

  • Stainless steel fairlead and fittings

  • Rugged and compact for long life

  • Meets the requirements of EN 14492:1

Specification
ITEM NUMBER 15000NW
RATED LINE PULL 15000 LBS (6810 KG)
MOTOR HYDRAULIC DIS 160 ML/R
GEARING 17.2:1
DRUM SIZE - DIAMETER x LENGTH 127 x 270mm (5 x 10.62')
CABLE - DIAMETER x LENGTH 12mm x 25m (0.47' x 82')
DIMENSIONS 716 x 282 x 304mm (28.18 x 11.1 x 11.96')
MOUNTING PATTERN 303.5 x 144.3mm (11.94 x 4.5') / 368 x 117.2mm (14.48 x 4.61')
WEIGHT 80 KG (176 LBS)
MAX FLOW L/MIN 60
MAX PRESSURE MPA 15
CERTIFICATION CE CERTIFIED
LAYER OF ROPE / CABLE LINE PULL: LBS (KGS)
1 15000 (6810)
2 12513 (5681)
3 10735 (4874)
LINE PULL: LBS (KGS) LINE SPEED FT/MIN (M/MIN) FLOW L/MIN • PRESSURE MPA
0 4.29 (1.3) 10 • 2
3995 (1816) 8.58 (2.6) 20 • 4.6
5992 (2724) 12.54 (3.8) 30 • 6.8
7990 (3632) 16.83 (5.1) 40 • 9
11980 (5448) 21.12 (6.4) 50 • 12
15000 (6810)
