Electro-Mech Basic Outdoor Basketball Scoreboard - LX7230

Electro-Mech Basic Outdoor Basketball Scoreboard - LX7230

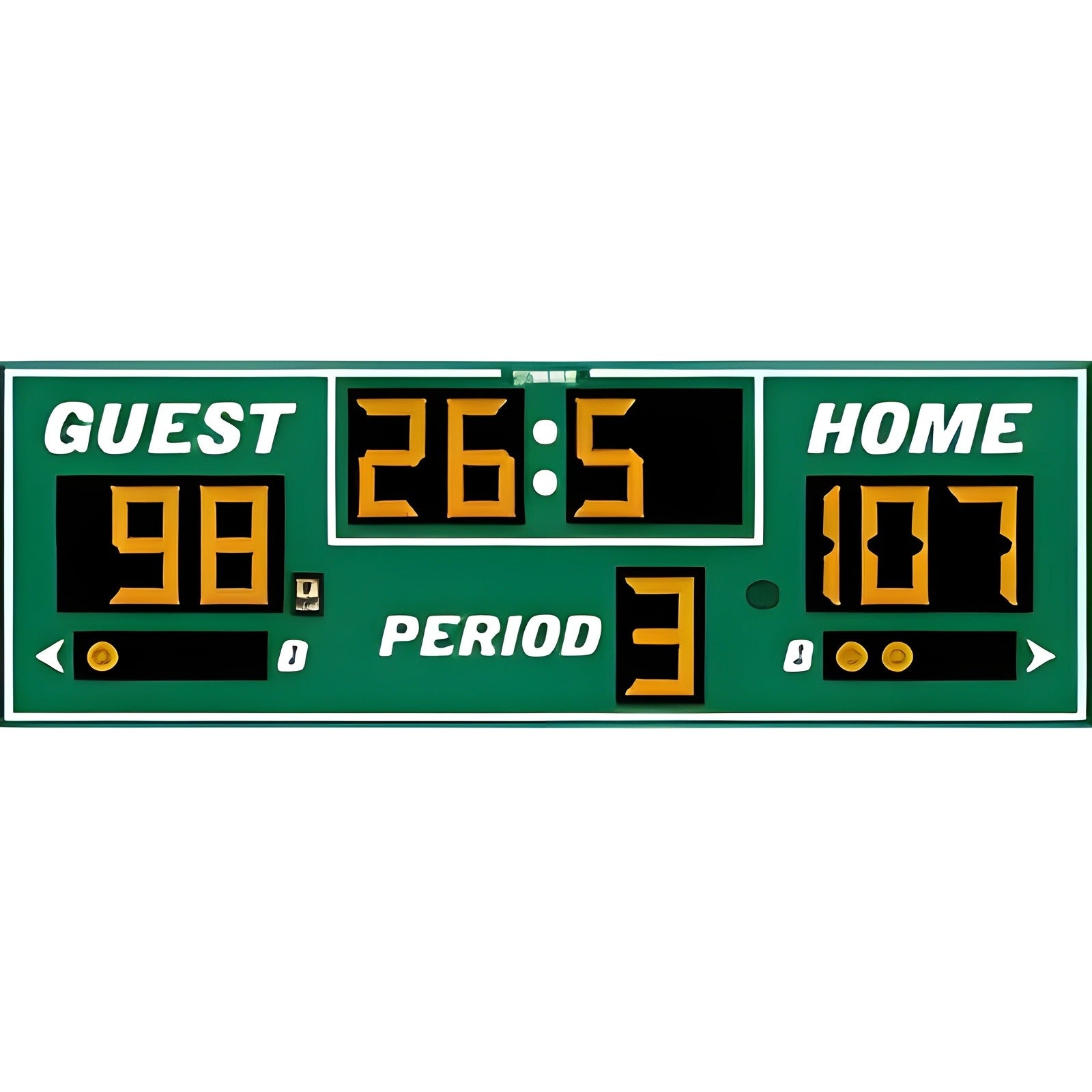

Model LX7230 is a compact 9 ft. x 3 ft. outdoor scoreboard, but it has the most important features needed to keep track of an exciting Basketball game.  Like all Electro-Mech outdoor models, it is designed to stand up to the elements.  Conformal coating on our LED digits keeps the PCBs safe from moisture.  And the all-aluminum cabinet will never rust.  Features include Possession and Double Bonus indicators, a built-in Horn, and 11-inch tall LED digits for Time, Points, and Period.

Features

• Single cabinet design with heavy duty extruded aluminum framing

• Lightweight, rust free, all-aluminum construction

• Mounting hardware for permanent installation on posts without the need for on site fabrication

• Automotive-grade baked on enamel based paint applied to the scoreboard face

• Choice of 18 standard paint colors

• Choice of amber or red LED displays

• Junction box and patch cable for hardwired installations


• Control console includes fully programmable Practice Segment Timer mode


• LED display circuit boards conformal coated for outdoor use

• Internally mounted horn


• Full-sized 37-key control console with LCD display

• Five-year limited warranty

• Toll-free technical support via phone and online for the life of the product

Specifications

Product Manual

LX7230 Manual Download

LX7230 Cutsheet Download
