Heliatos Beach Solar Water Heater Kit

Heliatos Beach Solar Water Heater Kit

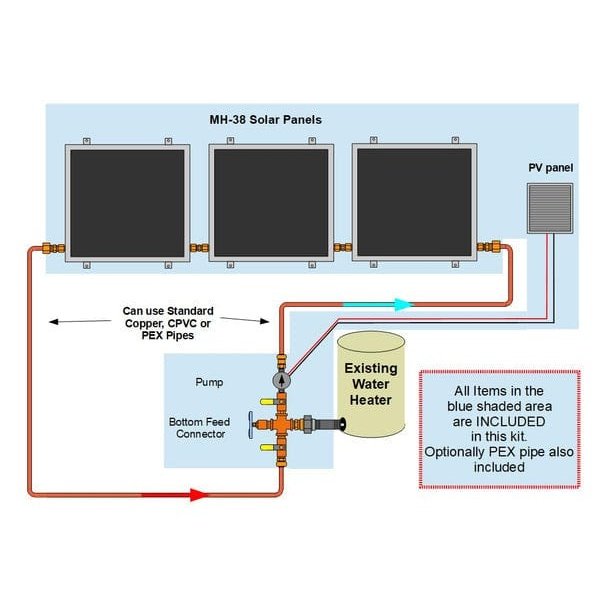

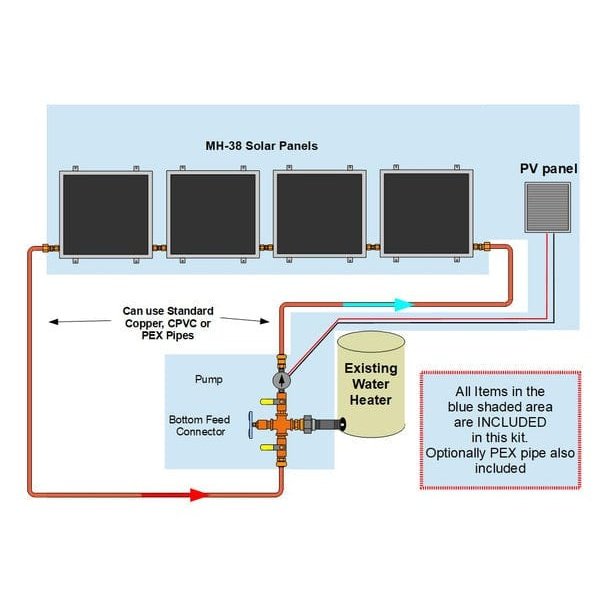

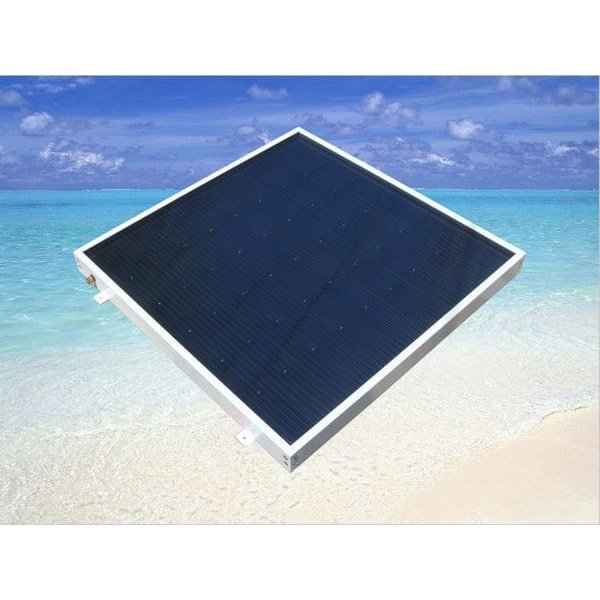

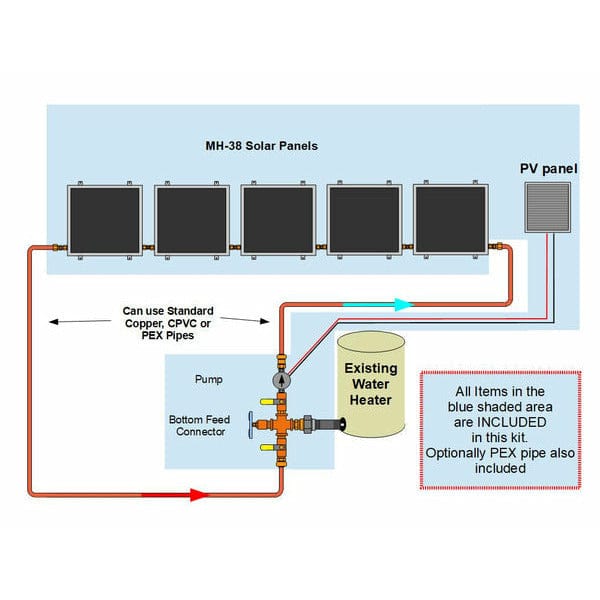

Our Beach Solar Water Heating Kit comes with all the parts needed to install your solar water heater system on your beach house. As with all our systems, they connect directly to your existing water heater and don't interfere with existing source of heat (gas or electric). This way you can enjoy hot water even during long cloudy periods. Using our MH-38 Solar Water Heater panels you can simply thread the panels together. No more external connection pipes for multi-panel installations!

These panels include special features to prevent corrosion even in the harshest environments:

• Powder-coated frame and backing, gives the appearance of white enamel

• Zinc-phosphate internal corrosion protection

• Sealed construction
• Stainless steel hardware

Each panel weighs 12 lbs. and is 24' by 24' but can still provide you with ample hot water. You can begin your system with a few panels and add more if you need more. With this kit you DO NOT have to solder at all!

Specifications

Materials

• Glazing: UV resistant twin wall polycarbonate
• Frame: Powder coated architectural grade aluminum alloy 6063
• Insulation: Polyiso foam (meets requirements for ASTM-C1289, Type 1
• specification)
• Water Conduit: Copper Tubing (Alloy C12200 certified for public water supplies meeting EPA Lead and Copper Rule 56 FR26460, June 7th, 1991)
• Fittings: Brass, Lead Free compliant with Federal Reduction of Lead in Drinking Water Act ,Dezincification resistant
• Internal Corrosion Protection: Zinc phosphate, polyurethane foam sealant, high endurance silicone
• Seals: Butyl rubber

Physical

• Length: 24.0 Inches
• Width: 25.25 Inches
• Height: 2.125 Inches
• Active Collector Area: 3.674 ft2
• Mounting Hole Spacing: 24.75 x 17.00 Inches x Inches
• Volume of Liquid in Collector: 7.7 fl. oz.
• Total Panel Weight: 14 lb.
• Input and Output Connections: 3/8 “ Compression Fitting

Maximum Ratings

• Pressure: 200 Psi
• Collector Temperature: 203 ºF
• Mounting Surface Unevenness: ¼ Inch (corner to corner)

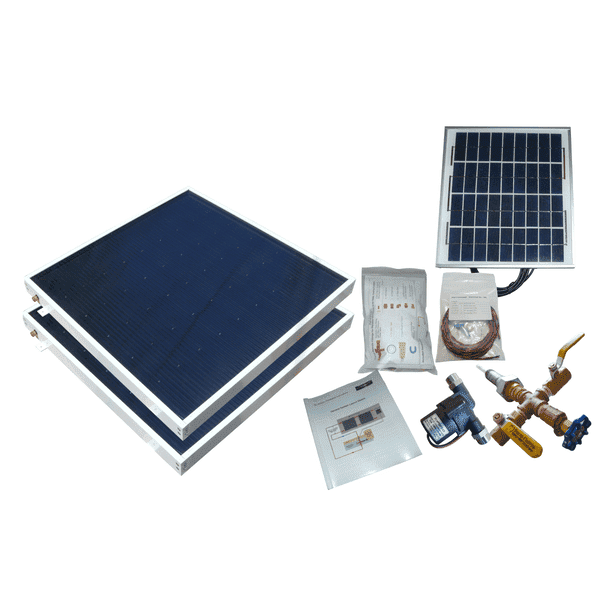

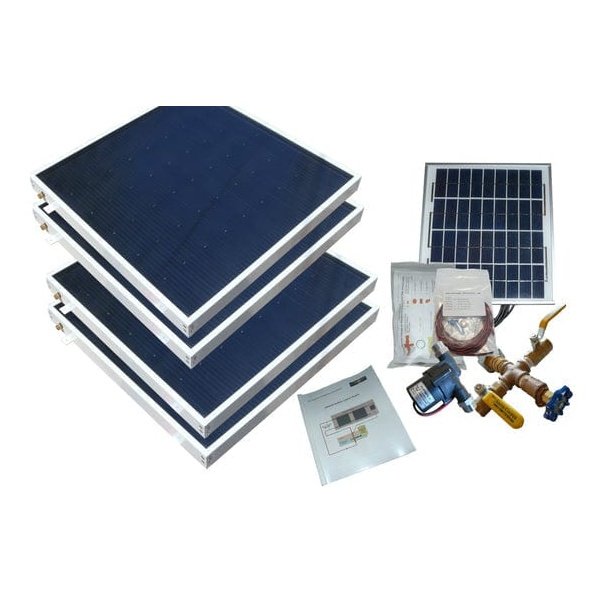

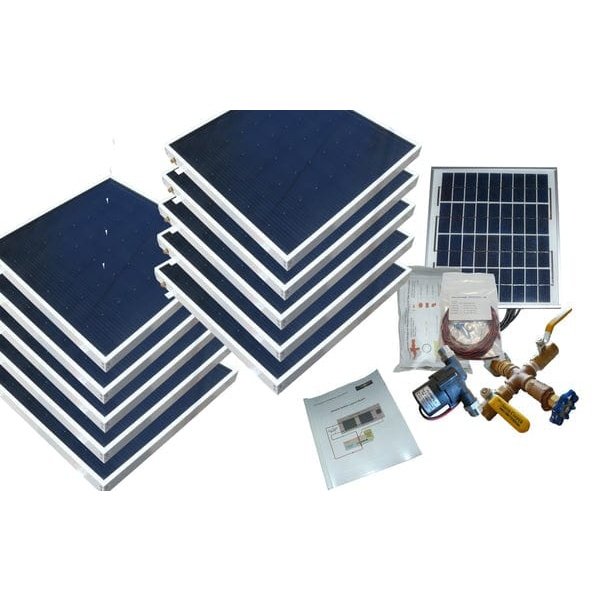

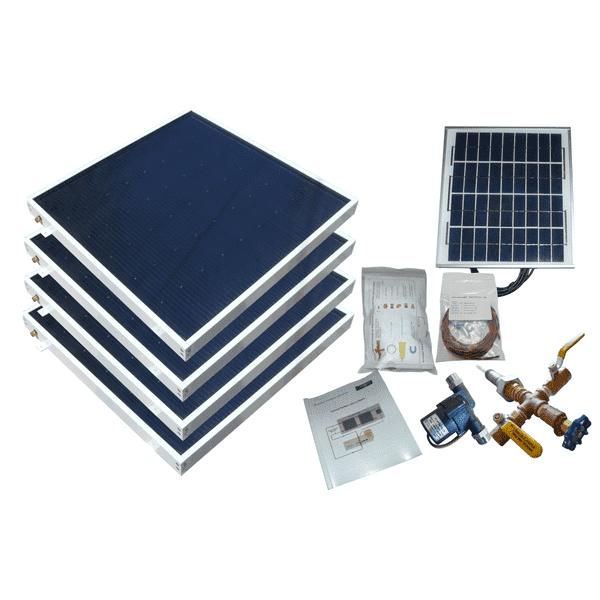

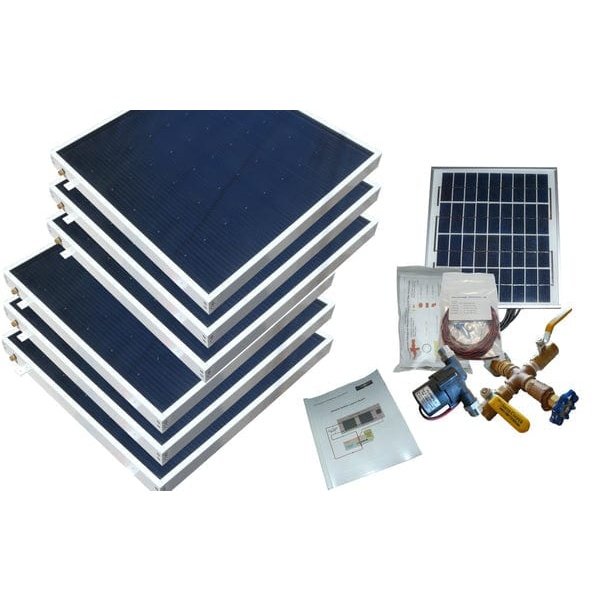

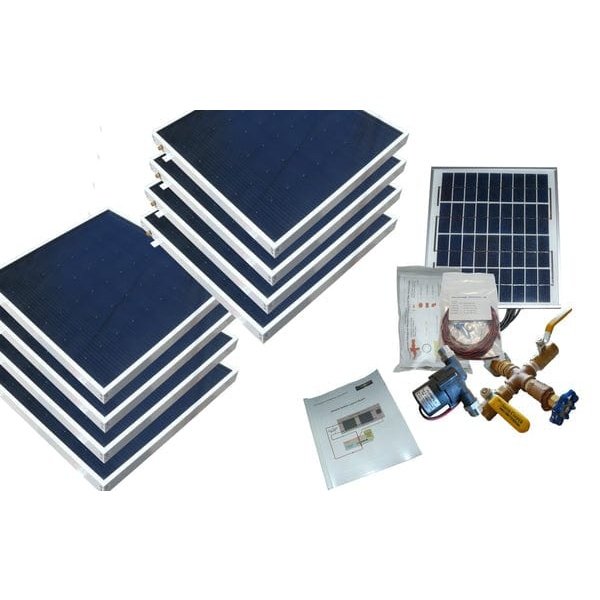

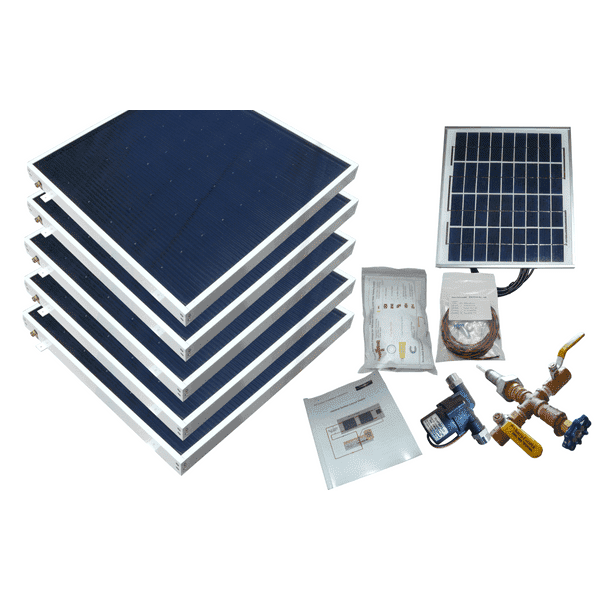

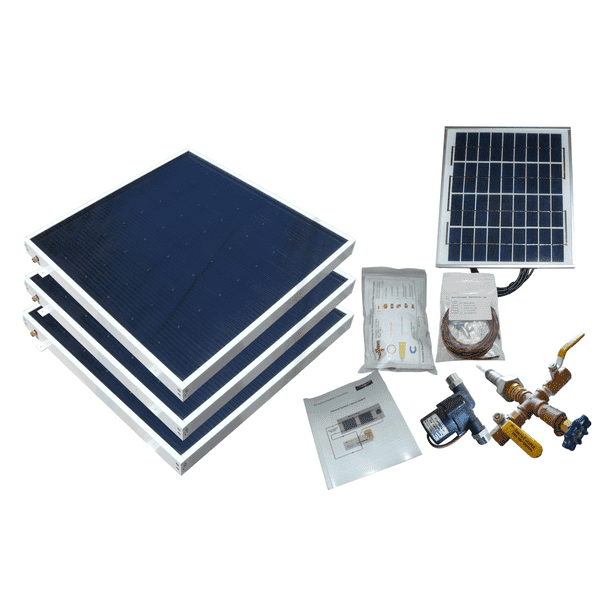

In the Box

• Your selected quantity of MH-38 Solar Water Heating Panels
• 1 Complete Set of Fittings and Adapters
• 1 Bottom Feed Connector
• 1 TopsFlo TD5 stainless steel pump

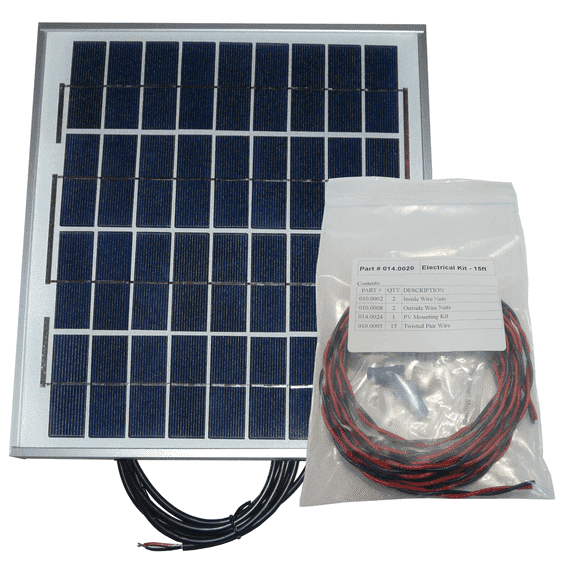

• 1 10W PV Panel including wire and PV mounting kit

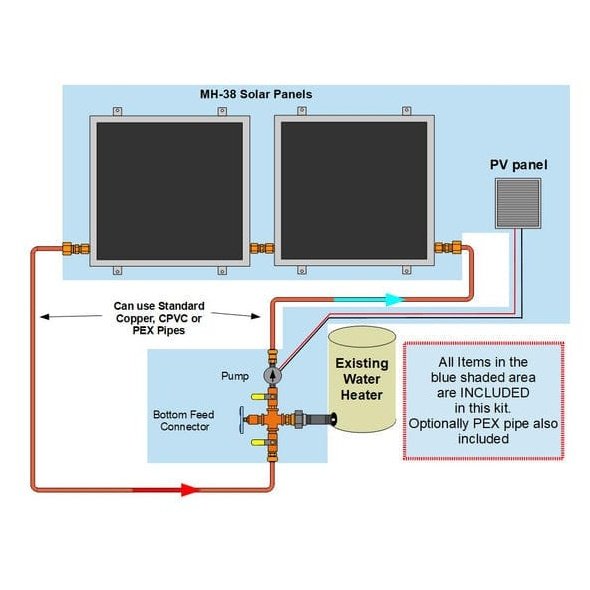

• Instructions for Installation - Single Row

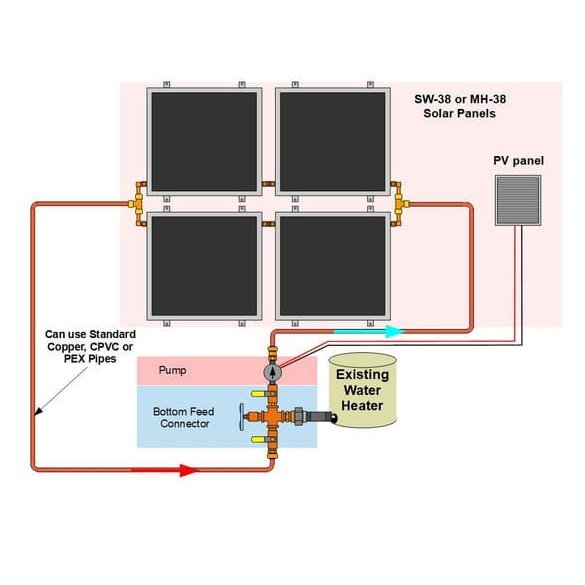

• Instructions for Installation - Double Row

Manual

• Instructions Installation For Single Row

• Instructions Installation For Double Row

Delivery

Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
