Heliatos Freeze Protected Solar Water Heater Kit

Heliatos Freeze Protected Solar Water Heater Kit

Our Freeze Protected Solar Water Heating Kit allows you to install a solar hot water system you can operate year round. This kit includes SW-38 Panels and a Stainless Steel Heat Exchanger with a special food grade heat transfer fluid (DOWFROST) to create a separate freeze protected loop. Filling your separate loop is easy with our Glycol Fill Valve. Please use our Glycol Calculator to determine the dilution ratio for winter conditions in your area as well as the total amount of glycol concentrate you need. As with all our systems they connect directly to your existing water heater and don't interfere with existing source of heat (gas or electric). This way you can enjoy hot water even during long cloudy periods.

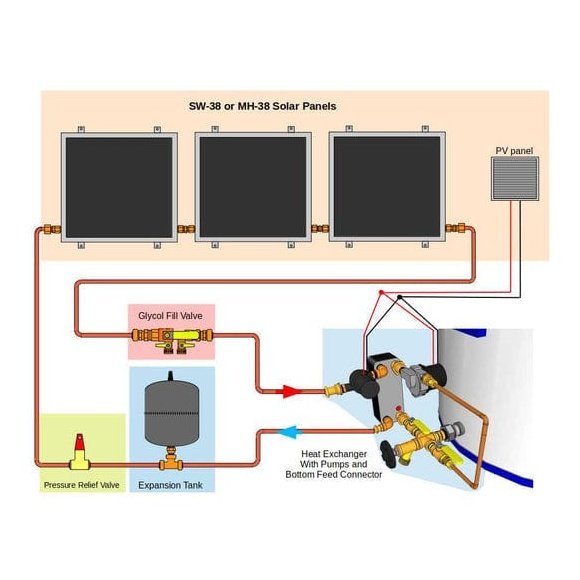

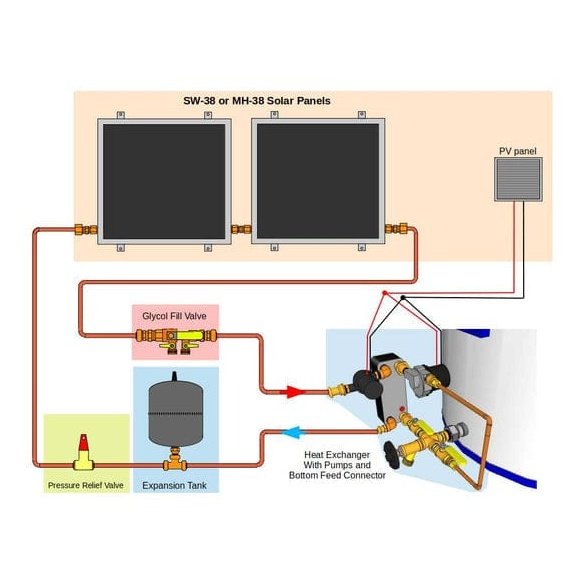

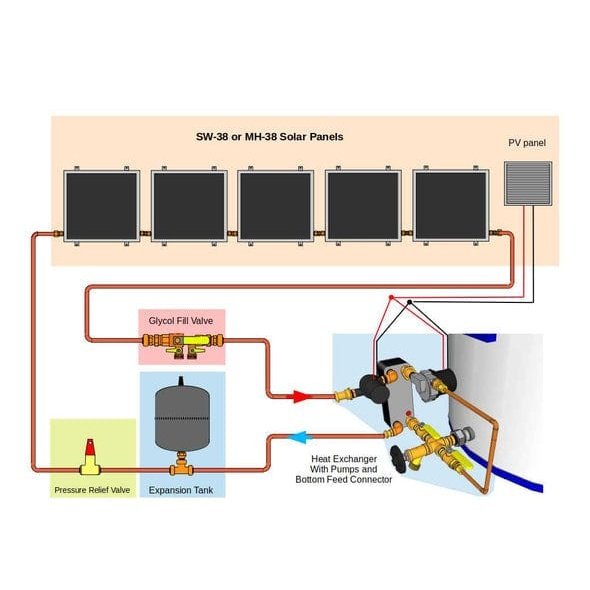

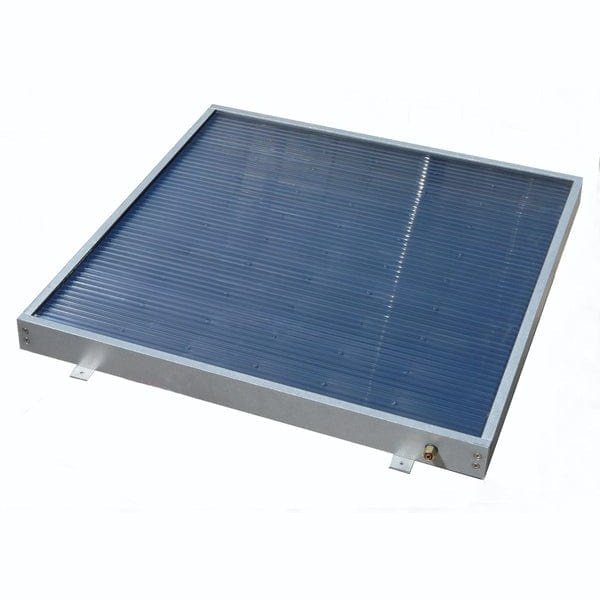

Each panel weighs 12 lbs. and is 24' by 24' but can still provide you with ample hot water. You can begin your system with a few panels and add more if you need more.  With this kit you DO NOT have to solder at all!

Specifications

Materials

• Glazing: UV resistant twin wall polycarbonate
• Frame: Architectural grade aluminum alloy 6063
• Insulation: Polyiso foam (meets requirements for ASTM-C1289, Type 1
• specification)
• Water Conduit: Copper Tubing (Alloy C12200 certified for public water supplies
• meeting EPA Lead and Copper Rule 56 FR26460, June 7th, 1991)
• Fittings: Brass, Lead Free compliant with Federal Reduction of Lead in
• Drinking Water Act , Dezincification resistant
• Seals: Butyl Rubber

Physical

• Length: 24.0 Inches
• Width: 25.25 Inches
• Height: 2.125 Inches
• Active Collector Area: 3.674 ft2
• Mounting Hole Spacing: 24.75 x 17.00 Inches x Inches
• Volume of Liquid in Collector: 7.7 fl. oz.
• Total Panel Weight: 11.6 lb.
• Input and Output Connections: 3/8 “ Compression Fitting

Maximum Ratings

• Pressure: 150 Psi
• Collector Temperature: 203 ºF
• Mounting Surface Unevenness: ¼ Inch (corner to corner)

In the Box

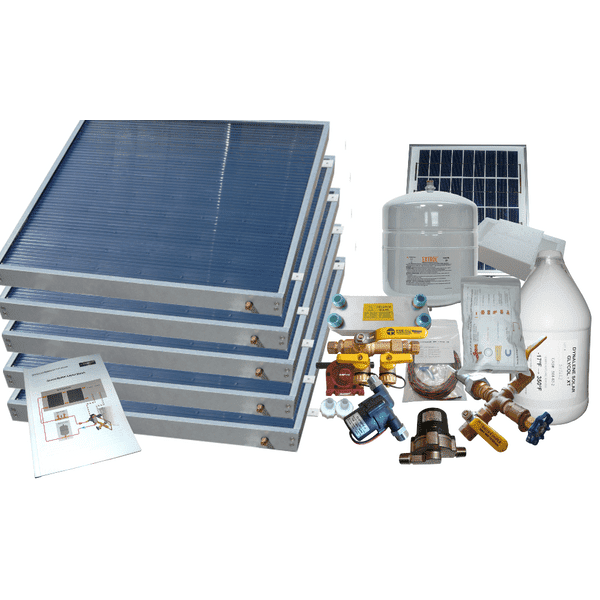

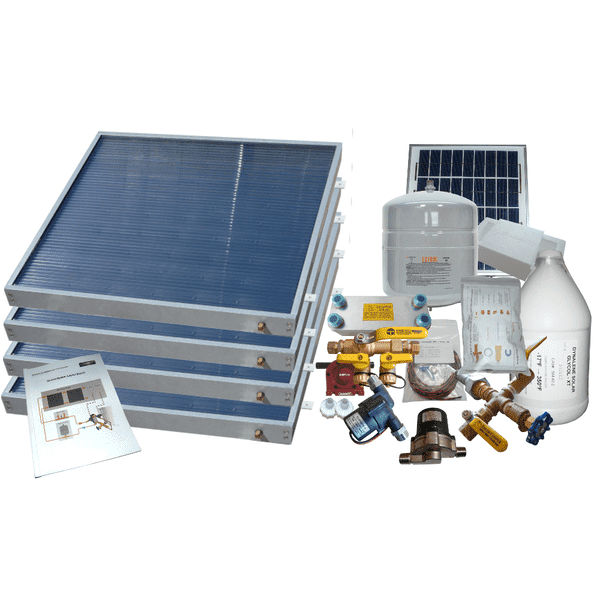

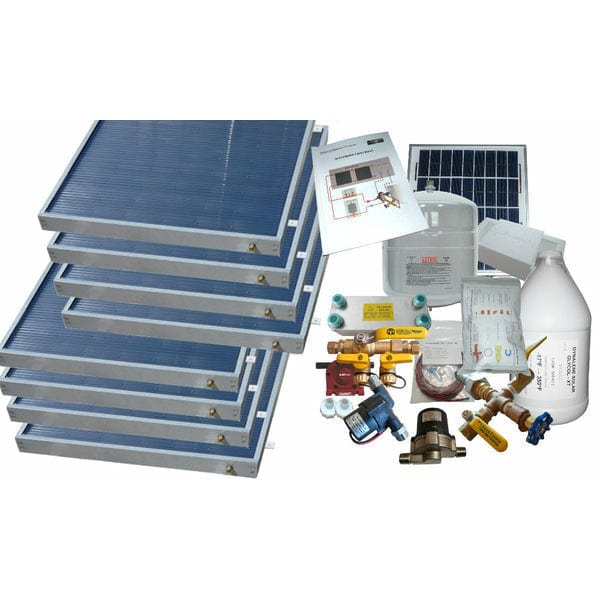

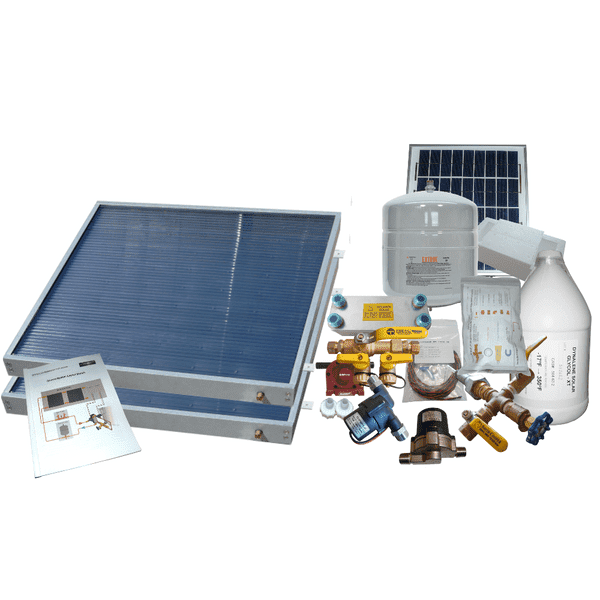

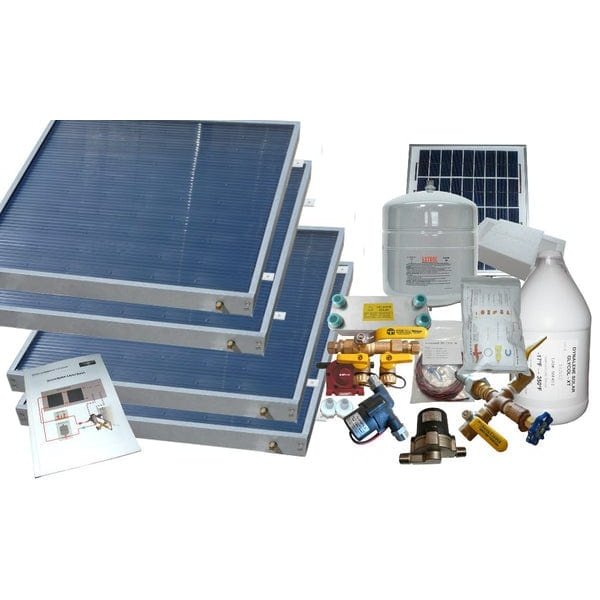

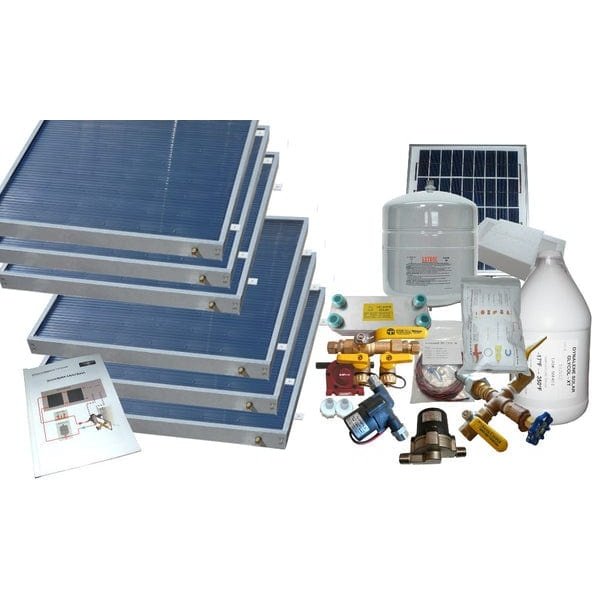

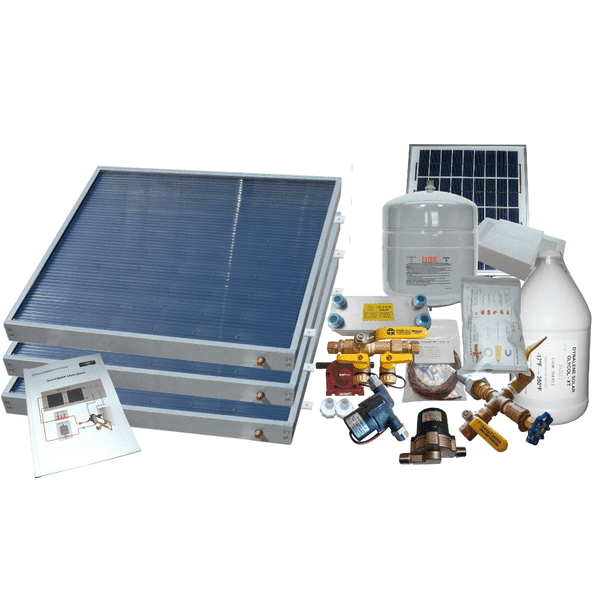

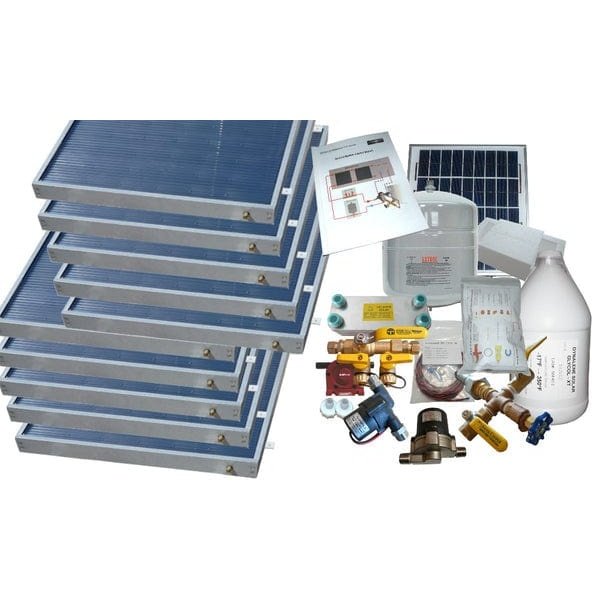

• Your selected quantity of SW-38 Panels
• 1 Grade A 25W PV panel to power the pumps - NO grid connection required - plus wire and PV mounting kit
• 1 Heliatos HS-21 Pump for the Glycol Side
• 1 TopsFlo TD5 Stainless Steel Pump for the Water Side
• 1 Heliatos Glycol Fill Valve
• 1 Heliatos Bottom Feed Connector
• 1 Compact Stainless Steel (Alloy 316) Heat Exchanger

• 1 Amtrol Expansion Tank
• 1 Complete Set of Fittings and Adapters
• DOWFROST Food Grade Propylene Glycol Heat Transfer Fluid. 2 quarts for kits 4 panels or less. 4 quarts for 5 panels or more.
• Instructions for Installation- Single Row

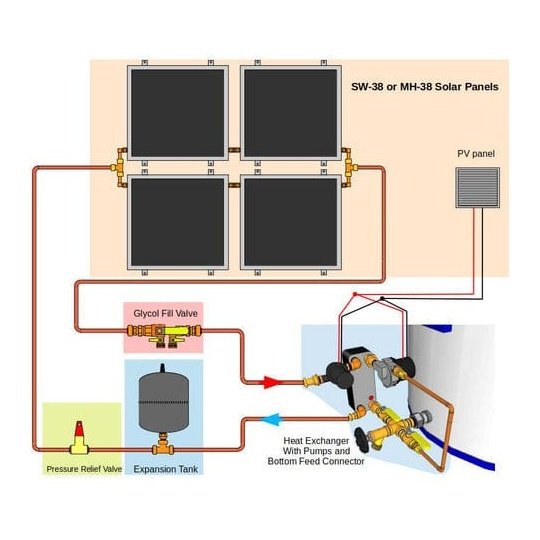

• Instructions for Installation- Double Row

Video

Manual

• Instructions Installation For Single Row

• Instructions Installation For Double Row
