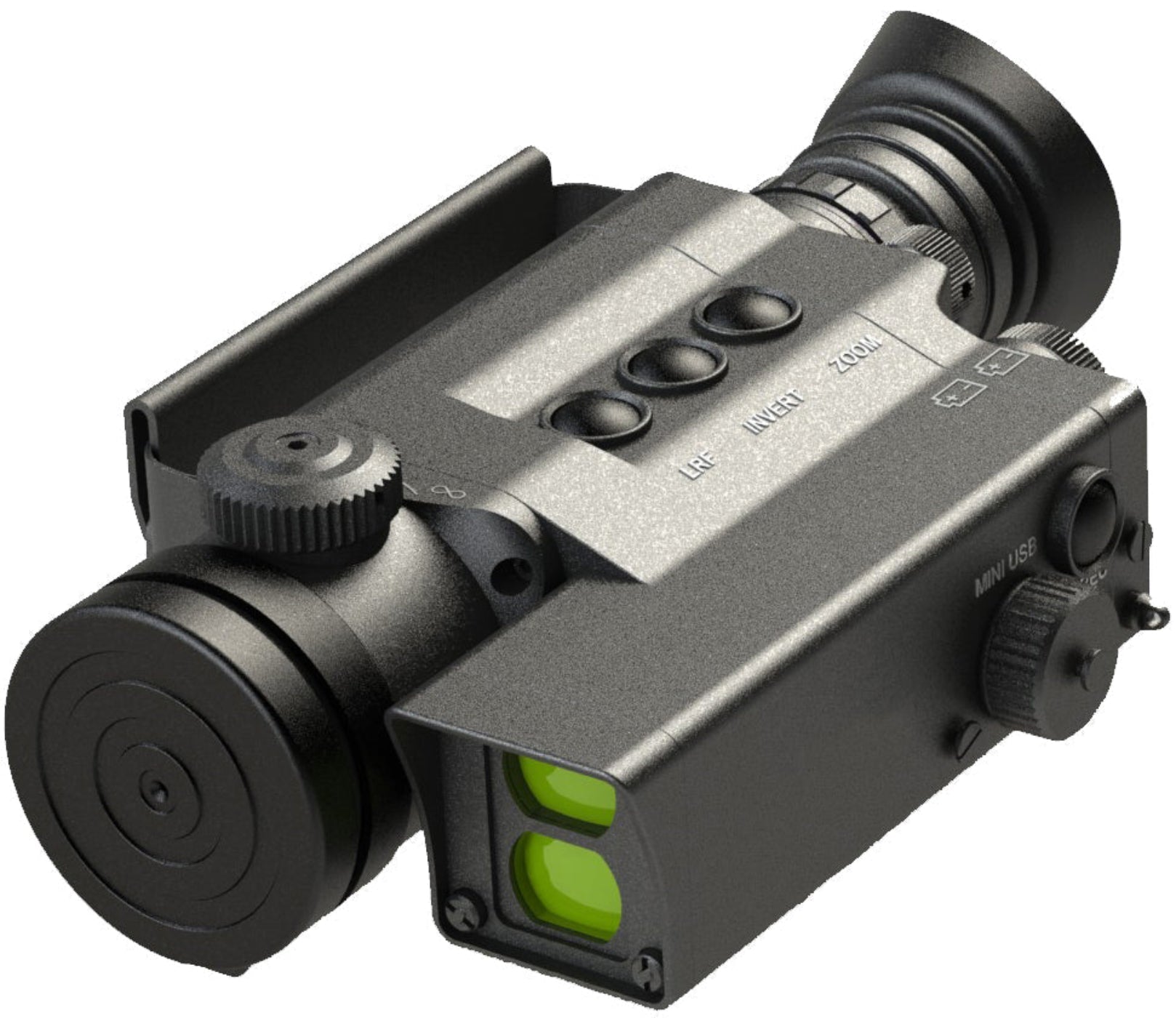

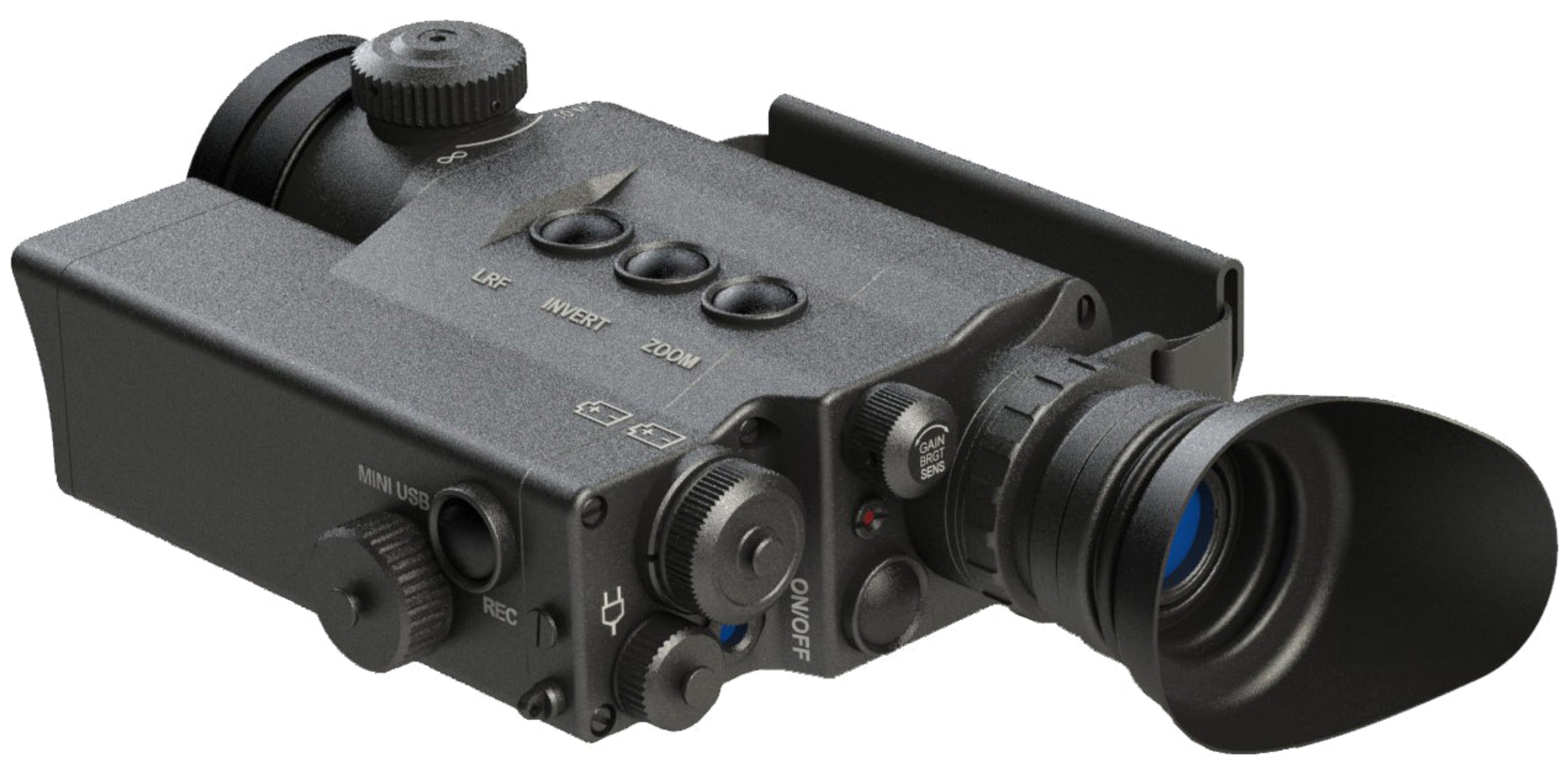

Luna Optics R-40 Genesis Revelation Long Range Thermal Monocular 2.5-10x40 - R-40

Luna Optics R-40 Genesis Revelation Long Range Thermal Monocular 2.5-10x40 - R-40

Thermal devices work on the principle of detecting infrared radiation, also known as energy. Instead of operating in a visible light spectrum of 400-700nm (such as regular binoculars or scopes), thermal imagers detect waves of energy as high as 17,000nm or 17µm, which are beyond our capability to observe with naked eye. The infrared signal is received by the thermal device and is then converted into an electrical signal by the thermal sensor (called microbolometer), located inside the unit and that electrical signal is then displayed on the micro display located near the ocular (eyepiece).

All of Full-Moon Optics thermal day/night vision devices employ ULIS Pico Gen2™ Thermal Sensors, made in France, which feature shutter-free and NUC free performance combined with excellent image resolution and sharp contrast, as well as an extremely user-friendly and reliable interface allowing for numerous useful features to be easily implemented in the complete system. (Pico Gen2 is a trademark of LYNRED Corporation).

As with the digital night vision, every thermal imaging device requires batteries or an external power source to operate. Unlike a daylight scope, where you see the image due to light traveling through the glass and the prisms, the thermal imaging device works by projecting the image onto a micro-display. While the thermal sensor is the crucial component of any thermal device, the image display quality is also very important to have the best possible direct-view image clarity and best field of view.

The entire family of Full-Moon thermal products employs innovative High Resolution 1,024 x 768 AMOLED displays allowing for extra sharp contrast even in the low-light conditions – made in France by MICROOLED corporation. Since the image is projected on the screen, it has certain limited resolution…so please do not expect your thermal device to provide the same crystal clear and full-color image as you would see through your daylight scope. The main advantage of any thermal device is that it detects heat signatures in the conditions where seeing your target is virtually impossible with your naked eye.

Features

• Industry-first compact Thermal Monocular with built-in Laser Rangefinder
• Proprietary GENESIS Hybrid Thermal Core with Industry-First Image Detail Enhancement (IDE) with Manual DSP removes the barriers between 384 and 640 resolution thermal sensors

• Industry-First Super Controller allows instant multiple image adjustments without having to access complicated menus

• Manual Gain, Brightness, Sensitivity and IDE adjustments

• Eye Proximity Sensor

• Ultra-High resolution 1,024 x 678 micro-OLED image display

• Thermal sensor with Shutter-Free and NUC-Free Technology

• Integrated 700m laser rangefinder provides reliable and fast distance readings

• On-board 32GB Video Recording with Quick Start and Battery Save mode & Wi-Fi data streaming
• 2.5x-10x image magnification
• Detection range 1,100yds

• 10 color palettes, each with polarity image inversion

• Super Contrast mode for instant game detection

• Multiple customizable user modes

• User-friendly Bad Pixel Correction mode

• Integrated Tripod Mount

What Our Experts Think

• Long-Range Thermal Imaging – Detects heat signatures from great distances, ideal for outdoor exploration, surveillance, and hunting.
• 2.5-10x Magnification – Versatile zoom range for clear, detailed thermal imagery at various distances.
• High-Resolution Thermal Sensor – Provides crisp and clear imaging in complete darkness, fog, and challenging weather conditions.
• Multiple Color Palettes & Viewing Modes – Customizable settings for different environments and enhanced target detection.
• Rugged & Weatherproof Build – Designed to endure tough outdoor conditions, making it perfect for field use.

Q&A

Q: What is the Luna Optics R-40 Genesis Revelation Long Range Thermal Monocular?
A: A high-performance long-range thermal monocular with 2.5-10x magnification, designed for detailed thermal imaging in all conditions, ideal for hunting, surveillance, and tactical applications.

Q: What is the magnification and lens size?
A: Features 2.5-10x variable magnification with a 40mm objective lens for clear, long-range thermal viewing.

Q: How does it perform in low light or darkness?
A: Equipped with advanced thermal imaging technology, providing exceptional detection in total darkness, fog, smoke, and challenging weather conditions.

Q: What type of thermal display does it use?
A: Utilizes a high-resolution thermal sensor and AMOLED display, offering clear and detailed imagery.

Q: What color palettes are available for viewing?
A: Offers multiple thermal color palettes like white-hot, black-hot, and color-enhanced for different environments and visibility preferences.

Q: Can it record photos and videos?
A: Yes! Supports photo and video recording with microSD card storage for easy file transfer.

Q: Does it have Wi-Fi or app connectivity?
A: Yes, it includes Wi-Fi support for live streaming, remote control, and file sharing via a mobile app.

Q: What is the battery life?
A: Features a long-lasting battery, with USB-C rechargeable power for extended usage in the field.

Q: Is it tripod mountable?
A: Yes, it includes a standard tripod mount for hands-free, stable observation.

Maintenance Tips

• Keep Lenses Clean – Use a microfiber cloth and lens-safe cleaner to remove dust and smudges for optimal clarity.
• Avoid Direct Heat or Sunlight – Exposing the thermal sensor to excessive heat can damage the device.
• Store in a Cool, Dry Place – Keep in a protective case with silica gel packs to prevent moisture buildup.
• Check Battery Health – Use high-quality batteries, avoid overcharging, and remove them when not in use for extended periods.
• Test Regularly – Check thermal image quality, zoom, and other functions before using it in the field.
• Handle with Care – Avoid dropping or exposing to excessive shock to preserve internal components.
• Update Firmware – Check for software updates to improve performance and functionality.
• Clean the Body Periodically – Wipe down the housing with a dry or slightly damp cloth to remove dirt and debris.
