U. S. Motors Nidec HD7P2E Electric Motor 7.5 hp 213T Frame 230/460 Volts - HD7P2E

U. S. Motors Nidec HD7P2E Electric Motor 7.5 hp 213T Frame 230/460 Volts - HD7P2E

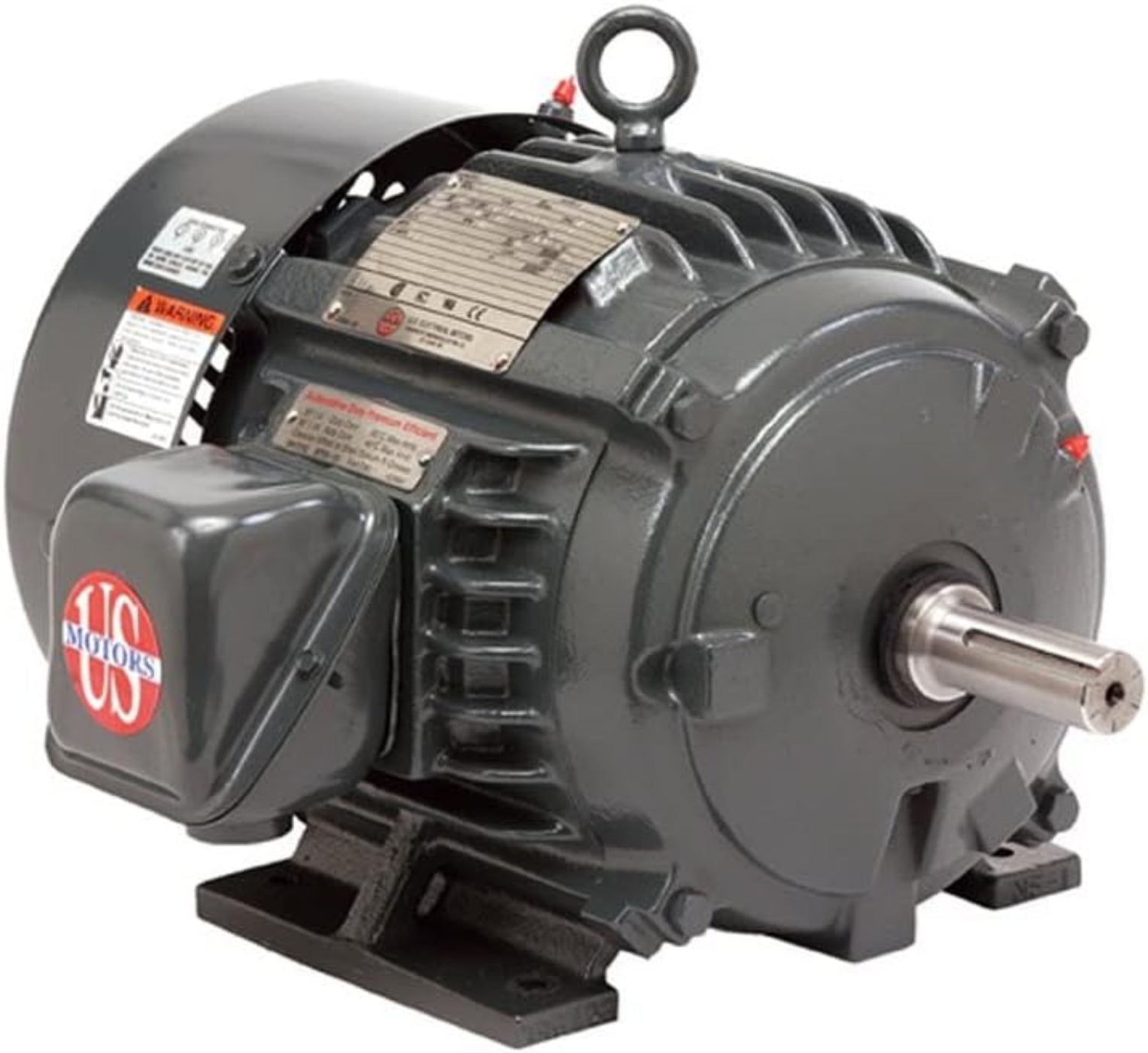

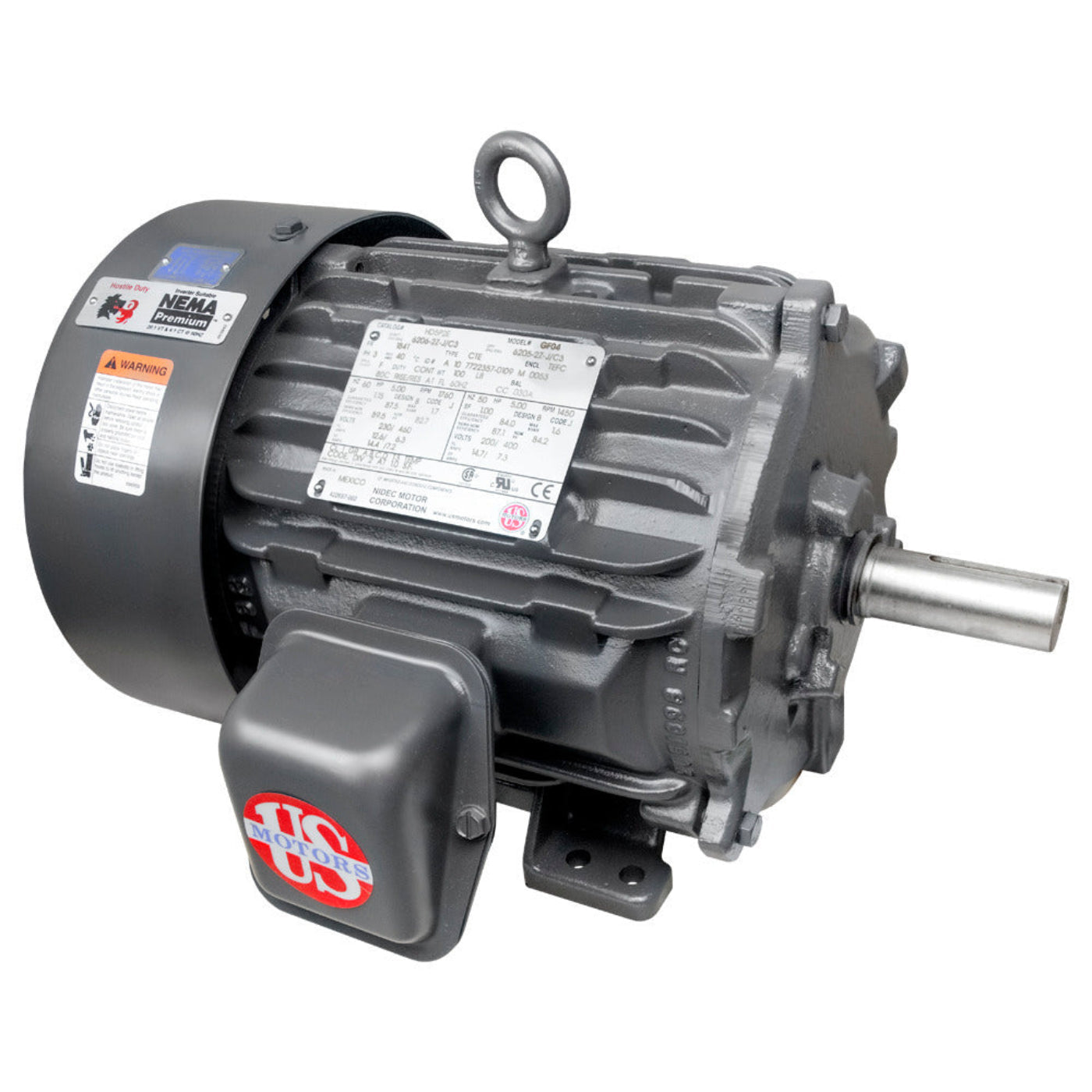

The Nidec HD7P2E is a 7.5 horsepower electric motor designed for demanding applications. This motor features a Totally Enclosed Fan Cooled (TEFC) enclosure, providing reliable protection from dust and moisture. It operates at 1800 RPM and is versatile with its 230/460 volts capability.

Product Highlights

Ideal for use in industrial applications such as manufacturing and material handling industries, offering durability and efficiency.

Features

• 7.5 horsepower motor
• 213T frame size
• Three-phase power

Specifications

What our Experts Think

• High-Efficiency Performance

• Delivers 7.5 horsepower at 1800 RPM, perfect for industrial equipment requiring consistent power

• Operates on 230/460V three-phase power for balanced and reliable performance

• Achieves a full-load efficiency of 91.7%, reducing overall energy consumption

• Durable Construction

• Built with a 213T frame and rugged cast iron housing for durability in demanding conditions

• Totally Enclosed Fan Cooled (TEFC) enclosure offers protection from dust, dirt, and moisture

• Corrosion-resistant paint and zinc-plated hardware ensure the motor’s longevity

• Versatile & Easy Installation

• Rigid base mounting with a keyed shaft ensures secure installation

• Reversible rotation provides flexibility for different setups

• Class F insulation and Class B temperature rise ensures safe, reliable operation

Q&A

Q: What is the Nidec HD7P2E motor used for?
A: This motor is designed for general-purpose industrial applications, such as driving pumps, compressors, and conveyors in commercial or manufacturing settings.

Q: What are the key specifications of the HD7P2E motor?
A: The motor delivers 7.5 horsepower at 1800 RPM, operates on 230/460V three-phase power, and has a 213T frame size. It features a Totally Enclosed Fan Cooled (TEFC) enclosure for protection against dust and moisture.

Q: What is the service factor of this motor?
A: The HD7P2E motor has a service factor of 1.15, which means it can handle occasional overloads up to 15% beyond its rated capacity.

Q: What are the construction features of the motor?
A: The motor includes a rigid base mount, a keyed shaft (1-3/8" x 3-3/8"), and ball bearings for smooth operation. It uses Class F insulation, suitable for continuous duty in ambient temperatures up to 40°C.

Q: Is the motor compatible with variable frequency drives (VFD)?
A: Yes, the HD7P2E motor is compatible with VFDs, with a 20:1 variable torque and 5:1 constant torque range, allowing for versatile speed control.

Maintenance Tips

• Regular inspections: Conduct periodic visual and operational inspections to check for any signs of wear or damage.

• Lubrication: Ensure that the motor bearings are properly lubricated according to the manufacturer's specifications to reduce friction and wear.

• Cleaning: Keep the motor clean and free from dust, debris, and other contaminants that could impair its performance.

• Electrical checks: Regularly inspect electrical connections and insulation to prevent faults or damage.

• Cooling system: Ensure the motor's cooling system is functioning properly to maintain appropriate operating temperatures.

• Alignment: Verify that the motor and connected equipment are properly aligned to prevent undue stress or damage.
