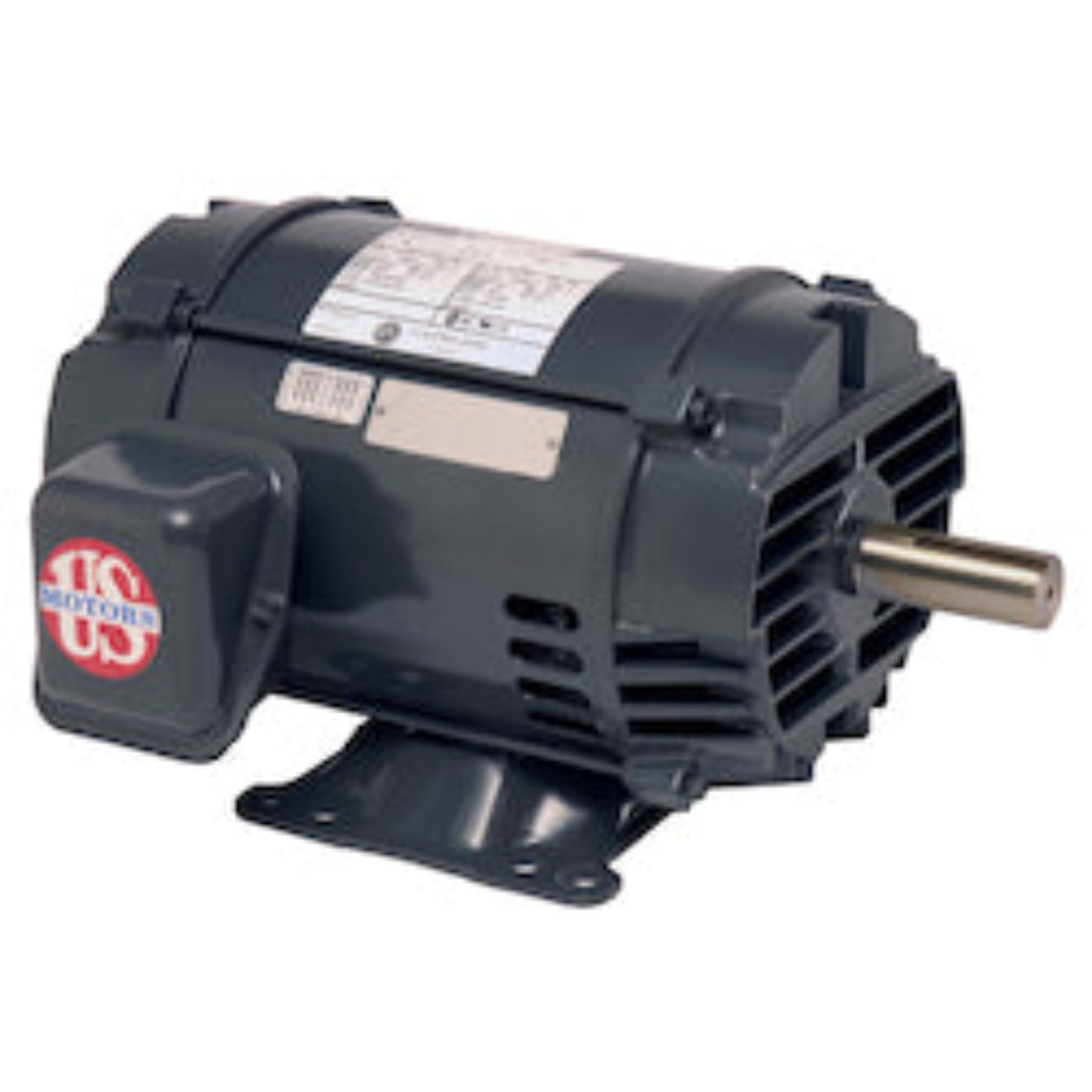

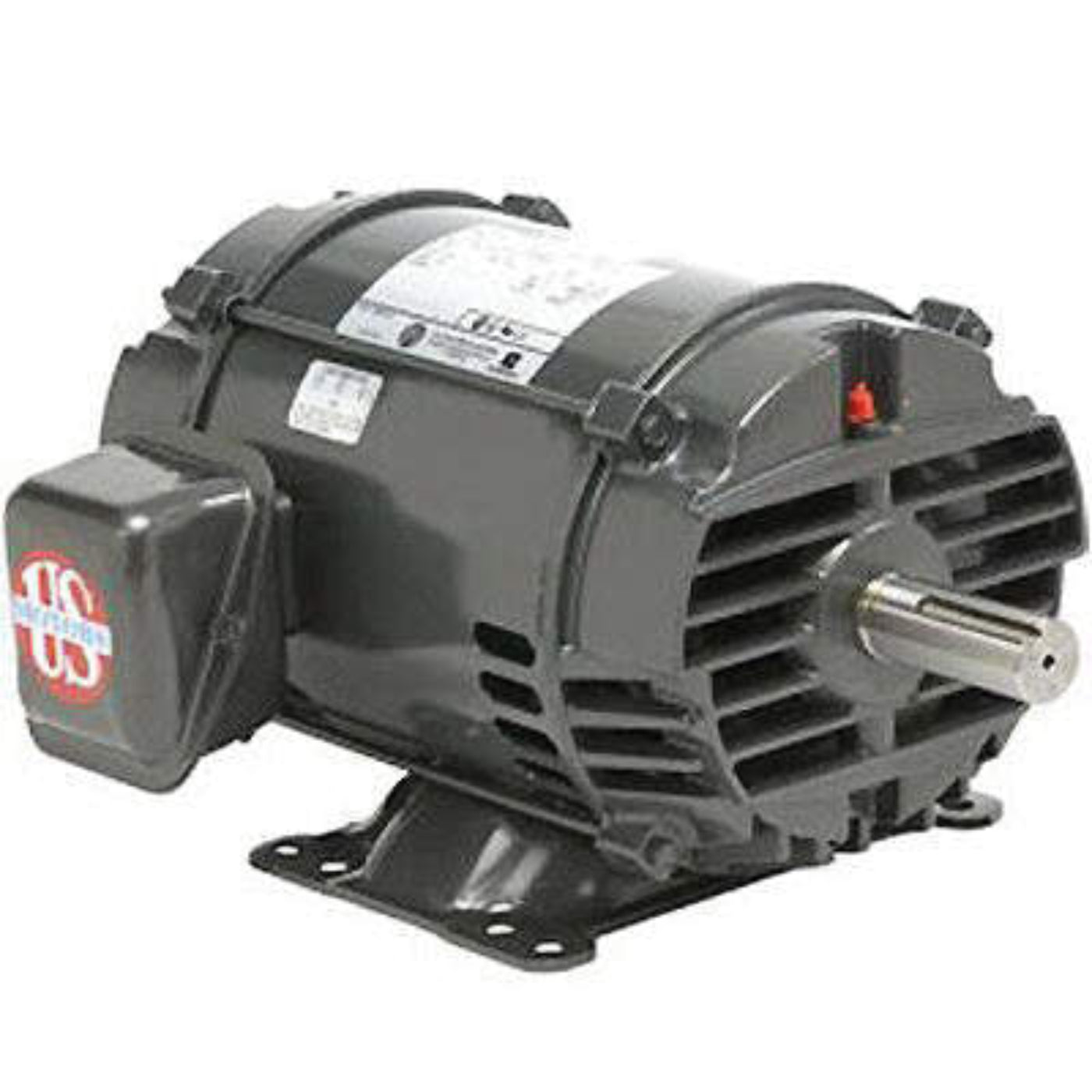

U.S. Motors D5P2D General Purpose Three Phase ODP Horizontal - Footed Motor - D5P2D

U.S. Motors D5P2D General Purpose Three Phase ODP Horizontal - Footed Motor - D5P2D

The U.S. Motors D5P2D is a general-purpose three-phase motor designed for various industrial applications. This motor provides reliable performance and is suitable for use in pumps, fans, compressors, and material handling equipment. It operates at 5 horsepower and reaches a speed of 1800 revolutions per minute.

Product Highlights

The D5P2D motor is engineered with a rolled steel frame and meets high standards of efficiency and durability. It features a continuous duty cycle and is designed for easy installation in horizontal footed applications.

Features

• Power Supply: 208-230/460 volts
• RPM: 1800
• Enclosure Type: Open Drip Proof (ODP)

Specifications

What our Experts Think

• Strong, Consistent Performance

• Provides 5 horsepower at 1800 RPM, perfect for a wide range of general-purpose industrial applications

• Operates on 208-230/460V three-phase power for reliable, balanced performance

• Built for Longevity

• Rugged rolled steel 184T frame ensures durability under continuous use

• Open Drip Proof (ODP) enclosure is suited for clean, indoor environments with adequate airflow

• Energy Efficient

• Offers a nominal efficiency of 89.5%, contributing to lower energy usage

• Designed with Class F insulation and a Class B temperature rise at service factor to enhance motor life

• Installation Flexibility

• Horizontal foot-mounted configuration allows for easy installation in various setups

• Reversible rotation adds versatility for integration into different equipment types

Q&A

Q: What is the U.S. Motors D5P2D motor used for?
A: This motor is ideal for general-purpose industrial applications, including pumps, fans, compressors, and conveyors in commercial or manufacturing settings.

Q: What are the key specifications of the D5P2D motor?
A: It delivers 5 horsepower at 1800 RPM, operates on 208-230/460V three-phase power, and comes with a 184T frame and rigid foot-mounted base. It features an Open Drip Proof (ODP) enclosure.

Q: Does the motor support overload protection?
A: Yes, it has a 1.15 service factor, allowing it to handle temporary overloads beyond its rated capacity.

Q: What are its construction and insulation features?
A: The motor includes Class F insulation with a Class B temperature rise at full load. It has a rolled steel frame, aluminum end shields, and double-shielded ball bearings for durability.

Q: What is the maximum ambient temperature rating?
A: The D5P2D is rated for continuous operation in ambient temperatures up to 40°C.

Maintenance Tips

• Ensure Proper Ventilation: Install the motor in a well-ventilated area to prevent overheating.

• Inspect Electrical Connections: Regularly check wiring for signs of wear, corrosion, or loose connections to prevent electrical faults.

• Monitor Operating Voltage: Confirm that the motor operates within its rated voltage range (208-230/460V) to avoid damage.

• Lubricate Bearings: Apply lubricant to bearings as specified by the manufacturer to reduce friction and prevent wear.

• Keep the Motor Clean: Remove dust and debris from the motor and surrounding area to maintain efficiency and prevent overheating.

• Test Thermal Overload Protection: Ensure the motor's thermal overload protection is functioning correctly to prevent overheating.

• Monitor Ambient Temperature: Operate the motor within the recommended ambient temperature range to prevent overheating and ensure efficient operation.
