Save the cost of an expensive crane with a Star Industries Quick Tach (QT) Truss Boom.

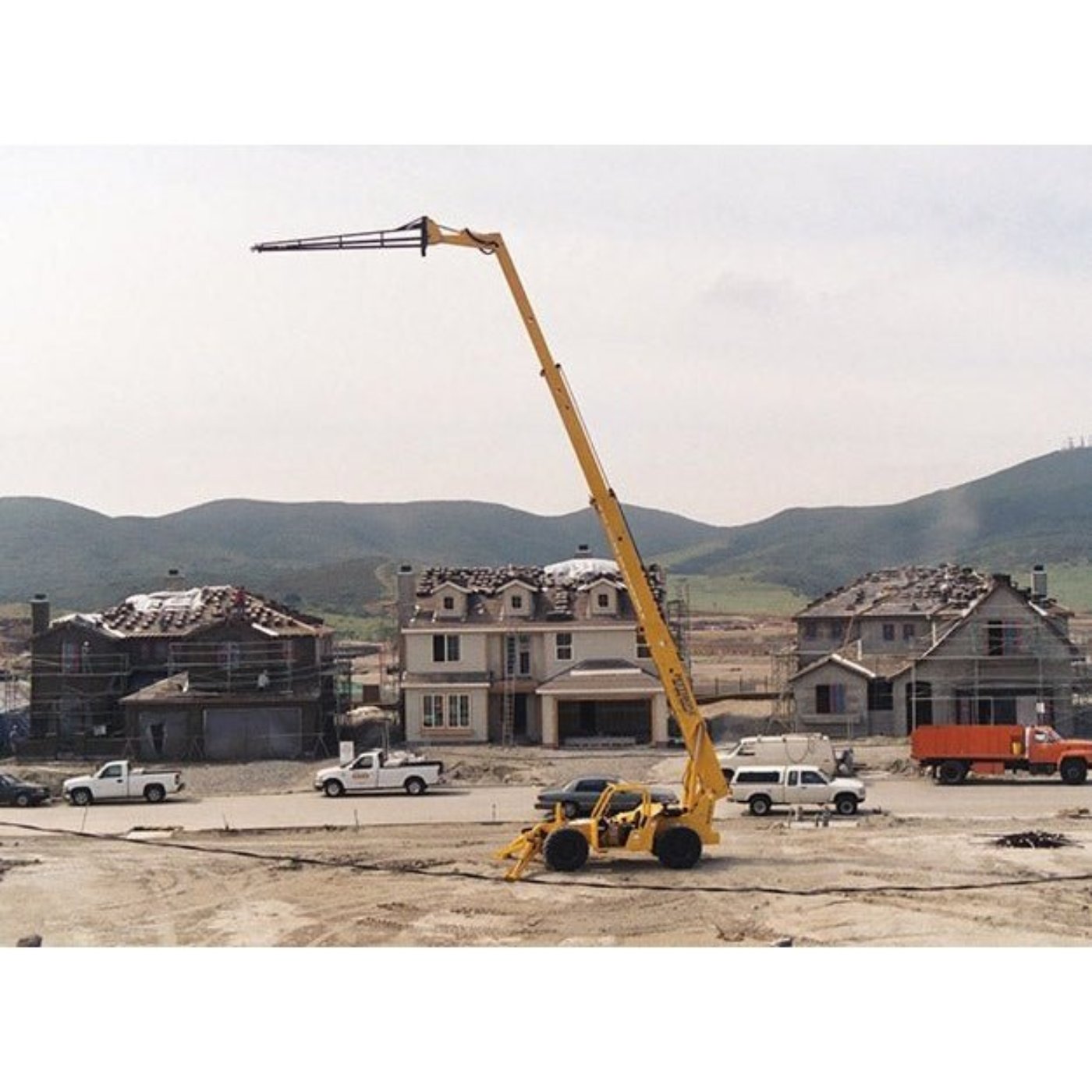

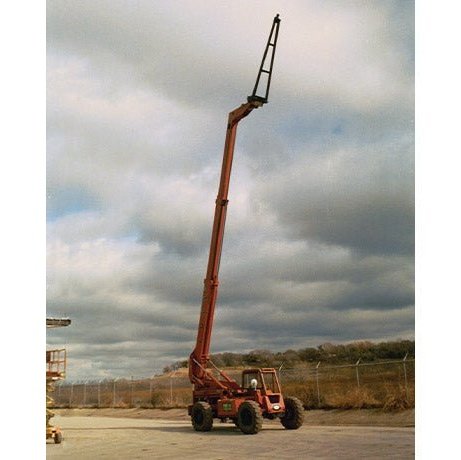

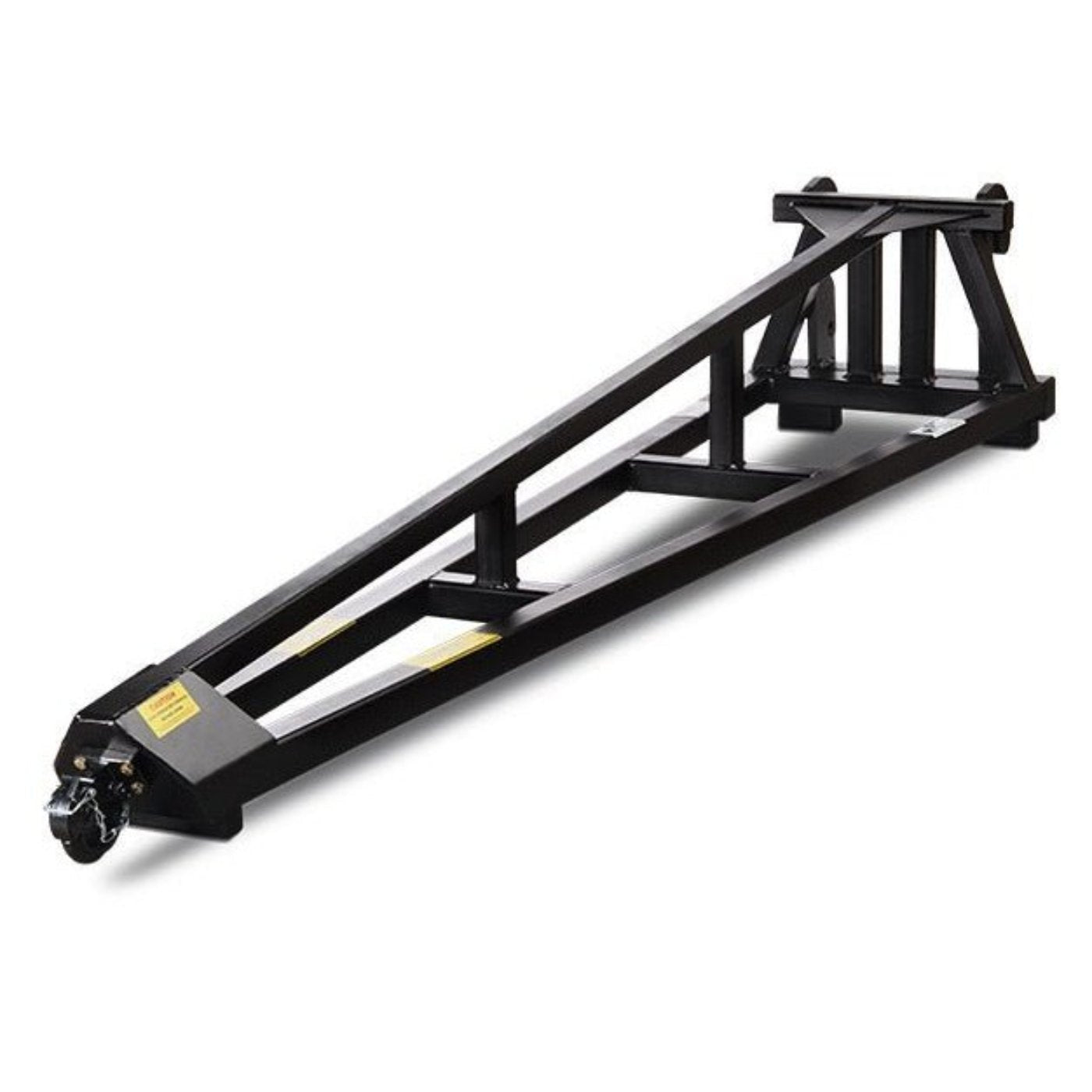

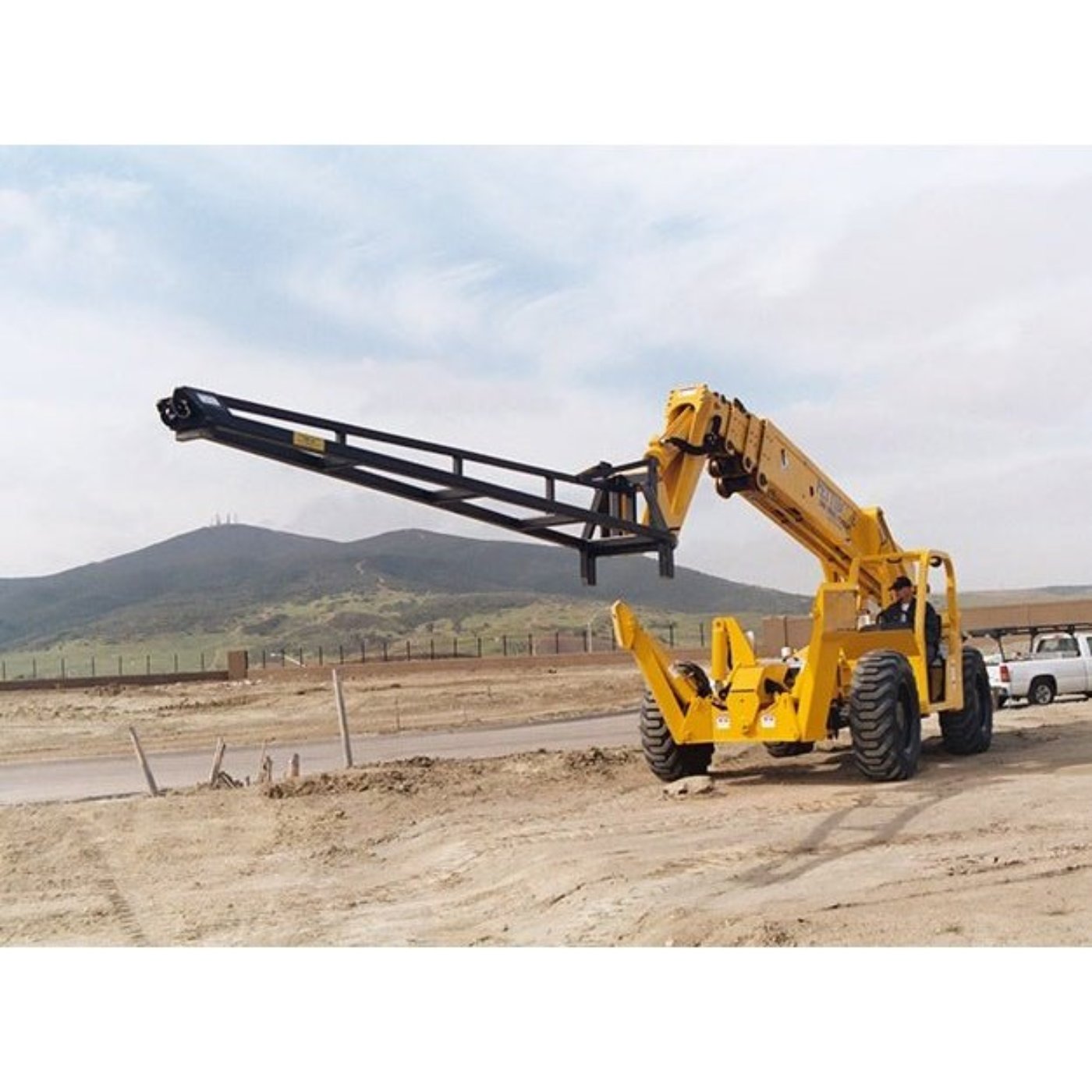

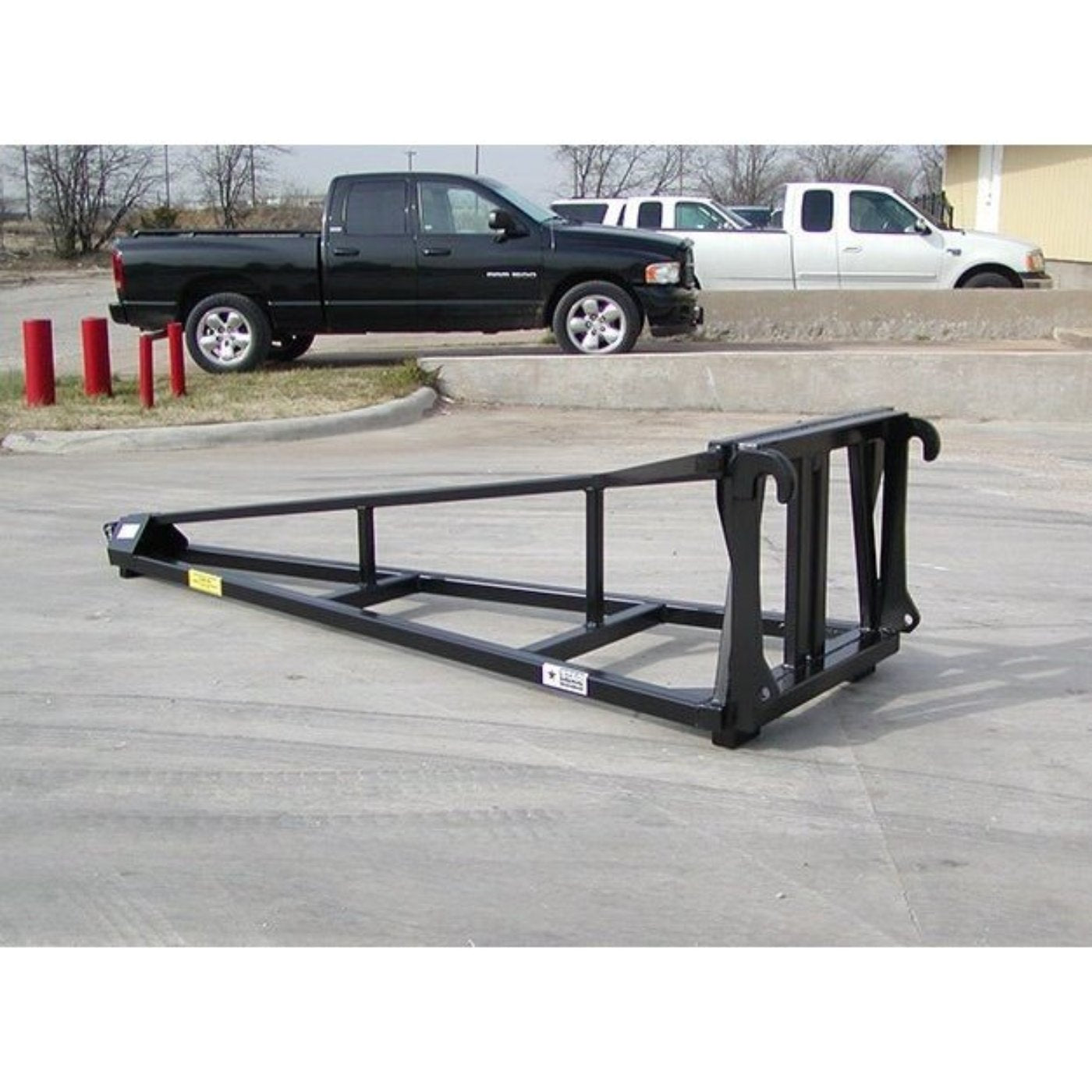

The Star Industries Quick-Tach Truss Boom is perfect for various crane operations, such as erecting metal buildings, setting wooden trusses, and constructing post frame buildings. With its 15' vertical reach and load capacity ranging from 2,000 lbs to 22,000 lbs, it is a versatile and reliable option for any job.
Features
- Combine the lifting capability of a crane with the speed and manoeuvrability of an extendable reach forklift
- Suitable for use on most surfaces including muddy and rough job sites
- Built to last with fully welded, square tube construction for extra strength and durability.
Specifications
| Style | Model | A Effective Length | B Effective Length | C Back Width | Capacity | Empty Weight | Overall Length |
|---|---|---|---|---|---|---|---|
| Low Profile Truss Boom |
1302 | 2 ft | 26.5” | 31” | 10,000 lbs | ± 335 lbs | 2’ – 5” |
| 1302-12K | 2 ft | 26.5” | 31” | 12,000 lbs | ± 341 lbs | 2’ – 5” | |
| 1303 | 2 ft | 36” | 40” | up to 22,000 lbs | ± 550 lbs | 2’ – 5” | |
| 1310 | 10 ft | 26.5” | 31” | 2,000 lbs | ± 480 lbs | 10’ – 5” | |
| 1320 | 12 ft | 26.5” | 31” | 2,000 lbs | ± 560 lbs | 12’ – 0” | |
| 1330 | 15 ft | 26.5” | 31” | 2,000 lbs | ± 640 lbs | 15’ – 5” | |
| Wide Back Truss Boom |
1325 | 12 ft | 36” | 45” | 2,000 lbs | ± 90 lbs | 12’ – 4” |
| 1335 | 15 ft | 36” | 45” | 2,000 lbs | ± 795 lbs | 15’ – 4” |

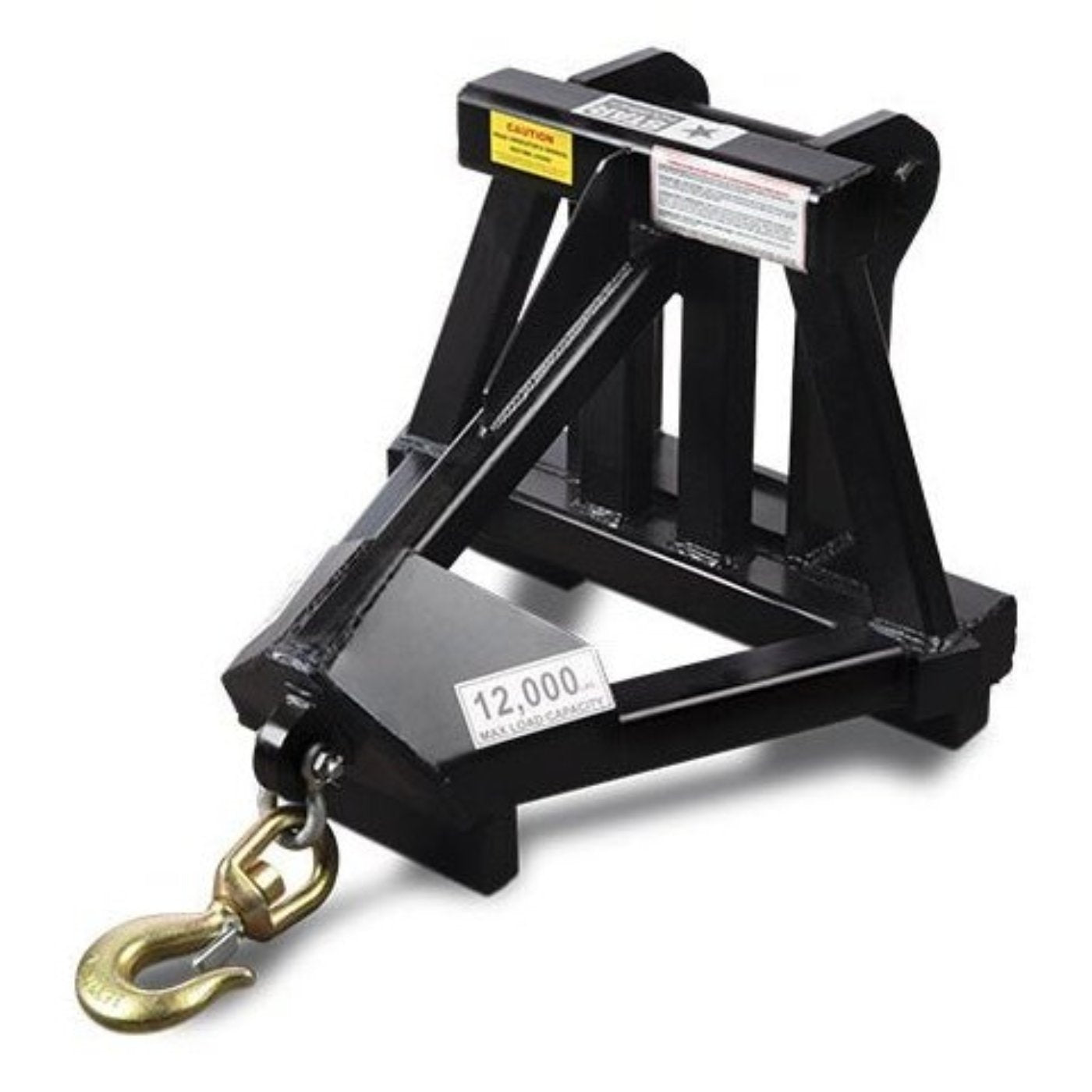

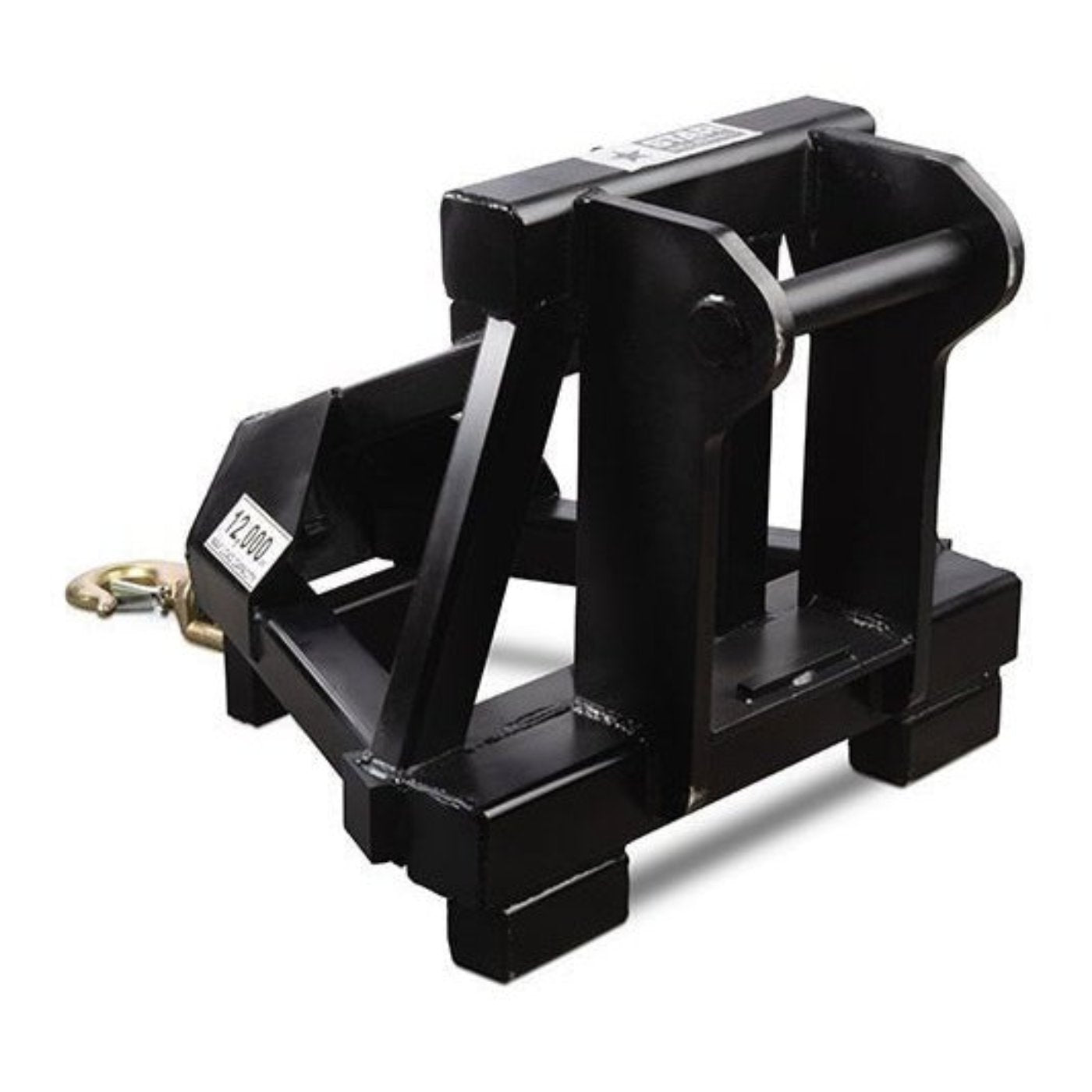

- The standard “Low Profile” Truss Boom is used with most forklift models except those that utilize an extra wide quick-tach design.
- JCB Q-Fit, Gehl Dynacarrier, Bobcat Versa Handler and Ingersoll-Rand models VR518, VR623, VR638 quick-tach designs require the “Wide Back”.
- Dimensions and empty weights will vary depending on which Quick-Tach is required. Above load ratings are for the truss boom only and do not reflect actual forklift load capabilities. Forklift make, model, quick-tach style and serial number may be required when ordering.
Danger: Do NOT use without installing retaining pins behind the heel of each fork and securing with hairpins or cotter pins. Safety chain(s) must also be used. Wrap chain around a strong part of the fork carriage and secure with locking grab hook.
