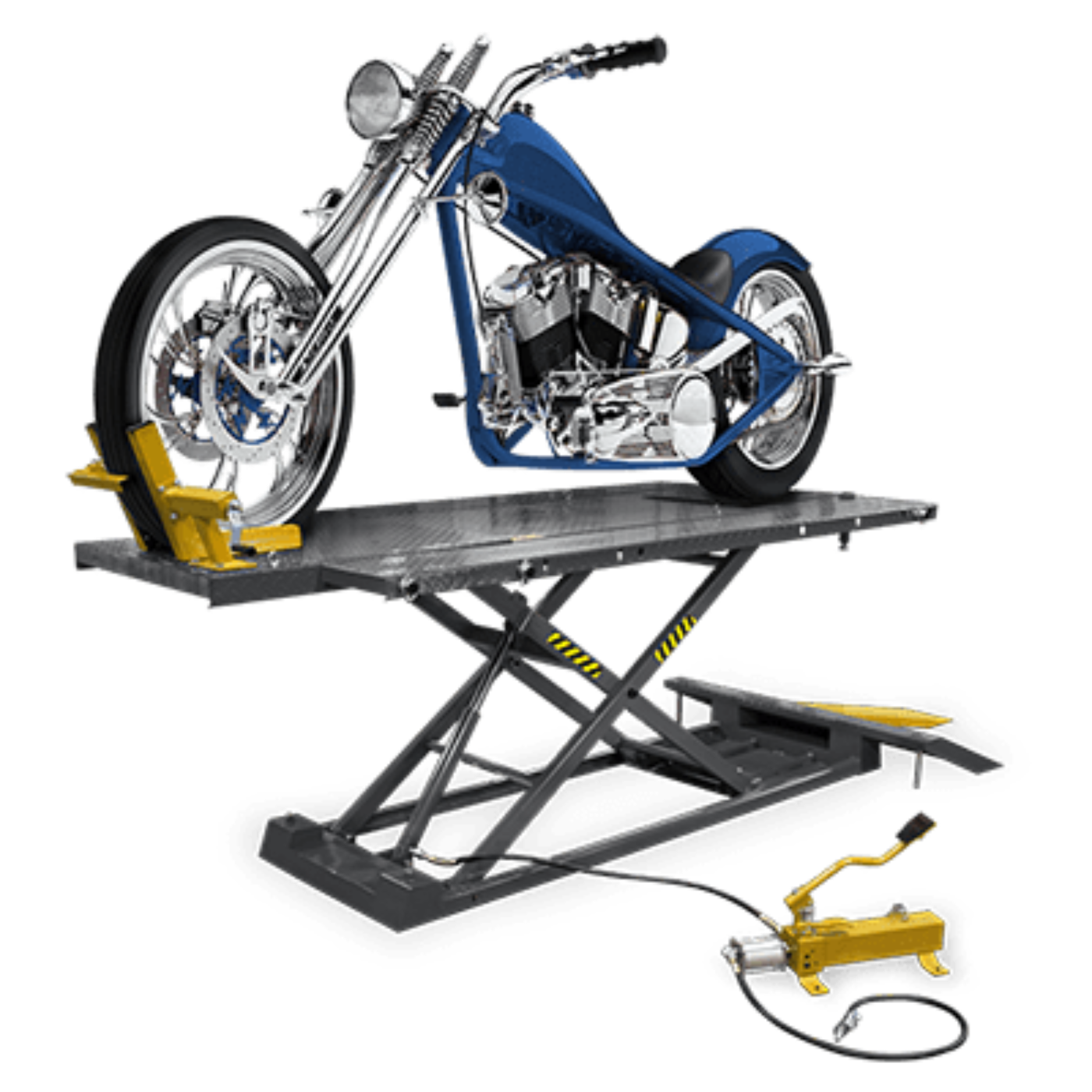

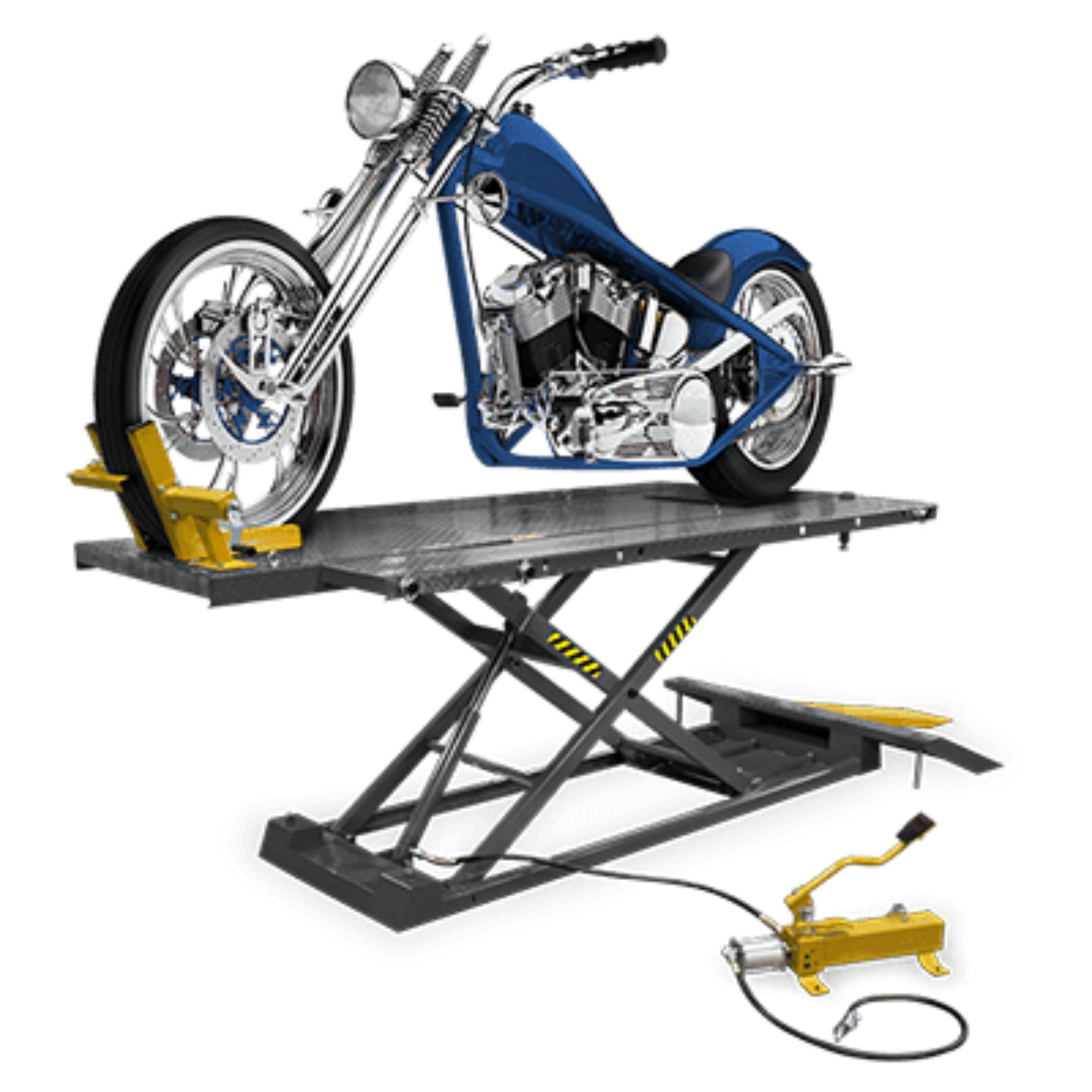

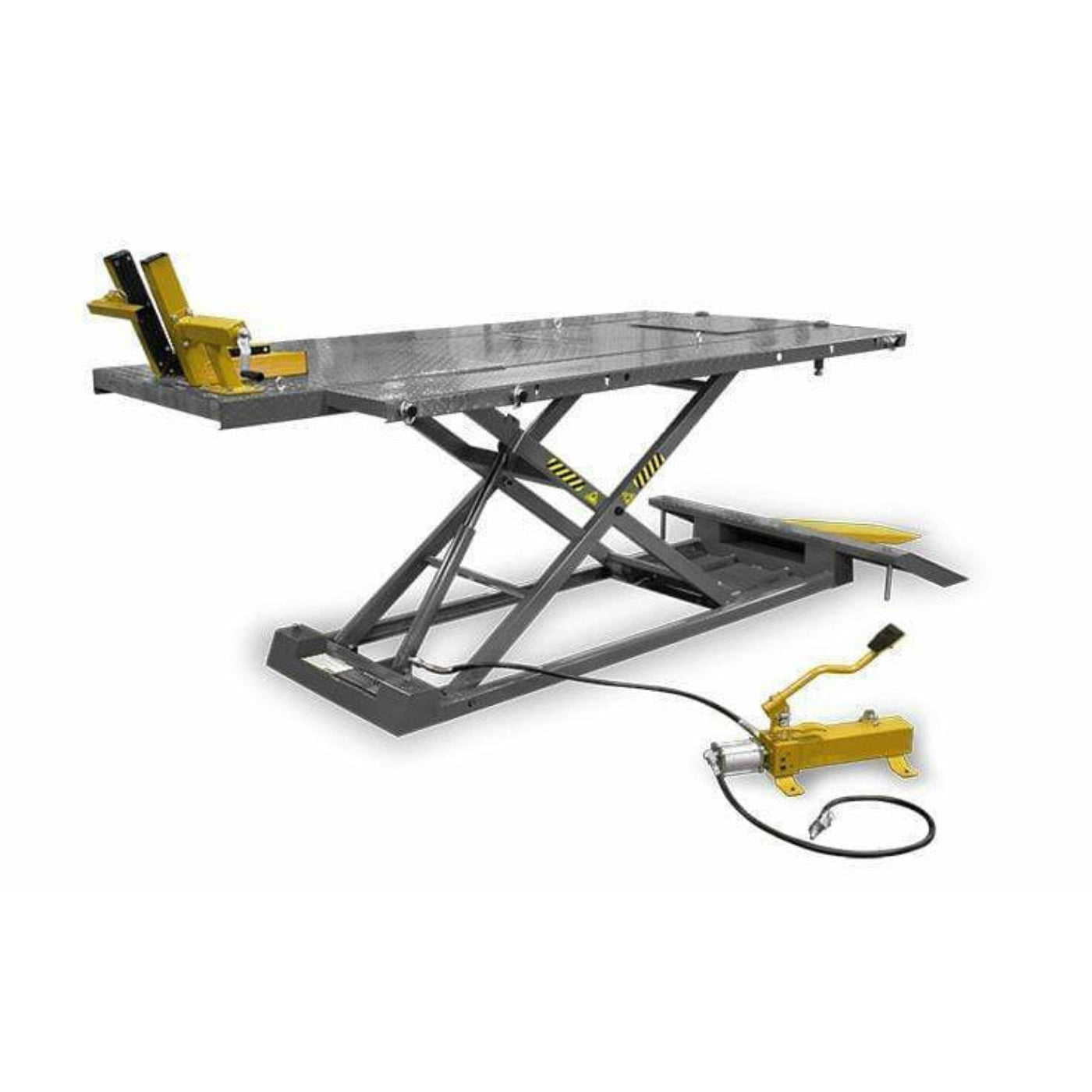

The RML-1500XL motorcycle lift offers an incredible 1,500-lb. lift capacity. It boasts exceptionally large platform to handle virtually any motorcycle or ATV in its weight class.
A Higher Capacity, Super-Stretch Motorcycle Lift
With its wide, stable stance, stretched tabletop and super‐tall lifting height, the RML‐1500XL motorcycle and ATV lift greets you like the badass it is—rugged and tough with the muscle to prove it. We use rugged 12-gauge metal with superior welds and a durable powder‐coat finish. Nope, wimpy is not on our list of features.
There are copycats everywhere, but just because it looks like a Ranger doesn’t mean it works like a Ranger or lasts as long as a Ranger. Never trust a wannabe.
If you’re looking for lifting capacity and capability, this motorcycle lift delivers. A long list of features includes an extended work platform, 12‐gauge steel construction, built‐in retractable swivel casters, reversible bolt‐on side decks, a cheater ramp, automatic safety locks, support poles, and a single hydraulic lifting cylinder and retracting rear wheel deck.
Our reputation is one of not only legendary products, but legendary technical support. We're obsessed with making sure that you are a BendPak / Ranger fan for life, so we give you the very best after-sale support in the world. It's both our pleasure and our specialty. The moment you purchase a product from BendPak / Ranger, you became part of a family of folks who have a passion for automobiles and service equipment, just like you. We're just happy to take care of our own and committed to making it as easy as possible to solve your equipment issues. That being said, this motorcycle lift is made to last without issues down the road. With BendPak's award‐winning Certified Service™ program, it's step 1 and you're done.

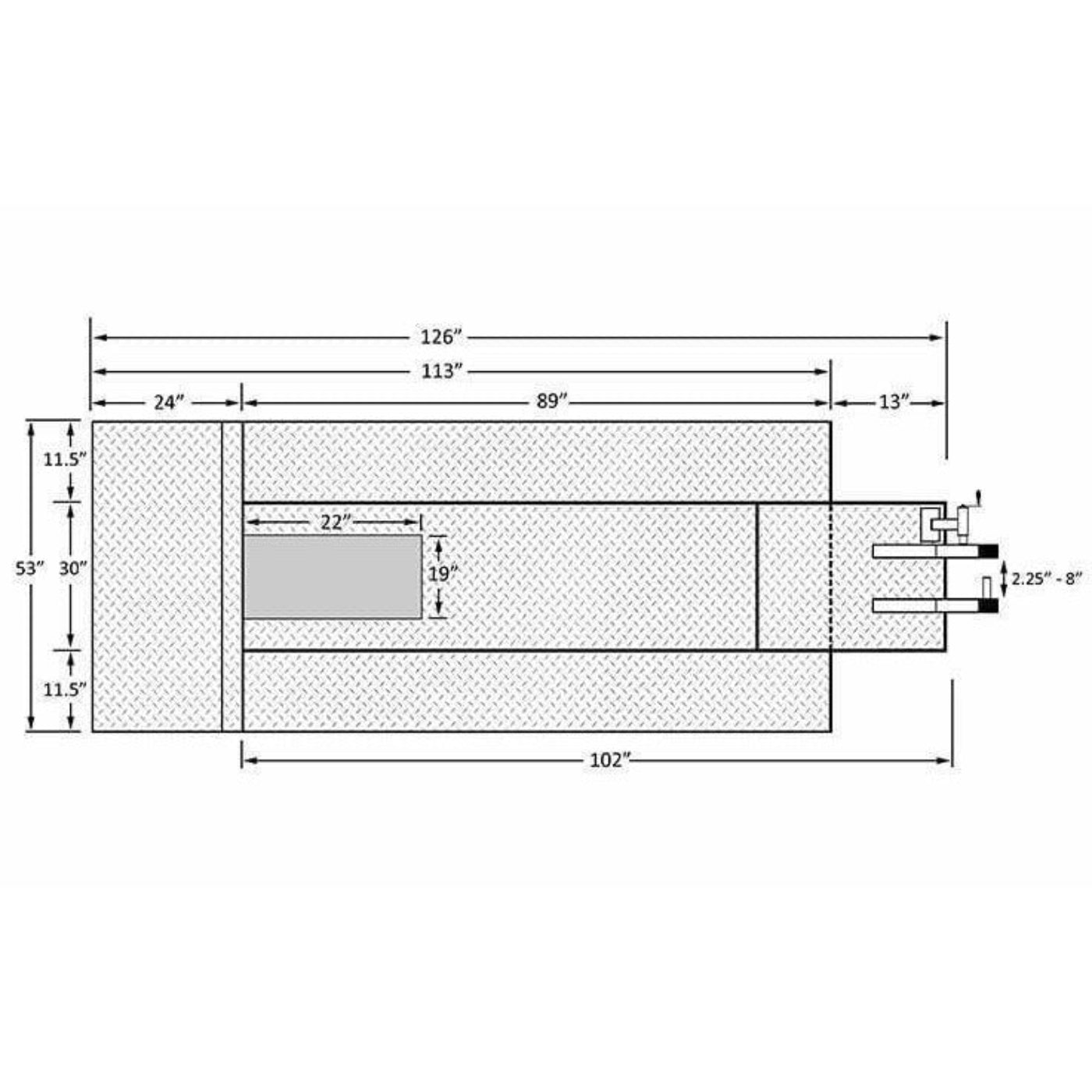

Lifting Capacity | 1,500 lbs. (680 kg) |
---|---|
Power Supply | Air / Hydraulic |
Main Platform Length | 79.5" (2,019 mm) |
Main Platform Length w/ Extension | 99.75" (2,534 mm) |
Main Platform Width | 29.5" (749 mm) |
Overall Width with Side Decks | 51" (1,295 mm) |
Overall Length w/ Extension & Ramp | 134.75" (3,422 mm) |
Max Lifting Height | 45" (1,143 mm) |
Lowered Height | 7.75" (197 mm) |
Platform Height – 1st Lock Position | 24" (610 mm) |
Platform Height – 2nd Lock Position | 28.75" (730 mm) |
Platform Height – 3rd Lock Position | 32.5" (825 mm) |
Platform Height – 4th Lock Position | 36" (902 mm) |
Platform Height – 5th Lock Position | 38.5" (978 mm) |
Platform Height – 6th Lock Position | 41" (1,041 mm) |
Air Supply Requirement | 90 to 160 psi |
Shipping Weight | 856 lbs. (388 kg) |
Shipping Dimensions | 37'' x 91'' x 29'' (939 mm x 2,311 mm x 736 mm) |
Ranger RML-1500XL User Manual
Ranger RML-1500XL Sales Sheet
1,500-Lb. Capacity: Handles motorcycles, ATVs, and even lawn equipment with confidence and stability.
Extra-Long Platform: Extended deck accommodates longer bikes and custom choppers with ease.
Front Wheel Vise Included: Deluxe vise keeps the front wheel locked in place for safer, hands-free maintenance.

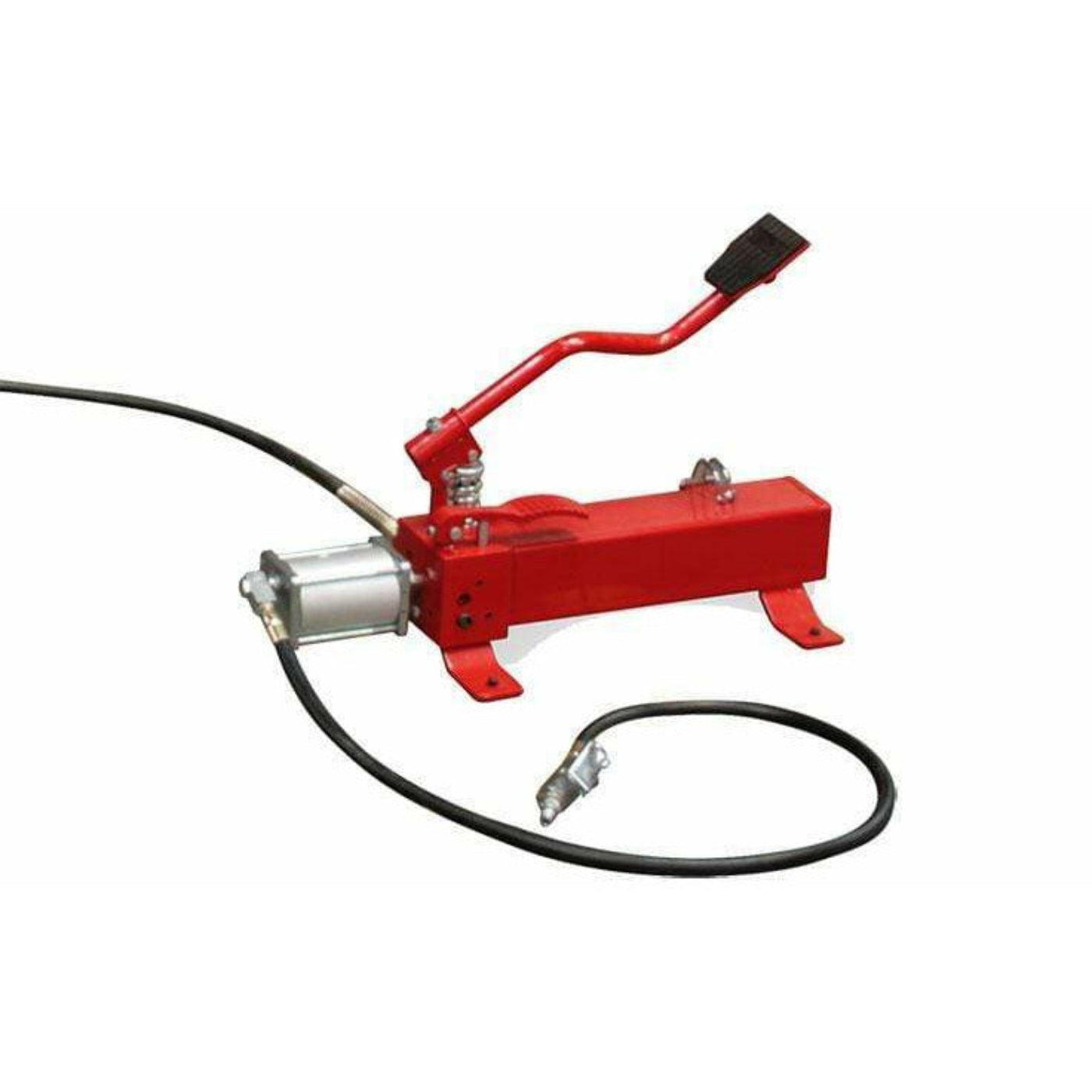

Smooth Lifting: Air/hydraulic system offers controlled, effortless lifting with your shop compressor.
Built Tough: Powder-coated steel frame resists rust, wear, and heavy use.
Fold-Down Ramp: Makes loading and unloading bikes quick and easy.
Q: What is the Ranger RML-1500XL used for?
A: It’s a professional-grade motorcycle lift platform designed for servicing motorcycles, ATVs, and similar vehicles.
Q: What is the lifting capacity?
A: It supports up to 1,500 lbs, making it ideal for most bikes, including cruisers and touring models.
Q: What is the lift range?
A: The platform lifts from 7" to 43", providing excellent under-vehicle access for maintenance.
Q: Does it include a front wheel vise?
A: Yes, it comes with a deluxe front wheel vise to securely stabilize bikes during service.
Q: Is it compatible with wide bikes or ATVs?
A: Yes, the extra-long and extended platform accommodates wide and long motorcycles, trikes, and ATVs.
Q: How is it powered?
A: The lift operates with air-over-hydraulic power for smooth, controlled lifting.
Inspect Before Use: Check for hydraulic leaks, worn parts, and secure bolts before each lift.
Lubricate Joints: Grease pivot points and moving parts monthly for smooth operation.
Keep Surface Clean: Wipe down platform and wheel vise after use to prevent debris buildup.
Hydraulic Fluid Check: Inspect fluid level regularly and top off with approved hydraulic oil.
Test Safety Locks: Engage and release safety locks periodically to ensure proper function.
Store Properly: Keep lift in a dry, level area when not in use to prevent rust and wear.
Avoid Overloading: Never exceed the 1,500-lb. weight capacity to maintain lift integrity.
