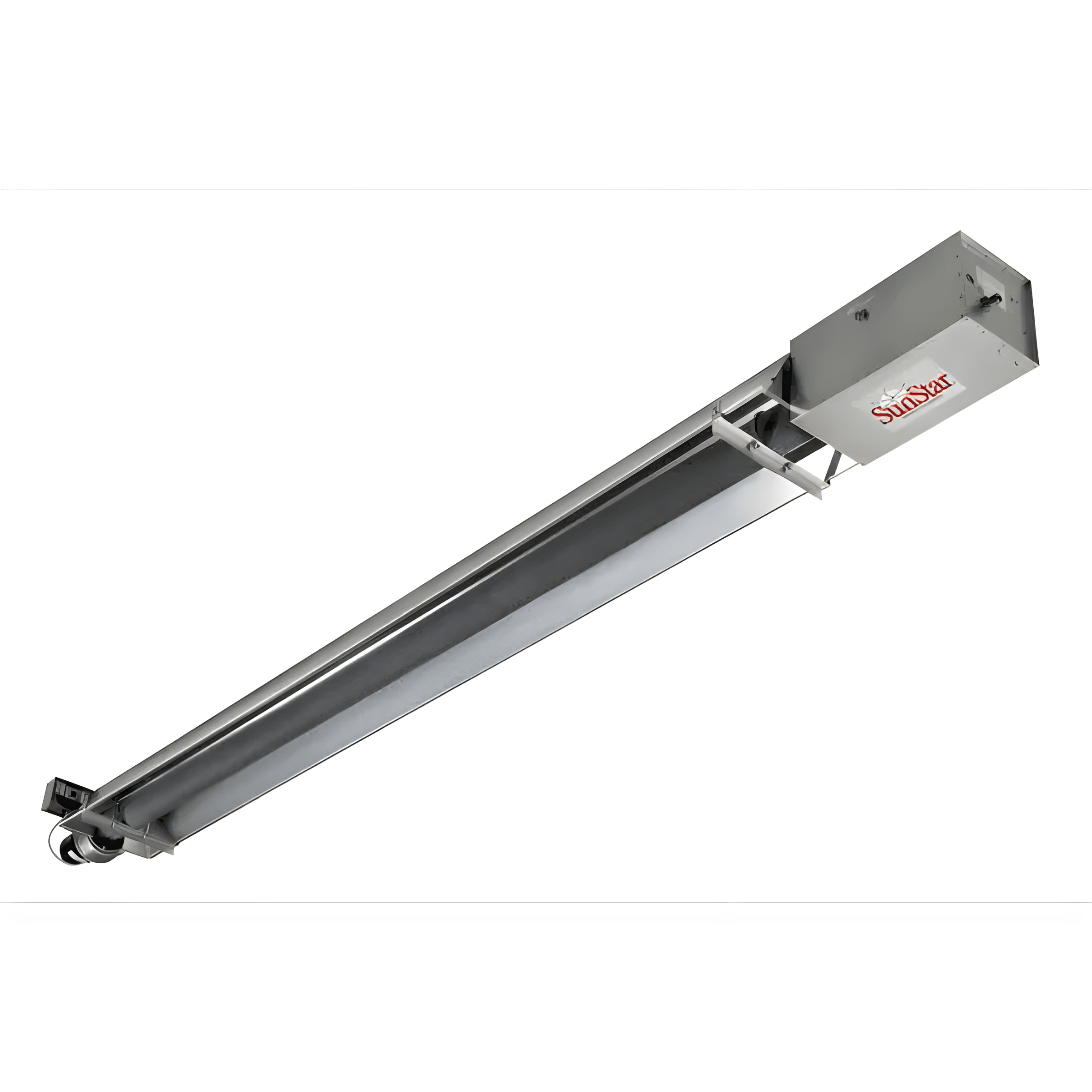

Sunstar Industrial 100k Btu/30ft Straight Tube Tough Guy Heater/ng/single Stage

Sunstar Industrial 100k Btu/30ft Straight Tube Tough Guy Heater/ng/single Stage

With its advanced Pull Through System, the Sunstar Industrial Heater pulls products of combustion through the chamber, increasing radiant efficiency and safety. The heavy-duty draft inducer assembly is equipped with a permanently lubricated, totally enclosed ball bearing motor, providing maintenance-free operation.

Flexible and Certified Performance

This heater comes in six different Btu sizes and is CSA design certified, guaranteeing compliance with stringent safety standards. It supports both sidewall and through-the-roof venting, and can operate in vented or indirect vented modes. The package includes a 36″ stainless steel gas connector and a no-draft hood, ensuring a totally enclosed combustion chamber.

Features

• Completely aluminized steel construction for high humidity and corrosive environments

• Pull Through System - products of combustion are pulled through the combustion chamber for increased radiant efficiency and greater safety

• 6 different Btu sizes

• CSA design certified

• Sidewall or through the roof venting

• Vented or indirect vented operation

• Includes 36″ stainless steel gas connector

• No draft hoods, totally enclosed combustion chamber

• Heavy duty draft inducer assembly with permanently lubricated, totally enclosed and heavy duty ball bearing motor for maintenance-free operation

• 30 second per-purge period before ignition

• Diaphragm air switch for proof of venting before gas flow and ignition

• Heavy duty cast iron burner

• Reliable direct spark ignition system and 100% Gas Shut-Off Safety Control

• Inside or outside air for combustion (Up to 50 ft. outside combustion air capability)

• Diagnostic Monitoring Light System

• 4” O. D. heat treated aluminized steel combustion chamber (10’ length)

• Aluminized steel radiant tubes

• Suitable for horizontal or angle mounting up to 45°

• Up to 75 feet sidewall vent capability

• Highly efficient aluminum reflectors

• Individual reflectors can be rotated up to 45° to direct heat where needed

• Natural Gas

• 100,000 BTU

• 4" vent connection

• Not for use in residential applications
