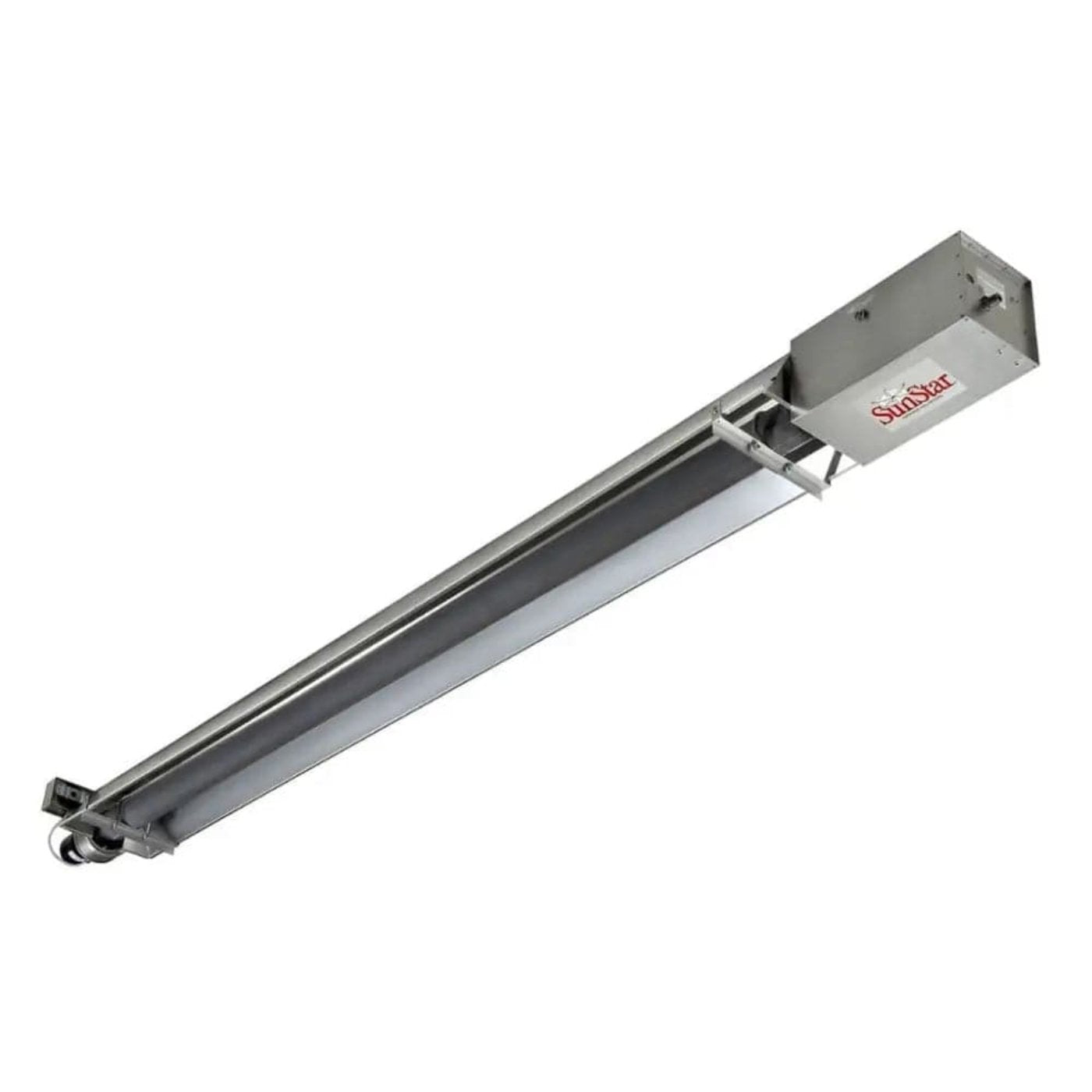

Sunstar Industrial 100k Btu/40ft Straight Tube Heater/lp/single Stage

Sunstar Industrial 100k Btu/40ft Straight Tube Heater/lp/single Stage

Upgrade your industrial heating capabilities with the SunStar Industrial 100K BTU Straight Tube Heater, optimized for propane fuel and designed to deliver exceptional performance and safety in non-residential environments. Featuring a Pull Through System, this heater enhances radiant efficiency by effectively pulling combustion products through its enclosed chamber, ensuring superior safety and energy efficiency. CSA design certified, it offers flexible venting options—suitable for sidewall or roof installations—and supports both vented and indirect vented operations to accommodate various setup requirements.

Crafted with a heavy-duty cast iron burner and a 4” O.D. heat-treated aluminized steel combustion chamber (10’ length), this heater ensures durability and optimal heating performance. It comes equipped with standard 10’ highly emissive radiant tubes and features reflectors that can be adjusted up to 45° to direct heat precisely where needed. With up to 75 feet of sidewall vent capability and the ability to use inside or outside air for combustion (up to 50 ft. outside air capability), this heater is ideal for a wide range of industrial applications.

Features

• Pull Through System - products of combustion are pulled through the combustion chamber for increased radiant efficiency and greater safety

• 6 different Btu sizes

• CSA design certified

• Sidewall or through the roof venting

• Vented or indirect vented operation

• Includes 36″ stainless steel gas connector

• No draft hoods, totally enclosed combustion chamber

• Heavy duty draft inducer assembly with permanently lubricated, totally enclosed and heavy duty ball bearing motor for maintenance-free operation

• 30 second per-purge period before ignition

• Diaphragm air switch for proof of venting before gas flow and ignition

• Heavy duty cast iron burner

• Reliable direct spark ignition system and 100% Gas Shut-Off Safety Control

• Inside or outside air for combustion (Up to 50 ft. outside combustion air capability)

• Diagnostic Monitoring Light System

• 4” O. D. heat treated aluminized steel combustion chamber (10’ length)

• Standard highly emissive radiant tubes (10’ lengths)

• Suitable for horizontal or angle mounting up to 45°

• Up to 75 feet sidewall vent capability

• Highly efficient aluminum reflectors

• Individual reflectors can be rotated up to 45° to direct heat where needed

• Liquid Propane

• 100,000 BTU

• 4" vent connection

• Not for use in residential applications
