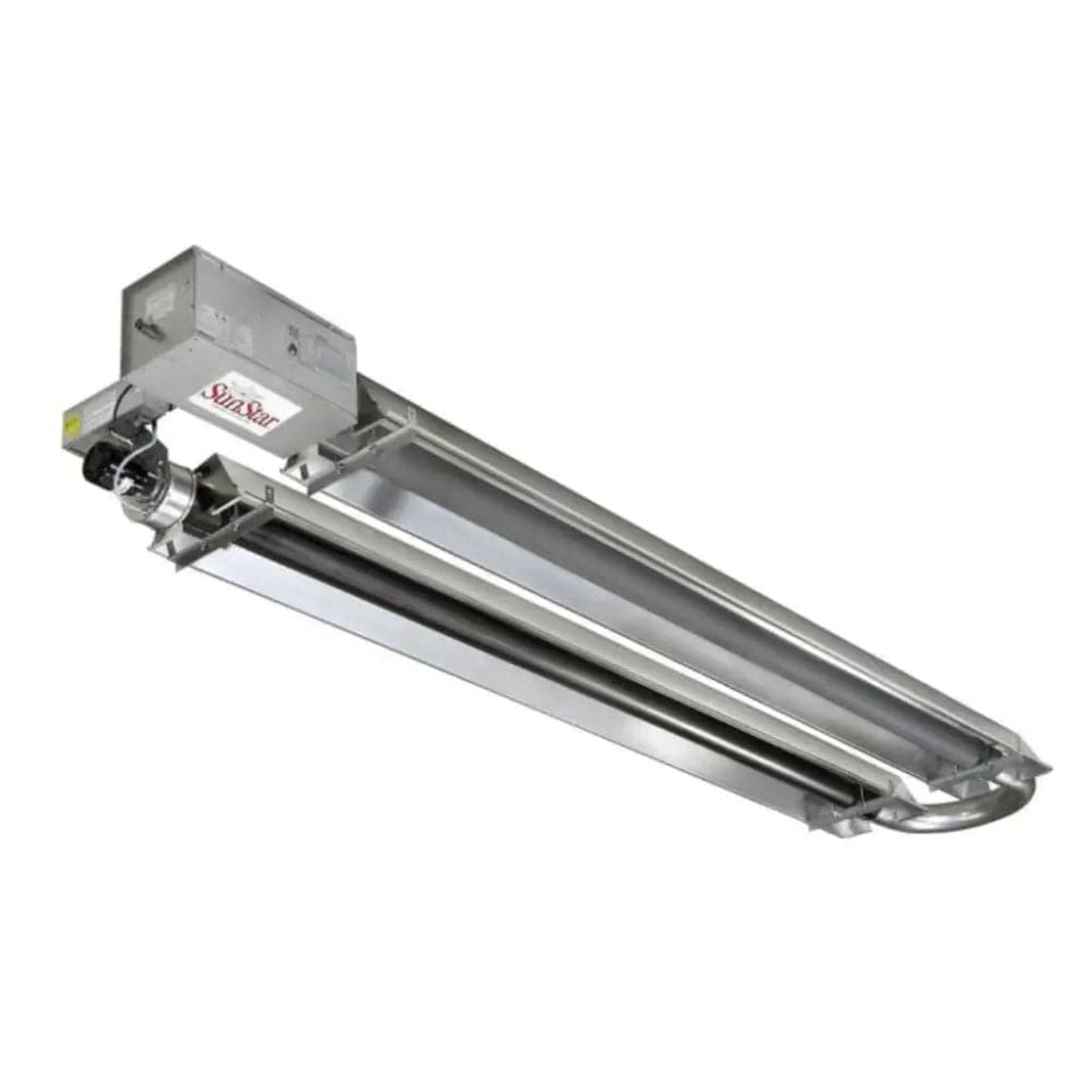

Sunstar Industrial 175k Btu/40ft U Tube Heater/ng/single Stage

Sunstar Industrial 175k Btu/40ft U Tube Heater/ng/single Stage

Enhance your industrial heating setup with the Sunstar Industrial 175k BTU/40ft U Tube Heater powered by natural gas. This high-performance heater is designed for non-residential environments, offering robust features and reliable operation to ensure consistent warmth.

The Sunstar Industrial 175k BTU/40ft U Tube Heater incorporates a pull-through system that efficiently pulls combustion products through the chamber, maximizing radiant efficiency and safety. With CSA design certification, it meets stringent standards for quality and safety. It supports both sidewall and through-the-roof venting options, providing flexibility in installation for vented or indirect vented operation.

Featuring a 36″ stainless steel gas connector and a totally enclosed combustion chamber without draft hoods, this heater ensures safe and efficient operation. The heavy-duty draft inducer assembly with a permanently lubricated, heavy-duty ball-bearing motor offers maintenance-free performance. A 30-second per-purge period before ignition and a diaphragm air switch provide additional safety measures by verifying venting before gas flow and ignition.

Features

• Includes 43503210, 44137000, 43208020

• Pull Through System - products of combustion are pulled through the combustion chamber for increased radiant efficiency and greater safety

• 6 different Btu sizes

• CSA design certified

• Sidewall or through the roof venting

• Vented or indirect vented operation

• Includes 36″ stainless steel gas connector

• No draft hoods, totally enclosed combustion chamber

• Heavy duty draft inducer assembly with permanently lubricated, totally enclosed and heavy duty ball bearing motor for maintenance-free operation

• 30 second per-purge period before ignition

• Diaphragm air switch for proof of venting before gas flow and ignition

• Heavy duty cast iron burner

• Reliable direct spark ignition system and 100% Gas Shut-Off Safety Control

• Inside or outside air for combustion (Up to 50 ft. outside combustion air capability)

• Diagnostic Monitoring Light System

• 4” O. D. heat treated aluminized steel combustion chamber (10’ length)

• Standard highly emissive radiant tubes (10’ lengths)

• Suitable for horizontal or angle mounting up to 45°

• Up to 75 feet sidewall vent capability

• Highly efficient aluminum reflectors

• Individual reflectors can be rotated up to 45° to direct heat where needed

• Natural Gas

• 175,000 BTU

• 4" vent connection

• Not for use in residential applications
