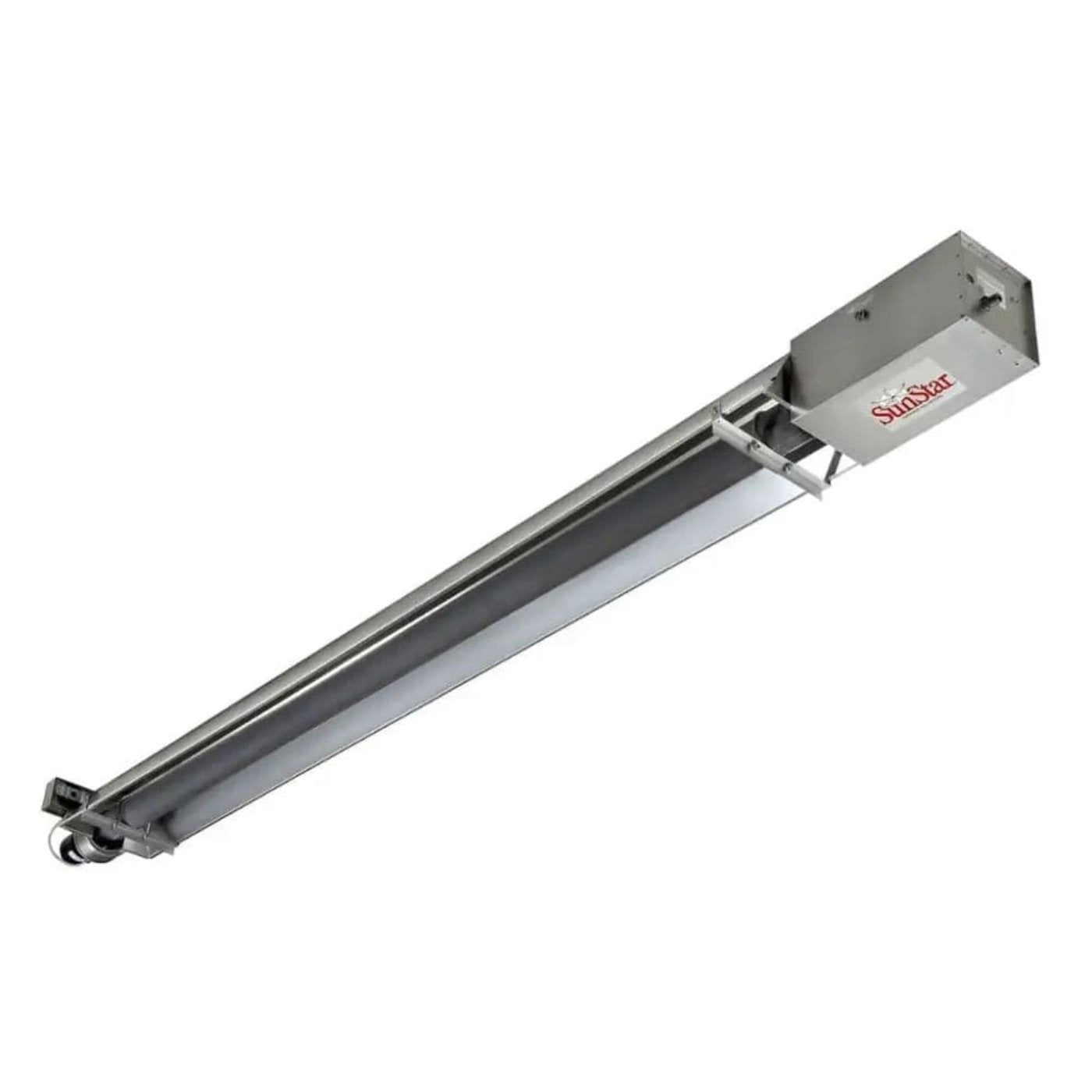

Sunstar Industrial 175k Btu/50ft Straight Tube Tough Guy Heater/ng/single Stage

Sunstar Industrial 175k Btu/50ft Straight Tube Tough Guy Heater/ng/single Stage

Boost industrial heating efficiency with the Sunstar Industrial 175k Btu/50ft Straight Tube Tough Guy Heater/ng/single Stage. Crafted from robust aluminized steel, this heater is designed to withstand challenging environments including high humidity and corrosion. Its Pull Through System enhances radiant efficiency and safety by efficiently pulling combustion products through the chamber.

Featuring CSA certification, this heater offers versatility with options for sidewall or roof venting, and can operate in vented or indirect vented modes. It comes complete with a 36″ stainless steel gas connector and is equipped with a heavy-duty draft inducer assembly for maintenance-free operation. Safety features include a 30-second per-purge period, diaphragm air switch for venting verification, and a reliable direct spark ignition system with 100% Gas Shut-Off Safety Control.

Features

• Completely aluminized steel construction for high humidity and corrosive environments

• Pull Through System - products of combustion are pulled through the combustion chamber for increased radiant efficiency and greater safety

• 6 different Btu sizes

• CSA design certified

• Sidewall or through the roof venting

• Vented or indirect vented operation

• Includes 36″ stainless steel gas connector

• No draft hoods, totally enclosed combustion chamber

• Heavy duty draft inducer assembly with permanently lubricated, totally enclosed and heavy duty ball bearing motor for maintenance-free operation

• 30 second per-purge period before ignition

• Diaphragm air switch for proof of venting before gas flow and ignition

• Heavy duty cast iron burner

• Reliable direct spark ignition system and 100% Gas Shut-Off Safety Control

• Inside or outside air for combustion (Up to 50 ft. outside combustion air capability)

• Diagnostic Monitoring Light System

• 4” O. D. heat treated aluminized steel combustion chamber (10’ length)

• Aluminized steel radiant tubes

• Suitable for horizontal or angle mounting up to 45°

• Up to 75 feet sidewall vent capability

• Highly efficient aluminum reflectors

• Individual reflectors can be rotated up to 45° to direct heat where needed

• Natural Gas

• 175,000 BTU

• 4" vent connection

• Not for use in residential applications

Specifications
