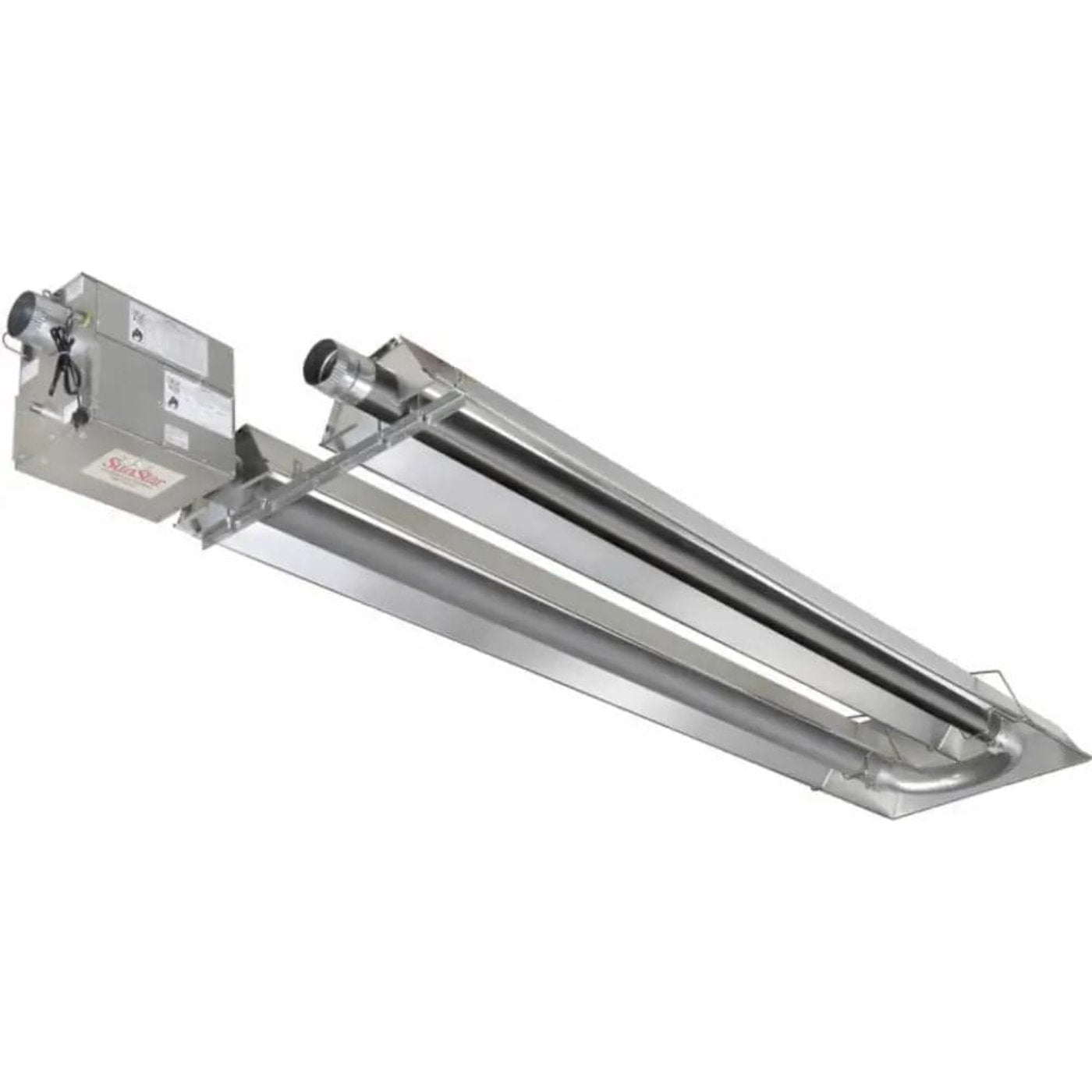

SunStar Industrial 200K BTU/70ft U Tube Tough Guy Positive Pressure Heater/NG/Two Stage

SunStar Industrial 200K BTU/70ft U Tube Tough Guy Positive Pressure Heater/NG/Two Stage

Crafted with completely aluminized steel, this heater is built to withstand high humidity and corrosive conditions. It utilizes a push-through system where combustion products are safely directed through the combustion chamber, ensuring enhanced safety and efficiency.

Versatile Configuration and Mounting Options

Choose from 8 different BTU sizes and over 60 configurations to customize your infrared heating system precisely. The unit supports sidewall or through-the-roof venting, making it adaptable to various installation setups. It can be vented or operated indirectly for flexible deployment.

Quiet and Reliable Operation

Equipped with a blower motor encased in a burner box, this heater operates quietly (less than 60dB) and maintenance-free thanks to heavy-duty permanently lubricated ball bearings. It features a 30-second pre-purge period before ignition and a diaphragm air switch for venting proof before gas flow and ignition.

Features

• Completely Aluminized Steel Construction for High Humidity and Corrosive Environments

• Push Through System - products of combustion are pushed through the combustion chamber

• 8 different Btu sizes and more than 60 different configurations to custom design your infrared heating system

• CSA design certified

• Sidewall or through the roof venting

• Vented or indirect vented operation

• Includes 36″ stainless steel gas connector

• No draft hoods - totally enclosed combustion chamber

• Blower motor (less than 60dB) totally enclosed in the burner box - heavy duty permanently lubricated ball bearing, totally enclosed motor for maintenance-free operation

• 30 second per-purge period before ignition

• Diaphragm air switch for proof of venting before gas flow and ignition

• Heavy duty cast iron burner

• Reliable direct spark ignition system and 100% Gas Shut-Off Safety Control

• Inside or outside air for combustion (Up to 25 ft. outside combustion air capability)

• Diagnostic Monitoring Light System

• 4” O. D. heat treated aluminized steel combustion chamber (10’ length)

• Aluminized steel radiant tubes

• Suitable for horizontal or angle mounting up to 45°

• Up to 25 feet sidewall vent capability

• Highly efficient aluminum reflectors

• Individual reflectors can be rotated up to 45° to direct heat where needed

• Natural Gas

• 200,000 BTU

• 4" vent connection

• Not for use in residential applications
